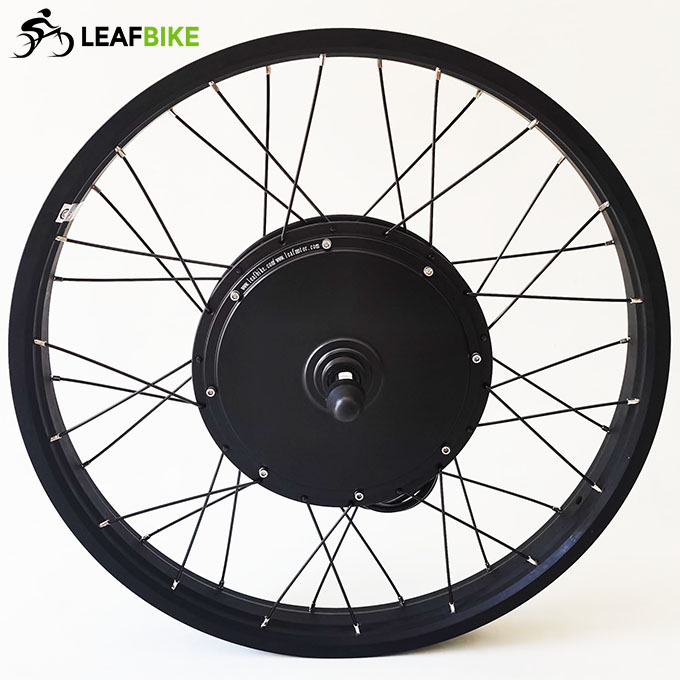

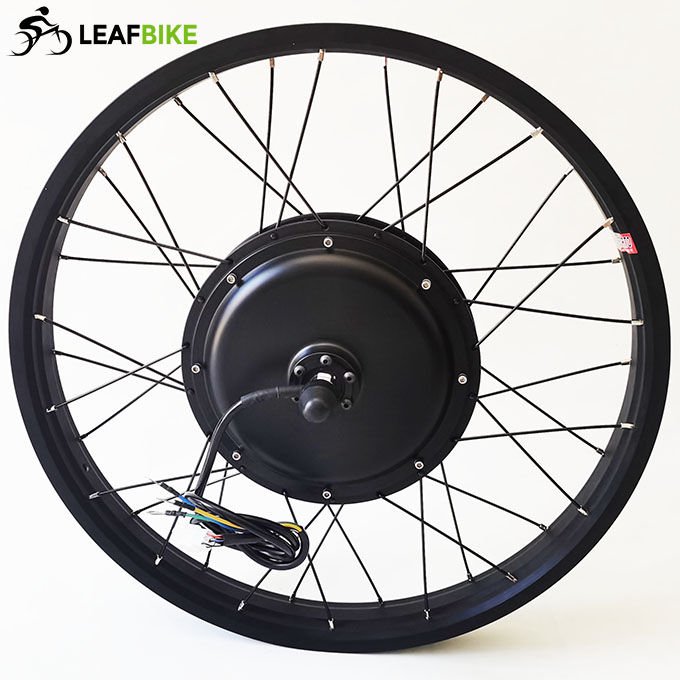

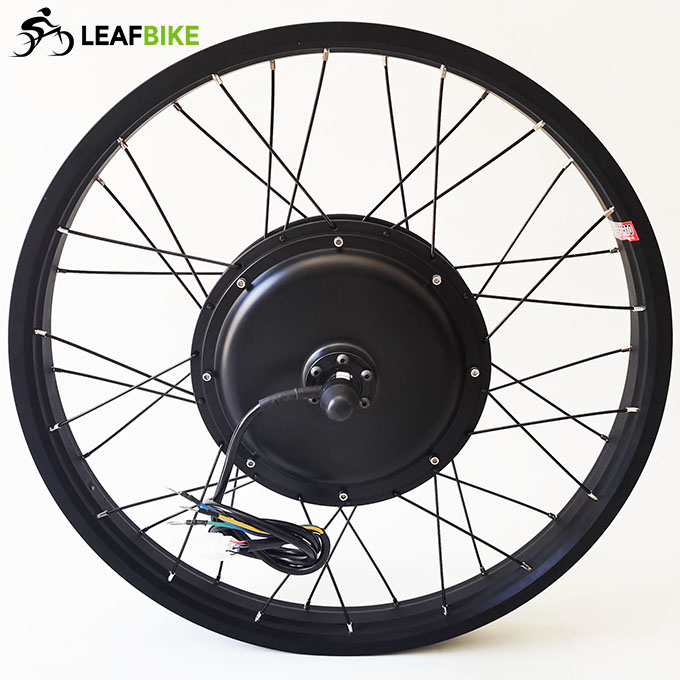

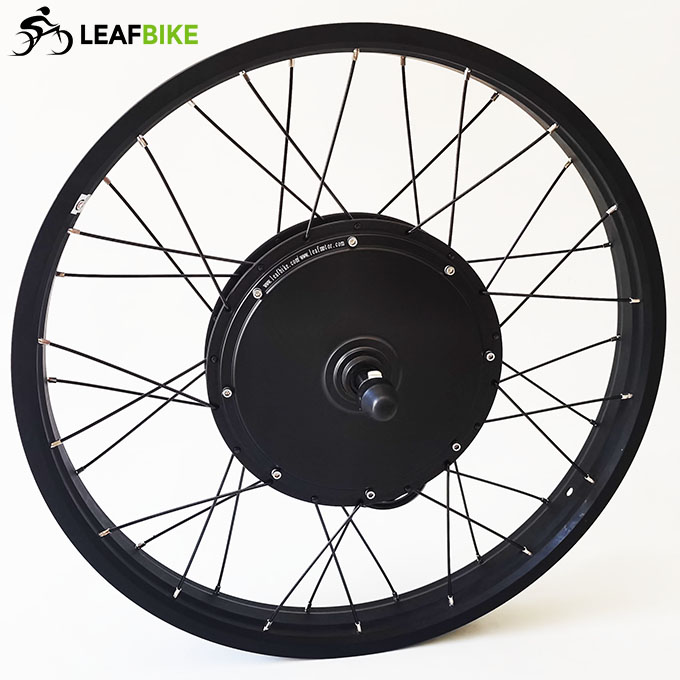

24 inch 57mm wide rim 48V / 52V 1500W rear electric bike motor - bike conversion kit

Item ID #LBCK24481500RNW
$370.00 $480.00
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description
* The 24 inch 1500w electric bike motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Main Features:

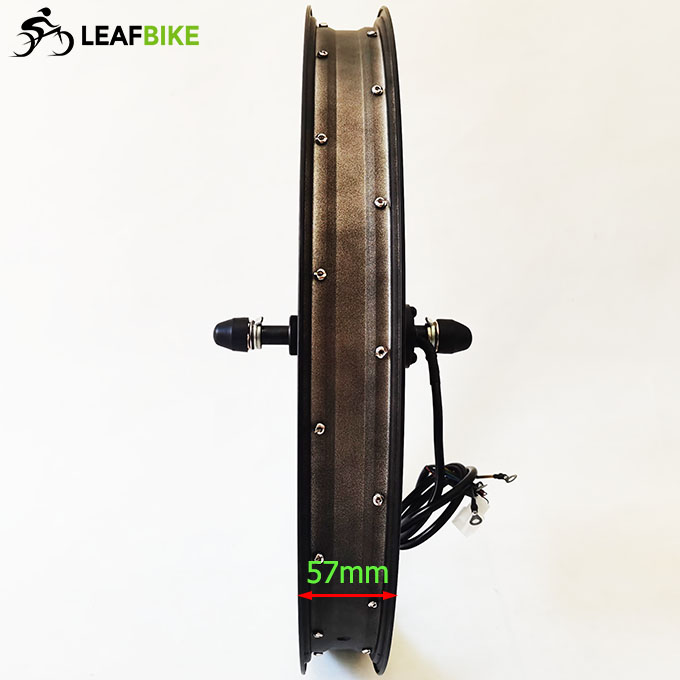

>. Rim: 24 inch double wall Alloy (Rim Fit For: 24 × 2.7 ~ 3.0" tire)
>. Spoke: 12 gauge black / 135mm Length × 36 pcs

>. Engine : Bldc hub motor
>>. Voltage: 48V / 52V
>>.  Power: 1500W
>>.  Efficiency: 90.5%
>>.  Max speed: 71.6 kmh Default (Optional other speed: 35mph or 25mph,15mph...please leave message)
>>. Mechanical brake: Disk or  V
>>. Cassette: space for single speed... 6 speed or 7 speed
>>.  Cable length:100cm / 40"
>>.  Install: spacing of Min.140mm to Max.155mm fork
>>.  Noise: < 60 db
>>.  Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>.  Rated power: 1500 Watts
>>.  Casing material: aluminium
>>.  Maximum Current: 40 A ± 1 Amps
>>.  Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 171 mm L × 82 mm W × 42 mm H

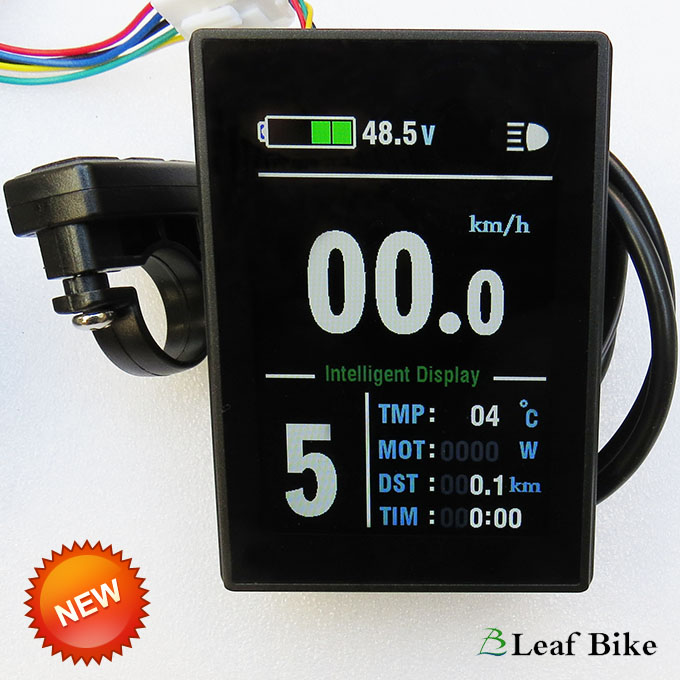

LCD8S , More Function:
* Cruise?-- Green button Control (While motor is working,press green button one time,it will be "CRUISE" - running as the same speed)
* Reverse?-- Yellow button Control ("Left side & mid / forward -- "Right side / backward")
* Regen brake?-- Red button Control ("Up / Regen ON -- Down / Regen off ")
* Kmh / mph
* Set Max speed ( 0 ~ 72 kmh / 45 mph )?--  If set be "32", Max speed will be 20mph / 32kmh
* Pedal assist ( 0 - 5 )?-- "0" is off PAS. "1-5" is on PAS. "5" is the strongest.
* ...

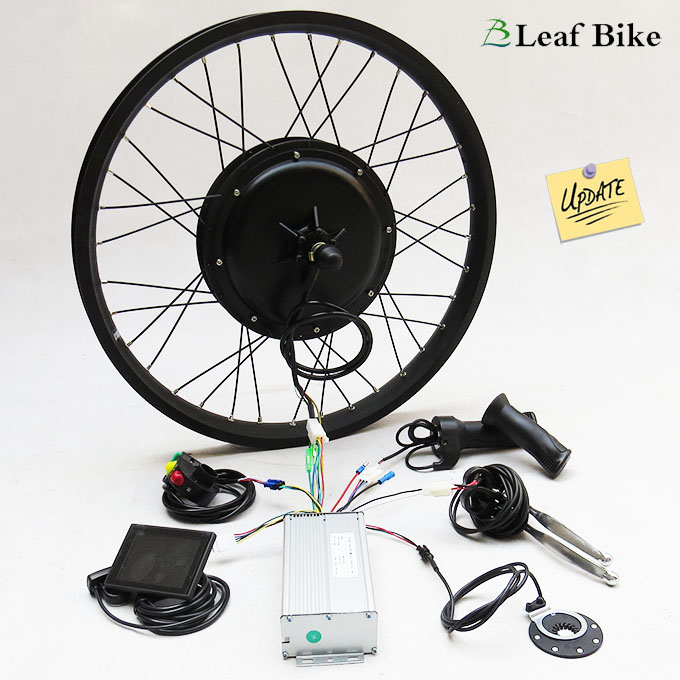

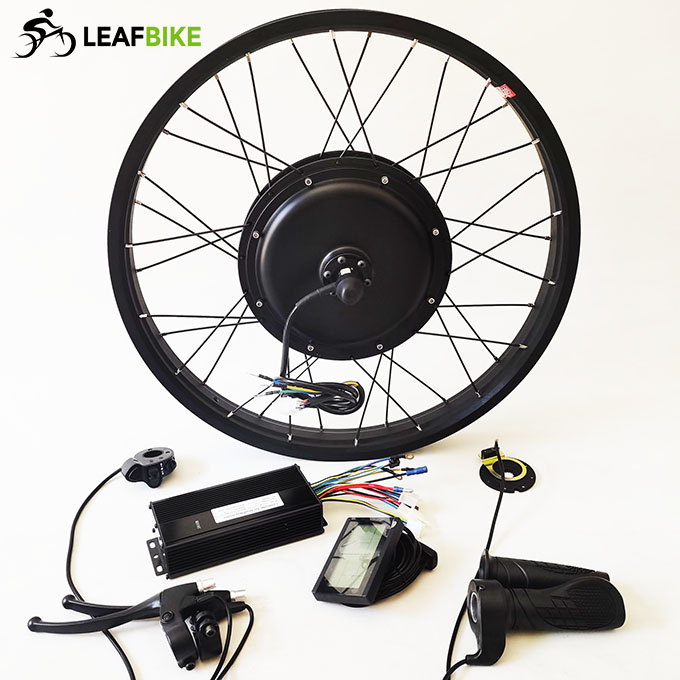

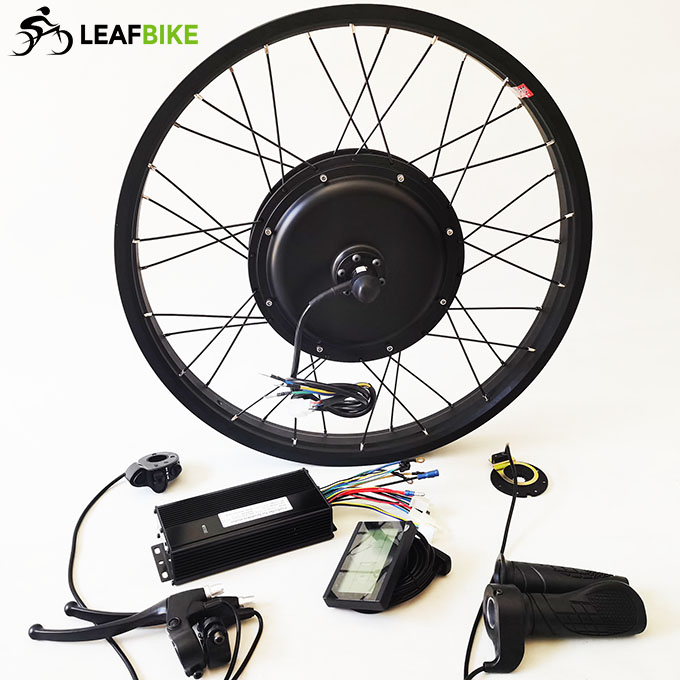

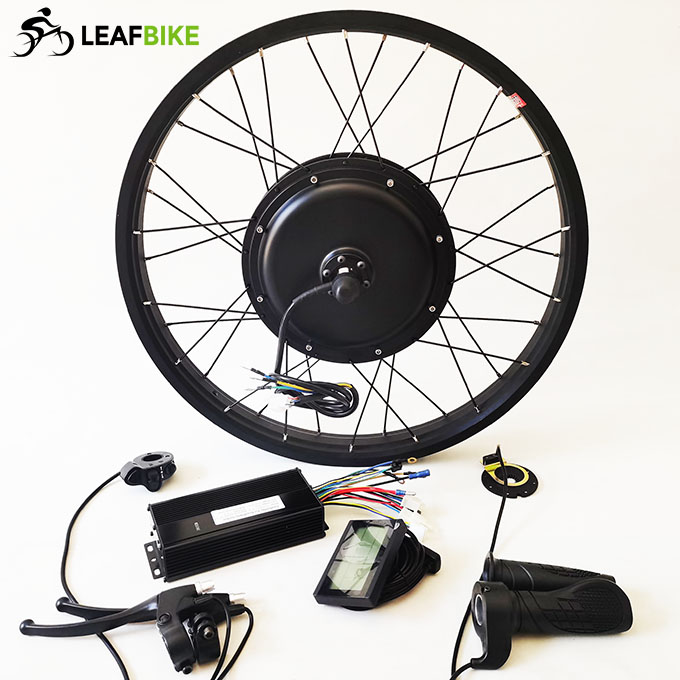

Package Content:

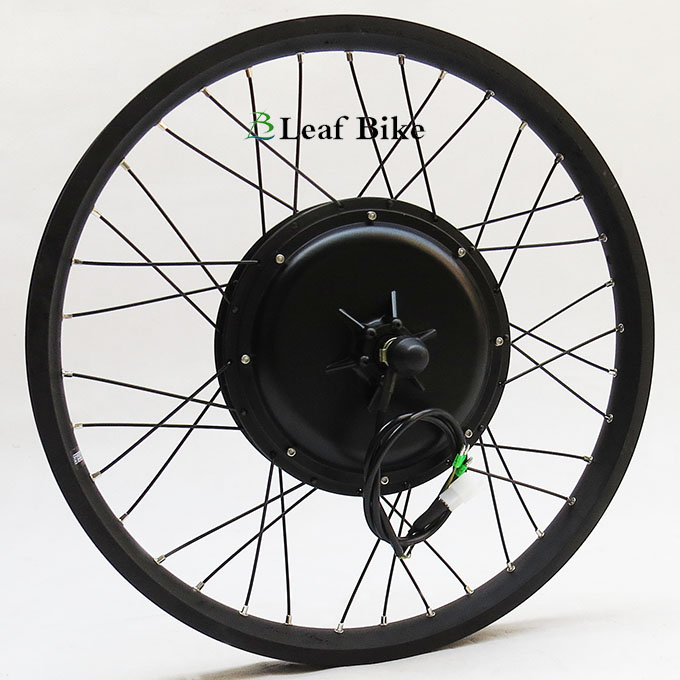

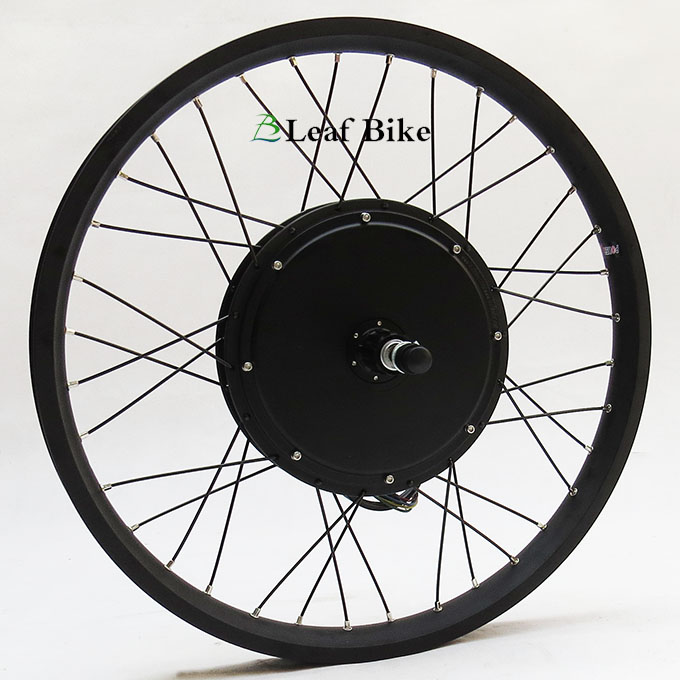

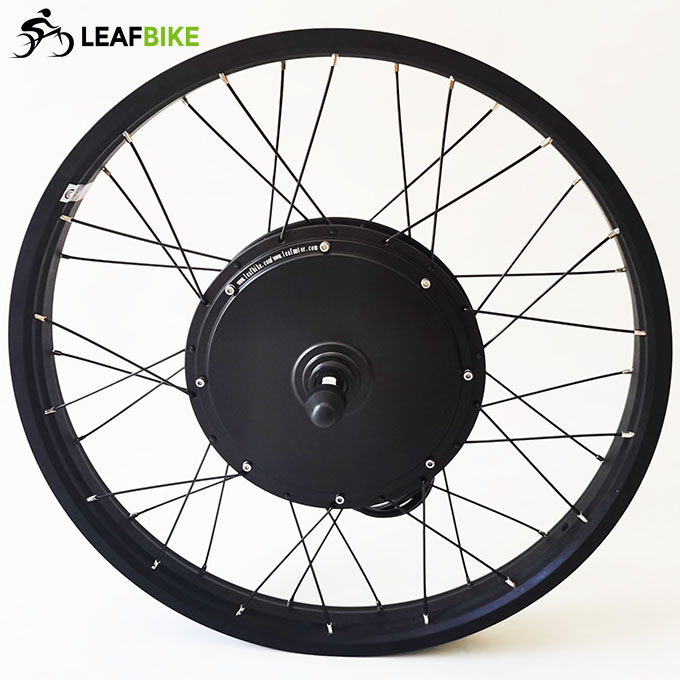

1 x 24 inch 57 mm wide rim 48V / 52V 1500W rear hub motor wheel - cassette version
1 x 48V / 52V 1500W 12-MOSFET motor controller
1 x LCD8S ( display speed, mileage, battery gauge.. )
1 x Twist throttle -- Cable length: 1500mm
 1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, regen brake, reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 1500mm

Net Weight: 11.2 kg   /  24.6 lbs
Package Size: 58cm L x 26cm W x 58cm H  /  22.8"  L x 10.2" W x 22.8" H
Package Type: Cardboard Box
Share Video:
24-inch-48v-1500w-electric-hub-motor-bike-conversion-kit

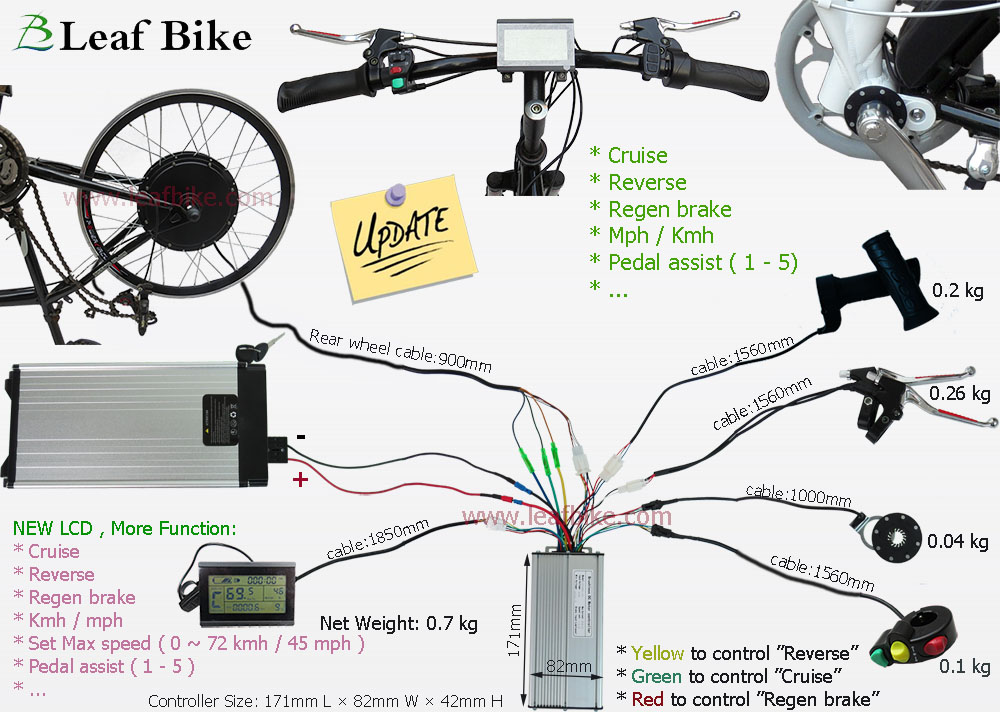

Wire Diagram:
rear electric hub motor - bike conversion kit - wire diagram
1500w rear Motor Drw.
1500w-rear-electric-bike-motor-drawing
Performance Data:
48v-1500w-bike-motor-curve
