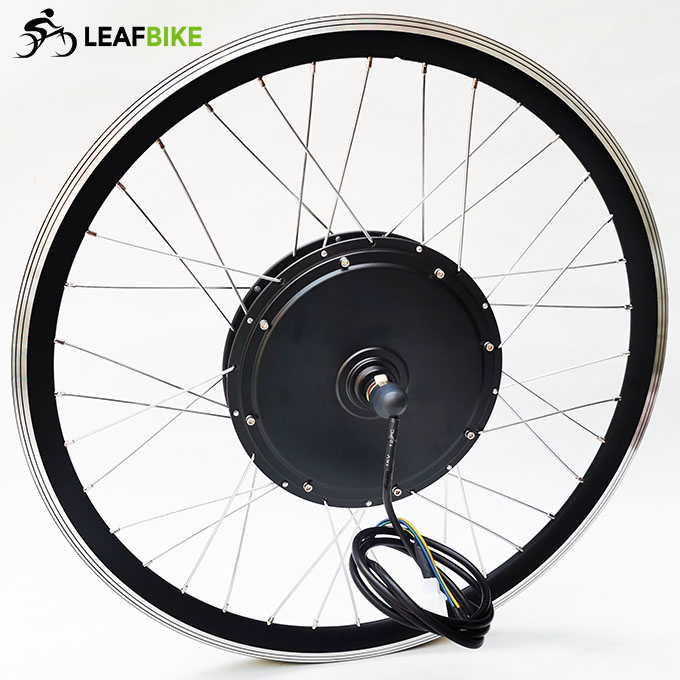

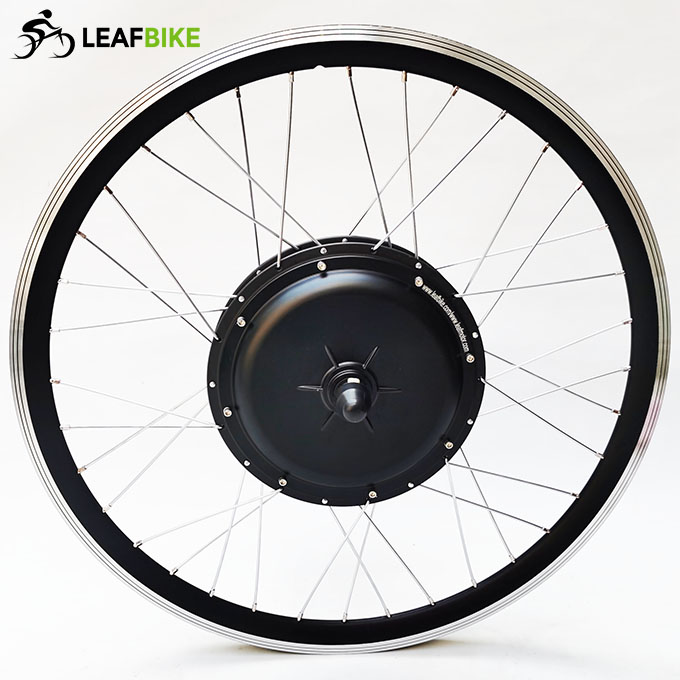

BMX 24 inch 48V 1500W rear hub motor - electric bike conversion kit

Item ID #LBCK24481500RNBK
$419.00 $463.00
    Please select the information you wantX
  • Tyre Size :
    24 x 1.5" / 1.75"
    24 x 1.95" / 2.0" ~ 2.5"
  • LCD :
    LCD-003
    LCD-005
    LCD-07U
    LCD-08HUP
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description
Please watch video for BMX 24 inch 48V 1500W rear hub motor electric bike conversion kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..
Share Video:
BMX 24 inch 48V 52V 1500W rear hub motor electric bike conversion kit

* This 24 inch BMX bike motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.


Main Features:

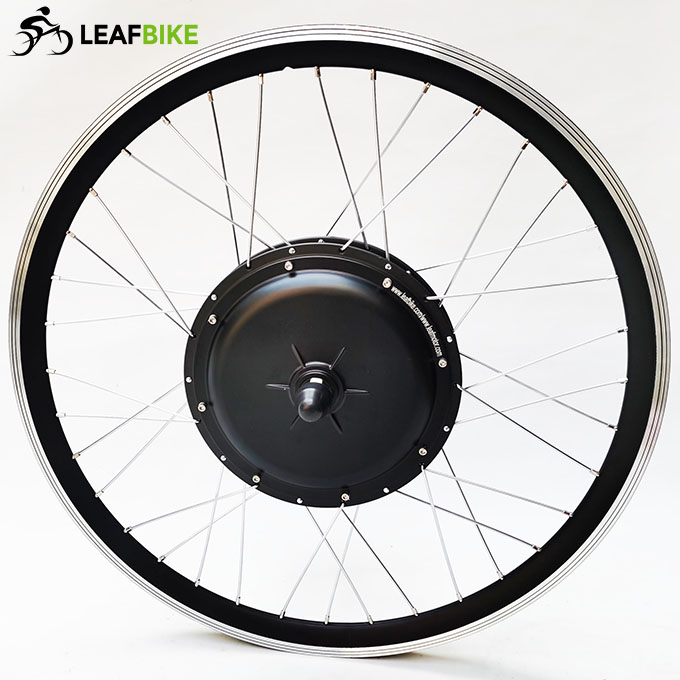

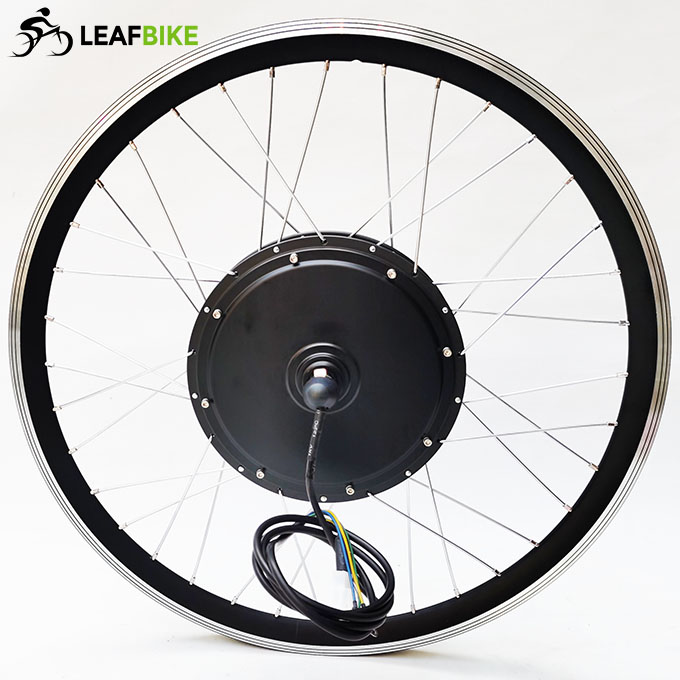

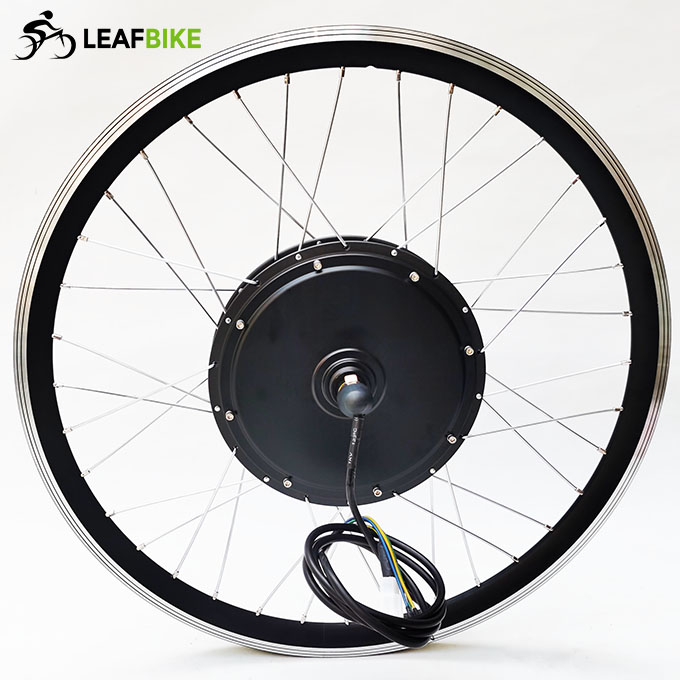

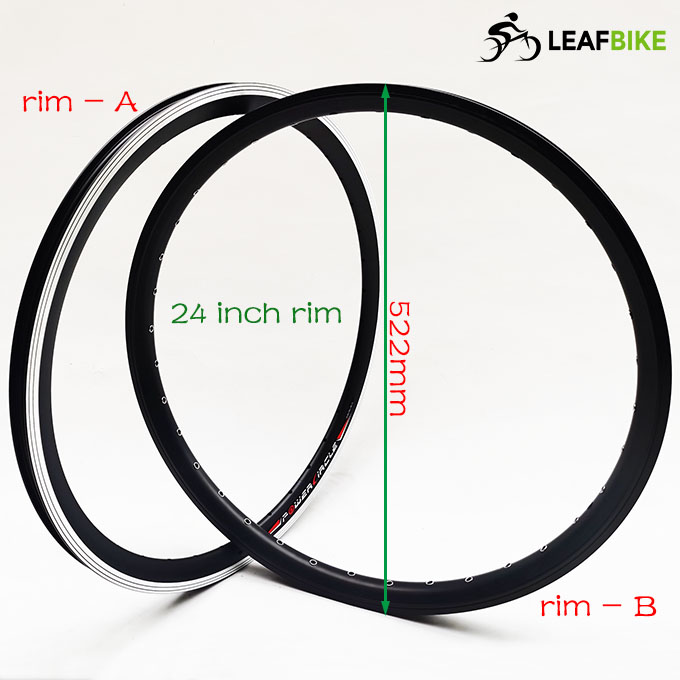

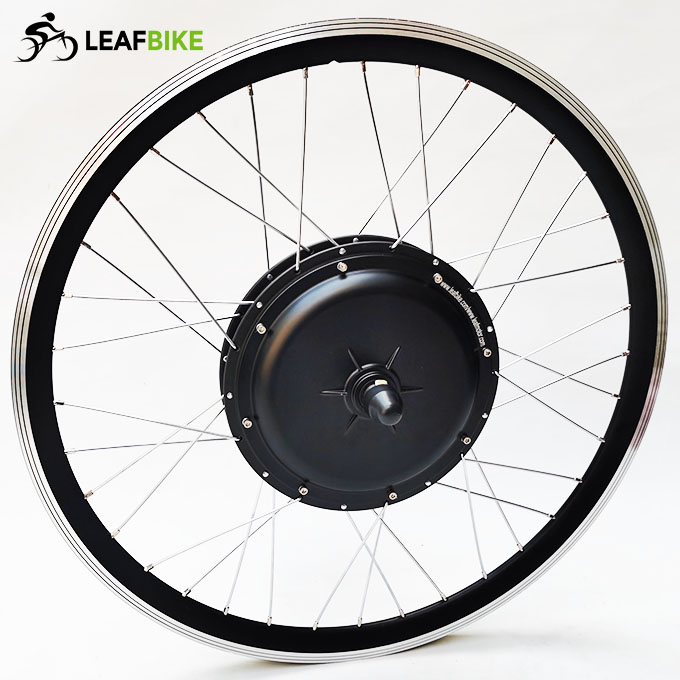

>. Rim A: 24 inch double wall Alloy (Rim Fit For: 24 × 1.5" / 1.75" tire)
>. Spoke: Silver 12 gauge / 130mm Length × 36 pcs

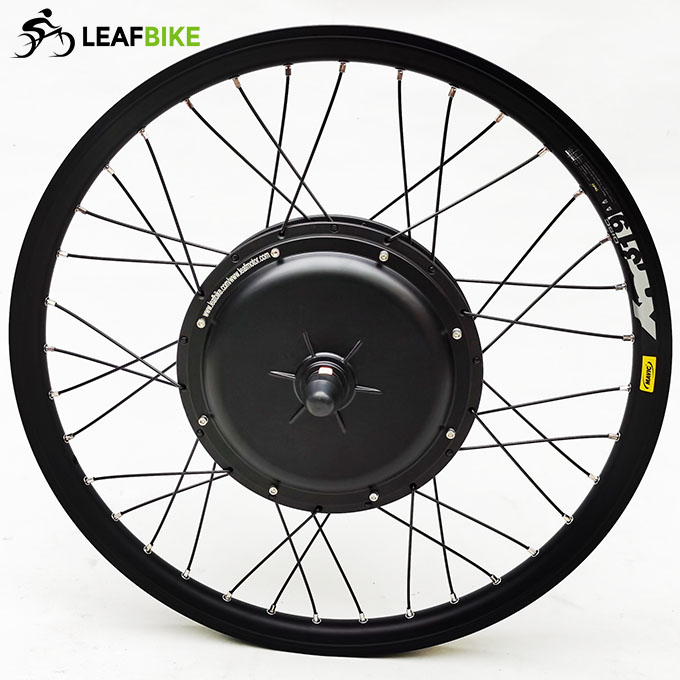

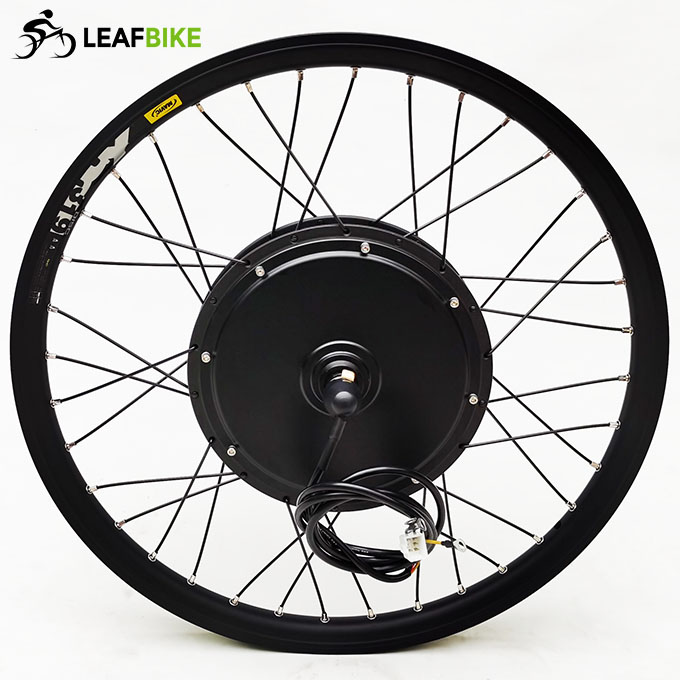

>. Rim B: 24 inch double wall Alloy (Rim Fit For: 24 × 1.95" / 2.0" ~ 2.5" tire)
>. Spoke: Black 12 gauge / 135mm Length × 36 pcs


>. Engine : Bldc hub motor
>>. Voltage: 48V
>>.  Power: 1500W
>>.  Efficiency: 90.5%
>>.  Max speed: 35mph @48V (No load speed)
>>. Mechanical brake: V
>>. Freewheel: single speed cog
>>.  Cable location: shaft end, Right
>>.  Cable length: 150cm / 60"
>>.  Install: spacing of 110mm rear fork
>>.  Noise: < 60 db
>>.  Surface: Black painted

>. Driver: brushless controller
Default: Heat Shrink Bullet Crimp Female Male Wire Connectors Electrical Terminals for battery plug.(Leave message Optional: XT-60)
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>.  Rated power: 1500 Watts
>>.  Casing material: aluminium
>>.  Maximum Current: 40 A ± 1 Amps
>>.  Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 171 mm L × 82 mm W × 42 mm H

With LCD, More Function:
* Cruise -- Green button Control (While motor is working,press green button one time,it will be "CRUISE" - running as the same speed)
* Reverse -- Yellow button Control ("Left side & mid / forward -- "Right side / backward")
* Kmh / mph
* Set max speed ( 0 ~ 72 kmh )
* Pedal assist ( 0 - 5 )
* ...

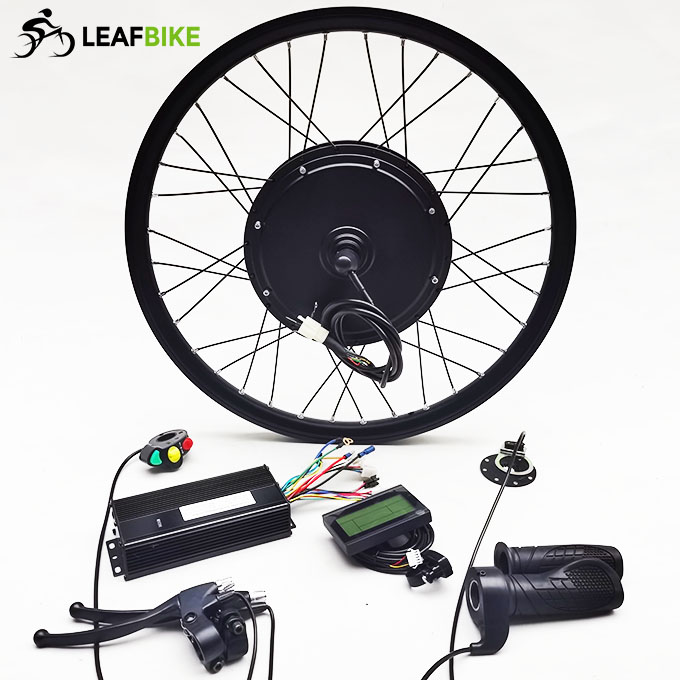

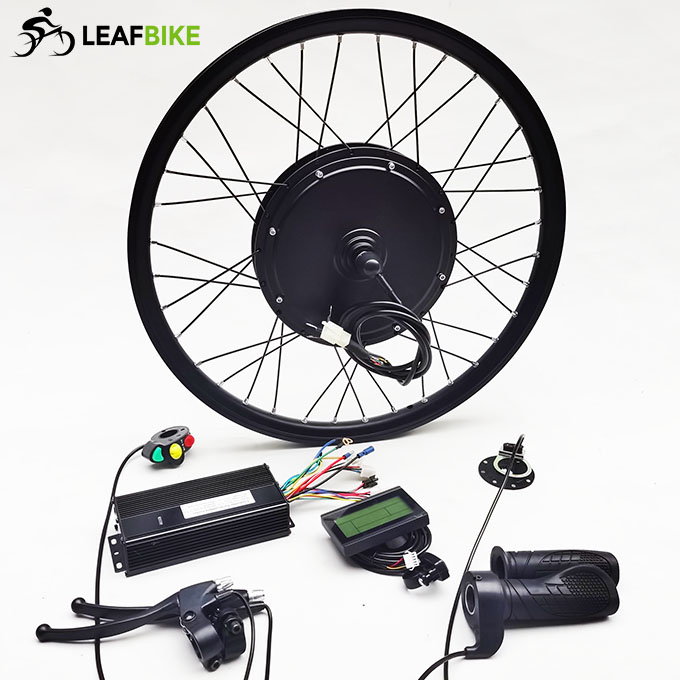

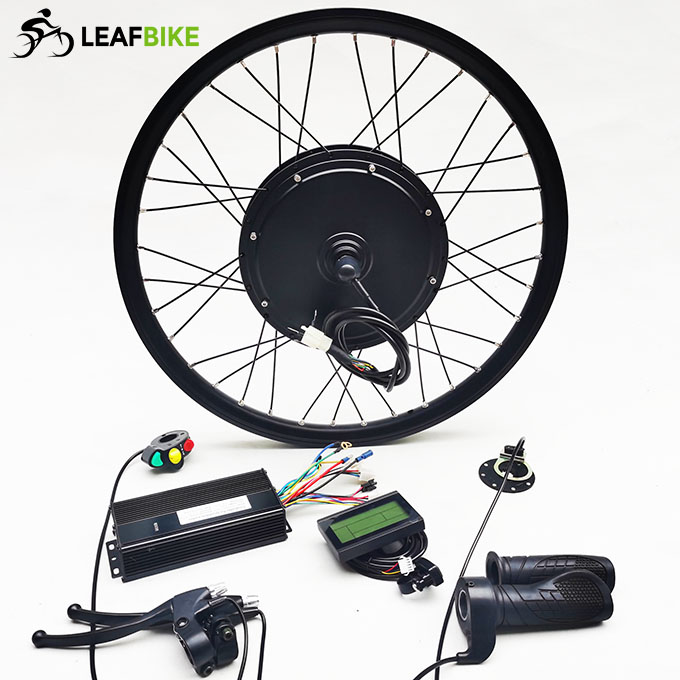

Package Content:

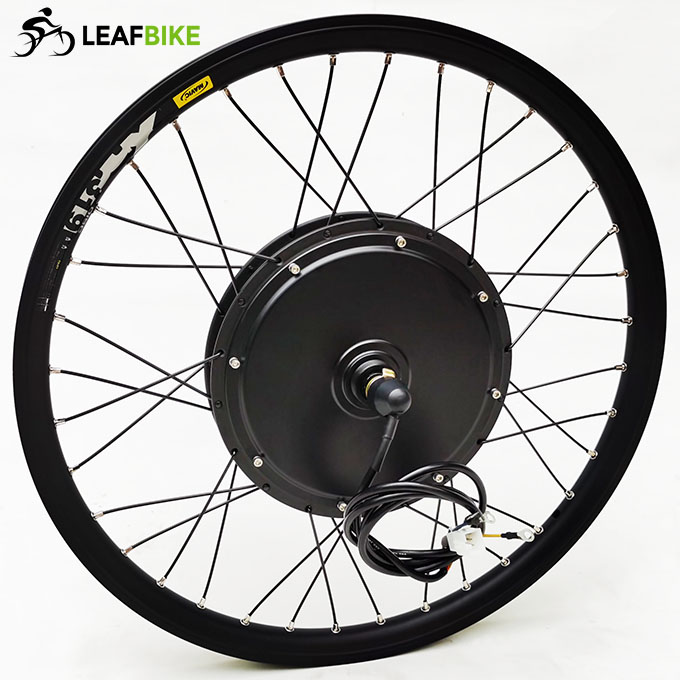

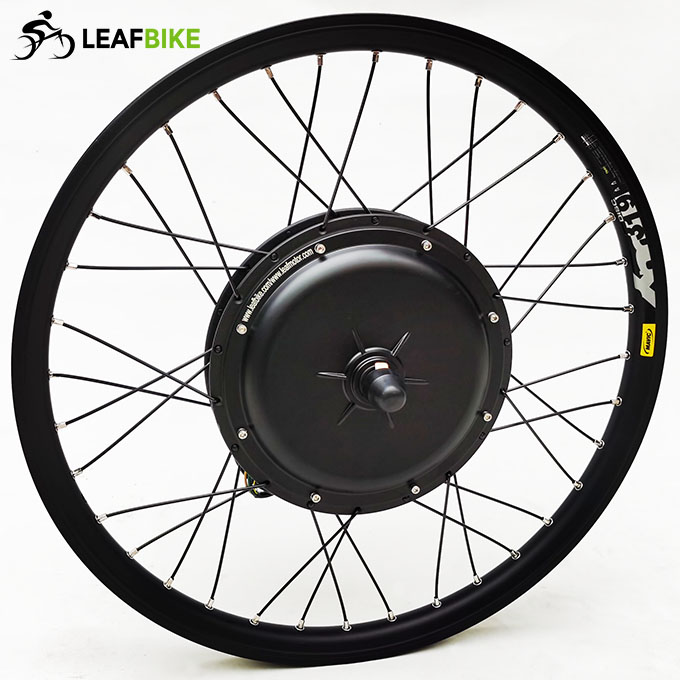

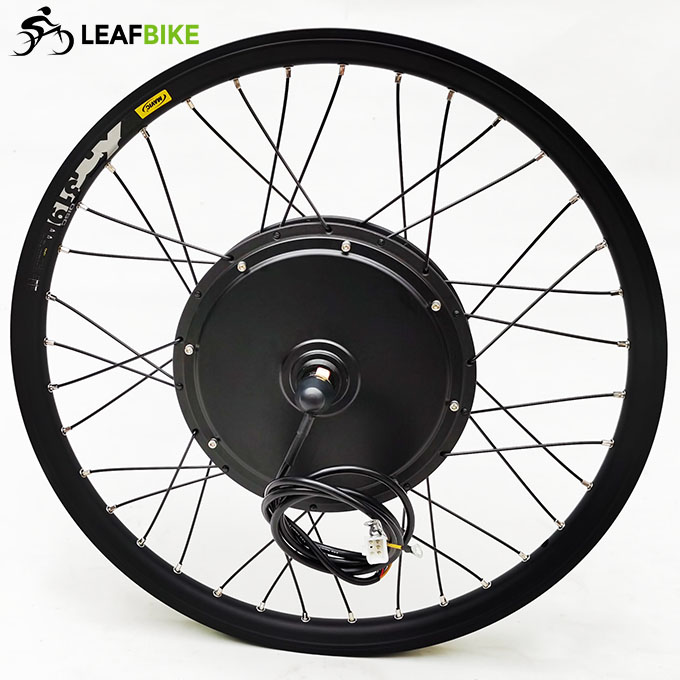

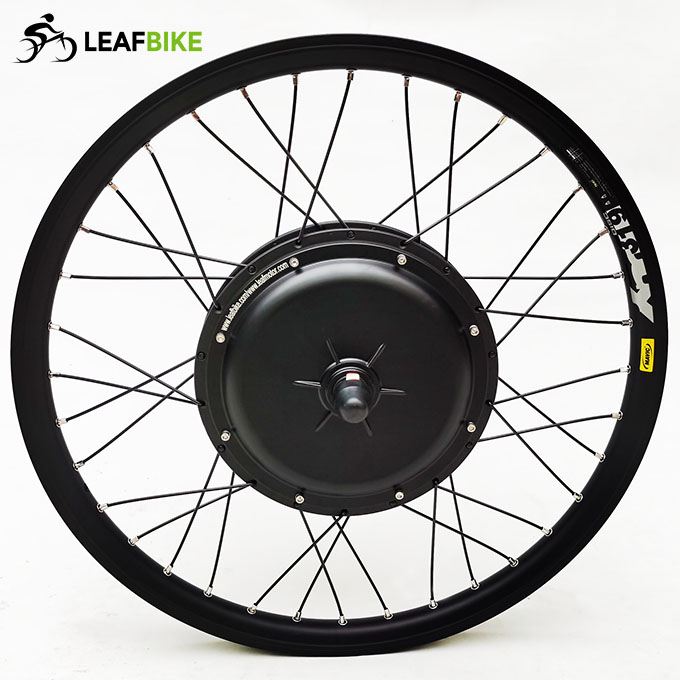

1 x BMX 24 inch 48V 1500W rear hub motor wheel (Fit for 110mm rear dropout)
1 x 48V 1500W 18-MOSFET motor controller
1 x LCD
1 x Twist throttle -- Cable length: 1500mm
 1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 11.0 kg   /  24.2 lbs
Package Size: 56cm L x 56cm W x 25cm H
Package Type: Cardboard Box
Wire Diagram:
1500w rear electric hub motor bike conversion kit wire diagram
1500w BMX Motor Drw.bmx 1500w rear bike motor drawing
Performance Data:
1500w hub motor curve
