The conversion kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun. Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.
Main Features:
>. Rim: 24 - 3.00" (Rim Fit For: 24 x 4.0" tire)
>. Spoke: 12 gauge / 155mm Length x 36 pcs
>. Engine: Bldc hub motor
>>. Voltage: 48V / 52V
>>. Power: 1000W
>>. Efficiency: 90.5%
>>. Max speed: 72 kmh -- 40 mph
>>. Mechanical brake: Disk or V
>>. Freewheel / Cassette: space for 6 or 7 gears
>>. Cable location: shaft end, LEFT
>>. Cable length: 100cm / 40"
>>. Install: spacing of 135mm fork
>>. Noise: < 60 db
>>. Surface: Black painted
>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 1000 Watts
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 171 mm L x 82 mm W x 42 mm H
LCD-003, More Function:
* Cruise
* Forward &Backward (Optional)
* Regen brake
* Kmh & mph (Optional)
* Set Max speed ( 0 ~ 72 kmh / 45 mph )
* Pedal assist ( 1 - 5 )
* Temperature
* Motor power
* Timer
* Battery gauge
* ..

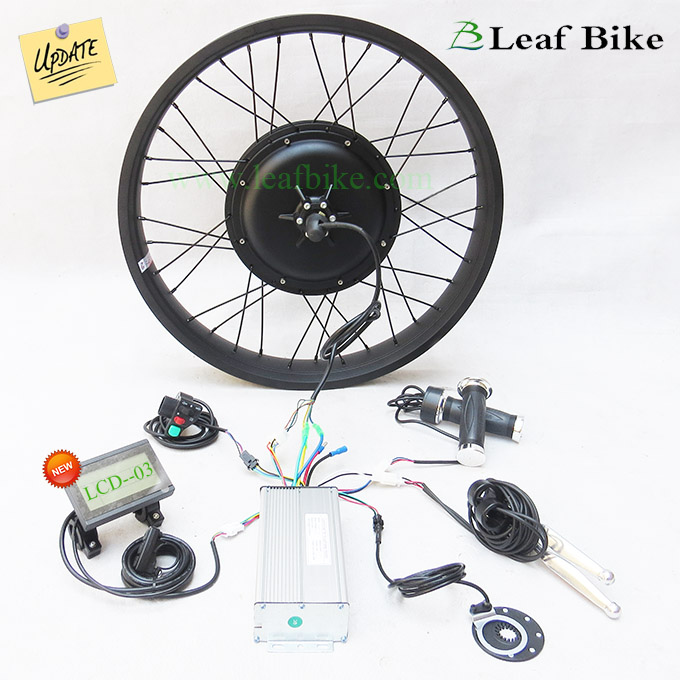

Package Content:

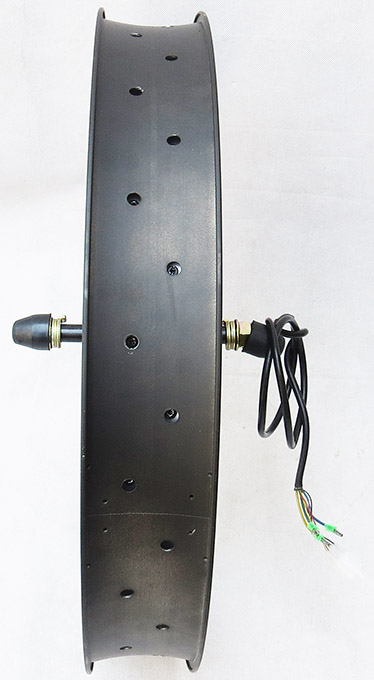

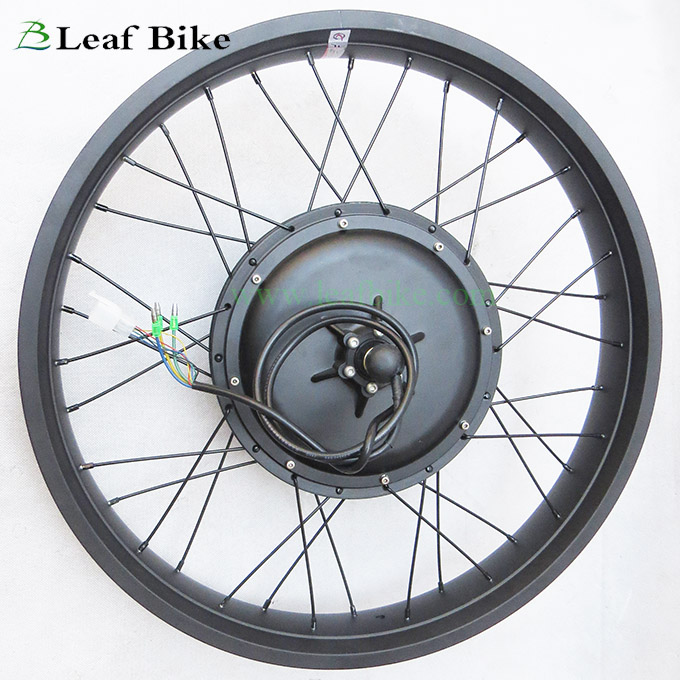

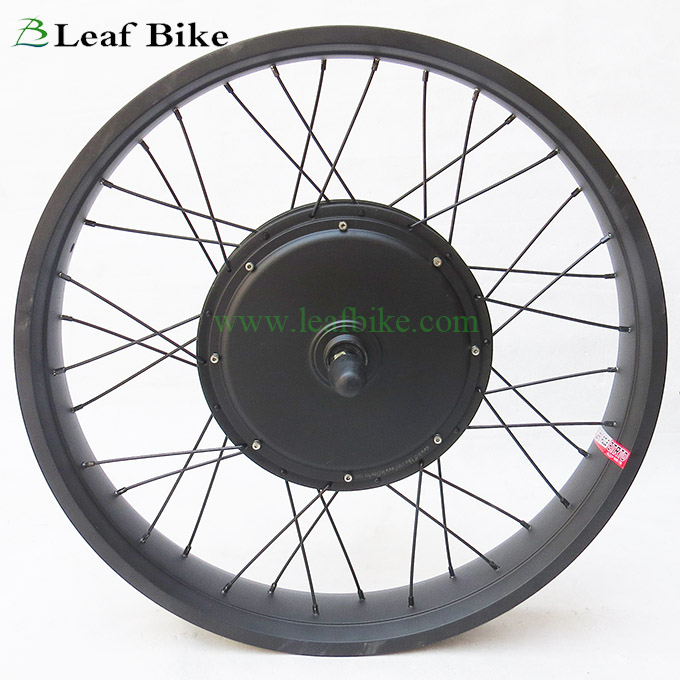

1 x 24 - 3.0 inch 48V / 52V 1000W rear hub motor wheel
1 x 48V 1000W 12-MOSFET motor controller
1 x LCD-003 ( display speed, mileage, battery gauge.. )
1 x Standard twist throttle
1 x Brake levers
1 x Three button switches ( control cruise.. )
1 x Pedal assist
Net Weight: 11.5 kg / 25.3 lbs
Package Size: 56cm L x 56cm W x 25cm H
Package Type: Cardboard Box
