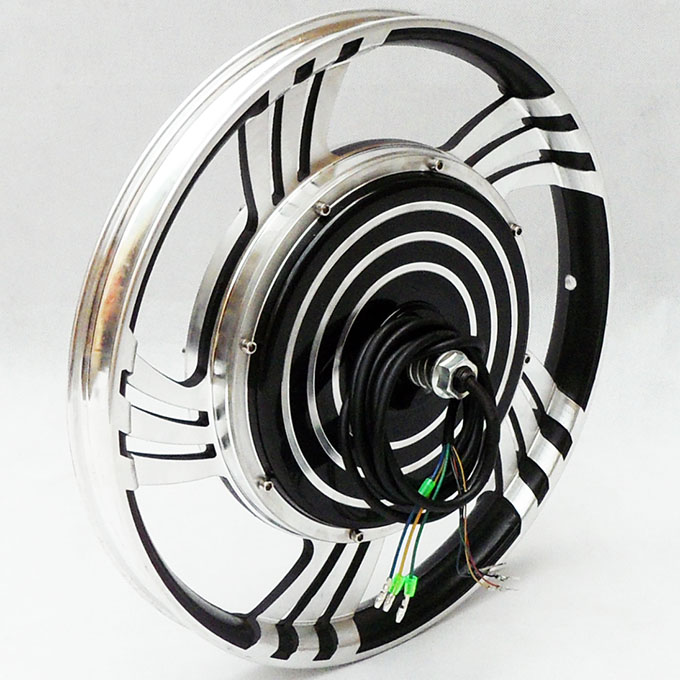

18 inch 36V 750W electric scooter kit - front hub motor wheel

Item ID #LBCK1836750F
$298.00 $370.00
    Please select the information you wantX
Quantity :
Maybe You Need These
Maybe You Need These
Please watch video for 18 inch 36V 750W front hub motor electric scooter conversion kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..
Share Video:
18 inch 36v 750w front hub motor

The 18 inch scooter motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Main Features:
Hub: Ø372mm Alloy casted (Hub Fit For: 18 × 2.125" / 2.5" scooter tire) - Not fit for 2.5 - 18 inch motorcycle tire
Motor Type: electric scooter motor
Controller: LCD display
Max speed: 46.9 kmh -- 29 mph
Mechanical brake: V
Install: spacing of 100mm fork

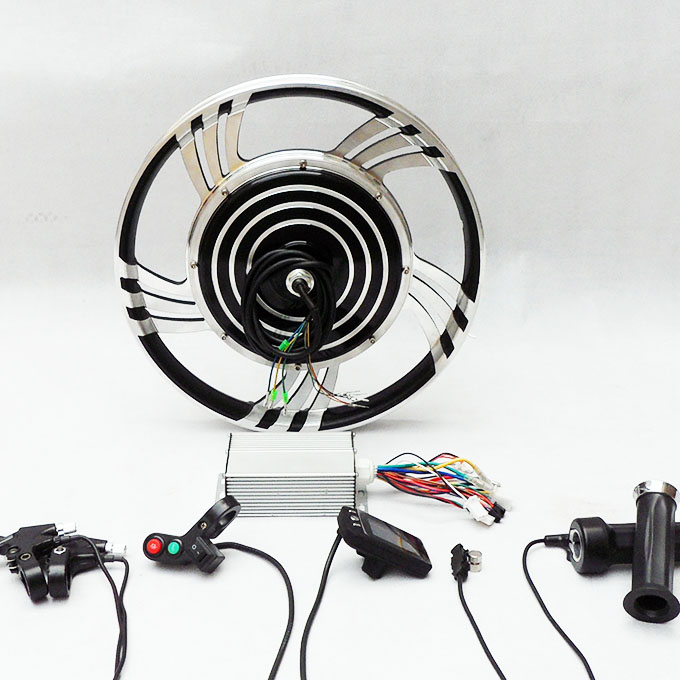

Package Content:

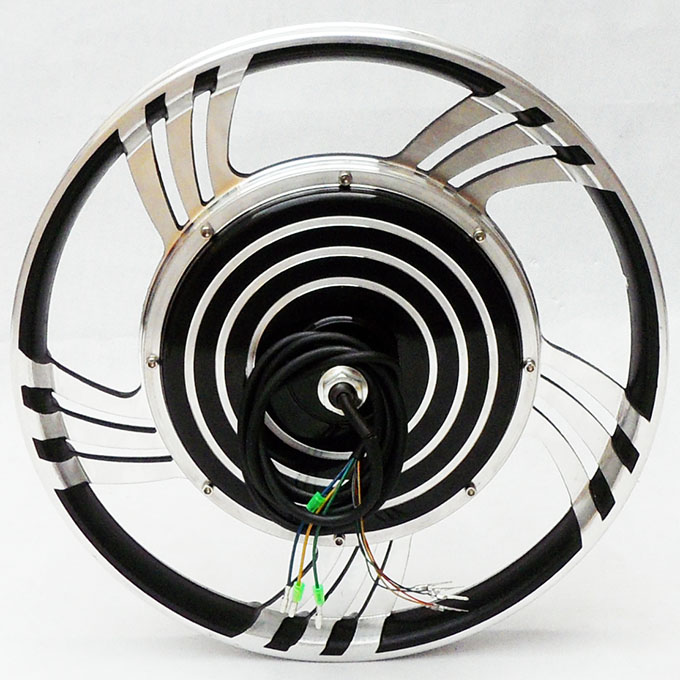

1 x 18 inch 36V 750W front hub motor wheel
1 x 36V 750W 12-MOSFET motor controller

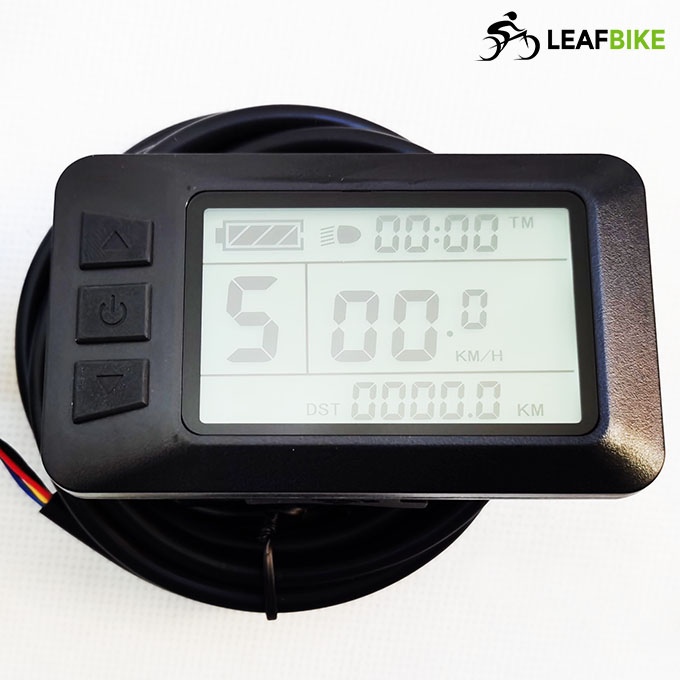

1 x LCD-003 ( display speed, mileage, battery gauge.. )
1 x Twist throttle No battery gauge
1 x Brake lever
1 x Three button switches

 Net Weight: 8.6 kg   /  18.9 lbs
Package Size: 46cm L x 46cm W x 25cm H
Package Type: Cardboard Box

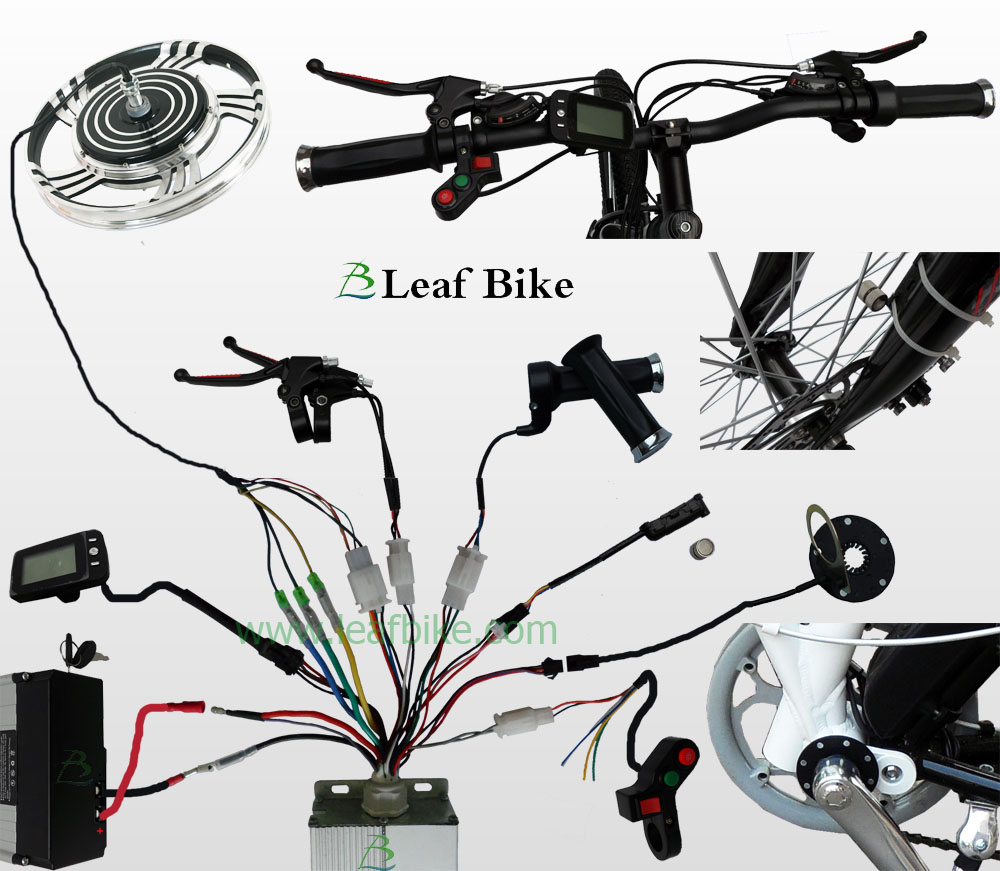

Wire Diagram:
18 inch brushless hub motor wire diagram

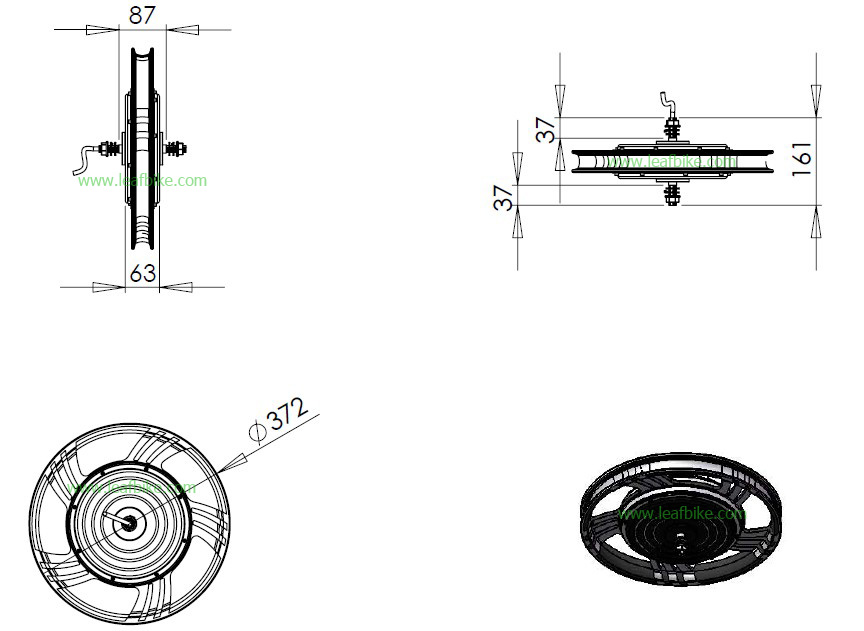

18 inch Front Drw.18 inch 36v 750w front brushless hub motor

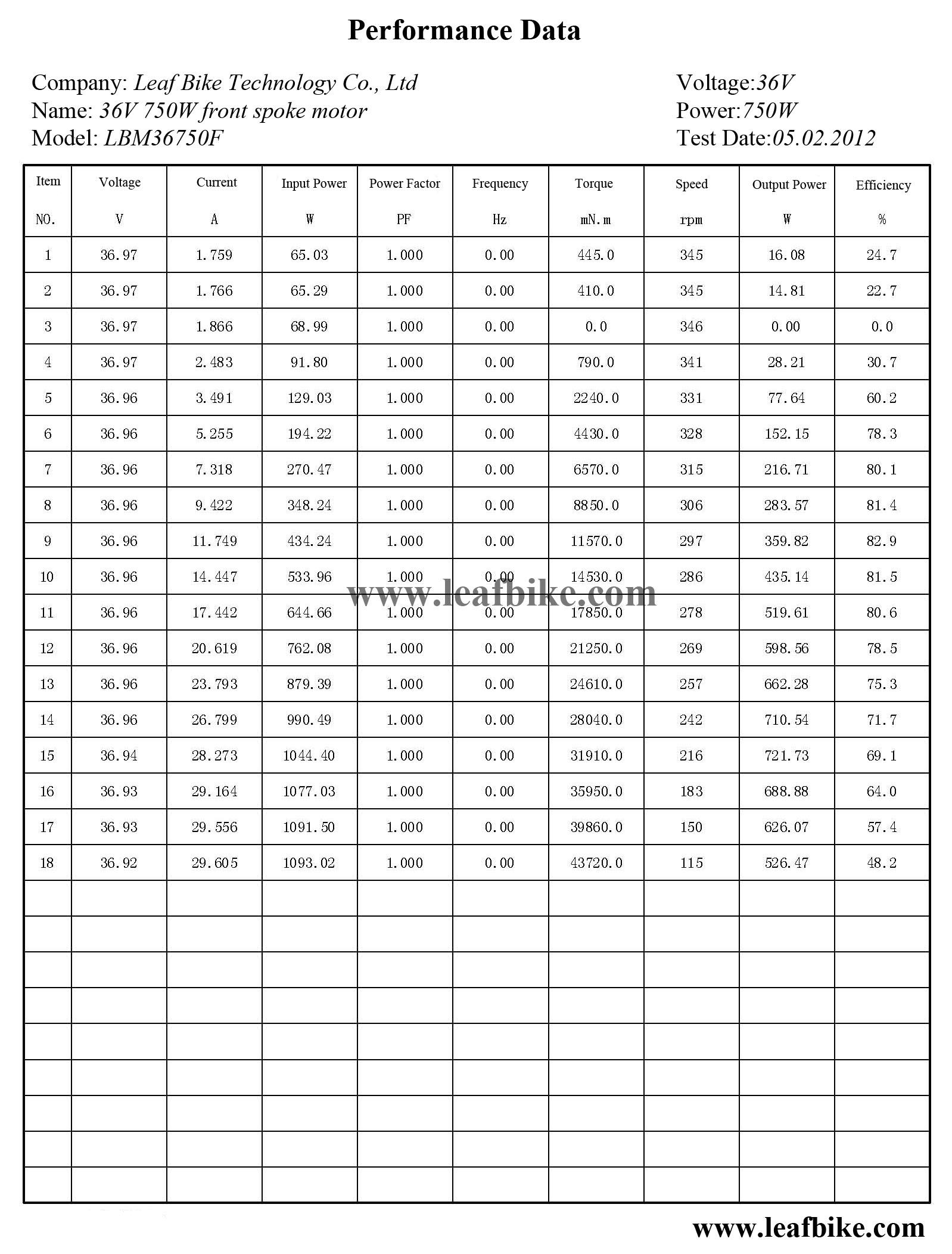

Performance Data:36V 750W front spoke hub motor performance data

Recommended Products: Torque Arm
Why do you need a torque arm? Because as hard as your tire is straining to go forwards,  your axle is straining to go backwards. Torque arms provide increased strength at the axle and are used to help prevent the axle from spinning out inside the drop outs. If the axle spins, then the electric wires that come out of the axle also spin and break or get stretched and pulled out of the motor.
torque arm
