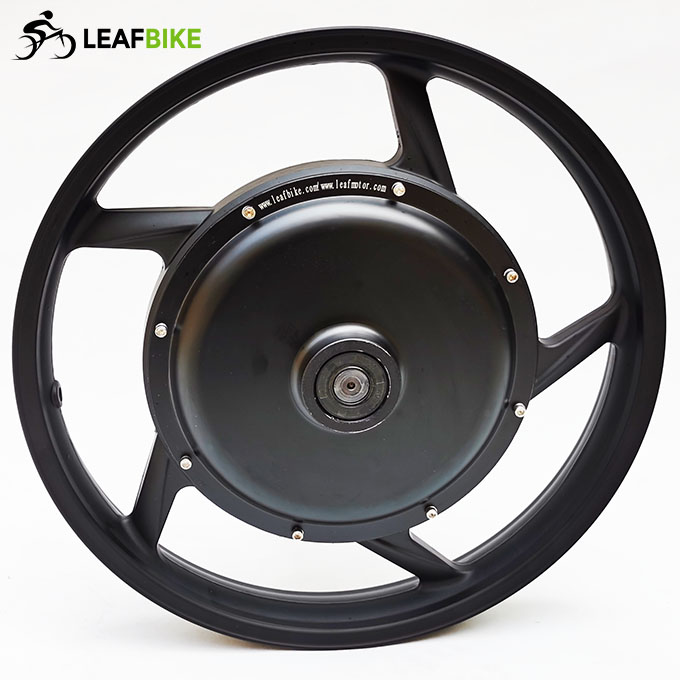

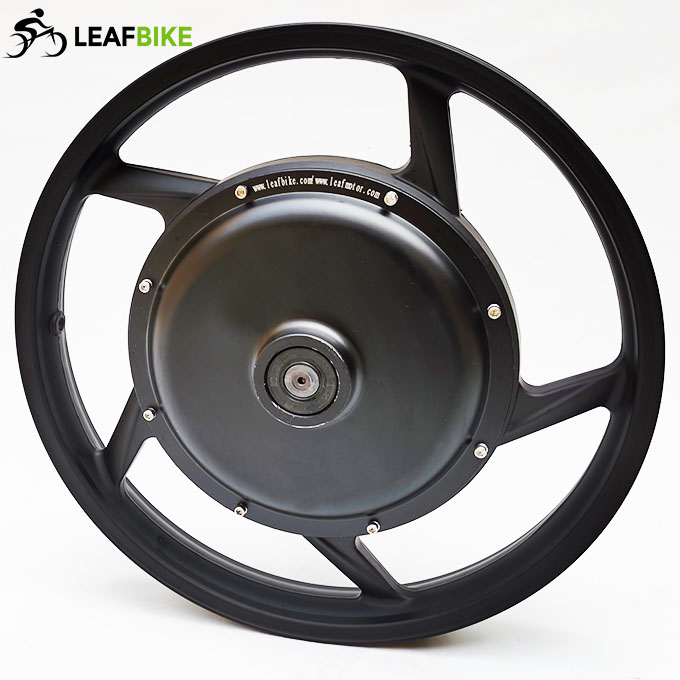

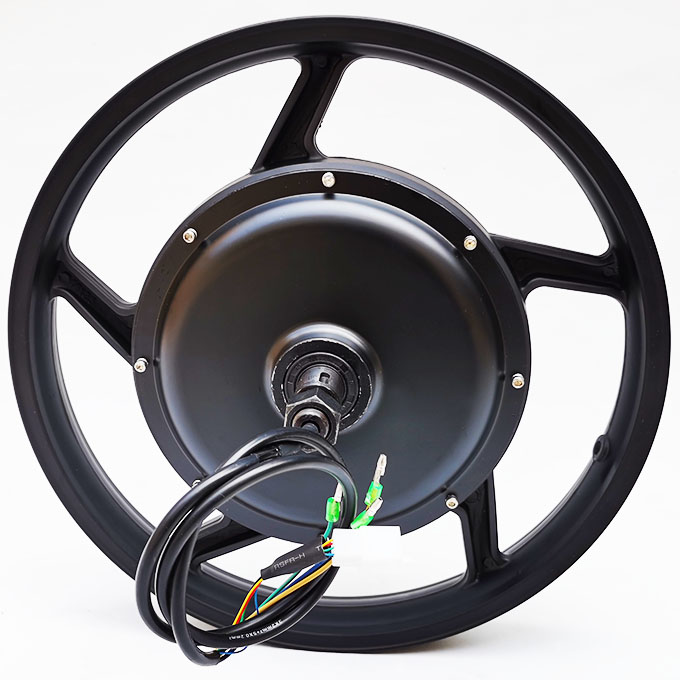

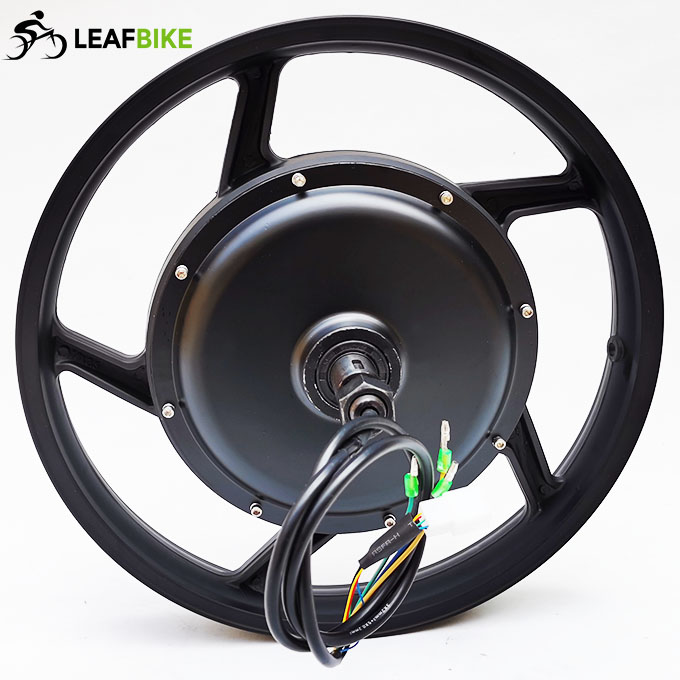

Single Shaft 18 inch 48V 52V 1000W electric hub motor kit

Item ID #LBCK18481000S
$319.00 $390.00
    Please select the information you wantX
  • Driving Mode :
    Left Drive
    Right Drive

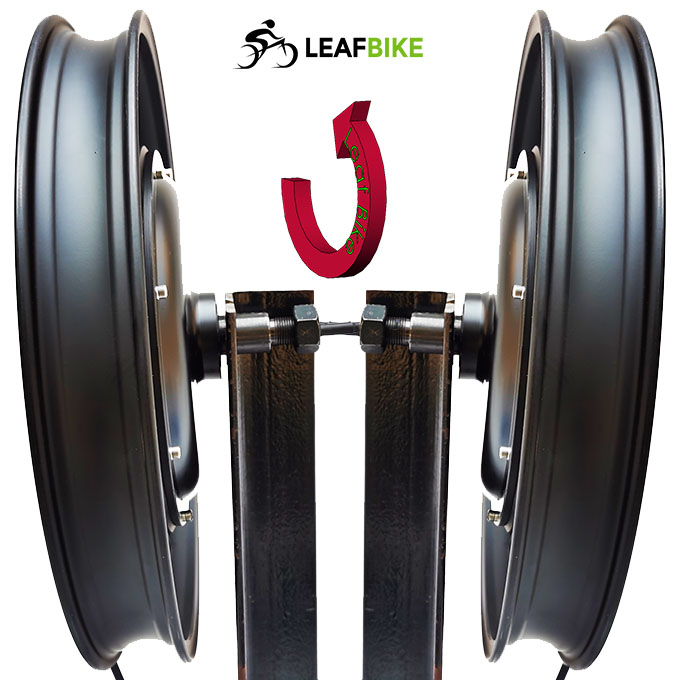

    Double Drive
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description
Please watch videos for Single Shaft 18 inch 48V 52V 1000W electric hub motor bike conversion kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 15kmh, 25kmh..

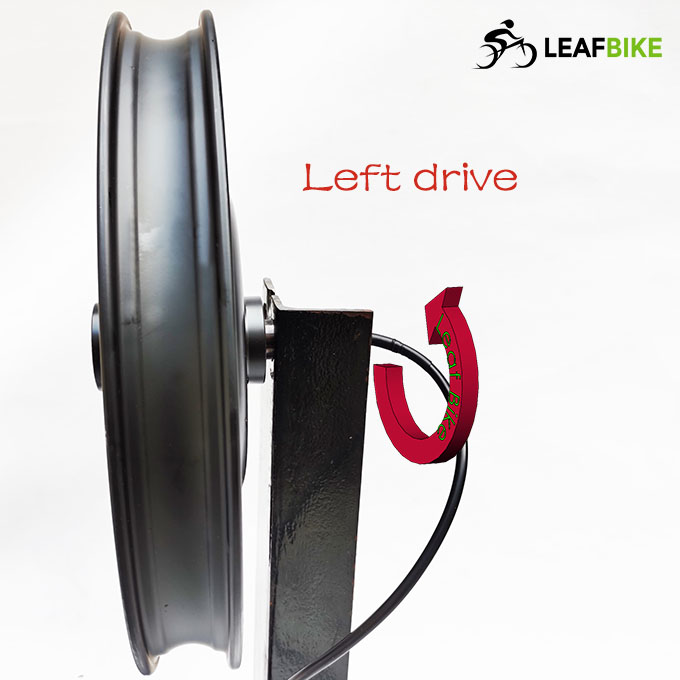

Left Drive:

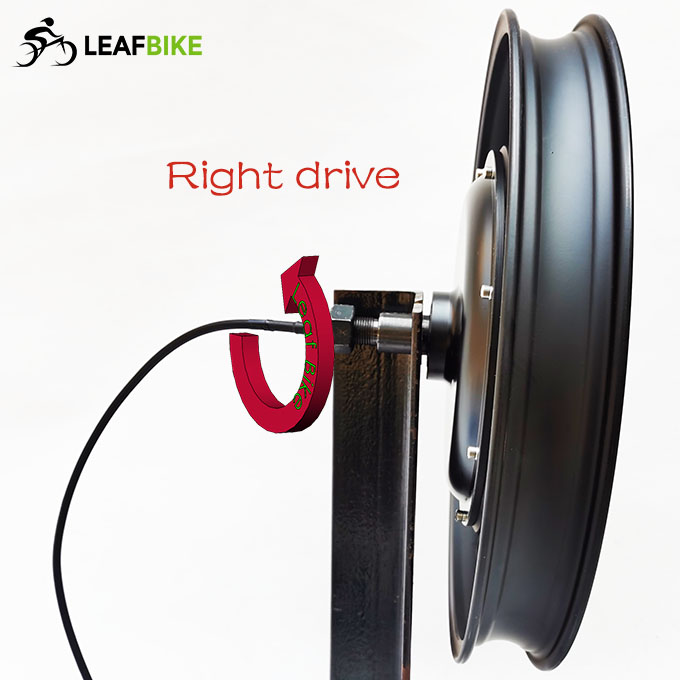

Right Drive:

This 18 inch hub motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.


Main Features:
Hub: Ø372mm Alloy (Rim Fit For: 18 × 2.125" ~ 2.5" scooter tire) - Not fit for 2.5 - 18 inch motorcycle tire
Motor Type: electric hub motor
Controller: LCD display
Max speed: 40kmh  (Free Customize other speed,please leave message.)
Mechanical brake: V

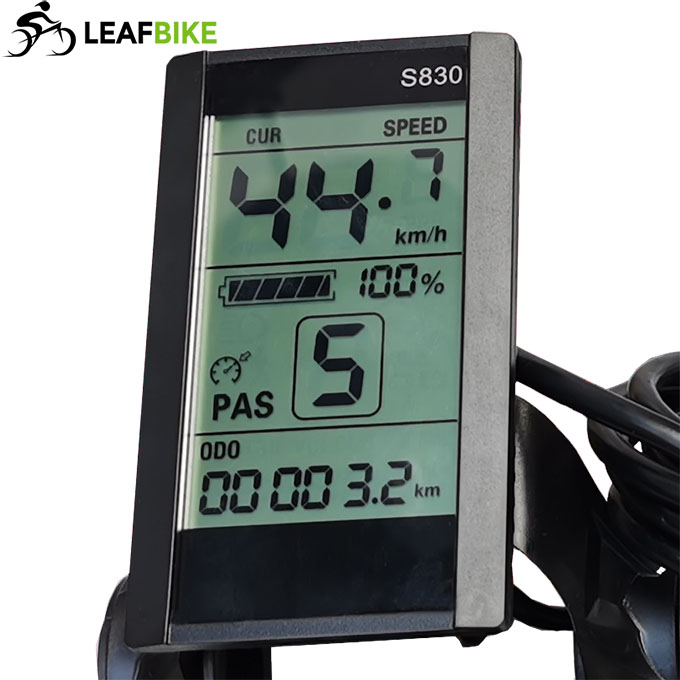

LCD-S830, More Function:
* Cruise
* Forward & Backwards (Optional)
* Kmh & mph (Optional)
* Max speed ( 0 ~ 100 kmh / 60 mph )
* Speeds ( 0 - 5 ) - "0" is off. "1" is the slowest. "5" is the fastest.
* Battery gauge
* ...

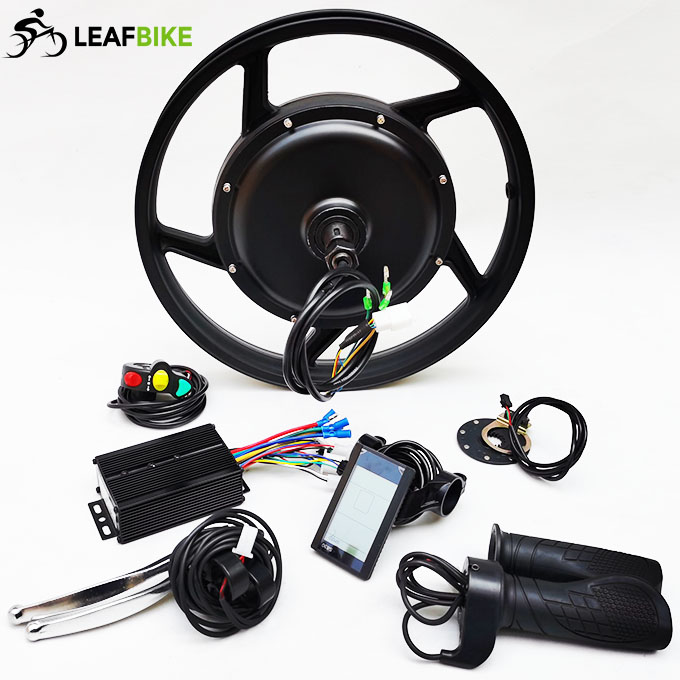

Package Content:

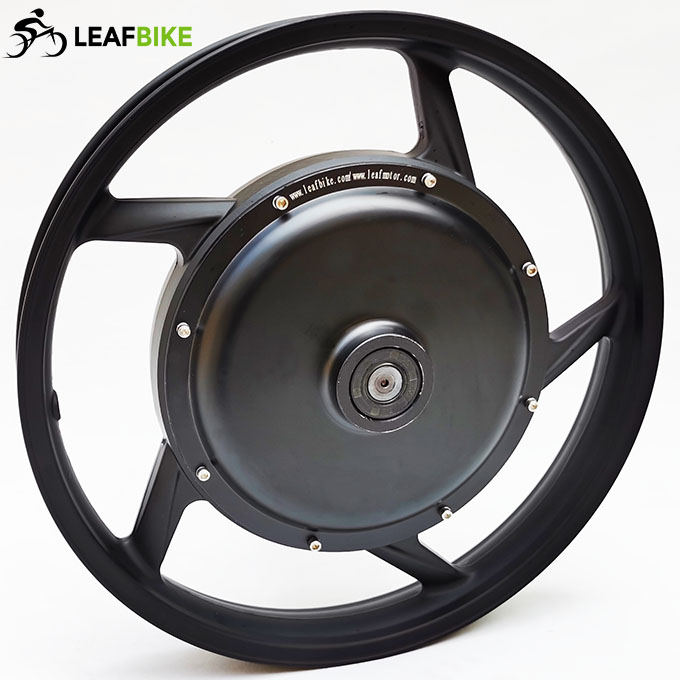

1 x 18 inch 48V / 52V 1000W Single Shaft hub motor wheel

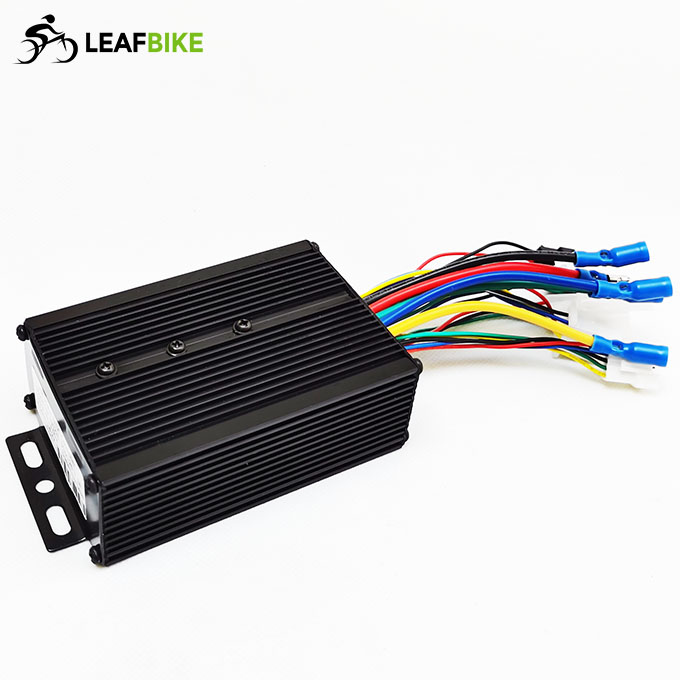

1 x 48V / 52V 1000W 12-MOSFET motor controller
1 x LCD - S830
1 x Twist throttle
1 x Brake levers
1 x Three button switches ( control cruise, reverse .. )
1 x Pedal assist

Net Weight: 10.0 kg   /  22 lbs
Package Size: 46cm L x 46cm W x 30cm H /  18.1" L x 18.1" W x 11.8" H
Package Type: Cardboard Box

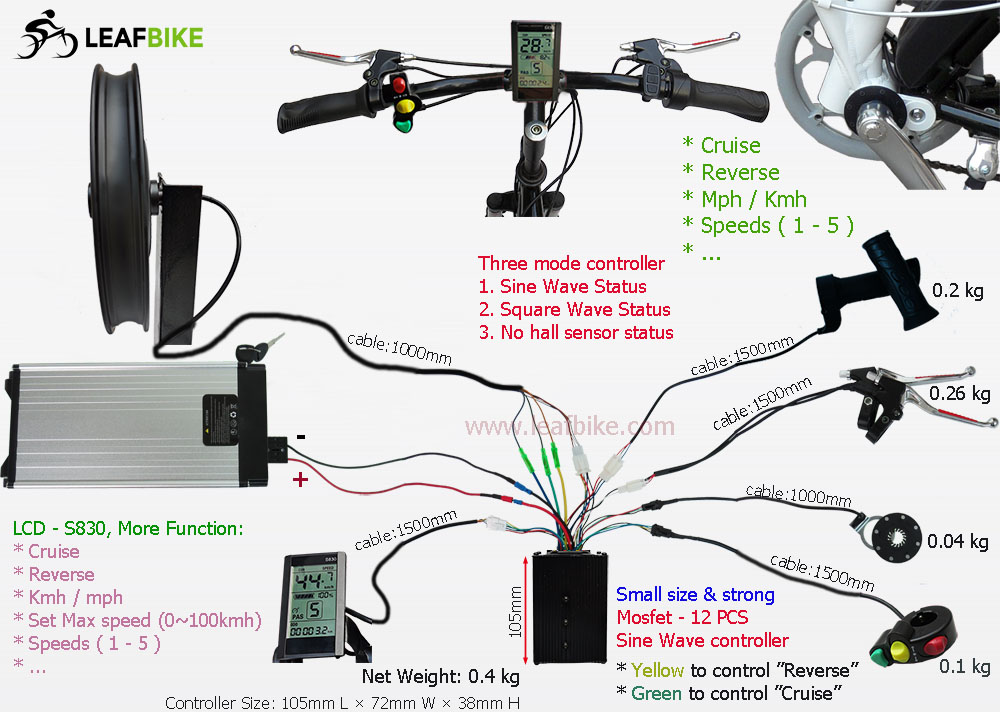

Wire Diagram:
18 inch single shaft hub motor kit wire diagram

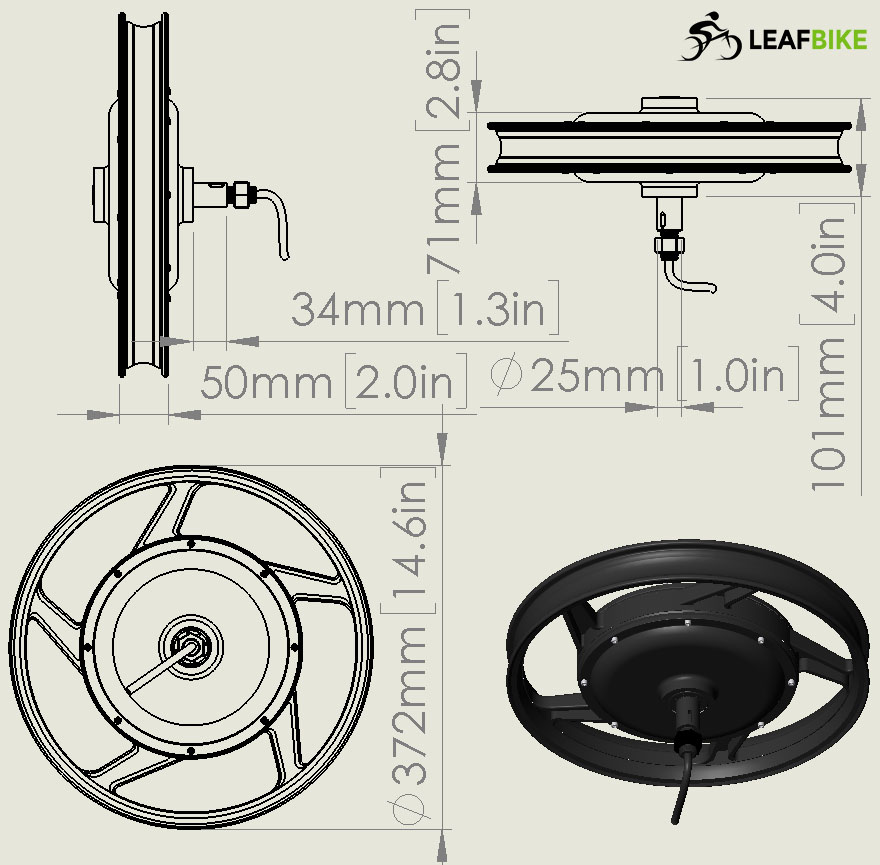

18 inch Rear Drw.18 inch 1000w rear brushless hub motor
Performance Data:
1000w-hub-motor-curve-data
