16 inch 48V 1000W electric hub motor kit - rear wheel

Item ID #LBCK16481000RNK
$296.00 $340.00
    Please select the information you wantX
  • LCD :
    Please select the information you wantX
Quantity :
Maybe You Need These
Maybe You Need These
Please watch videos for 16 inch 48V 1000W electric hub motor kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..
Share Video:
16 inch 48V 1000W electric hub motor kit rear wheel video
Share Video:
16 inch 48v 1000w rear hub motor - electric bike conversion kit
Share Video:
16 inch 48v 1000w rear electric bike kit
Share Video:
16 inch 1000w rear brushless hub motor bike conversion kit

This 16 inch hub motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque bike Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Main Features:
Hub: Ø321mm Casted Alloy (Hub Fit For: 16 × 2.125" ~ 2.5" tire)
Motor Type: electric hub motor
Controller: LCD display
Max speed: 50.3 kmh -- 31.2 mph
Mechanical brake: Disk or V
Install: spacing of 135mm fork

With LCD, More Function:
* Cruise
* Forward & Backwards (Optional)
* Kmh & mph (Optional)
* Set Max speed ( 0 ~ 72 kmh )
* Battery gauge
* ...

Package Content:
1 x 16 inch 48V 1000W rear hub motor wheel
1 x 48V 1000W 12-MOSFET motor controller
1 x LCD
1 x Twist throttle
1 x Brake lever
1 x Three button switches ( control cruise, reverse... )
1 x Pedal assist

Net Weight: 9.23 kg
Package Size: 42cm L x 42cm W x 25cm H
 Package Type: Cardboard Box

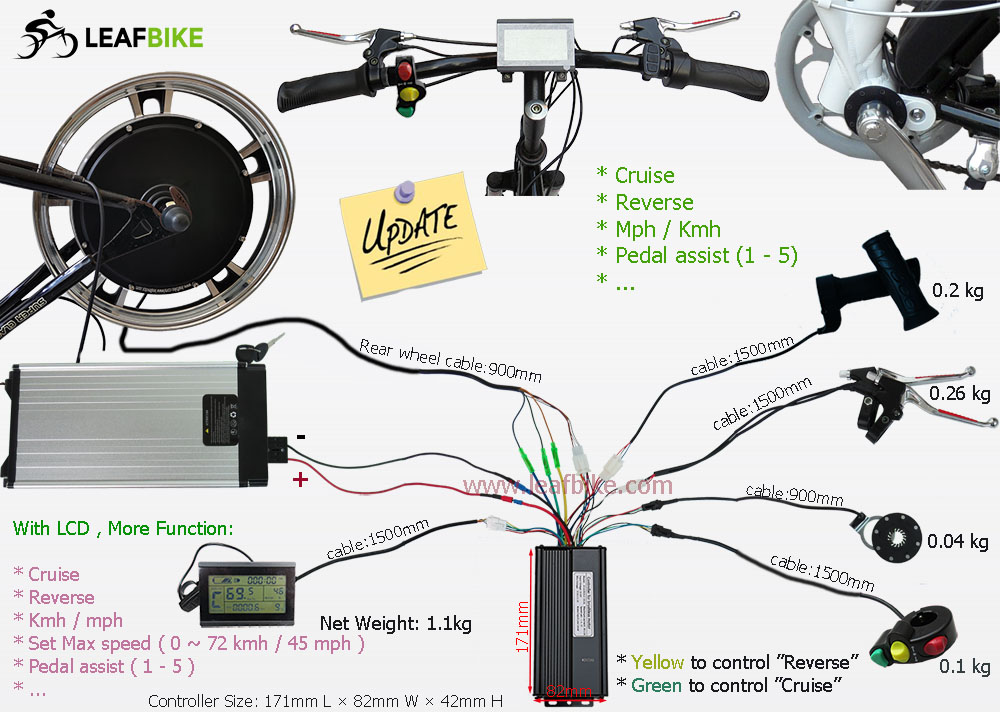

Wire Diagram:
16 inch 48V 1000W electric hub motor kit rear wheel wire diagram
16 inch Rear Drw.
16 inch rear hub motor drawing
Performance Data:
