16 inch 48V 52V 500W rear brushless geared hub motor - electric bike kit

Item ID #LBCK1648500RG
$308.00 $360.00
    Please select the information you wantX
  • Tyre Size :
    16 x 1.5" / 1.75"
    16 x 1.95" / 2.125"
  • LCD :
    S830
    SW900
    08HU
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description
Please watch video for 16 inch 48V 52V 500W rear brushless geared hub motor electric bike conversion kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 15kmh, 30kmh ..
Share Video:
16 inch 500w rear hub motor kit video

This 16 inch brushless geared hub motor kit combines the full E-bike technology: direct drive Brushless Geared high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:
Rim: Ø321mm Alloy (Rim Fit For: 16 × 1.5" / 1.75" / 1.95" / 2.125" tire)
Spoke: silver 12 gauge / 68mm or 75mm Length × 36 pcs
>. Engine: Bldc hub motor
>>. Voltage: 48V / 52V
>>. Power: 500W
>>. Efficiency: 90.5%
>>. Max speed: 25 kmh -- 15mph
>>. Mechanical brake: V or Disk
>>. Freewheel:
>>. Cable location: shaft end, Right
>>. Cable length:100cm / 40"
>>. Install: spacing of 135mm front fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
Default: Heat Shrink Bullet Crimp Female Male Wire Connectors Electrical Terminals for battery plug.(Leave message Optional: XT-60)
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 500 Watts
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 105 mm L × 72 mm W × 38 mm H

With LCD, More Function:
* Cruise -- Green button Control (While motor is working,press green button one time,it will be "CRUISE" - running as the same speed)
* Kmh / mph
* Speeds ( 0 - 5 ) -- "0" is off . "1" is the slowest ~ "5" is the fastest.
* ...

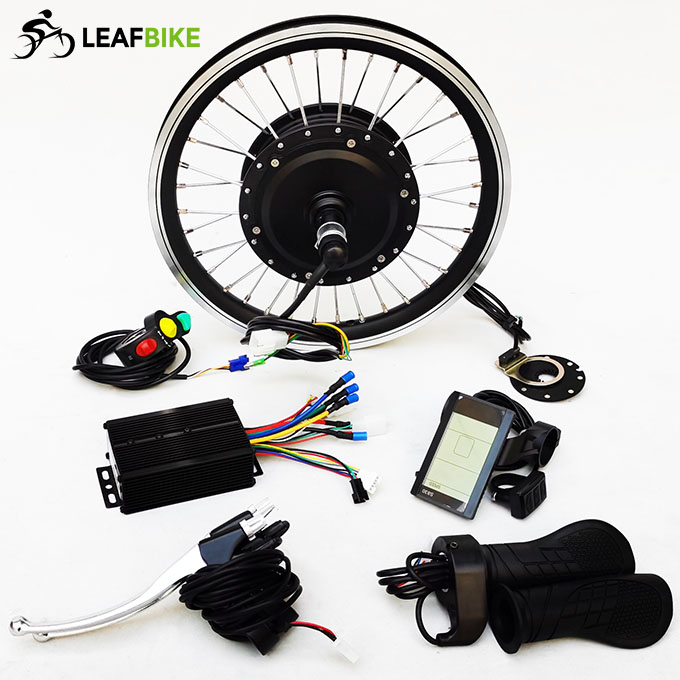

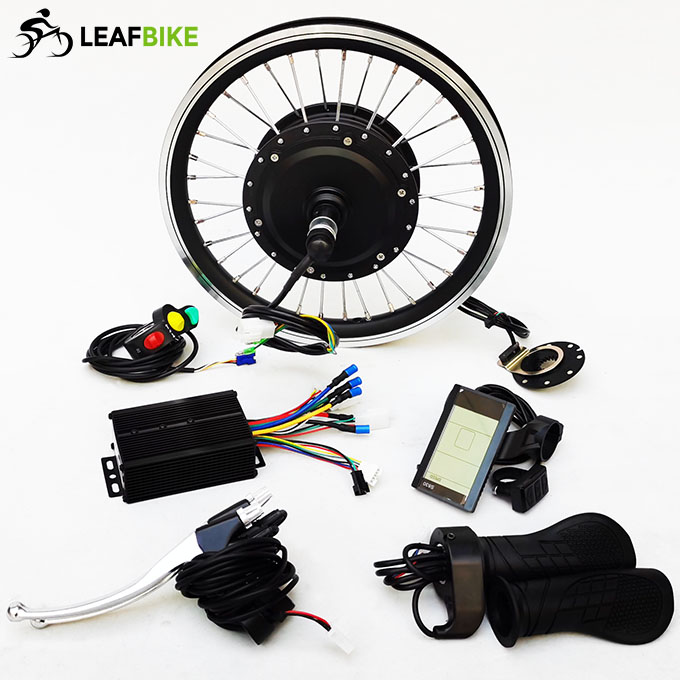

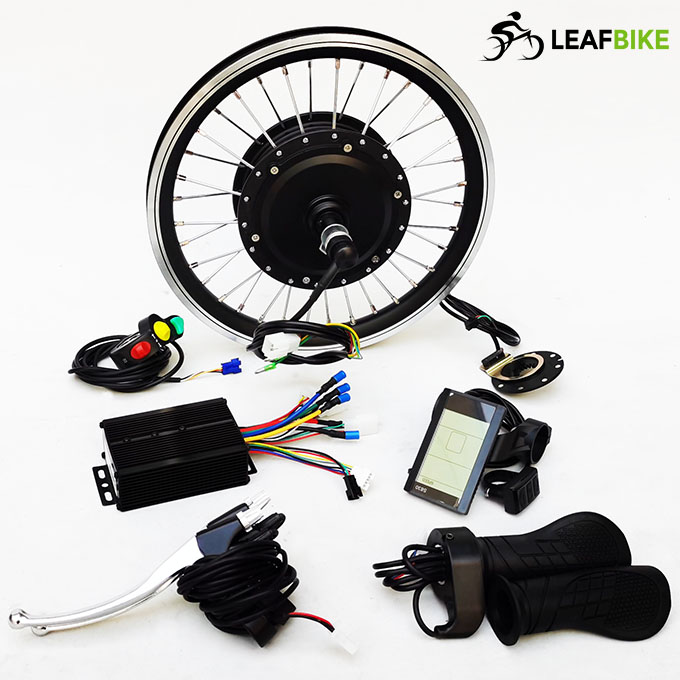

Package Content:

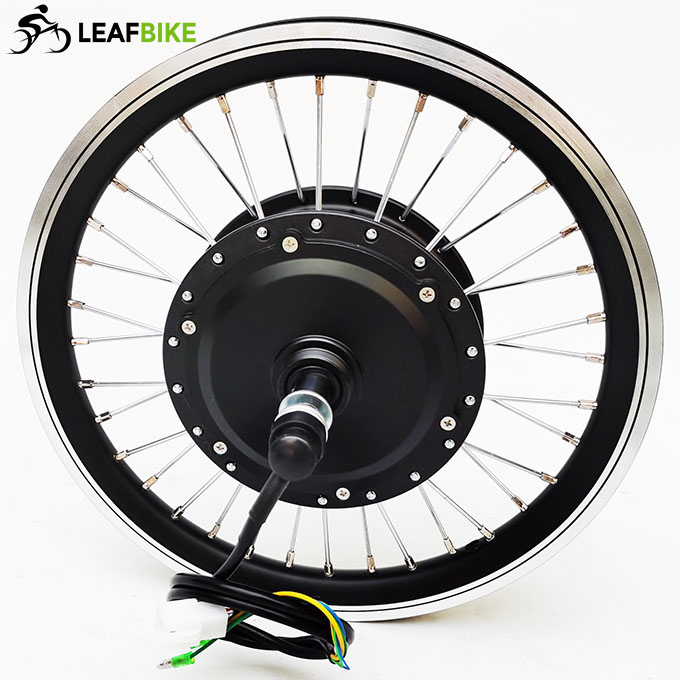

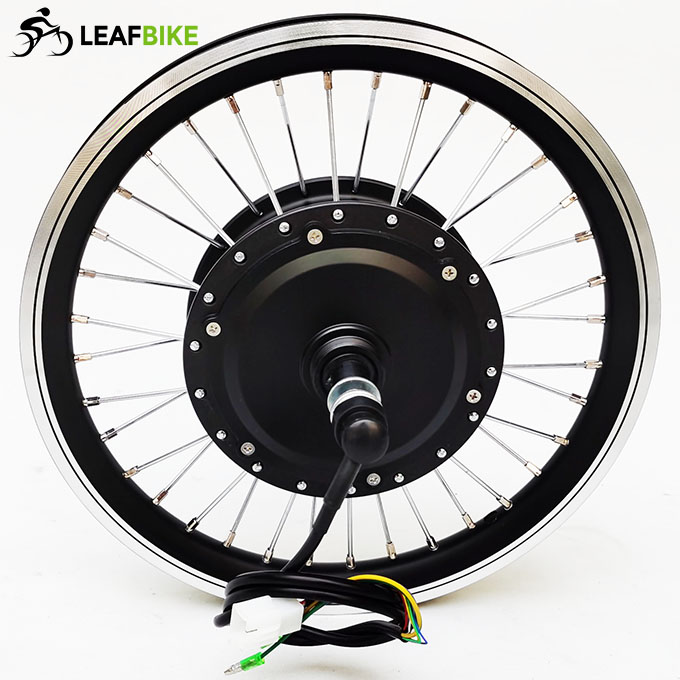

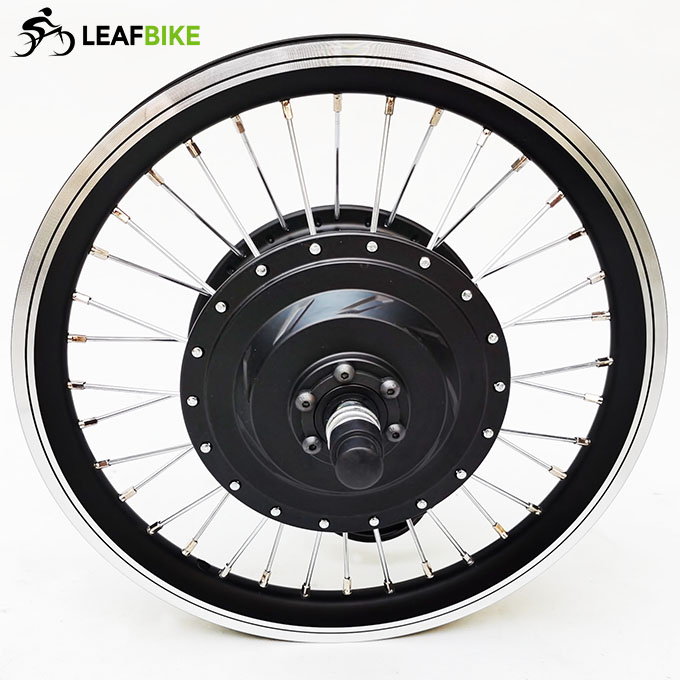

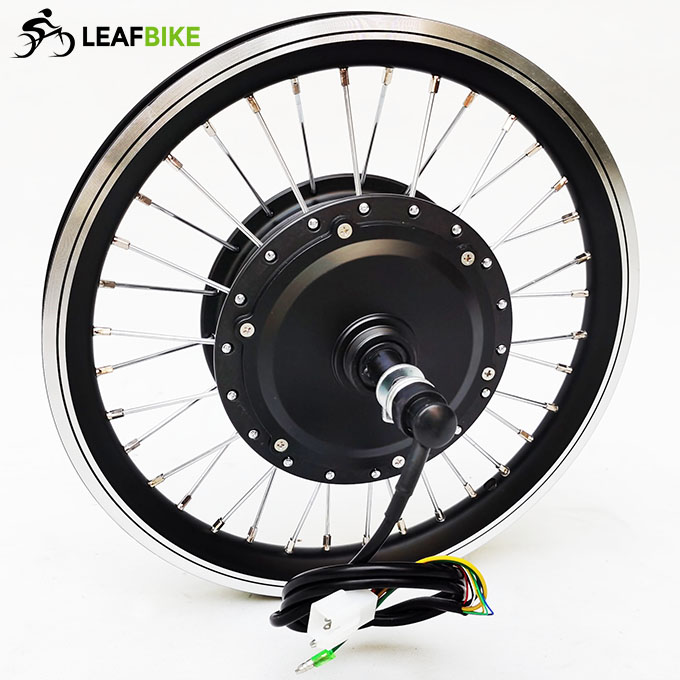

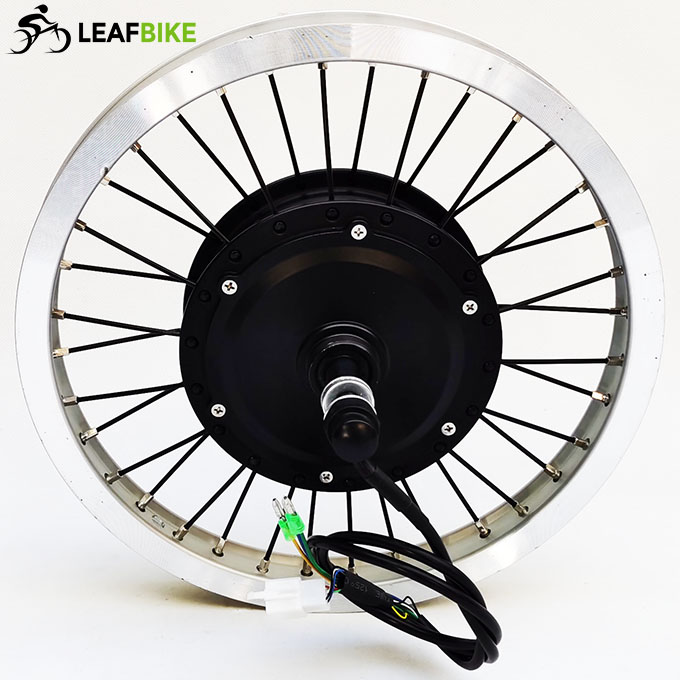

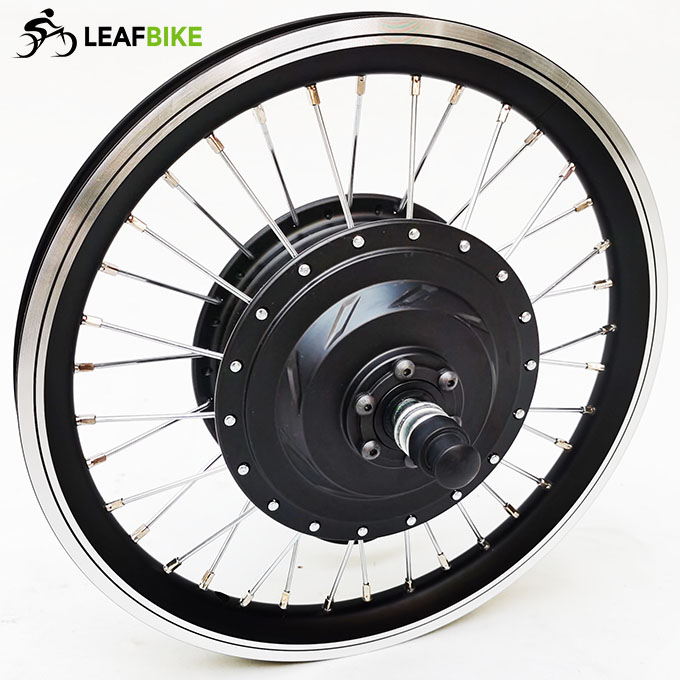

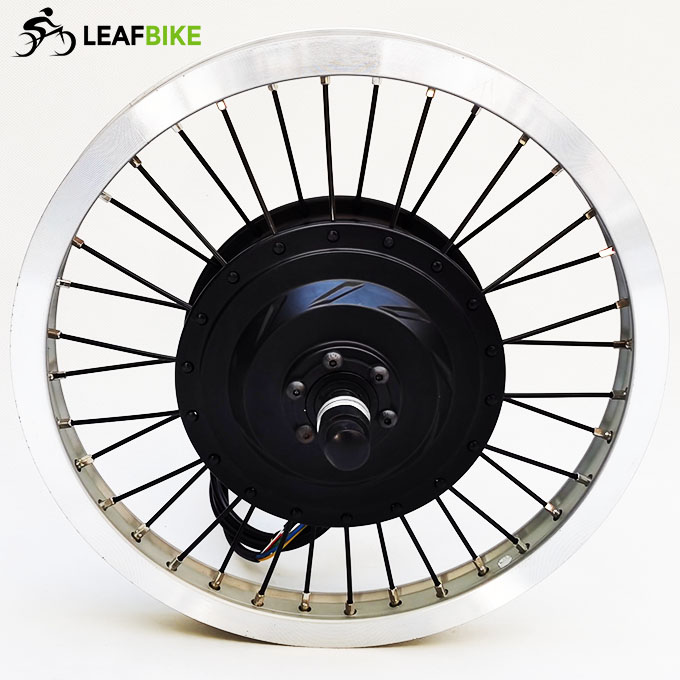

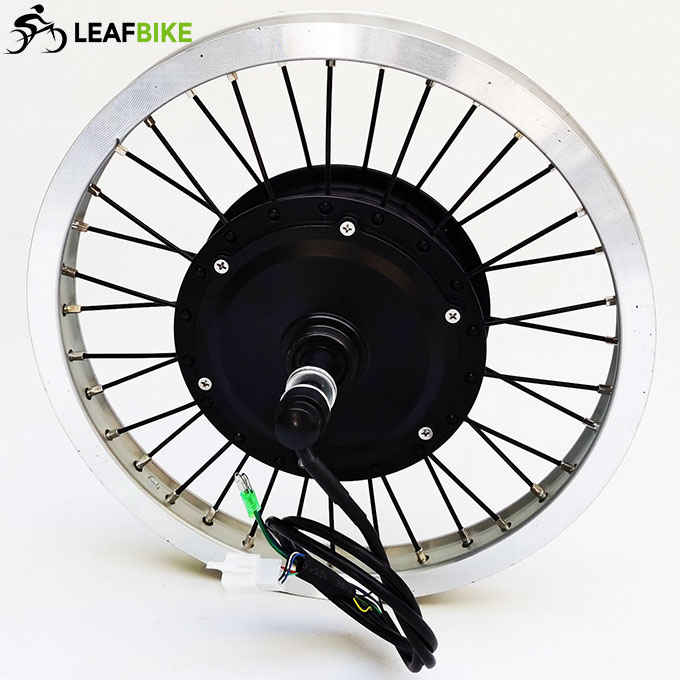

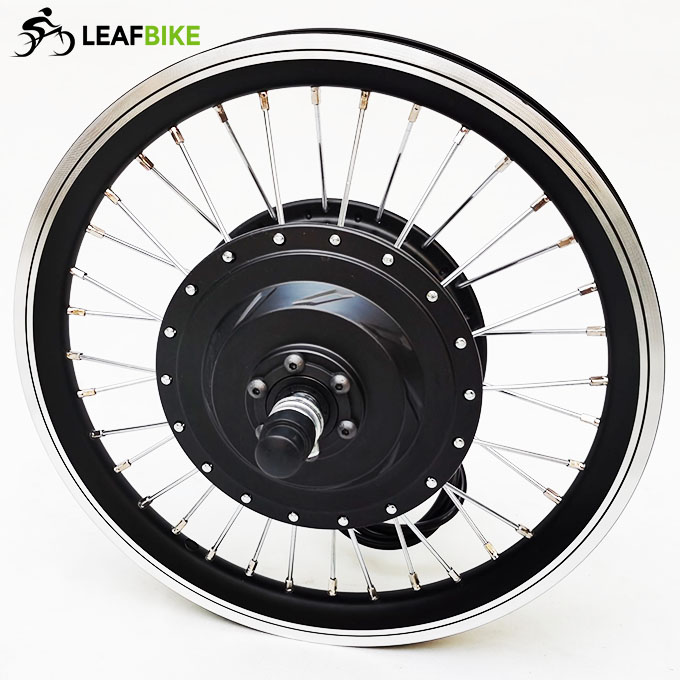

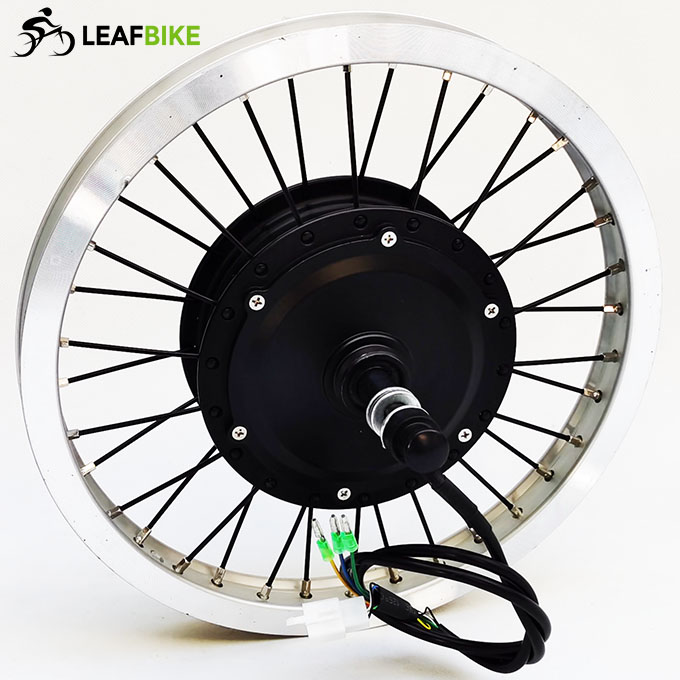

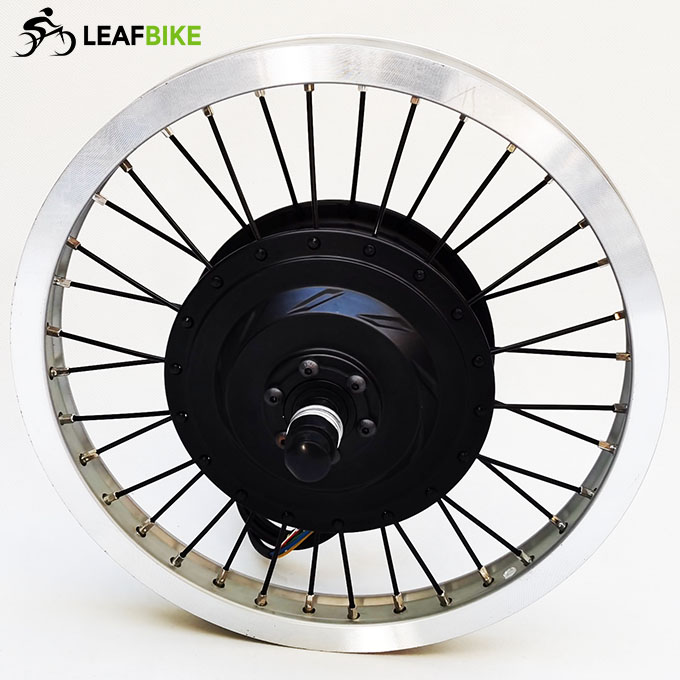

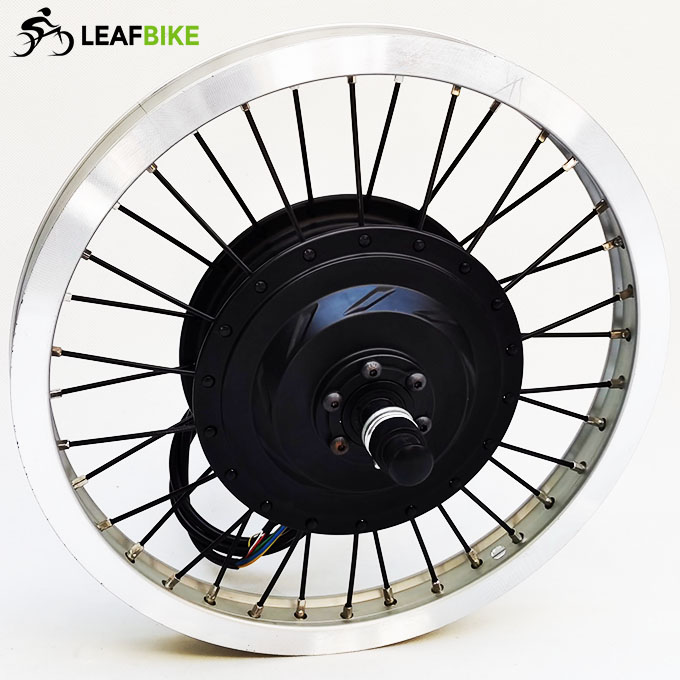

1 x 16 inch 48V 52V 500W rear brushless geared hub motor wheel
1 x 48V 52V 500W 12-MOSFET motor controller
1 x LCD ( display speed, mileage, battery gauge.. )
1 x Twist throttle
1 x Brake levers
1 x Three button switches ( control cruise..)
1 x Pedal assist

Net weight: 4.95 kg   /  10.9 lbs
Package Size: 42cm L x 42cm W x 25cm H  /  16.5"  L x 16.5" W x 9.8" H
Package Type: Cardboard Box

* This motor & controller system can handle with a 48V or 52V battery.
Wire Diagram:
geared hub motor electric bike conversion kit wire diagram
Freewheel Motor Drw.front geared hub motor
Performance Data:geared hub motor performance data
