16 inch 48V 52V 1000W electric bike kit - rear hub motor wheel

Item ID #LBCK16481000RN
$298.00 $390.00
    Please select the information you wantX
Quantity :
Maybe You Need These
Maybe You Need These

* The 16 inch electric bike kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:
Hub: Ø321mm Casted Alloy (Hub Fit For: 16 × 2.125" ~ 2.5" tire)
Motor Type: brushless gearless dc motor
Controller: LCD display
Max speed: 48 kmh -- 30 mph
Mechanical brake: Disk or V
Install: spacing of 135mm fork

LCD-S830, More Function:
* Cruise
* Forward & Backwards (Optional)
* Kmh & mph (Optional)
* Set Max speed ( 0 ~ 100 kmh / 60 mph )
* Speed ( 0 - 5 ) - "0" is off. "1" is the slowest. "5" is the fastest.
* Battery gauge
* ...

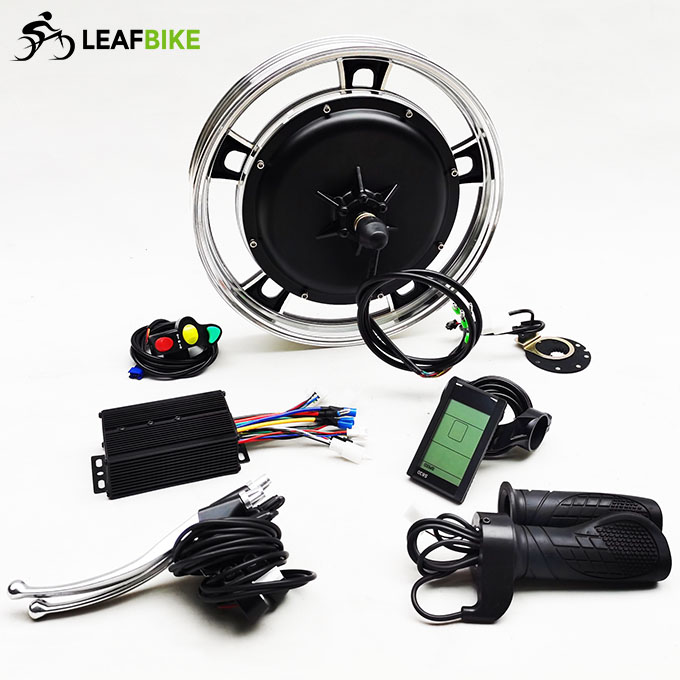

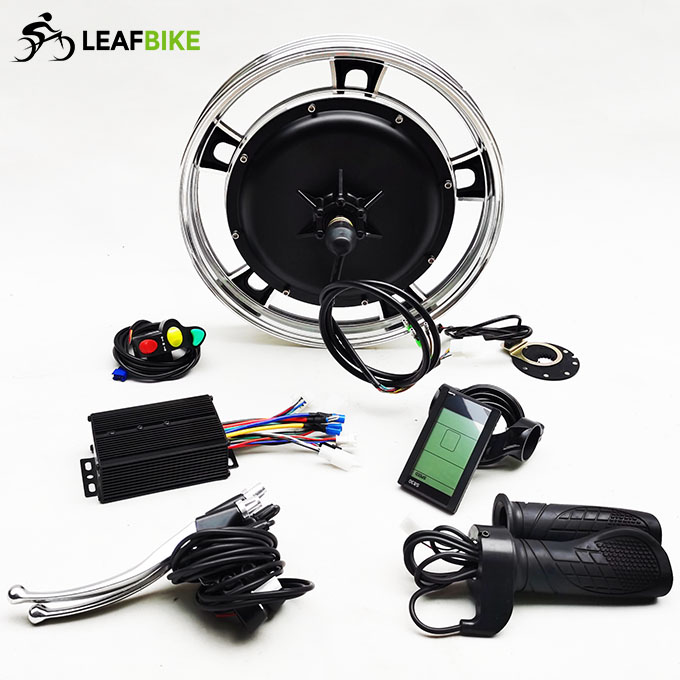

Package Content:

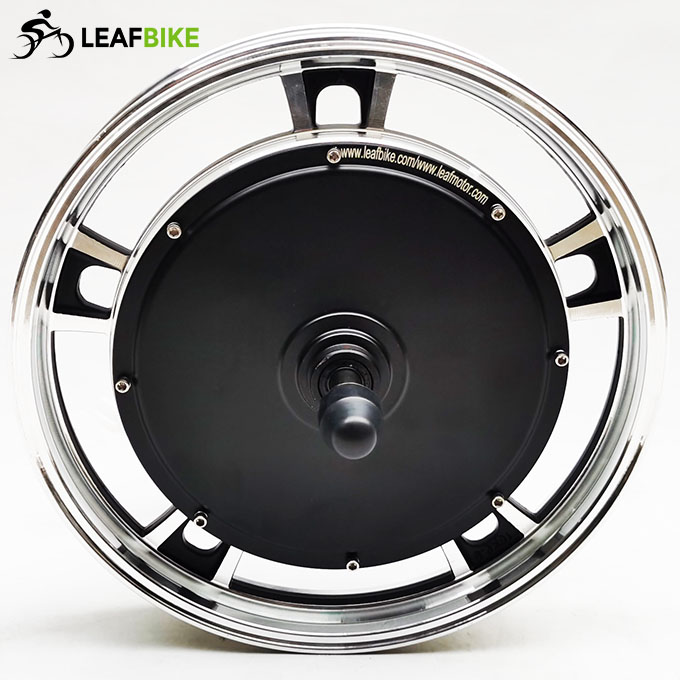

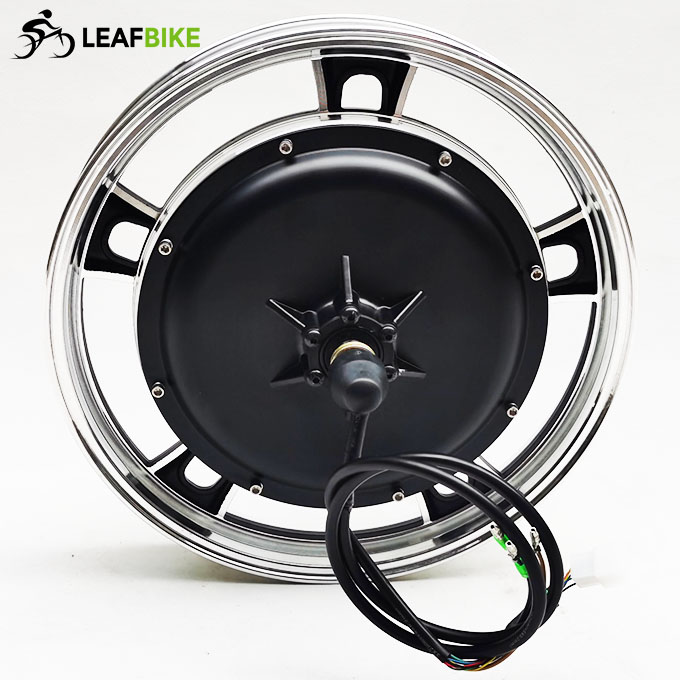

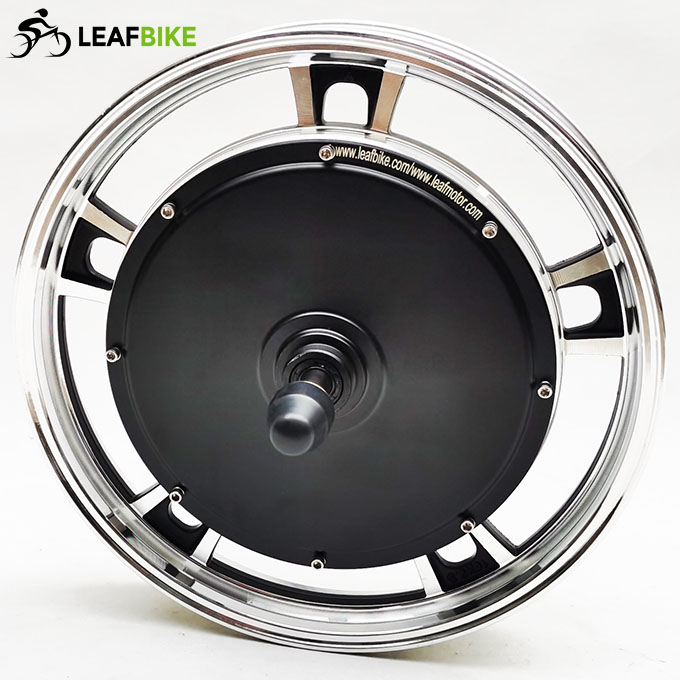

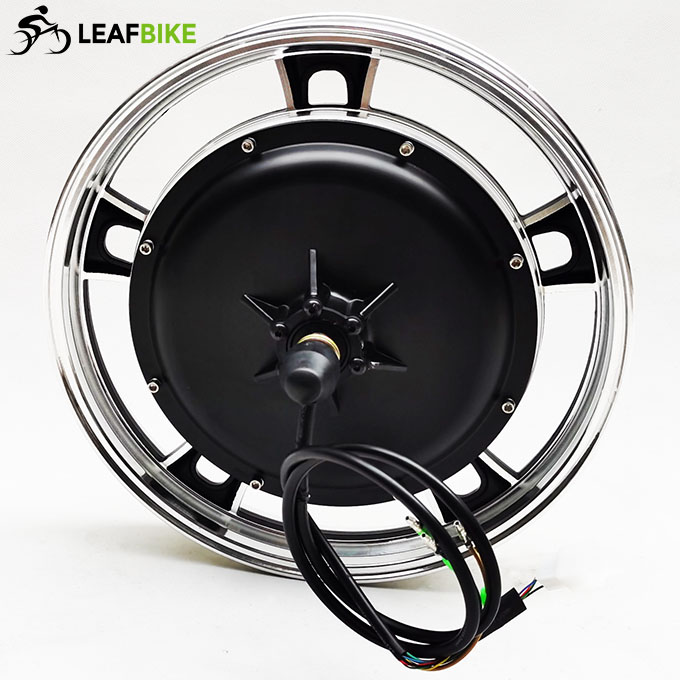

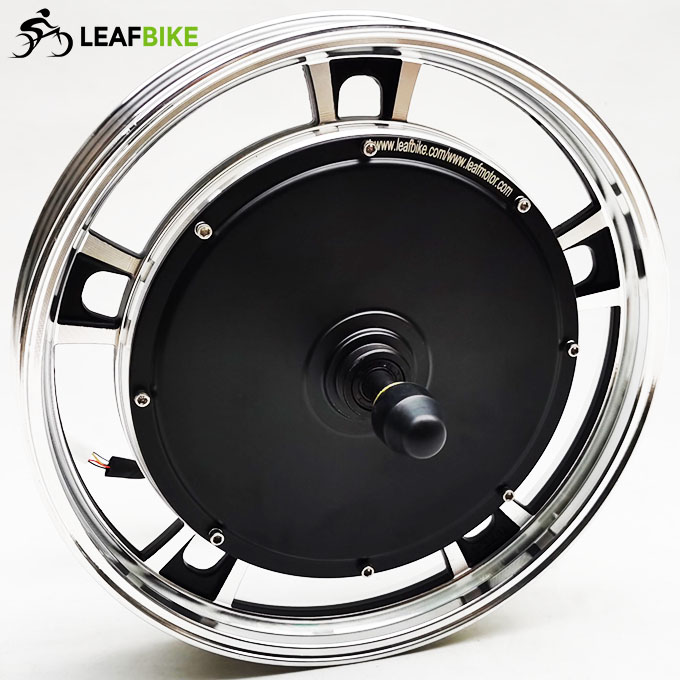

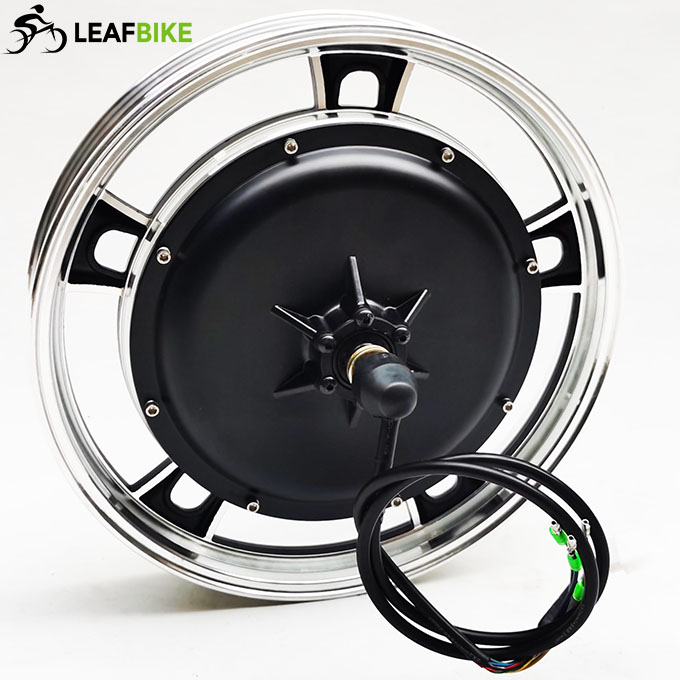

1 x 16 inch 48V 52V 1000W rear hub motor wheel

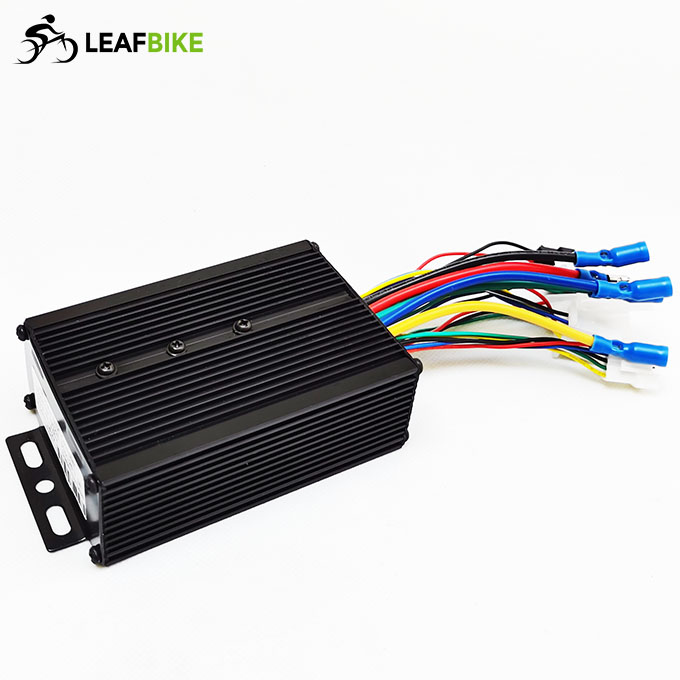

1 x 48V 52V 1000W 12-MOSFET motor controller
1 x LCD-S830
1 x Twist throttle
1 x Brake lever
1 x Three button switches ( control cruise, reverse .. )
1 x Pedal assist

Net Weight: 9.33 kg   /   Gross weight: 10.55 kg
Package Size: 42cm L x 42cm W x 25cm H
 Package Type: Cardboard Box

Share Video:
Wire Diagram:
16 inch rear bike motor kit wire diagram
16 inch rear Drw.
16 inch rear hub motor drawing
Performance Data:
Share Video:
16 inch 48v 1000w rear hub motor - electric bike conversion kit
Share Video:
16 inch 48v 1000w rear electric bike kit
Recommended Products: Torque Arm
Why do you need a torque arm? Because as hard as your tire is straining to go forwards,  your axle is straining to go backwards. Torque arms provide increased strength at the axle and are used to help prevent the axle from spinning out inside the drop outs. If the axle spins, then the electric wires that come out of the axle also spin and break or get stretched and pulled out of the motor.
torque arm
