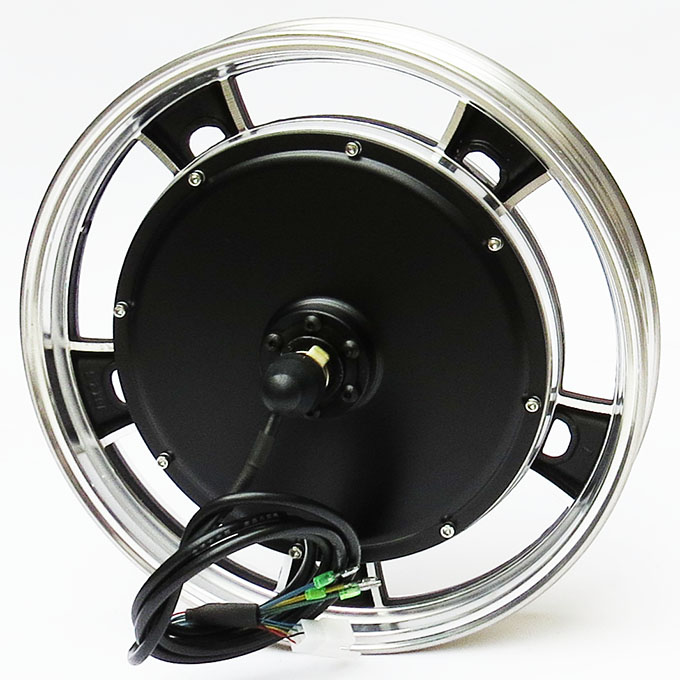

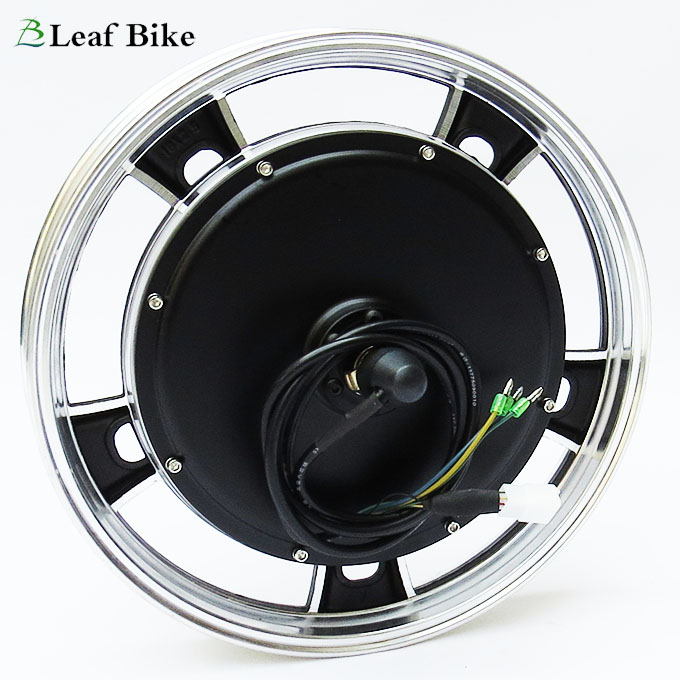

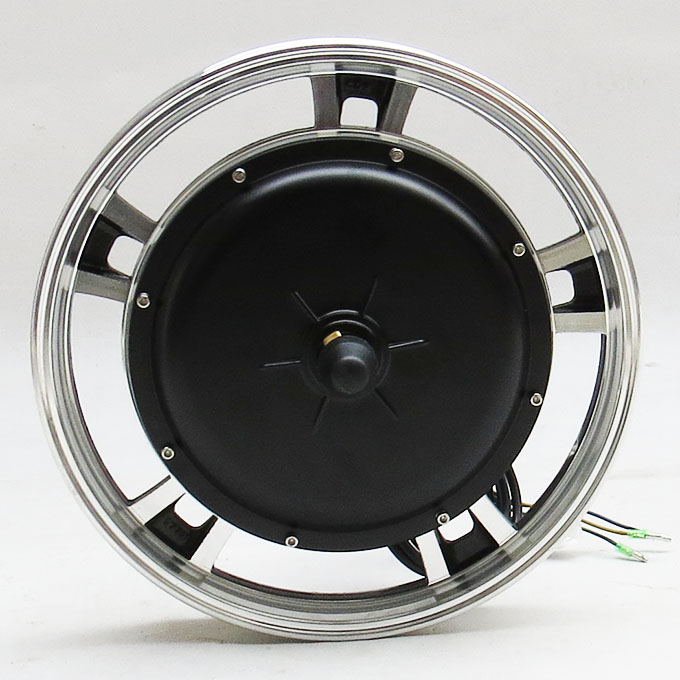

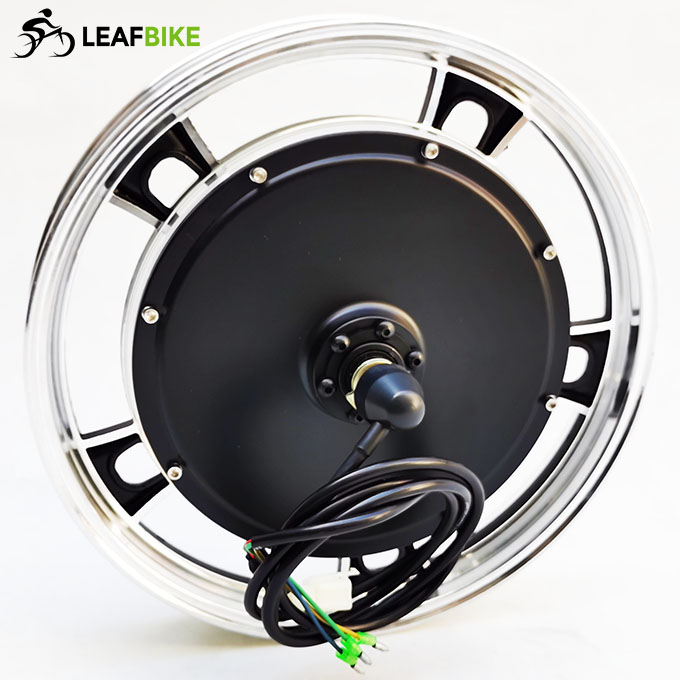

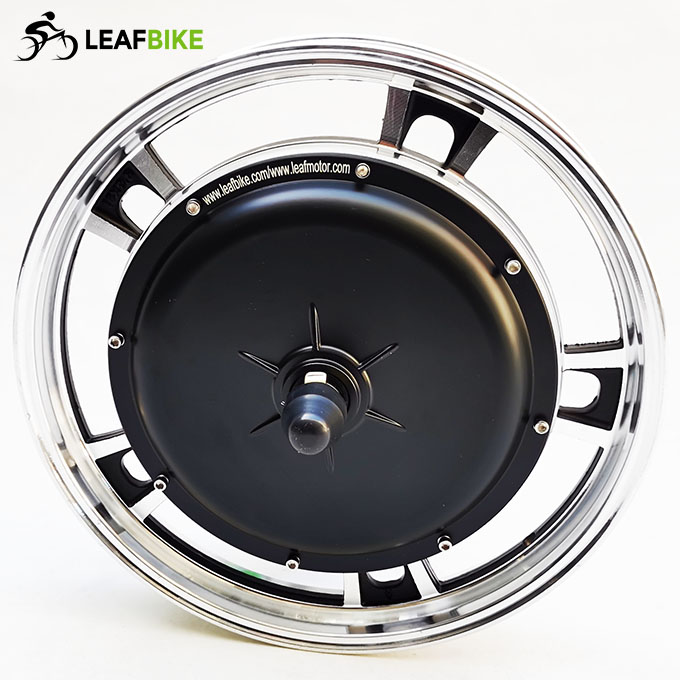

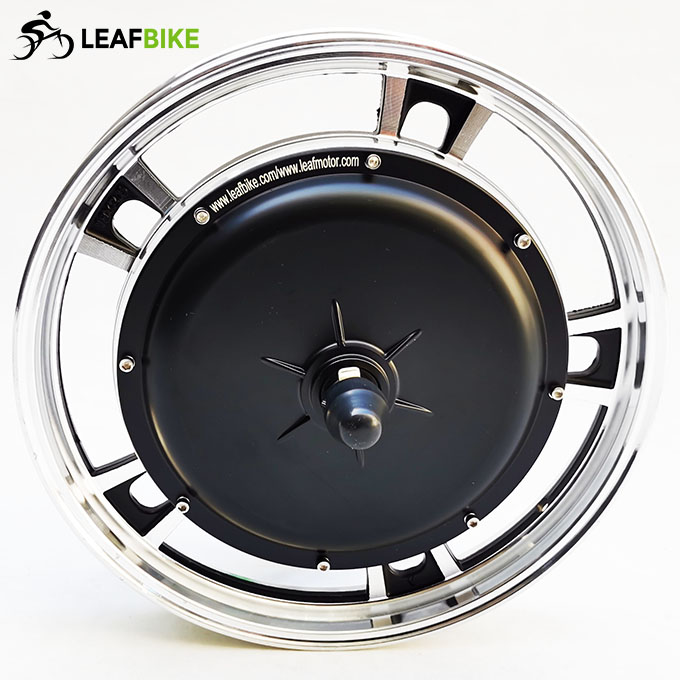

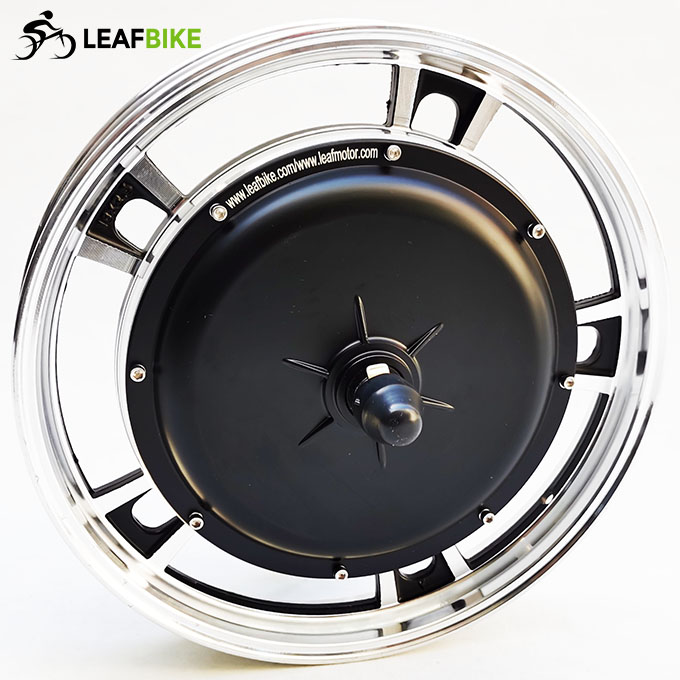

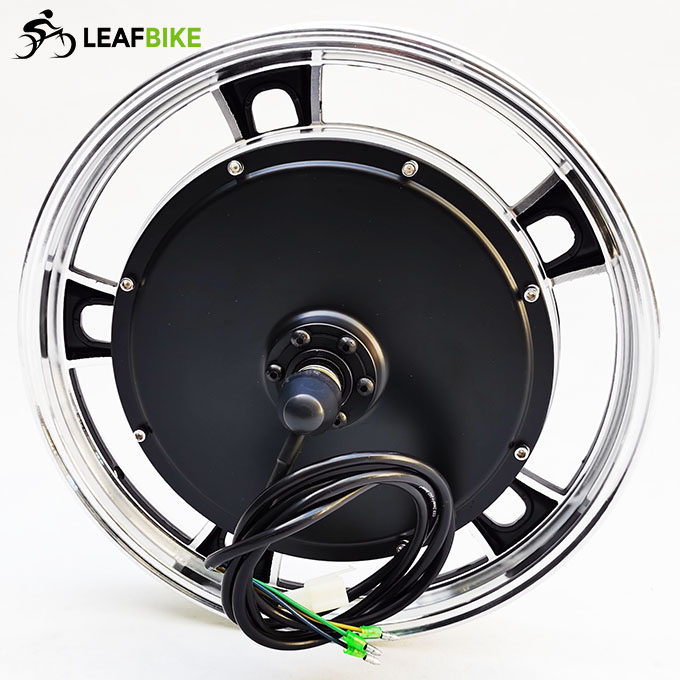

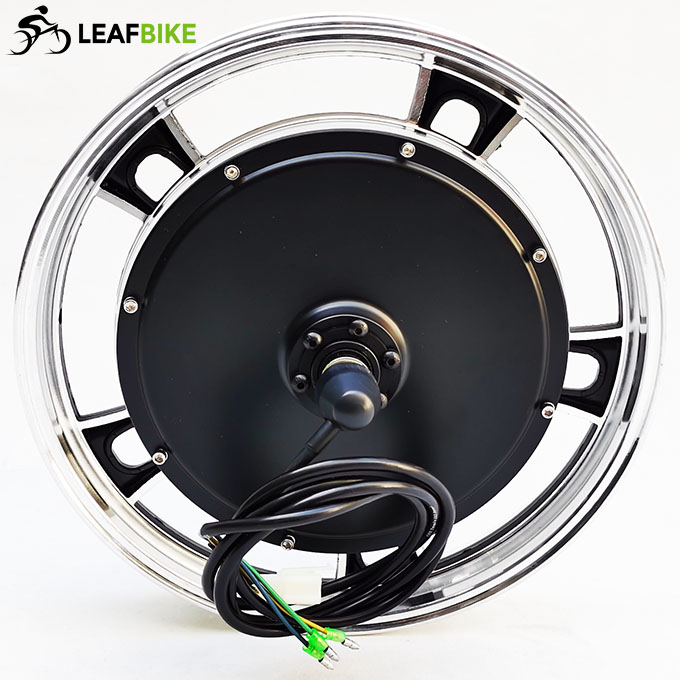

16 inch 36V 750W front scooter motor kit

* This 16 inch scooter motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:
Hub: Ø321mm Casted Alloy (Hub Fit For: 16 × 2 1/4 or 16 × 2.5" tire)
Motor: electric scooter motor
Controller: LCD display
Max speed: 42.3 kmh -- 26.2 mph
Mechanical brake: V or Disk
Install: spacing of 100mm fork (Min.100mm ~ Max.115mm)

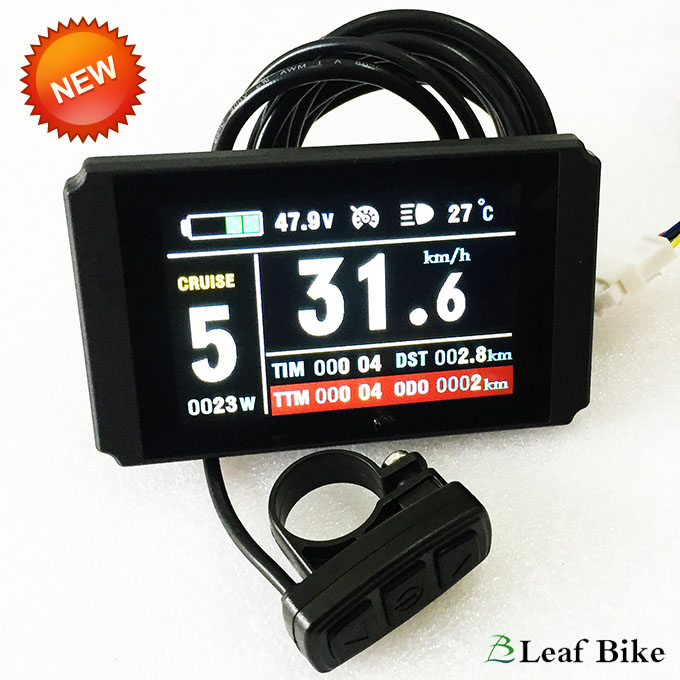

LCD-008HU With USB Port & Color screen , More Function:
* Cruise
* Forward & Backwards (Optional)
* Kmh & mph (Optional)
* Set Max speed ( 0 ~ 72 kmh / 45 mph )
* Pedal assist ( 1 - 5 )
* Temperature
* Motor power
* Timer
* Battery gauge
* ...

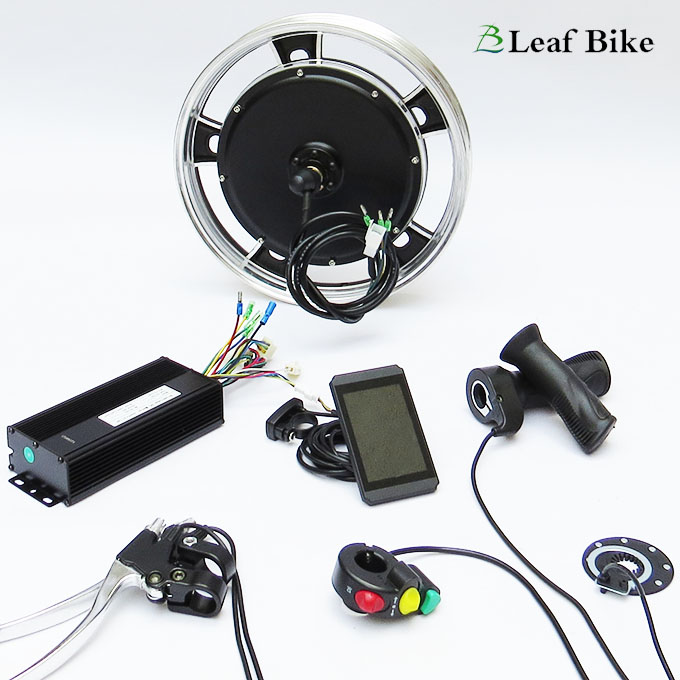

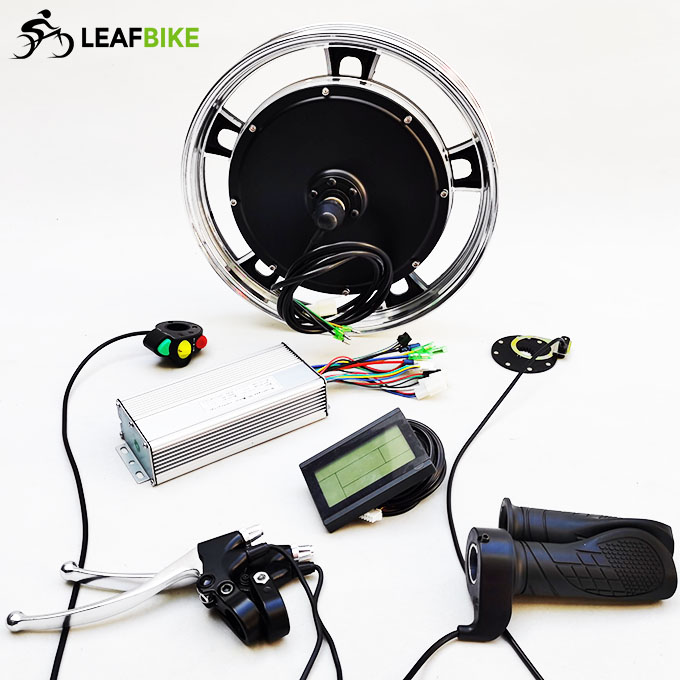

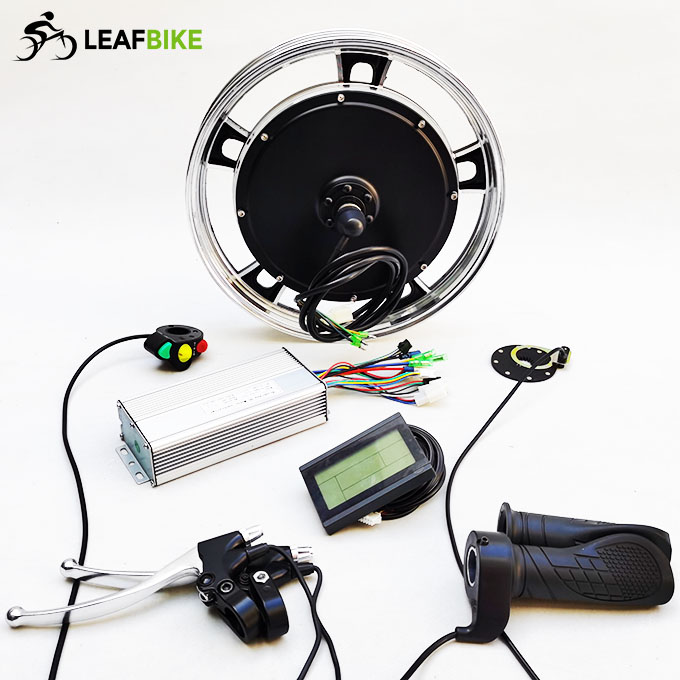

Package Content:
1 x 16 inch 36V 750W front scooter motor wheel
1 x 36V 750W 12-MOSFET motor controller
1 x LCD-008HU With USB Port & Color screen
1 x Twist throttle
1 x Brake lever
1 x Three button switches ( control cruise, regen brake, reverse .. )
1 x Pedal assist

Net Weight: 9.05 kg   /    Gross Weight: 10.25 kg
Package Size: 42cm L x 42cm W x 25cm H
 Package Type: Cardboard Box

Share Video:

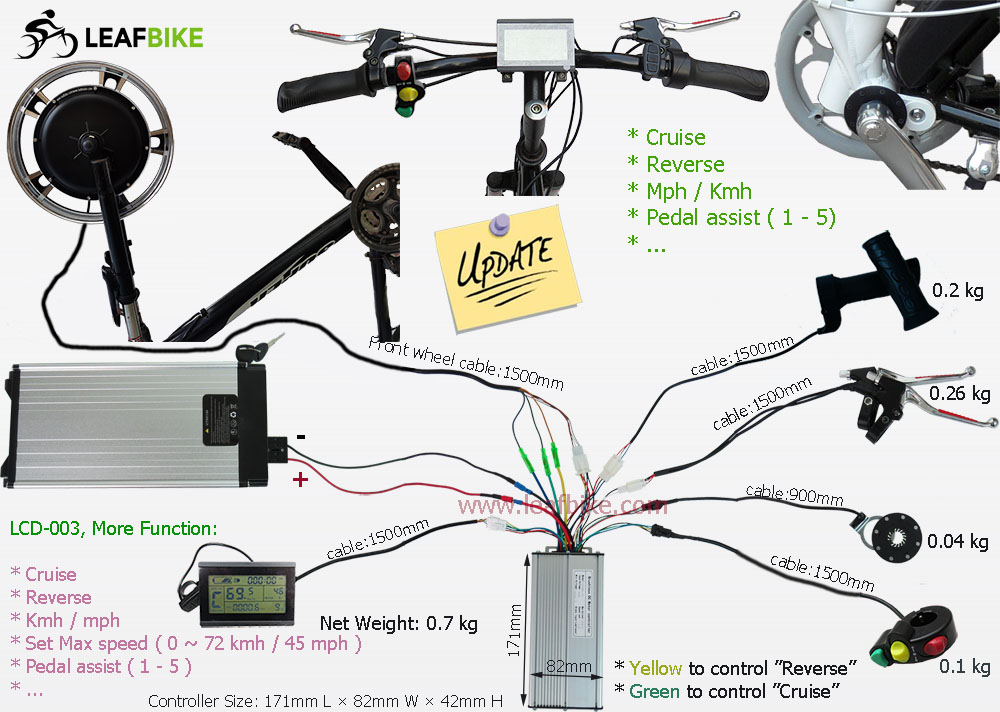

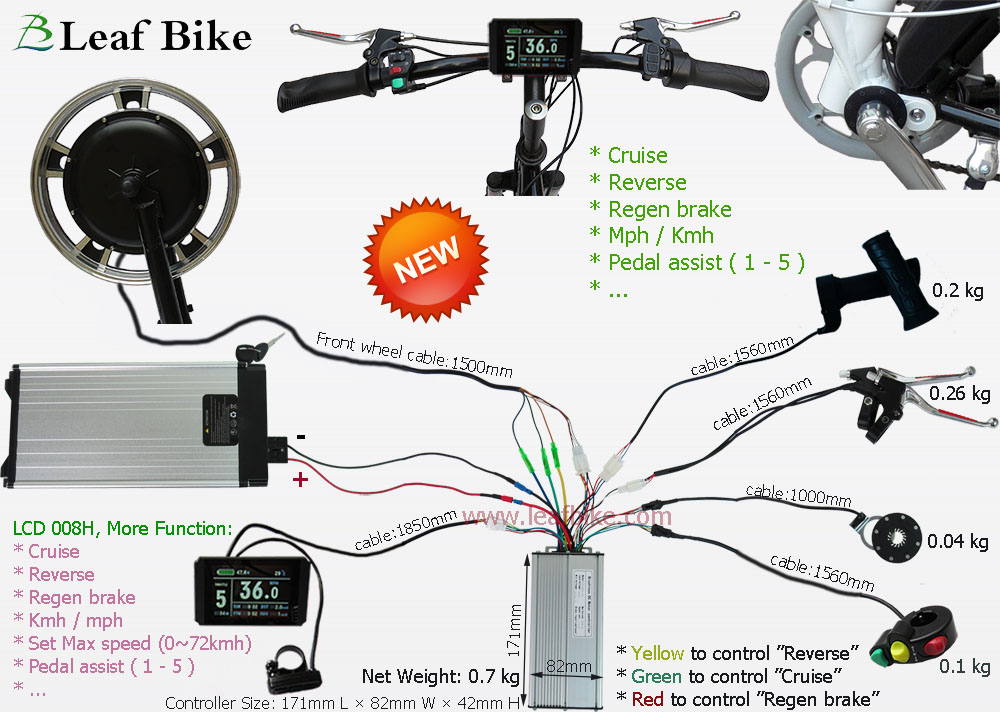

Wire Diagram:

16 inch Front Drw.

Performance Data:
