Cassette - 27.5 inch 48V 52V 1500W 650b rear wheel - electric hub motor kit

* The 27.5 inch electric bike kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.


Main Features:

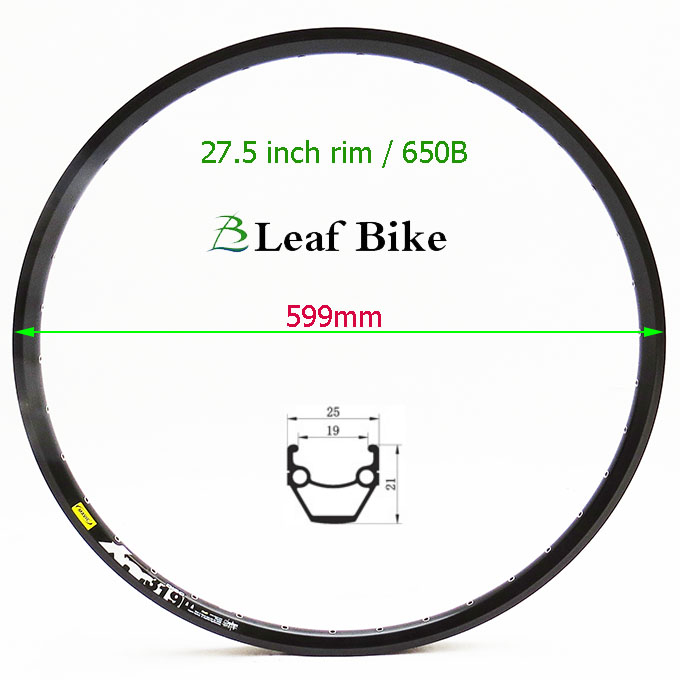

>. Rim: 27.5 inch / 650B double wall Alloy (Rim Fit For: 27.5 × 1.5" / 1.75" / 1.95" / 2.1" / 2.5" tire)
If the width of your tire / tyre is 2.1...(bigger than 1.95 inch)
Please note tire/tyre size when you place an order so that we can send a wider rim & fit for your wider tire/tyre.
>. Spoke: 12 gauge / 173mm Length × 36 pcs

>. Engine : Bldc hub motor
>>. Voltage: 48V / 52V
>>.  Power: 1500W
>>.  Efficiency: 90.5%
>>.  Max speed: 72 kmh -- 42 mph Default (Free customization other speeds: 35mph or 30mph, 25mph, 20mph, 15mph...please leave message)
>>. Mechanical brake: Disk or  V

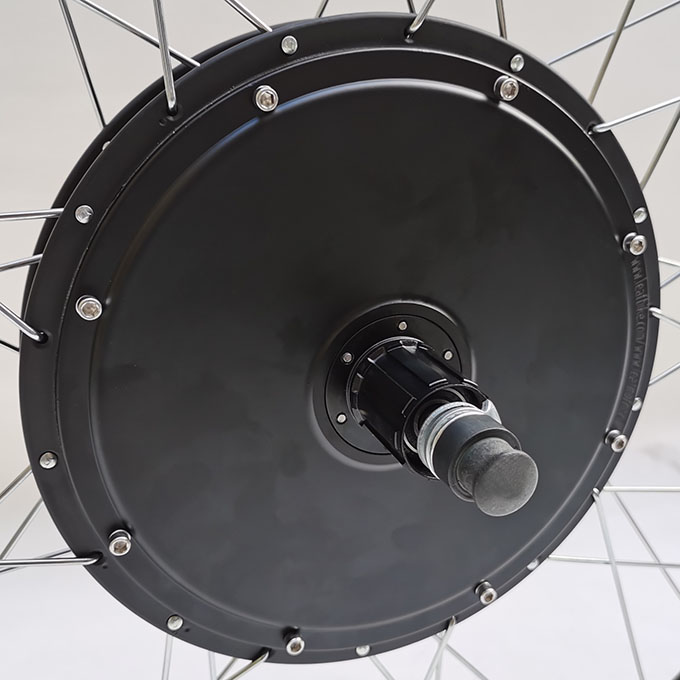

>>. Cassette case: Default
>>.  Cable length:100cm / 40" -- Update “3mm phase wires” & "Newest version hub"
>>.  Install: spacing of Min 135mm to Max 155mm fork
>>.  Noise: < 60 db
>>.  Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>.  Rated power: 1500 Watts
>>.  Casing material: aluminum
>>.  Maximum Current: 40 A ± 1 Amps
>>.  Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155 mm L × 72 mm W × 38 mm H

LCD-830, More Function:
* Cruise -- Green button Control (While motor is working,press green button one time,it will be "CRUISE" - running as the same speed)
* Reverse -- Yellow button Control ("Left side & mid / forward -- "Right side / Backwards")
* Kmh / mph
* Set Max speed ( 0 ~ 100 kmh / 60 mph ) --  If set be "32", Max speed will be 20mph / 32kmh
* Speed ( 0 - 5 ) -- "0" is off. "1" is the slowest. "5" is the fastest.
* ...

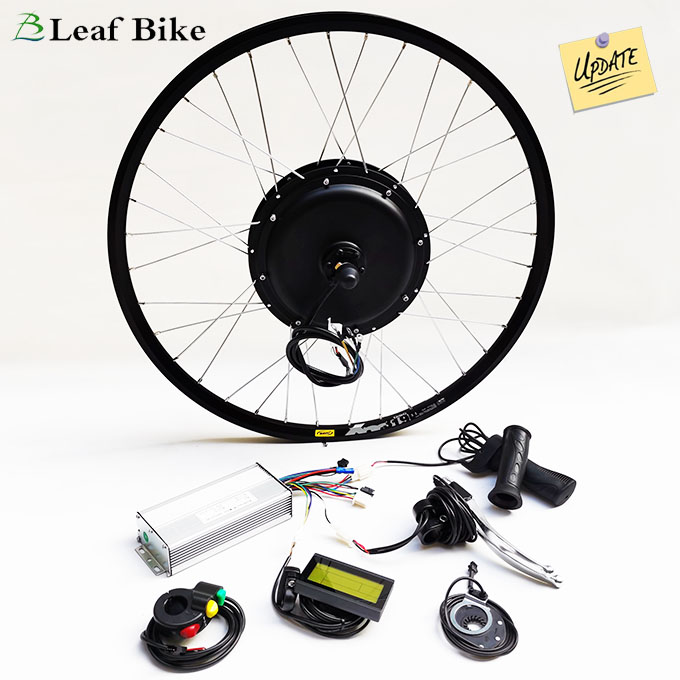

Package Content:

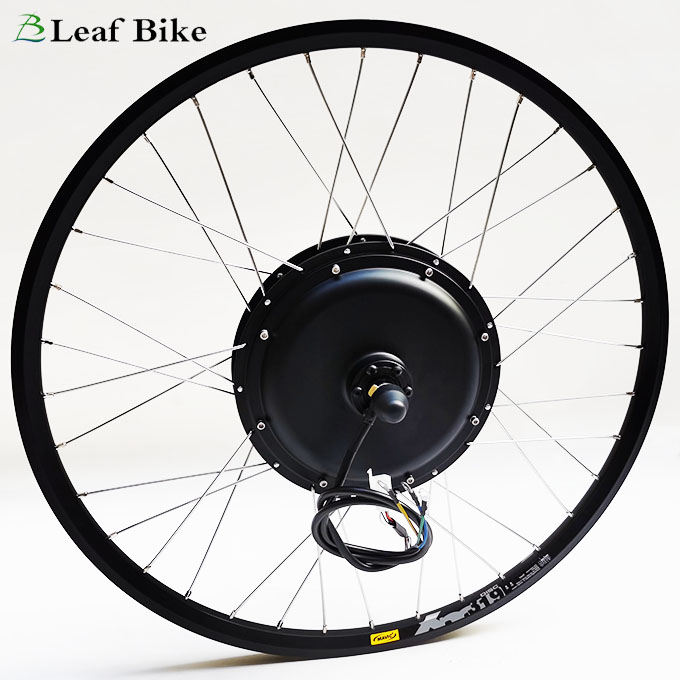

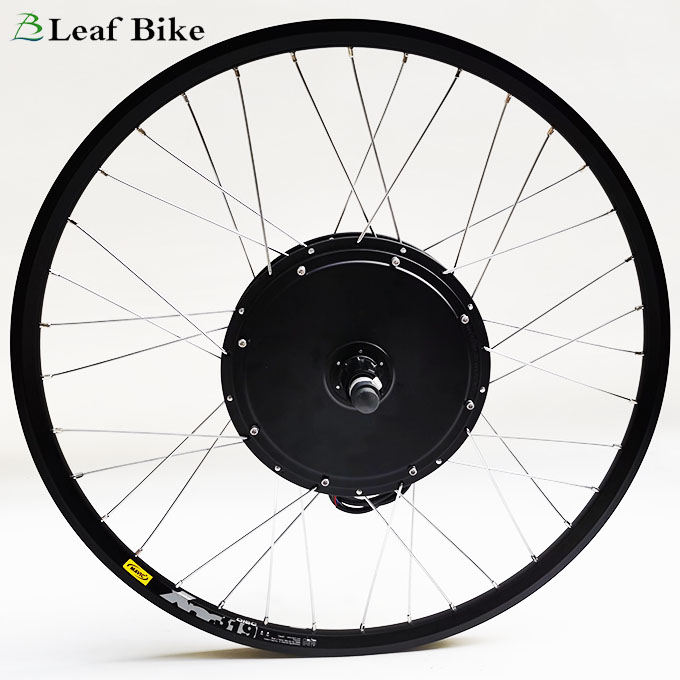

1 x 27.5 inch 48V / 52V 1500W 650b rear hub motor wheel - cassette version
1 x 48V / 52V 1500W 18-MOSFET motor controller
1 x LCD-830
1 x Twist throttle -- Cable length: 1500mm
 1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise.. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 1000mm

 Net Weight: 25.6 lbs
Package Size: 64cm L × 64cm W × 25cm H
Package Type: Cardboard Box

* This motor & controller system handle a 48V / 52V battery (From Min 40V....47V,48V,49V,50V,51V,52V,53V,54V,55V.... ~ Max 60V DC).

Share Video:

Wire Diagram:

1500w cassette Drw.

Performance Data:
