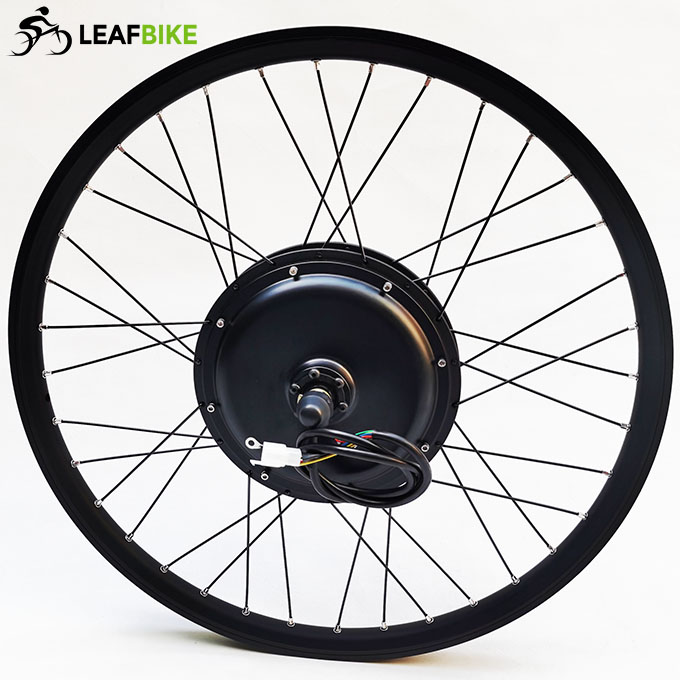

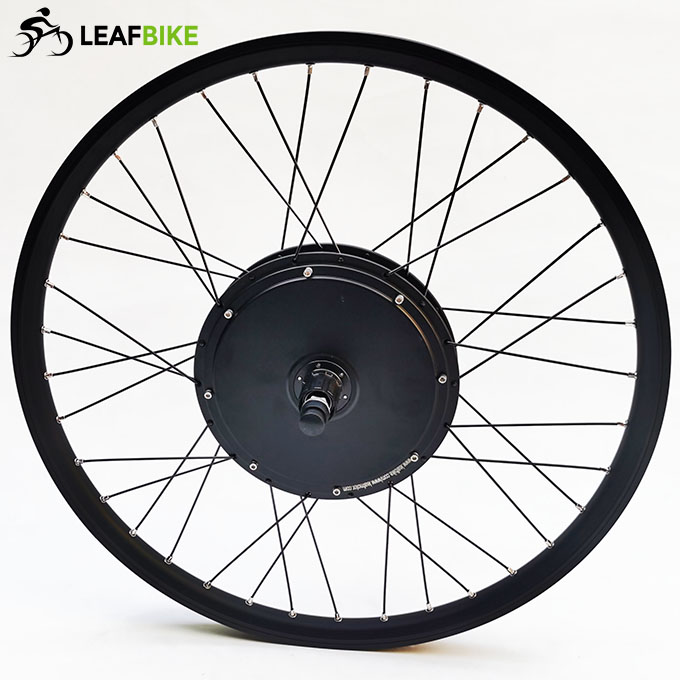

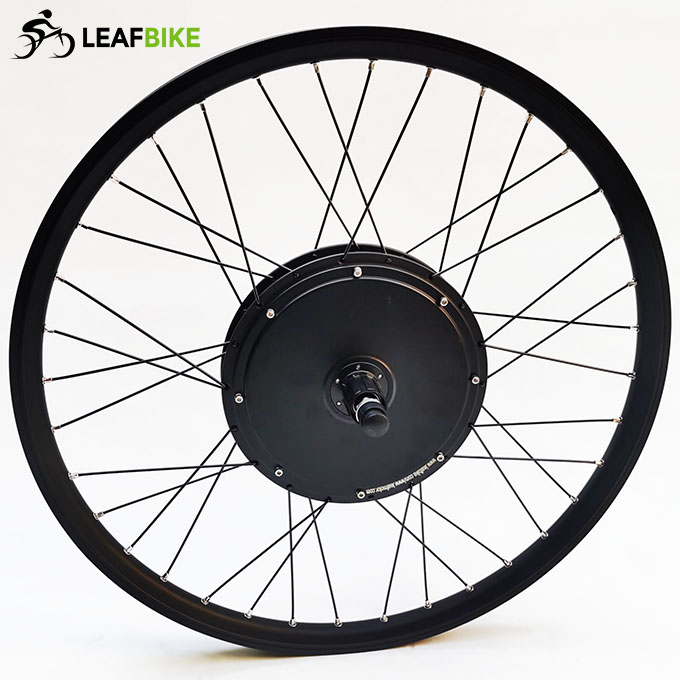

27.5 inch 60V 2000W rear electric hub motor kit

Item ID #LBCK275602000RNK
$413.00 $462.00
    Please select the information you wantX
  • Tyre Size :
    27.5 x 1.5" / 1.75"
    27.5 x 1.95" / 2.1" ~ 2.5"
  • Sprocket :
    Freewheel
    Cassette
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description
Please watch video for 27.5 inch 60V 2000W rear hub motor electric bike kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, max 32kmh, max 45kmh..
Cassette Video:
27.5 inch 60V 2000W rear electric hub motor kit video

This 27.5 inch hub motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Main Features:

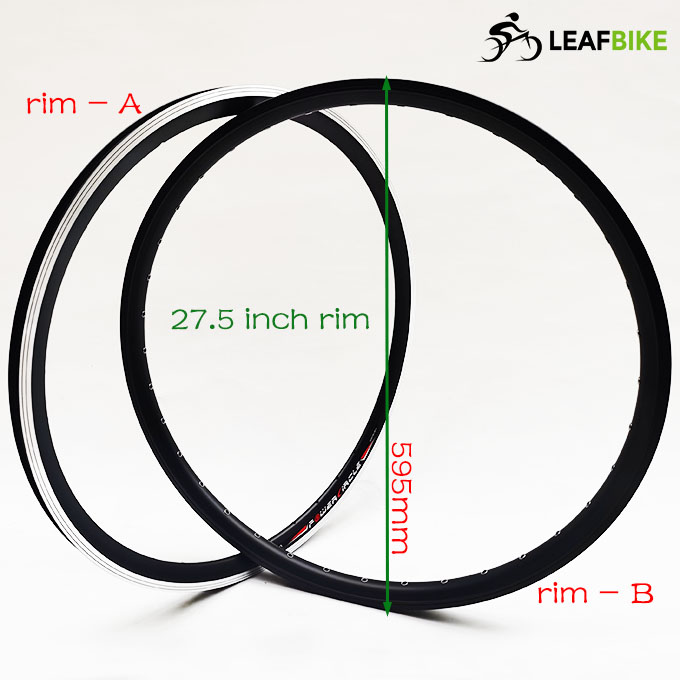

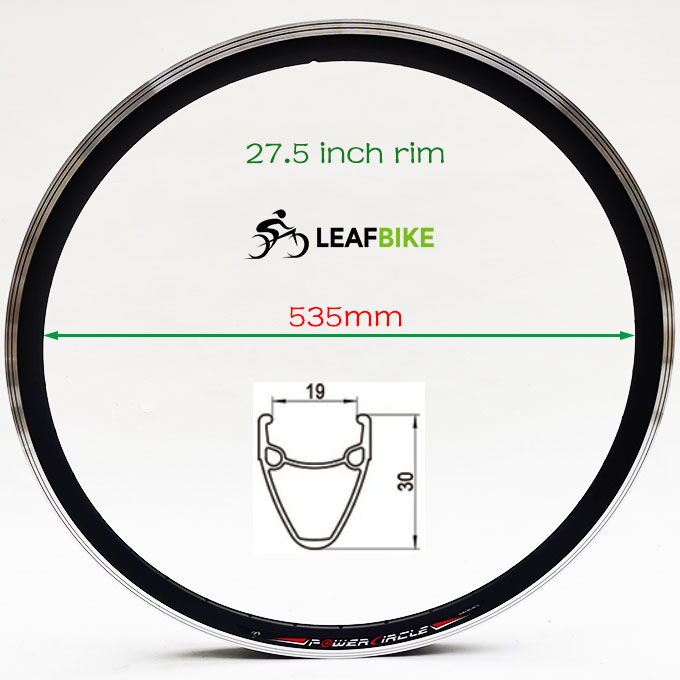

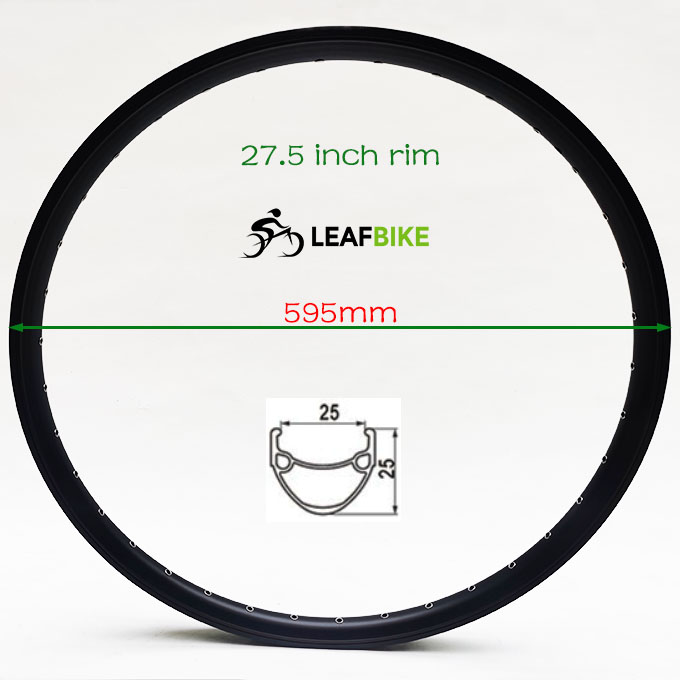

>. Rim A: 27.5 inch double wall Alloy (Rim Fit For: 27.5 × 1.5" / 1.75")
>. Spoke: Black 12 gauge / 165mm Length × 36 pcs

>. Rim B: 27.5 inch double wall Alloy (Rim Fit For: 27.5 × 1.95" / 2.1" ~ 2.5" tire)
>. Spoke: Black 12 gauge / 172mm Length × 36 pcs


>. Engine : Bldc hub motor
>>. Voltage: 60V
>>.  Power: 2000W
>>.  Efficiency: 90.5%
>>.  Max speed: 73.5 kmh / 45.6 mph Default
>>. Mechanical brake: Disk or  V
>>. Sprocket: Freewheel or Cassette
>>.  Cable location: shaft end, LEFT
>>.  Cable length:100cm / 40" -- Update “3mm phase wires” & "Newest version hub"
>>.  Install: spacing of Min 135mm to Max 155mm fork
>>.  Noise: < 60 db
>>.  Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 60 Volts
>>. Min. Voltage: DC
 50 ± 0.5 V
>>.  Rated power: 2000 Watts
>>.  Casing material: aluminium
>>.  Maximum Current: 55 A ± 2 Amps
>>.  Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 234 mm L × 82 mm W × 42 mm H

With LCD-003, More Function:
* Cruise -- Green button Control (While motor is working,press green button one time,it will be "CRUISE" - running as the same speed)
* Reverse -- Yellow button Control ("Left side & mid / forward -- "Right side / backward")
* Kmh / mph
* Pedal assist ( 0 - 5 )
* ...

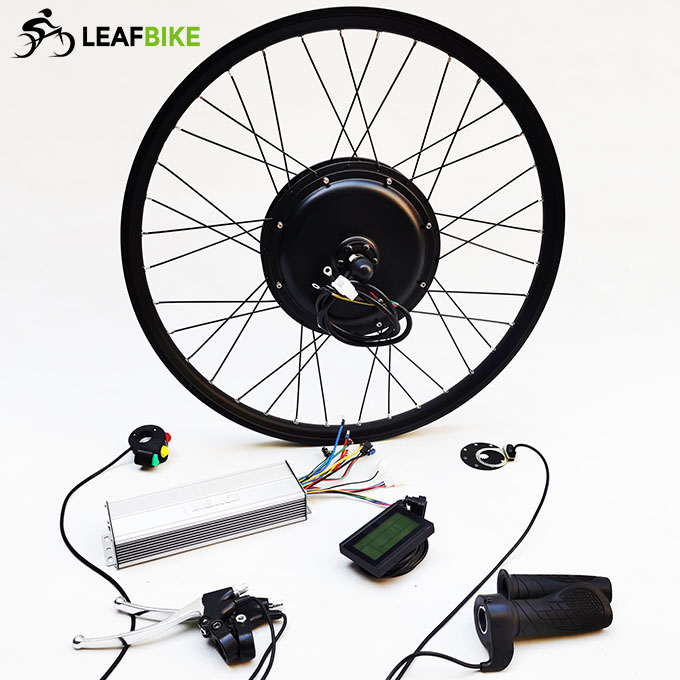

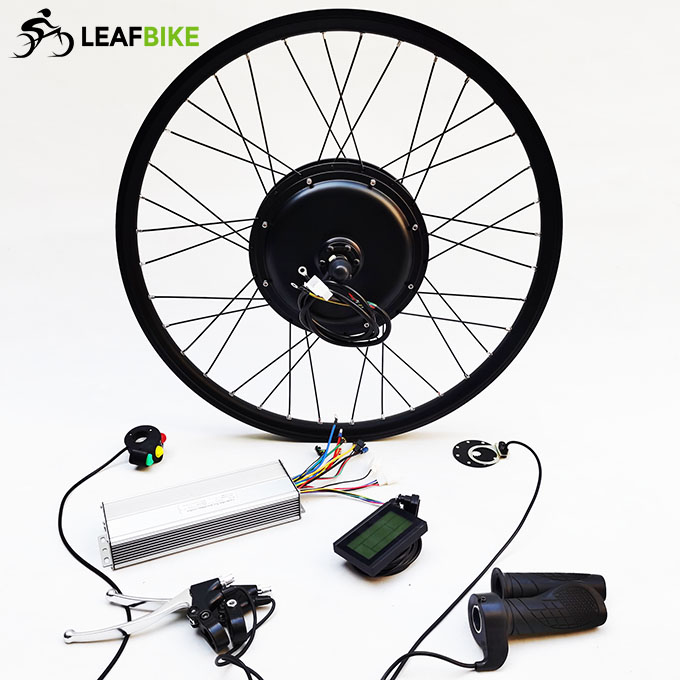

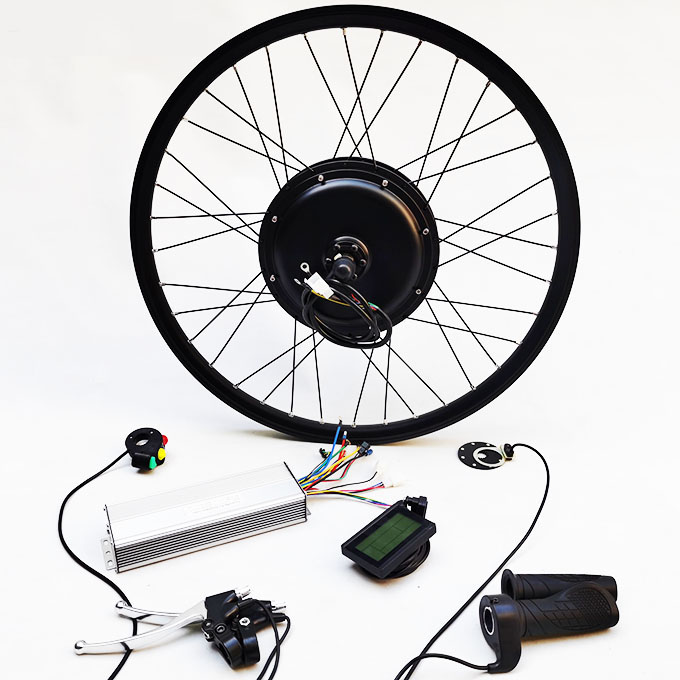

Package Content:

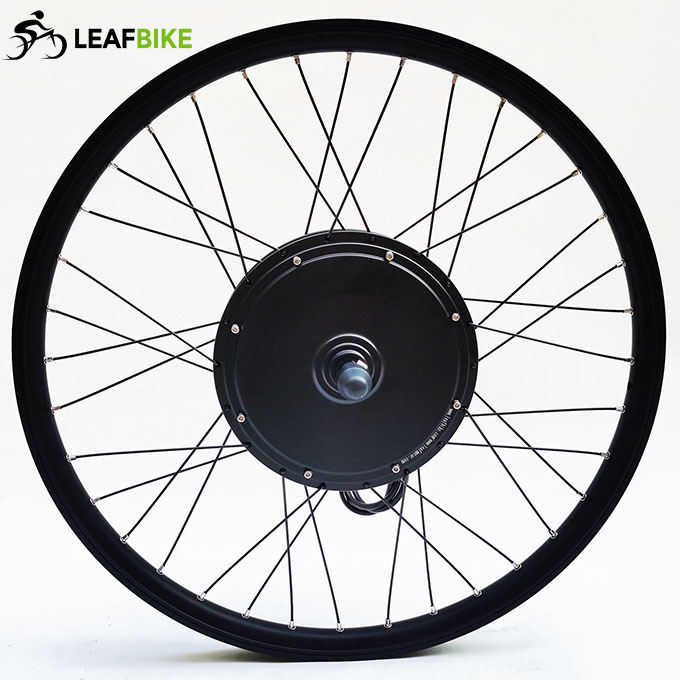

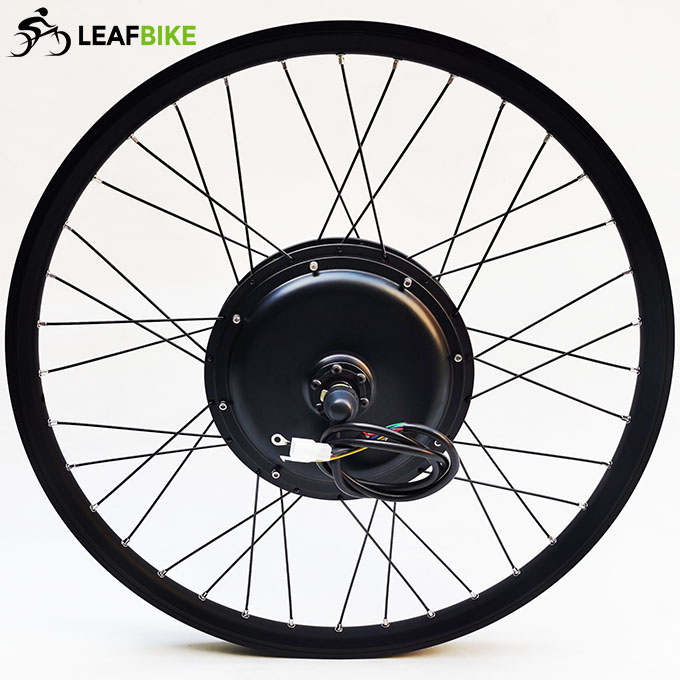

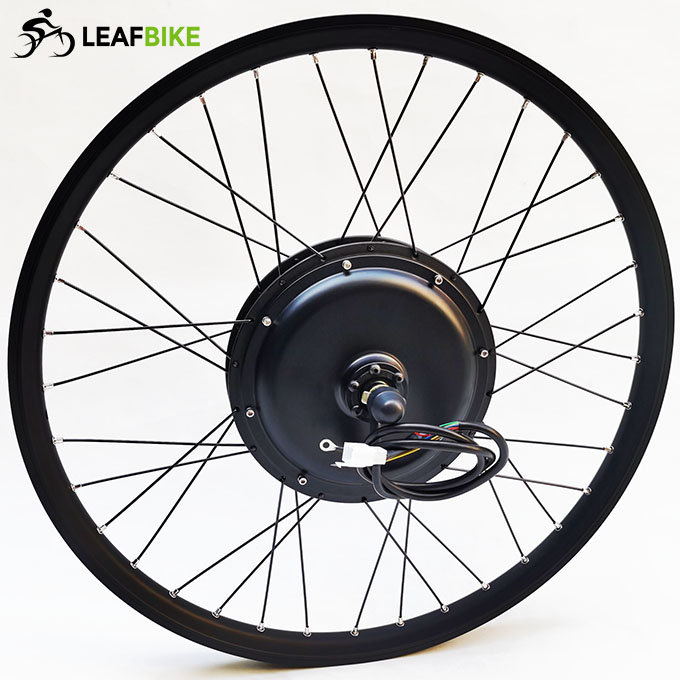

1 x 27.5 inch 60V 2000W rear hub motor wheel
1 x 60V 2000W motor controller
1 x LCD-003
1 x Twist throttle -- Cable length: 1500mm
 1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise.. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

 Net Weight: 25.6 lbs
Package Size: 64cm L × 64cm W × 25cm H
Package Type: Cardboard Box
Wire Diagram:
26 inh 60V 2000W rear hub motor bike conversion kit wire diagram
Cassette Drw.
60V 2000W cassette hub motor drawing
Rear Motor Drw.
60V 2000W rear freewheel hub motor drawing

Recommended Products: Hydraulic Mechanical Brake Cut Off Sensor Switch Cable
Why do you need this external brake sensor cable?
Brake sensor for either hydraulic or mechanical brakes where you would like to keep your existing brake levers.
For front or rear brakes. Very simple to install, very easy to use. Will allow you to cut off the electric system on your electric vehicle.
Hydraulic Mechanical Brake Cut Off Sensor Switch Cable
