700c 48V 52V 500W front hub motor - electric bike kit

Name: 700c 48V 52V 500W front hub motor - electric bike kit
Brand: Leaf Bike
SKU: LBCK700C48500FN
Price: 297 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK700C48500FN

$297.00 ~~$398.00~~

Maybe You Need These

Description

This 700c hub motor kit combines the full E-bike technology: direct drive Brushless Geared high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Main Features:

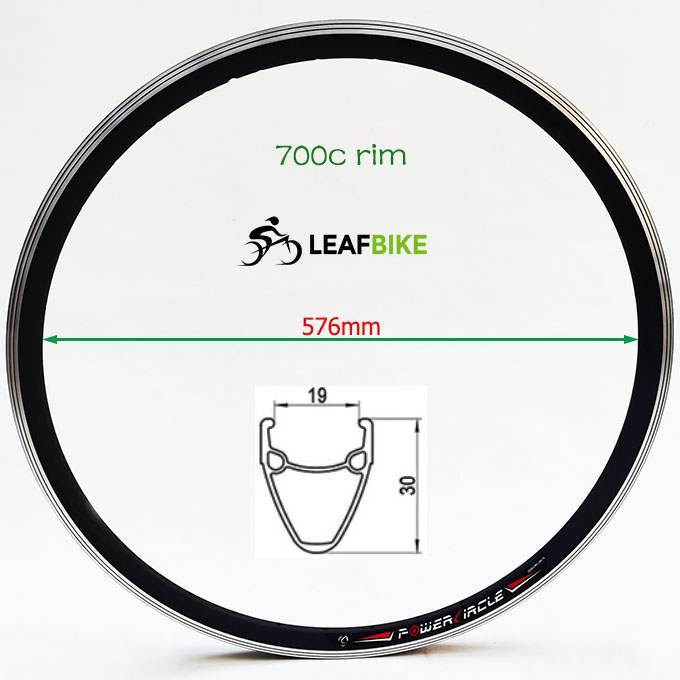

>. Rim: 700c double wall Alloy (Rim Fit For: 700c × 18C / 20C / 23C / 25C / 28C / 32C / 35C / 40C tire)
>. Spoke: 12 gauge / 215 mm Length × 36 pcs

>. Engine: Bldc hub motor -- Brushless Geared
>>. Voltage: 48V / 52V
>>. Power: 500W
>>. Efficiency: 78%
>>. Max speed: 32.6 kmh -- 20.1 mph
>>. Mechanical brake: Disk or V
>>. Cable location: shaft end , LEFT
>>. Cable length:150cm / 60"
>>. Install: spacing of 100mm fork
>>. Noise: < 60 db
>>. Surface: Bright silver

>. Driver: brushless controller
>>. MOSFET: 6 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 500 Watts
>>. Casing material: aluminum
>>. Maximum Current: 16 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 95 mm L × 61 mm W × 35 mm H

LCD-003, More Function:
* Cruise
* Reverse ( The motor does not support the reversal )
* Kmh / mph
* Set Max speed ( 0 ~ 72 kmh / 45 mph )
* Pedal assist ( 1 - 5 )
* ...

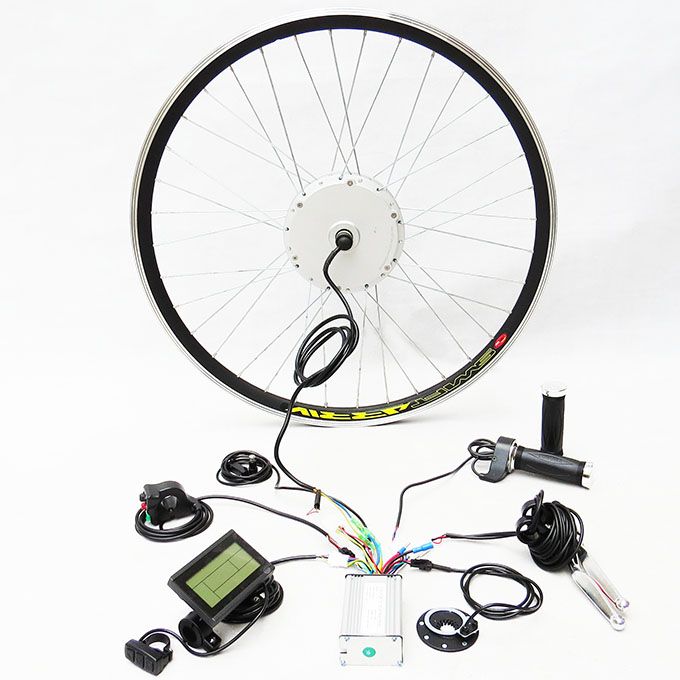

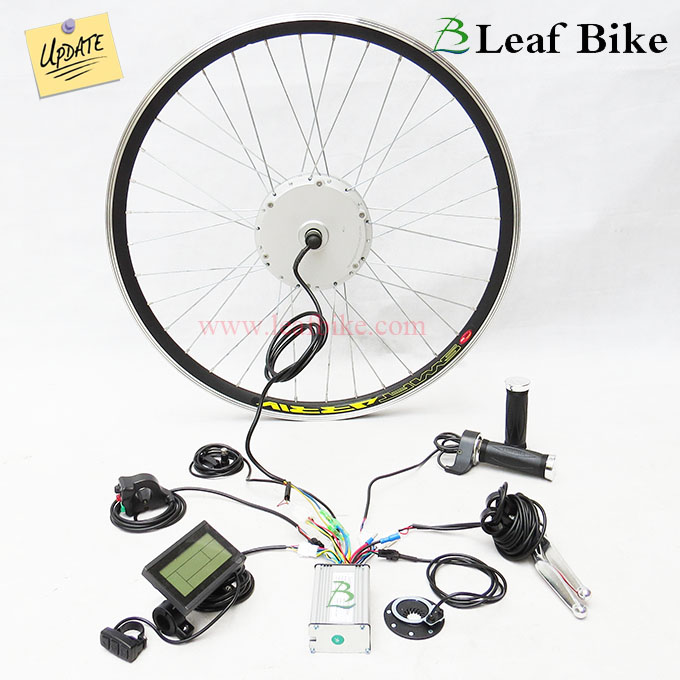

Package Content:
1 x 700c 48V / 52V 500W front bldc hub motor wheel
1 x 48V / 52V 6-MOSFET motor controller
1 x LCD-003 ( display speed, mileage, battery gauge.. )
1 x Twist throttle
1 x Brake lever
1 x Three button switches
1 x Pedal assist

Net Weight: 6.12 kg / 13.5 lbs
Package Size: 66cm L x 66cm W x 25cm H
Package Type: Cardboard Box

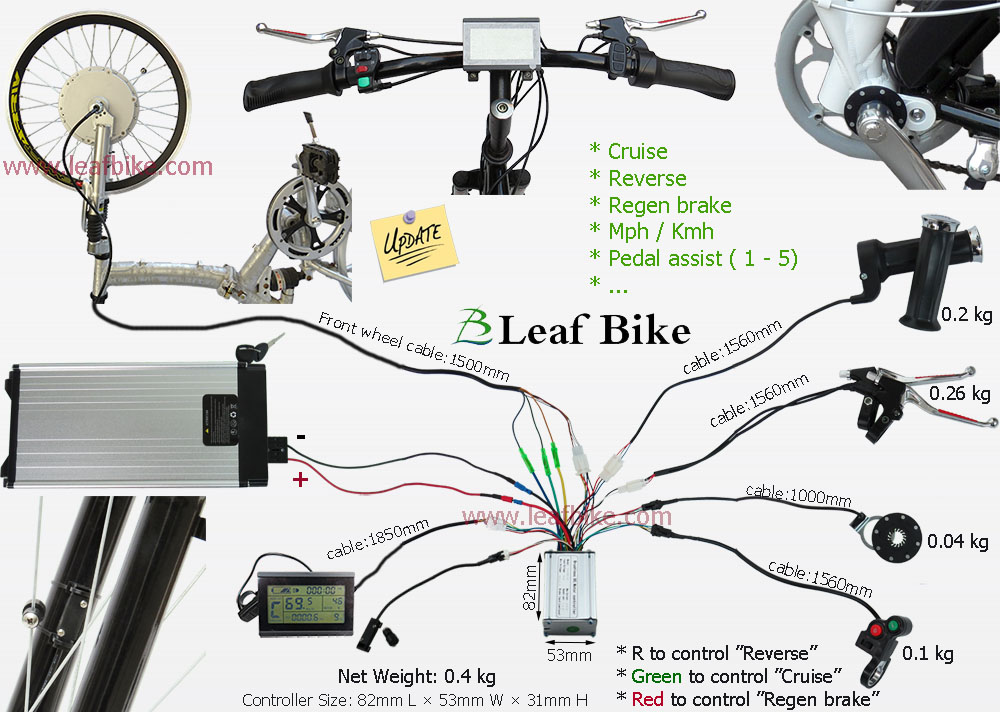

Wire Diagram:
