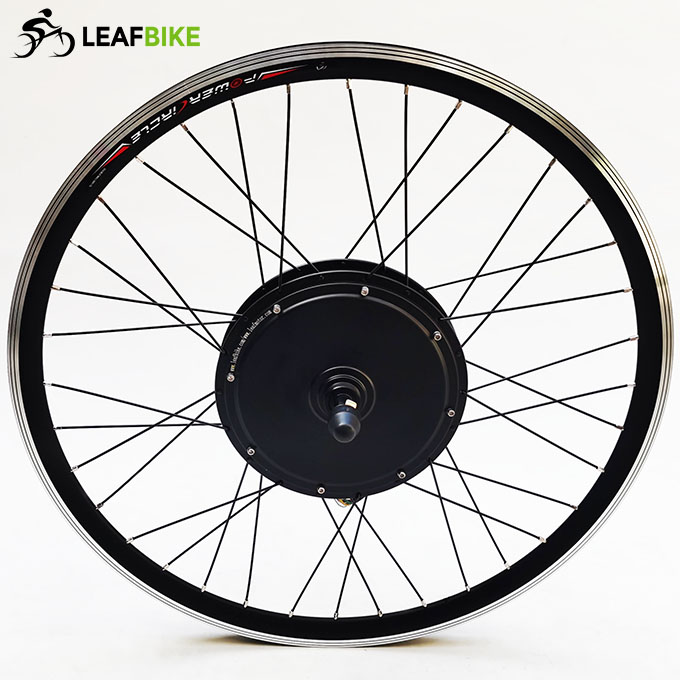

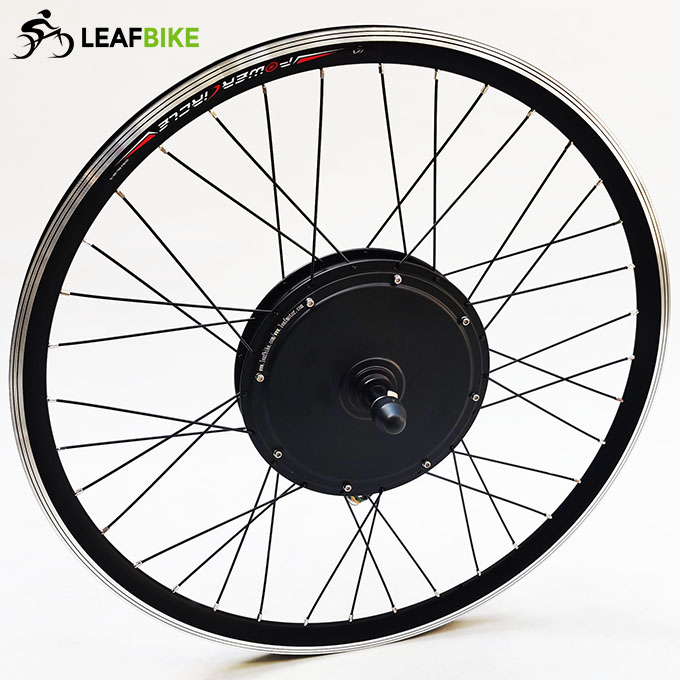

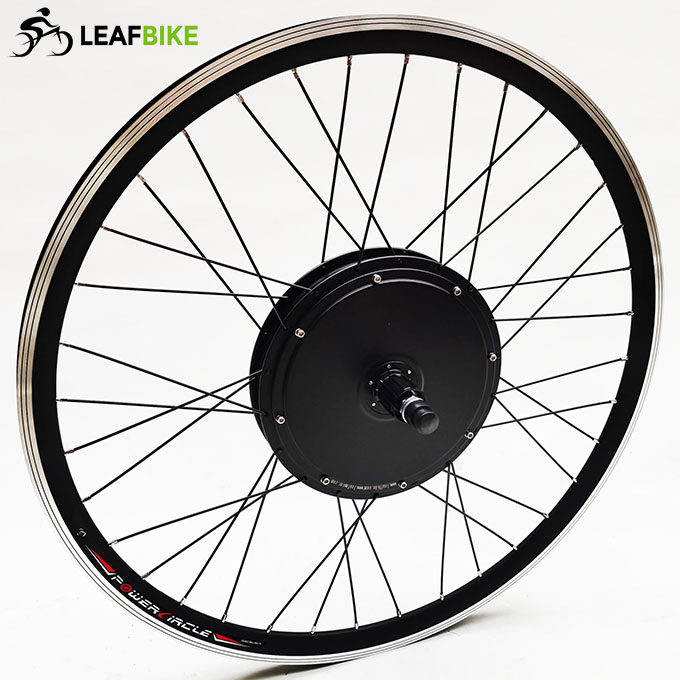

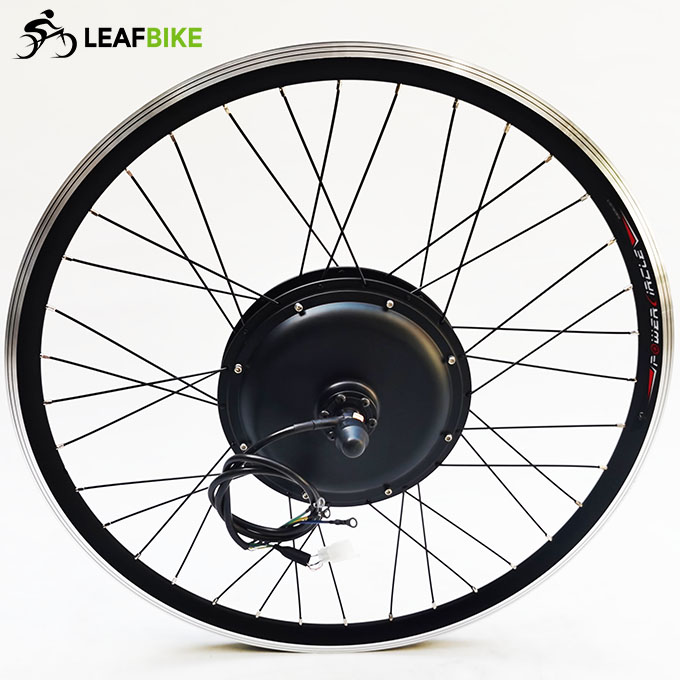

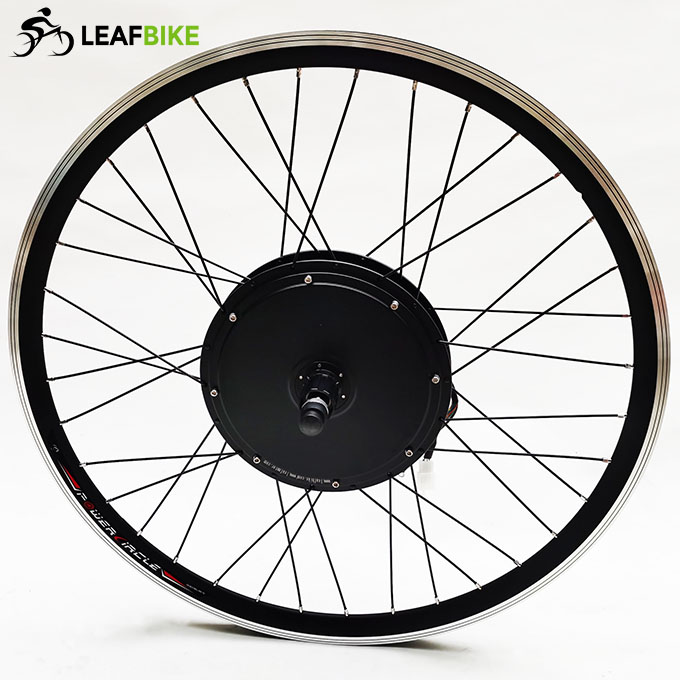

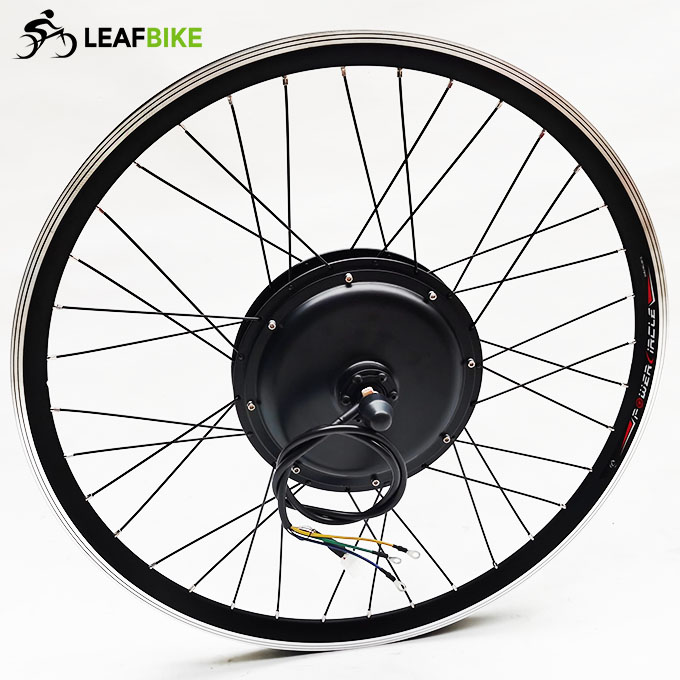

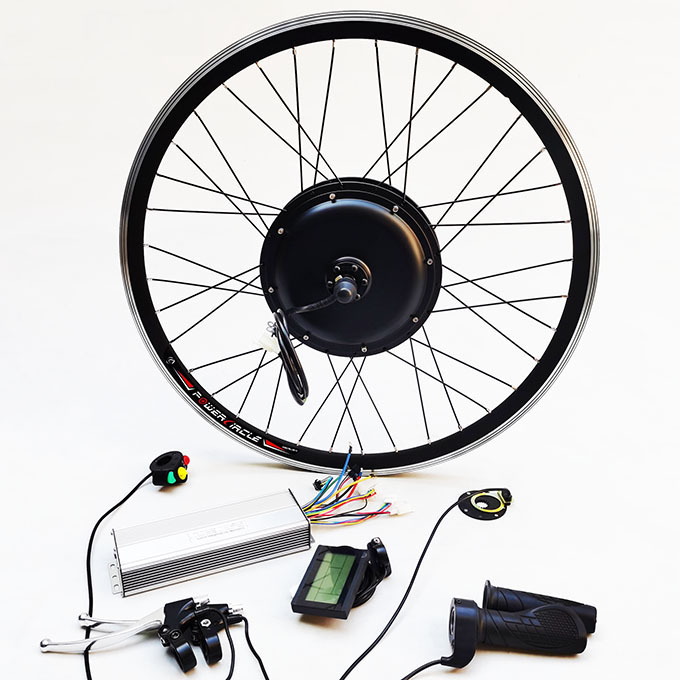

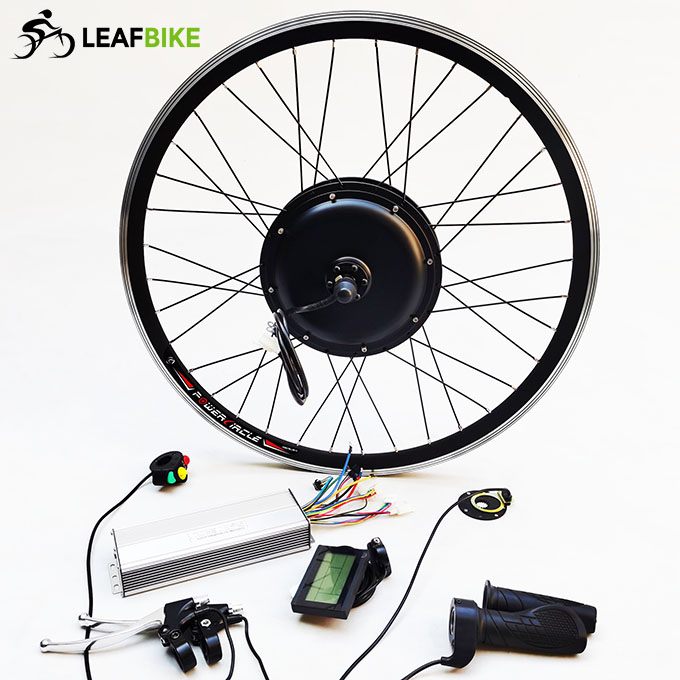

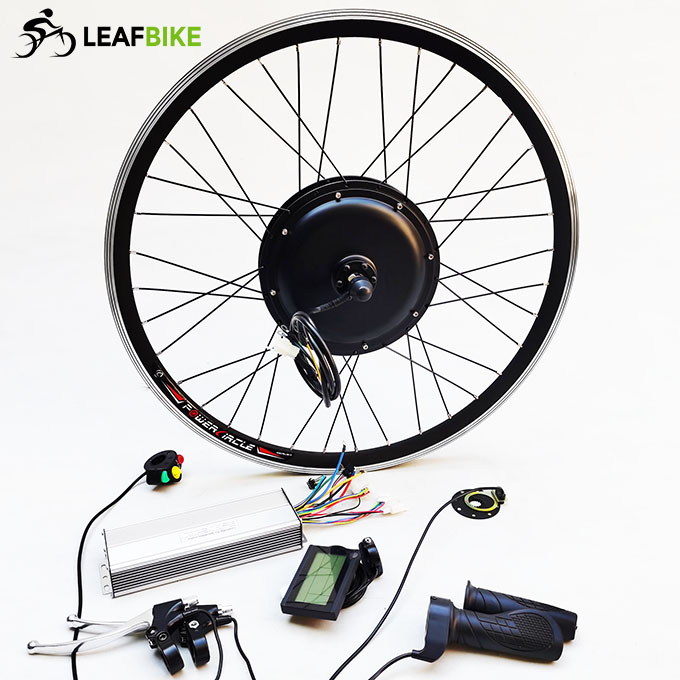

700c 60V 2000W rear electric bike motor kit

Item ID #LBCK700C602000RNK
$418.00 $467.00
    Please select the information you wantX
  • Sprocket :
    Freewheel
    Cassette
  • LCD :
    LCD-003
    LCD-07U
    LCD-08HUP
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description
Please watch video for 700c 60V 2000W rear electric bike kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..
Share Video:
700c 60V 2000W rear electric bike motor kit video

* This 700c bike motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Main Features:

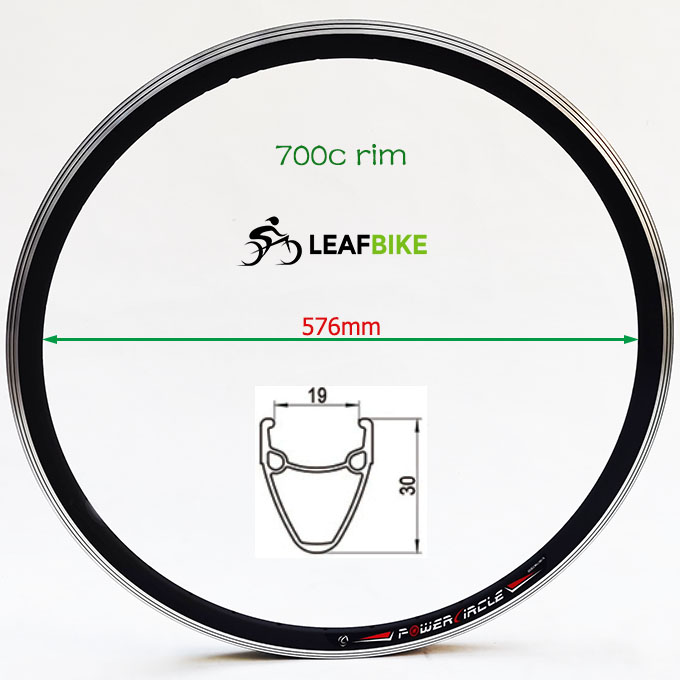

>. Rim: 700c double wall Alloy (Rim Fit For: 700c x 18C / 20C / 23C / 25C / 28C / 32C / 35C / 38C / 40C tyre)
>. Spoke: Black 12 gauge / 184mm Length × 36 pcs
>. Default: Black spokes
>. Optional: Silver spokes -- Please leave message.


>. Engine : Bldc hub motor
>>. Voltage: 60V
>>.  Power: 2000W
>>.  Efficiency: 90.5%
>>.  Max speed: 73.3 kmh - 45.5 mph Default (Optional other speed: 40mph,30mph,25mph...please leave message)
>>. Mechanical brake: Disk or  V
>>. Sprocket: Freewheel or Cassette
>>.  Cable location: shaft end, LEFT
>>.  Cable length:100cm / 40" -- Update “3mm phase wires” & "Newest version hub"
>>.  Install: spacing of Min 135mm to Max 155mm fork
>>.  Noise: < 60 db
>>.  Surface: Black painted

>. Driver: brushless controller
Default: Heat Shrink Bullet Crimp Female Male Wire Connectors Electrical Terminals for battery plug.(Leave message Optional: XT-60)
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 60 Volts
>>. Min. Voltage: DC 50 ± 0.5 V
>>.  Rated power: 2000 Watts
>>.  Casing material: aluminum
>>.  Maximum Current: 55 A ± 2 Amps
>>.  Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 234 mm L × 82 mm W × 42 mm H

LCD, More Function:
* Cruise
* Reverse
* Kmh / mph
* Set Max speed ( 0 ~ 100 kmh / 60 mph )
* Speeds ( 0 - 5 ) - "0" is off. "1" is the slowest. "5" is the fastest.
* ...

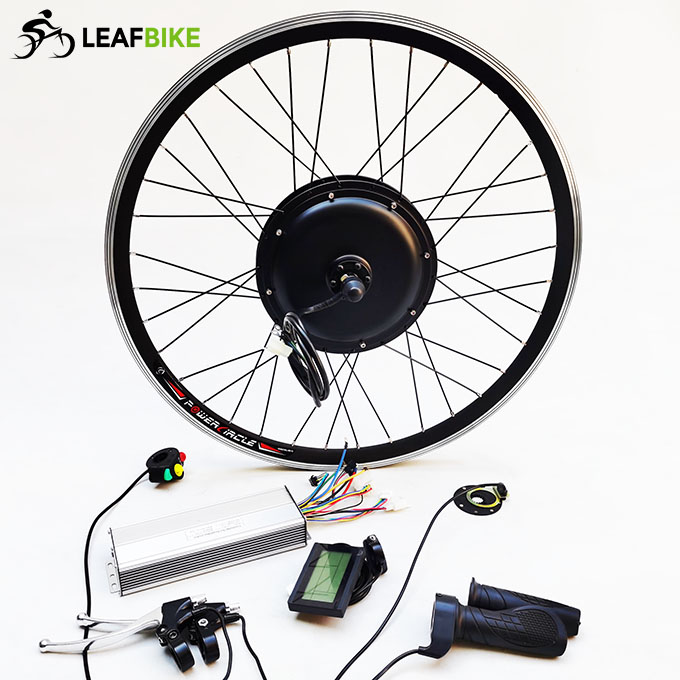

Package Content:

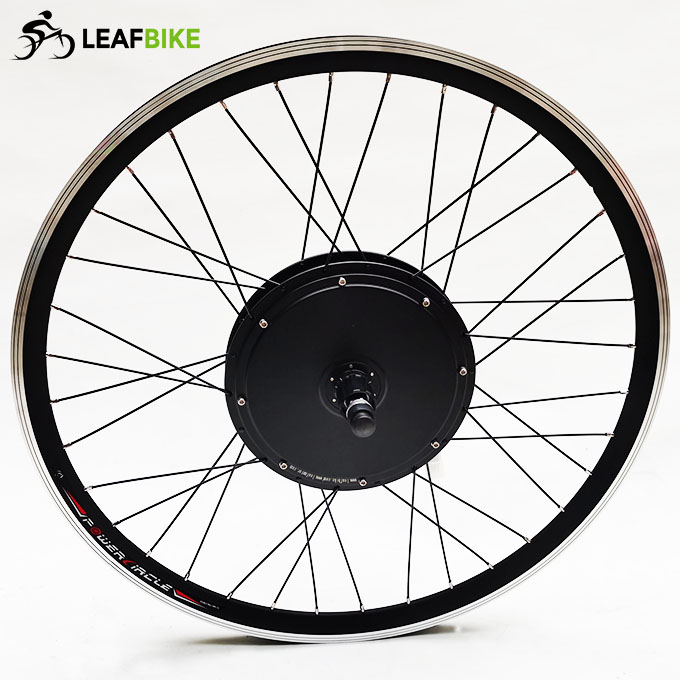

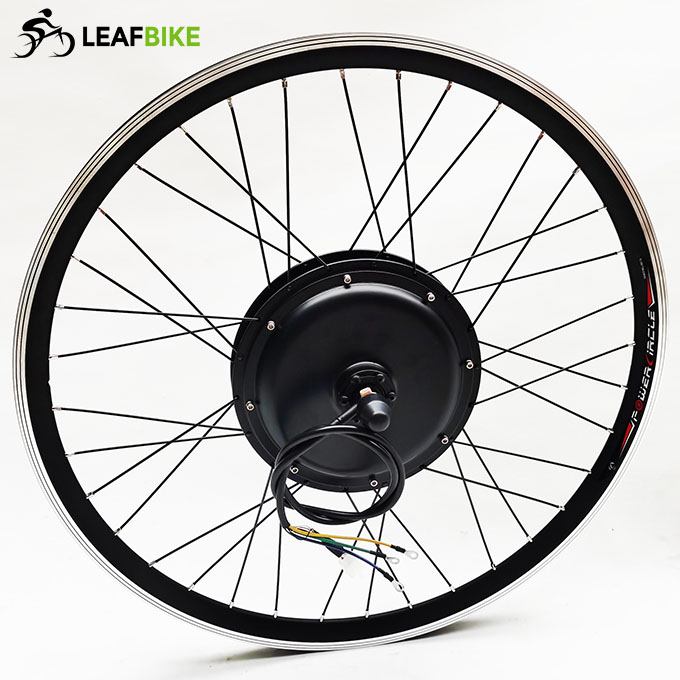

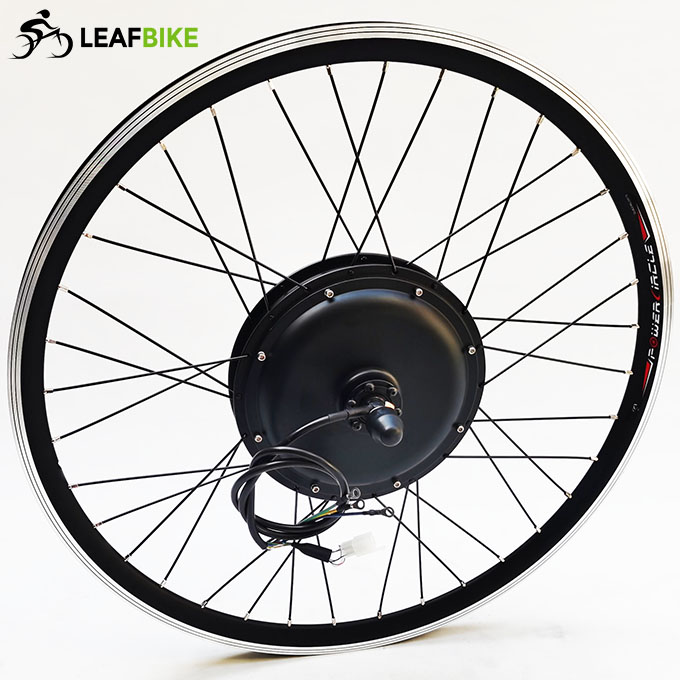

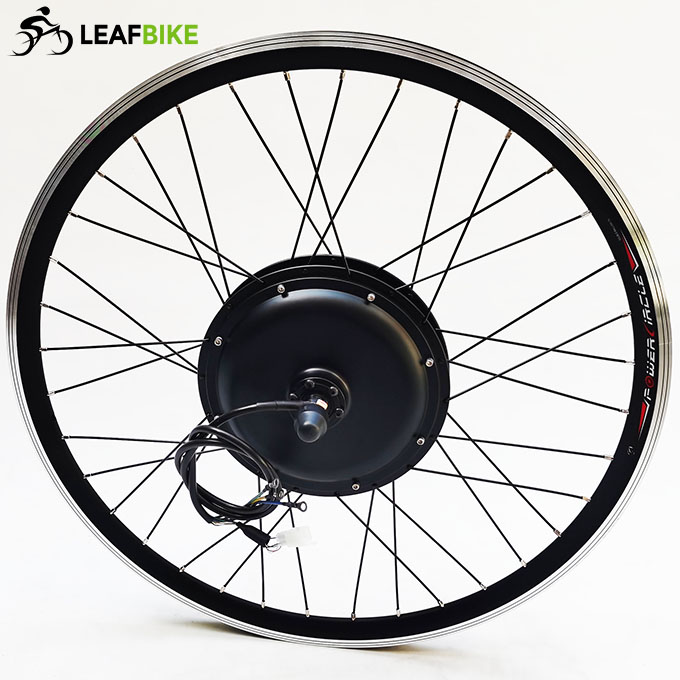

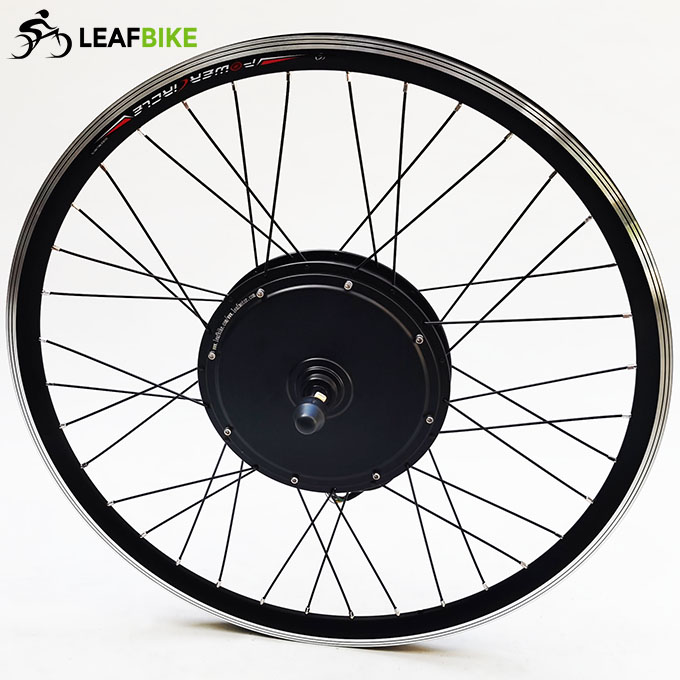

1 x 700c 60V 2000W rear bike motor wheel
1 x 60V 2000W 18-MOSFET motor controller
1 x LCD
1 x Twist throttle -- Cable length: 1500mm
 1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise... ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 11.7 kg
Package Size: 66cm L x 66cm W x 25cm H
Package Type: Cardboard Box
Wire Diagram:
700c 60V 2000W rear electric bike motor kit wire diagram
Rear Motor Drw.
60V 2000W rear freewheel hub motor drawing
2000W Cassette Drw.2000w cassette hub motor drawing
