700c 36V 750W front wheel - electric hub motor kit

Name: 700c 36V 750W front wheel - electric hub motor kit
Brand: Leaf Bike
SKU: LBCK700C36750FN
Price: 315 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK700C36750FN

$315.00 ~~$378.00~~

Maybe You Need These

Description

The 700c bike conversion kit combines the full E-bike technology: direct drive high torque Gearless Brusless Bike Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
This 700c bike motor kit works with a 36V battery.

Main Features:
>. Rim: 700c / 622 double wall Alloy (Rim Fit For: 700c x 18C / 20C / 23C / 25C / 28C / 32C / 35C / 40C)
>. Spoke: 12 gauge / 184mm Length x 36 pcs
>. Default: Black spokes
>. Optional: Silver spokes -- Please leave message.

>. Engine: Bldc hub motor
>>. Voltage: 36V
>>. Power: 750W
>>. Efficiency: 87.5%
>>. Max speed: 65.0 kmh -- 40.2 mph
>>. Mechanical brake: Disc or V
>>. Cable location: shaft end, Left
>>. Cable length: 150cm / 60"
>>. Install: spacing of 100mm fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 36 Volts
>>. Min. Voltage: DC 30 ± 0.5 V
>>. Rated power: 750 Watts
>>. Casing material: aluminum
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 105 mm L x 72 mm W x 38 mm H

With LCD, More Function:
* Cruise - Yes
* Forward & Backward
* Kmh & mph (Optional)
* Speeds ( 0 - 5 ) - "0" is off. "1" is the slowest. "5" is the fastest.
* ..

Package Content:
1 x 700c 36V 750W front hub motor wheel
1 x 36V 750W 12-MOSFET motor controller
1 x LCD
1 x Twist throttle Default (Optional: Thumb throttle)
1 x Brake levers
1 x Three button switches ( control cruise.. )
1 x Pedal assist

Net weight: 10.9 kg
Package Size: 66cm L x 66cm W x 25cm H
Package Type: Cardboard Box

Share Video:

700c 36V 750W front hub motor electric bike conversion kit video

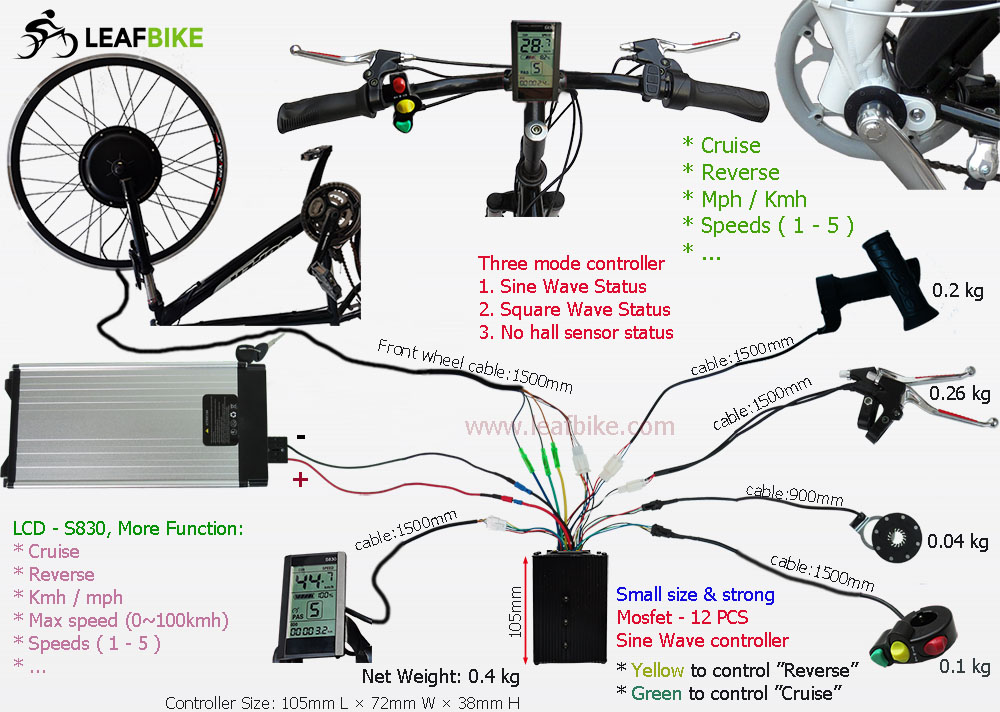

Wire Diagram:

750W Front Drw.

Performance Data:
