700c 36V 300W - 500W rear hub motor - electric bike kit

Item ID #LBCK700C36400RN
$298.00 $398.00
    Please select the information you wantX
Quantity :
Maybe You Need These
Maybe You Need These
Please watch video for 700c 36V 300W 500W rear hub motor electric bike conversion kit that show one kind of default speed. We also can customize this motor with different speed versions for free.
Share Video:
700c electric bike conversion kit

The 700c electric hub motor kit combines the full E-bike technology: direct drive Brushless Geared high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Main Features:

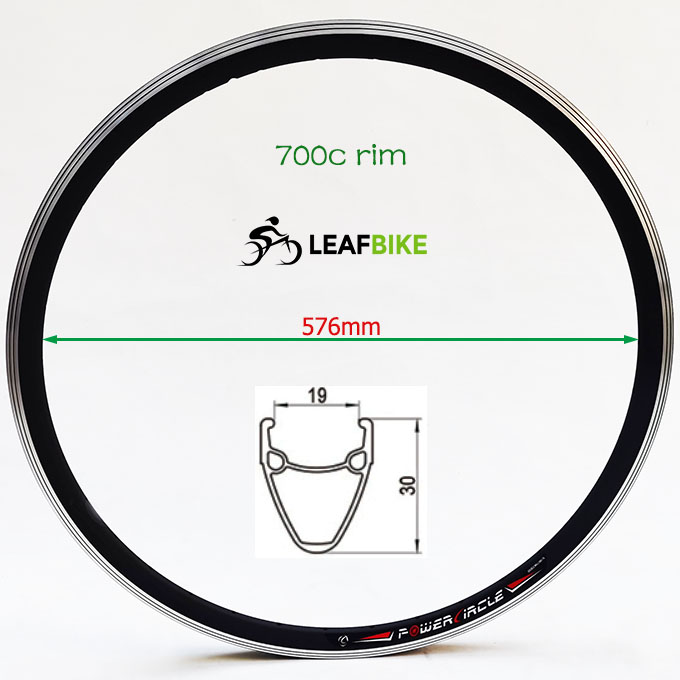

>. Rim: 700c double wall Alloy (Rim Fit For: 700c × 18C / 20C / 23C / 25C / 28C / 32C / 35C / 40C tire)
>. Spoke: 12 gauge / 215mm Length × 36 pcs

>. Engine : Bldc hub motor
>>. Voltage: 36V
>>.  Power: 400W
>>.  Efficiency: 80%
>>.  Max speed: 32.6 kmh -- 20.1 mph
>>.  Mechanical brake: Disk or  V
>>.  Cable location: shaft end, RIGHT
>>.  Cable length:100cm / 40"
>>.  Install: spacing of 135mm fork
>>.  Noise: < 60 db
>>.  Surface: light silver

>. Driver: brushless controller
>>. With LCD: YES
>>. Rated Voltage: DC 36Volts
>>. Min. Voltage: DC 30 ± 0.5 V
>>.  Rated power: -- Watts
>>.  Casing material: aluminium
>>.  Maximum Current: 16 A ± 1 Amps
>>.  Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 95 mm L × 61 mm W × 35 mm H

LCD-003, More Function:
* Cruise
* Reverse
* Kmh / mph
* Set Max speed ( 0 ~ 72 kmh / 45 mph )
* Pedal assist ( 1 - 5 )
* ...

Package Content:

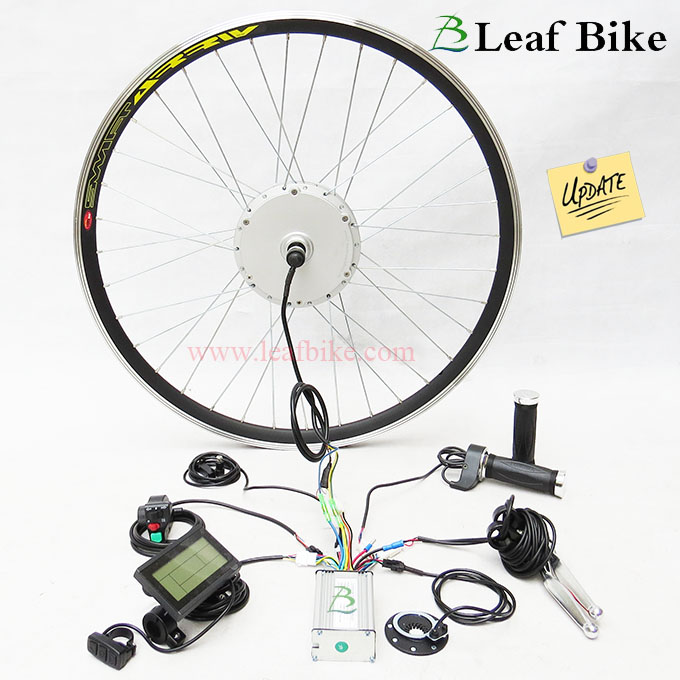

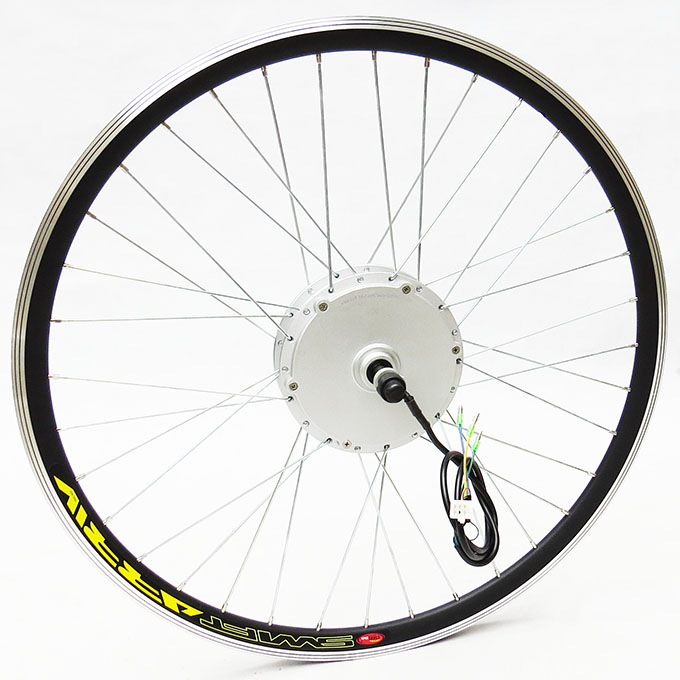

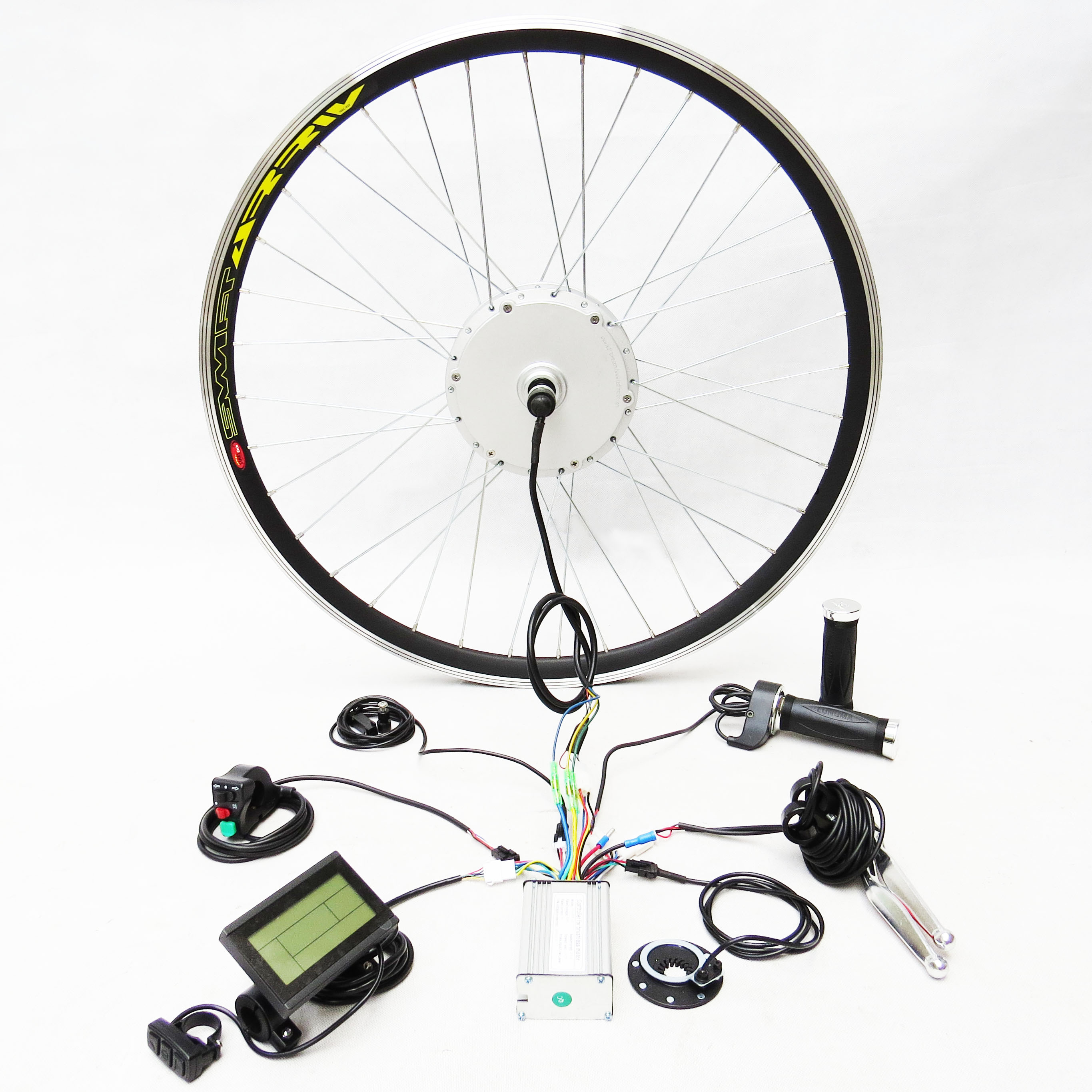

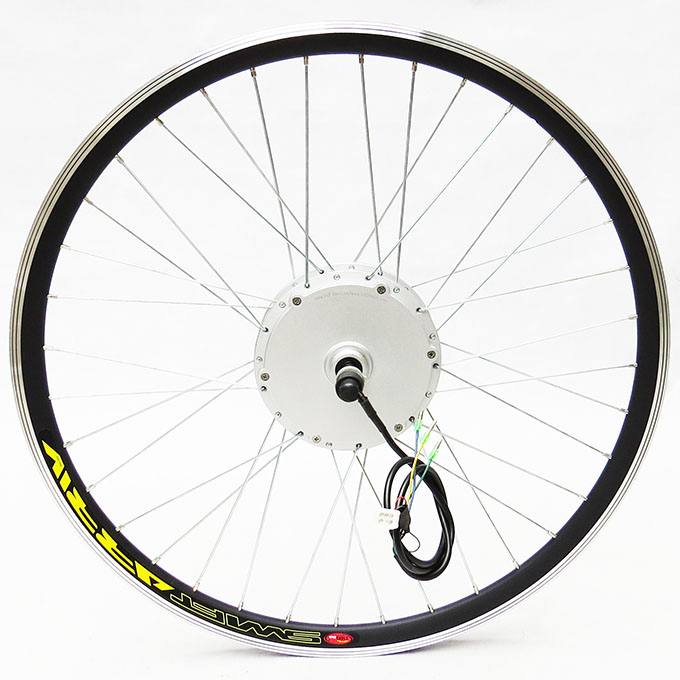

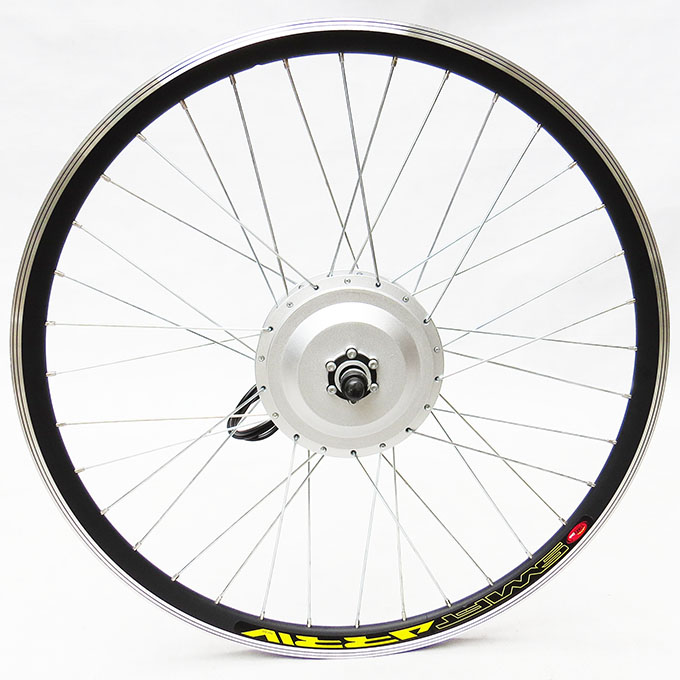

1 x 700c 36V 300W - 500W rear hub motor wheel
1 x 36V 6-MOSFET motor controller
1 x LCD-003 ( display speed, mileage, battery gauge.. )
1 x Twist throttle -- Cable length: 1500mm
 1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise.. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net weight: 6.12 kg   /  13.5 lbs
Package Size: 66cm L x 66cm W x 25cm H
Package Type: Cardboard Box
Share Video:
700c electric bike conversion kit
Wire Diagram:
250W Rear Drw.drawing-36v-250w-rear-geared-hub-motor
