This
700c electric bike conversion kit combines the full E-bike technology: direct drive Brushless Geared high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
Main Features:

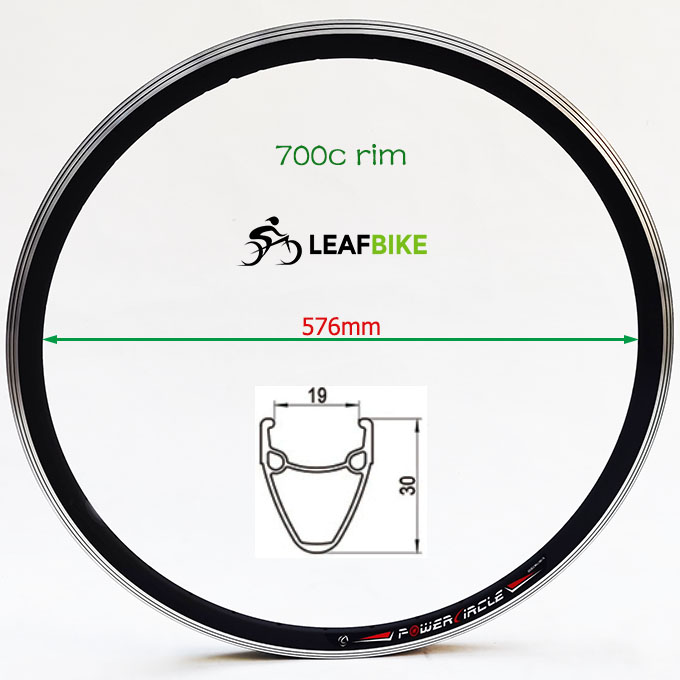

>. Rim: 700c double wall Alloy (Rim Fit For: 700c × 18C / 20C / 23C / 25C / 28C / 32C / 35C / 40C tire)
>. Spoke: 12 gauge / 215 mm Length × 36 pcs
>. Engine
: Bldc hub motor -- Brushless Geared
>>. Voltage: 36V
>>.
Power: 400W
>>.
Efficiency: 78%
>>.
Max speed: 17.5 kmh -- 10.8 mph
>>.
Mechanical brake: Disk or V
>>.
Cable location: shaft end , LEFT
>>.
Cable length:150cm / 60"
>>.
Install: spacing of 100mm fork
>>.
Noise: < 60 db
>>.
Surface:
Bright silver
>. Driver: brushless controller
>>. MOSFET: 6 PCS
>>. With LCD: YES
>>. Rated Voltage: DC36 Volts
>>. Min. Voltage: DC 30 ± 0.5 V
>>.
Rated power: 400 Watts
>>.
Casing material: aluminium
>>.
Maximum Current: 16 A ± 1 Amps
>>.
Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 95 mm L × 61 mm W × 35 mm H
LCD-003, More Function:
* Cruise
* Reverse (
The motor does not support the reversal )
* Kmh / mph
* Set Max speed ( 0 ~ 72 kmh / 45 mph )
* Pedal assist ( 1 - 5 )
* ...

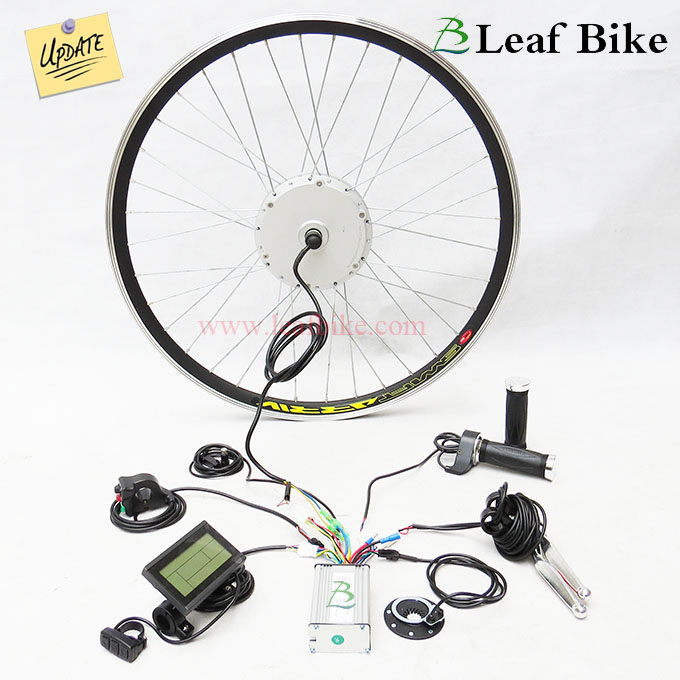

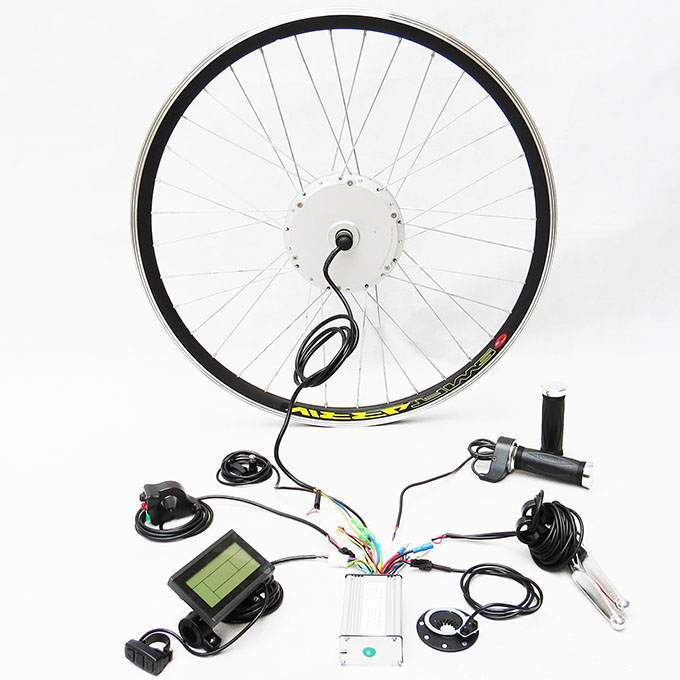

Package Content:

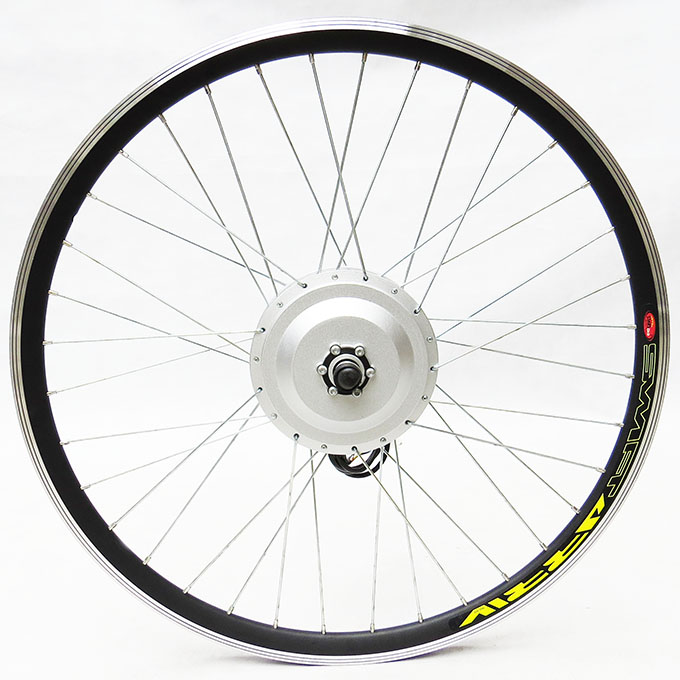

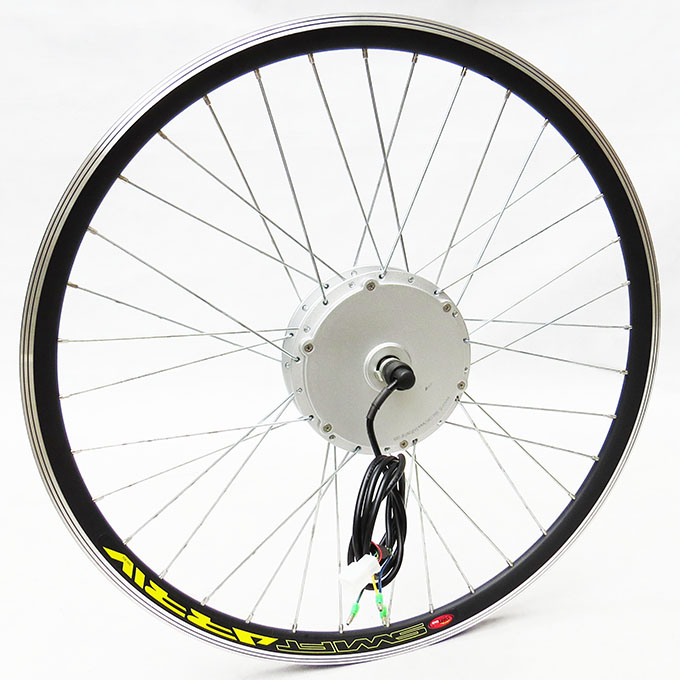

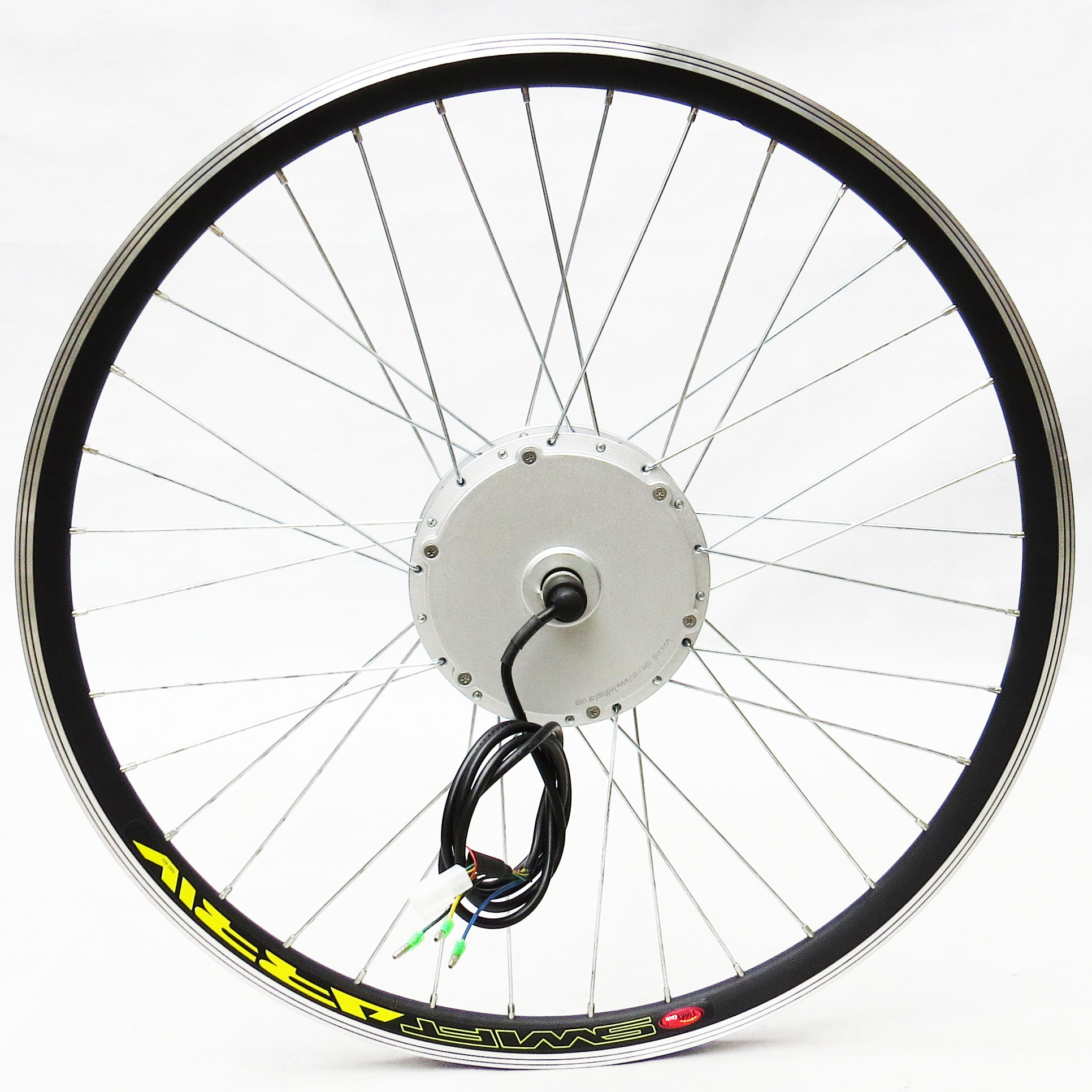

1 x 700c 36V 300W - 500W front bldc hub motor wheel
1 x 36V 6-MOSFET motor controller
1 x LCD-003 ( display speed, mileage, battery gauge.. )
1 x Twist throttle
1 x Brake lever
1 x Three button switches
1 x Pedal assist
Net Weight: 6.12 kg / 13.5 lbs
Package Size: 66cm L x 66cm W x 25cm H
Package Type: Cardboard Box
Notice:The packaging volume weight is greater than the actual weight.
