700c 36V 250W rear hub motor - electric bike kit

Item ID #LBCK700C36250R
$298.00 $360.00
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description

This 700c bike motor kit combines the full Electric bike technology: direct drive Brushless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Main Features:

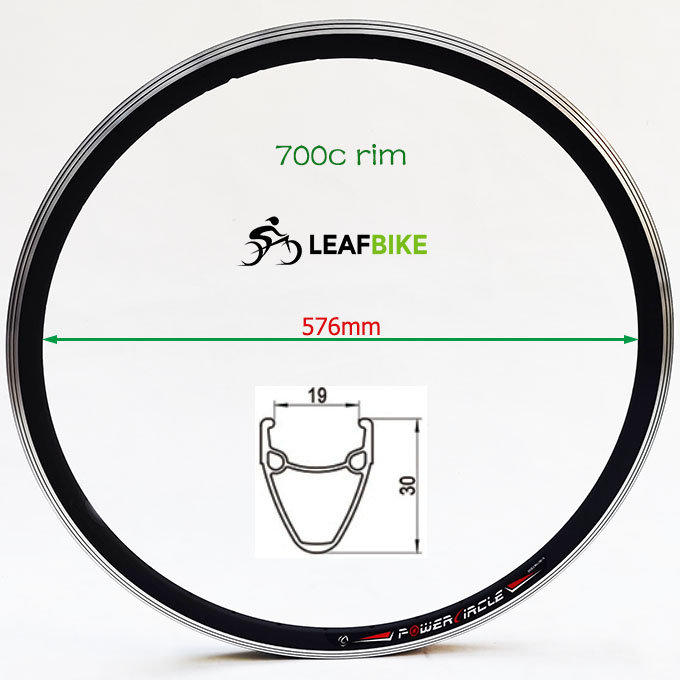

>. Rim: 700c / 622 double wall Alloy (Rim Fit For: 700 x 18C / 20C / 23C / 25C / 28C / 32C /40C tire)
>. Spoke: 12 gauge / 234mm Length × 36 pcs

>. Engine : Bldc hub motor
>>. Voltage: 36V
>>.  Power: 250W
>>.  Efficiency: 80%
>>.  Max speed: 49.0 kmh -- 30.3 mph
>>.  Mechanical brake: Disk or  V
>>.  Cable location: shaft end , RIGHT
>>.  Cable length:100cm / 40"
>>.  Install: spacing of 135mm fork
>>.  Noise: < 60 db
>>.  Surface: light silver

>. Driver: brushless controller
>>. MOSFET: 6 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 36Volts
>>. Min. Voltage: DC 30 ± 0.5 V
>>.  Rated power: 250 Watts
>>.  Casing material: aluminium
>>.  Maximum Current: 16 A ± 1 Amps
>>.  Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 95 mm L × 61 mm W × 35 mm H

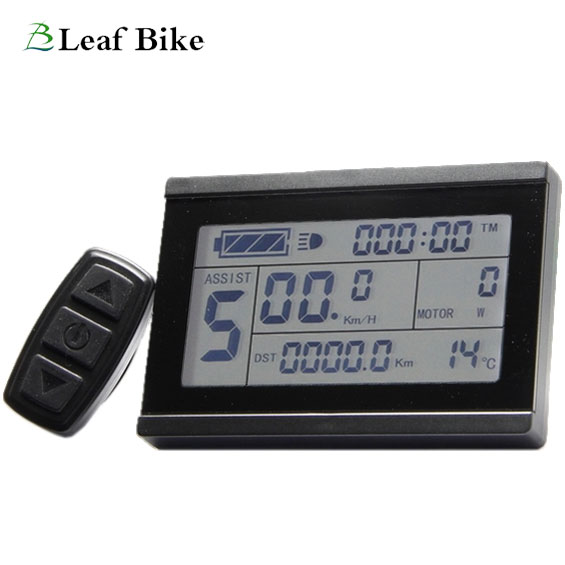

LCD-003, More Function:
* Cruise
* Kmh / mph
* Set Max speed ( 0 ~ 72 kmh / 45 mph )
* Pedal assist ( 1 - 5 )
* ...

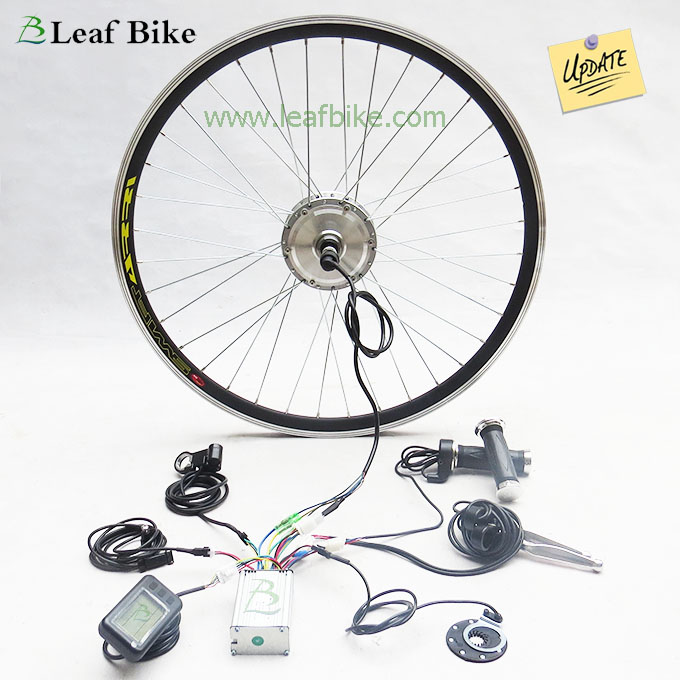

Package Content:

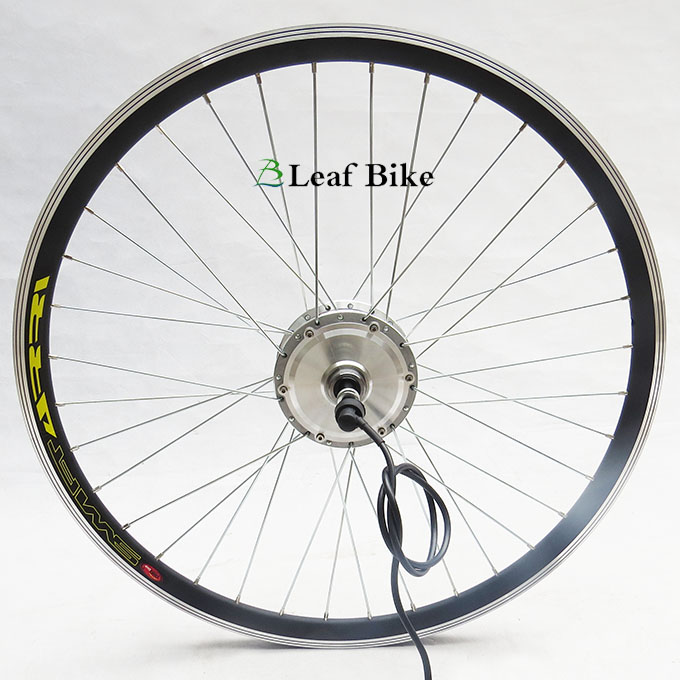

1 x 700c 36V 250W rear hub motor wheel
1 x 36V 250W 6-MOSFET motor controller
1 x LCD-003 ( display speed, mileage, battery gauge.. )
1 x Twist throttle -- Cable length: 1500mm
 1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, regen brake, reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 1000mm

Net weight: 5.85 kg   /  12.9 lbs
Package Size: 66cm L x 66cm W x 25cm H
Package Type: Cardboard Box

Notice:The packaging volume weight is greater than the actual weight.

Share Video:

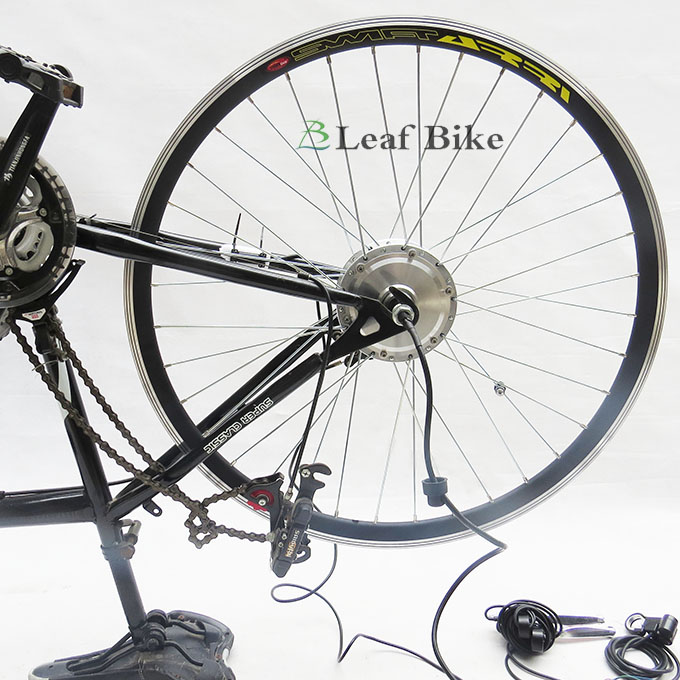

700c electric bike conversion kit

Wire Diagram:

250w rear geared brushless hub motor kit

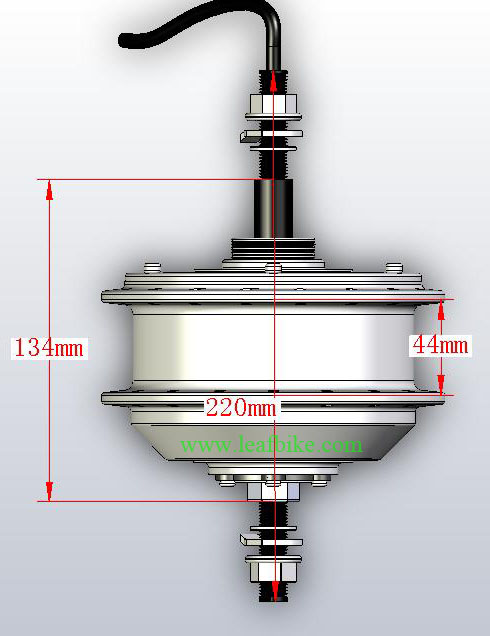

250W Rear Drw.

drawing-36v-250w-rear-geared-hub-motor

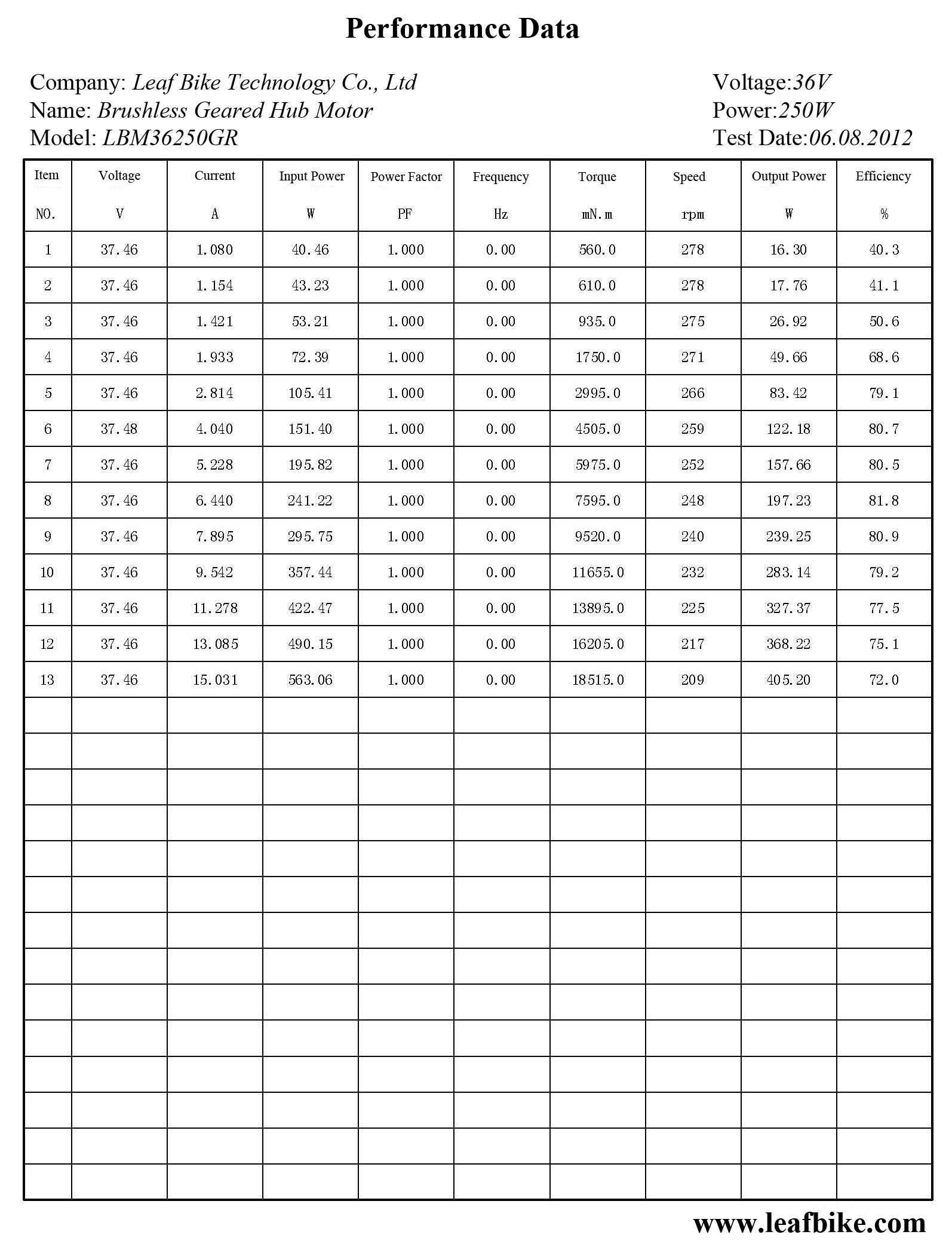

Performance Data:

data-36v-250w-geared-hub-motor
