29 inch 48V 52V 1500W front wheel - electric hub motor kit

Name: 29 inch 48V 52V 1500W front wheel - electric hub motor kit
Brand: Leaf Bike
SKU: LBCK29481500FN
Price: 378 USD
Availability: InStock
Rating: 5 (4 reviews)

Item ID #LBCK29481500FN

$378.00 ~~$428.00~~

Please select the information you wantX

Dropout :

100mm
Max. Speed :

50mph

40mph

30mph

20mph

Other Speed
LCD :

S830

SW900

08HU

08SU

Quantity :

Maybe You Need These

Description

The 29 inch bike kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
This 29 inch bike conversion kit can work with a 48V or 52V battery.

Main Features:
>. Rim: 29 inch double wall Alloy (Rim Fit For: 29 × 1.95" ~ 2.5" tire)
>. Spoke: Black color 12 gauge / 189mm Length × 36 pcs
>. Default: Black spokes
>. Optional: Silver spokes -- Please leave message.

>. Engine: Bldc electric hub motor
>>. Voltage: 48V / 52V
>>. Power: 1500W
>>. Efficiency: 90.5%
>>. Max speed: 40mph
>>. Mechanical brake: V or U
>>. Cable location: shaft end, LEFT
>>. Cable length: 150cm / 60"
>>. Install: spacing of 100mm fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: Brushless Sine Wave Motor Controller
Default: Heat Shrink Bullet Crimp Female Male Wire Connectors Electrical Terminals for battery plug.(Leave message Optional: XT-60)
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 1500 Watts
>>. Casing material: aluminium
>>. Maximum Current: 40 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155 mm L × 72 mm W × 38 mm H

With LCD, More Function:
* Cruise
* Reverse
* Kmh / mph
* Throttle speeds ( 0 - 5 ) -- "0" is off throttle. "1" is the slowest. "5" is the fastest.
* Pedal assist speed ( 0 - 5 ) -- "0" is off pedal assist. "1 ~ 5" is the fastest. ONLY one max speed. If hope pedal with 5 kinds of max speeds, please choose the other controller of ours.
https://www.leafbike.com/products/diy-bike-conversion-kit/29-inch-48v-1500w-front-electric-hub-motor-kit-1561.html
* ...

Package Content:

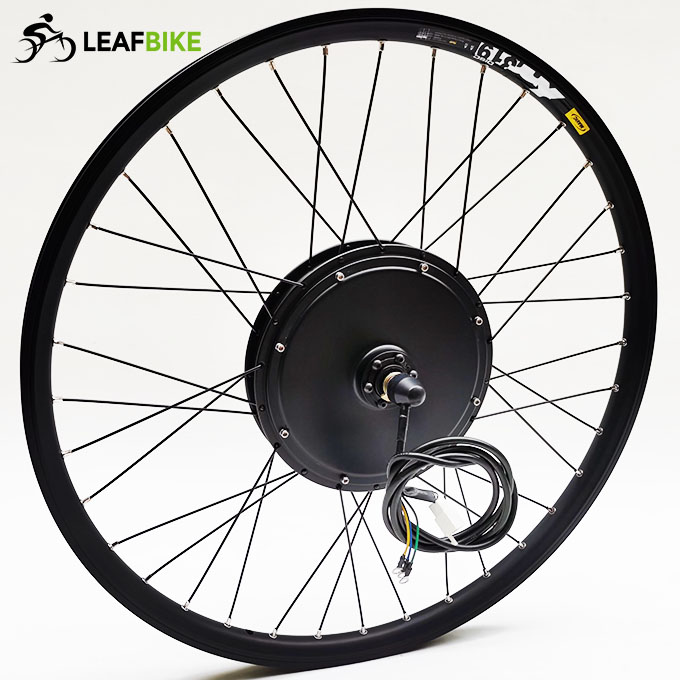

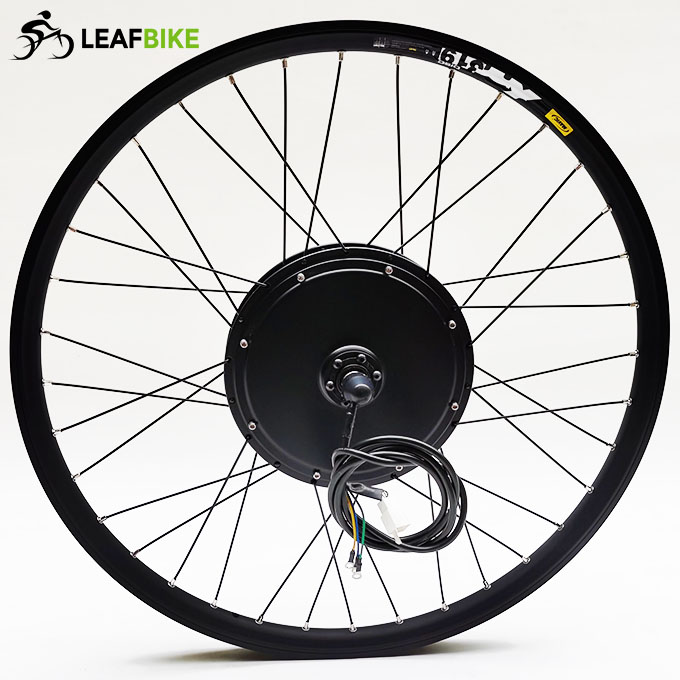

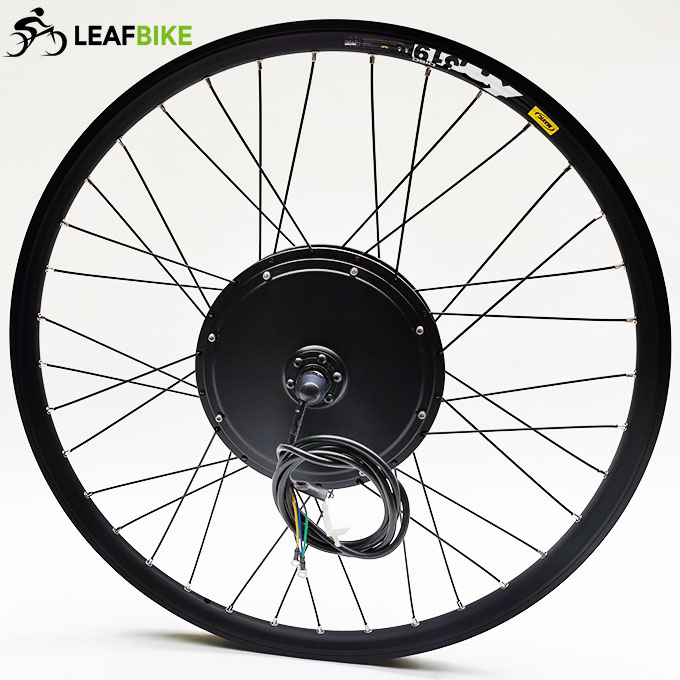

1 x 29 inch 48V 52V 1500W front hub motor wheel
1 x 48V 52V 1500W sine wave motor controller
1 x LCD -- Cable length: 1500mm
1 x Twist throttle -- Cable length: 1500mm (Optional: thumb throttle)
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise.. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 11.7 kg
Package Size: 66cm L x 66cm W x 25cm H
Package Type: Cardboard Box

Share Video:

29 inch 48V 52V 1500W front hub motor electric bike conversion kit video

Wire Diagram:

1500w Front Drw.

Performance Data:
