29 inch 48V 52V 1500W front wheel - electric hub motor kit

Item ID #LBCK29481500FN
$378.00 $428.00
    Please select the information you wantX
  • Dropout :
    100mm
  • Max. Speed :
    50mph
    40mph
    30mph
    20mph
    Other Speed
  • LCD :
    S830
    SW900
    08HU
    08SU

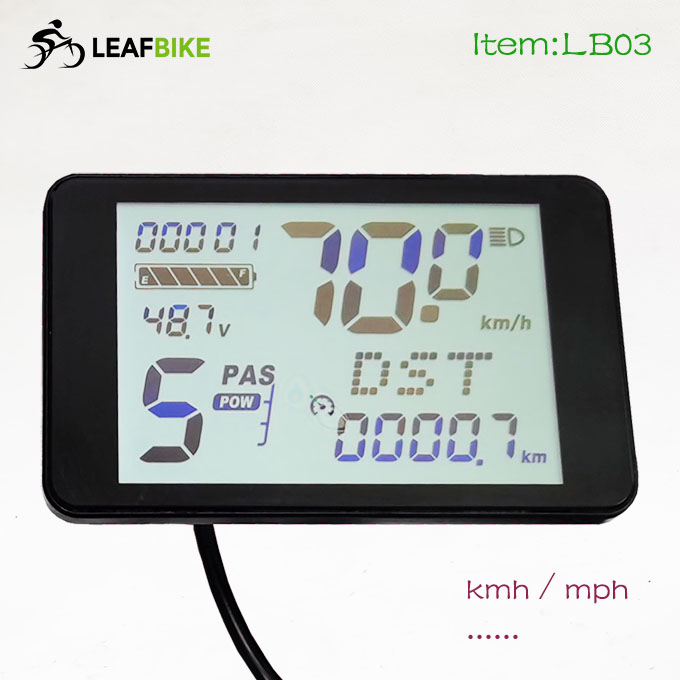

    LB03
    LB03S
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description

* This 29 inch electric bike kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

This Brand New 18 - Mosfet electric motor controller with Sine wave, Square wave, No hall, three modes compatible.

What are three modes?
* First mode: Sine Wave Status - Motor without noise,Very quiet !
If one of motor hall sensor is broken, controller still can work in Sine Wave Status.

* Second mode: Square Wave Status - Motor with a little noise, < 60db, speed is about 8% faster than Sine Wave Status.
If two of motor hall sensors are broken, controller can work in Square Wave Status.

* Third mode: No Hall Status - Motor with a little noise, < 60db, speed is about 8% faster than Sine Wave Status.
If all of three hall sensors are broken, controller can work in No hall Status.



Main Features:
>. Rim: 29 inch double wall Alloy (Rim Fit For: 29 × 1.95" ~ 2.5" tire)
>. Spoke: Black color 12 gauge / 189mm Length × 36 pcs
>. Default: Black spokes
>. Optional: Silver spokes -- Please leave message.



>. Engine : Bldc electric hub motor
>>. Voltage: 48V / 52V
>>.  Power: 1500W
>>.  Efficiency: 90.5%
>>.  Max speed: 40mph
>>.  Mechanical brake: V
>>.  Cable location: shaft end, LEFT
>>.  Cable length:150cm / 60"
>>.  Install: spacing of 100mm fork
>>.  Noise: < 60 db
>>.  Surface: Black painted

>. Driver: Brushless Sine Wave Motor Controller
Default: Heat Shrink Bullet Crimp Female Male Wire Connectors Electrical Terminals for battery plug.(Leave message Optional: XT-60)
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>.  Rated power: 1500 Watts
>>.  Casing material: aluminium
>>.  Maximum Current: 40 A ± 1 Amps
>>.  Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155 mm L × 72 mm W × 38 mm H

With LCD, More Function:
* Cruise
* Reverse
* Kmh / mph
* Max speed ( 0 ~ 100 kmh / 60 mph )
* Speeds ( 0 - 5 ) - "0" is off. "1" is the slowest speed ~ "5" is the fastest speed.
* ...

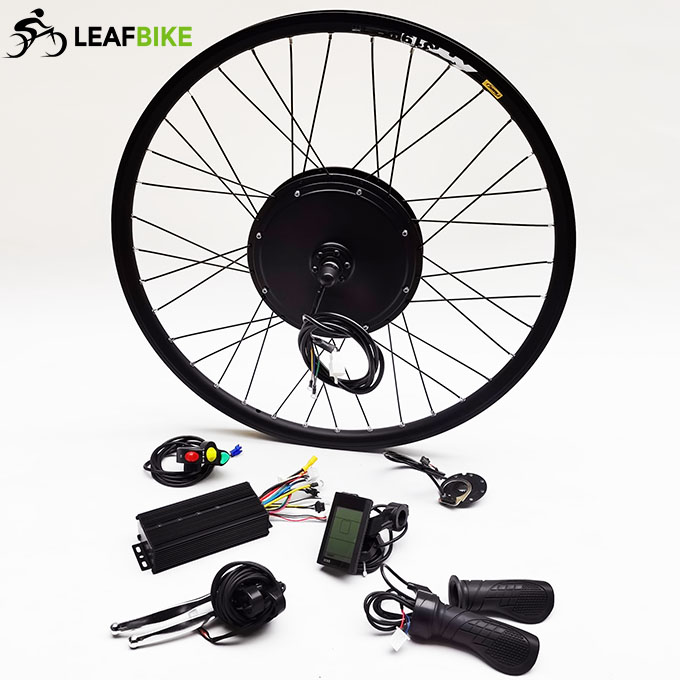

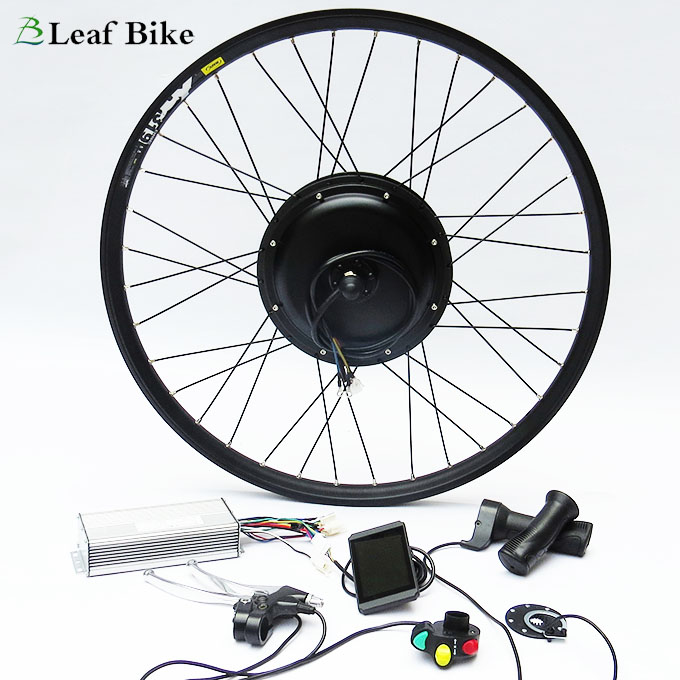

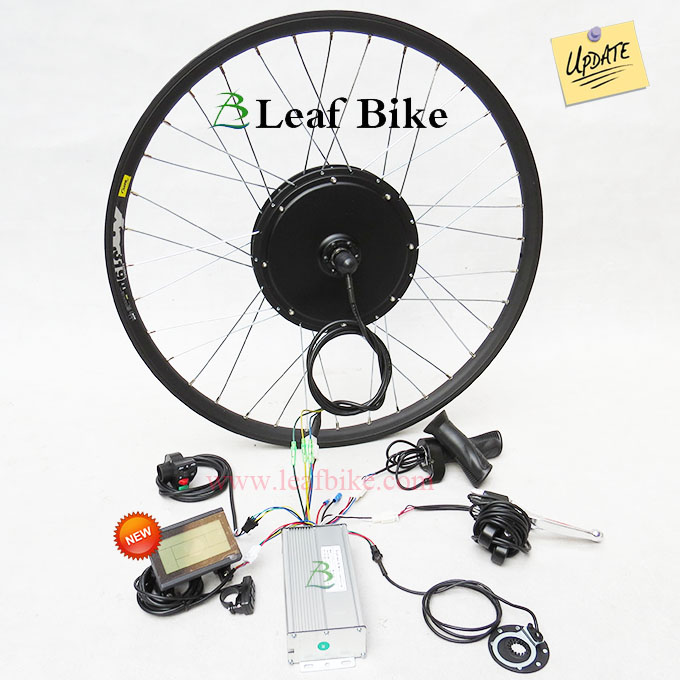

Package Content:

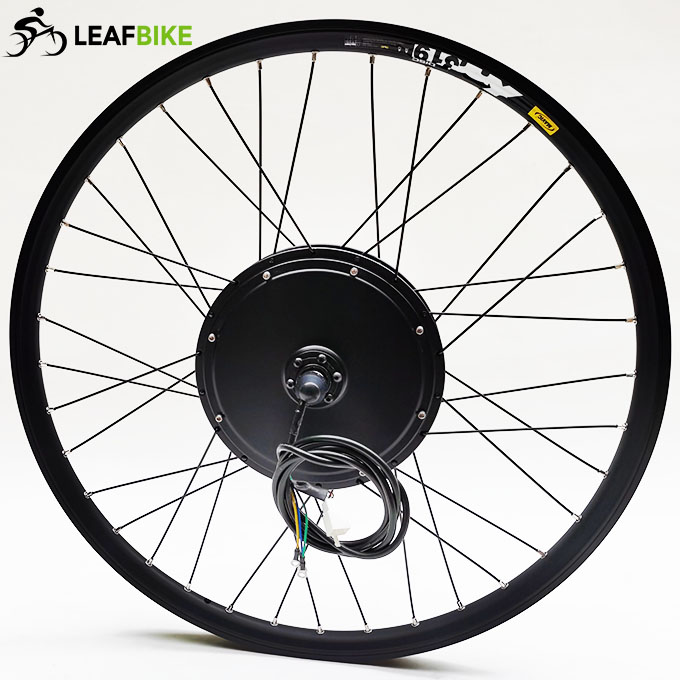

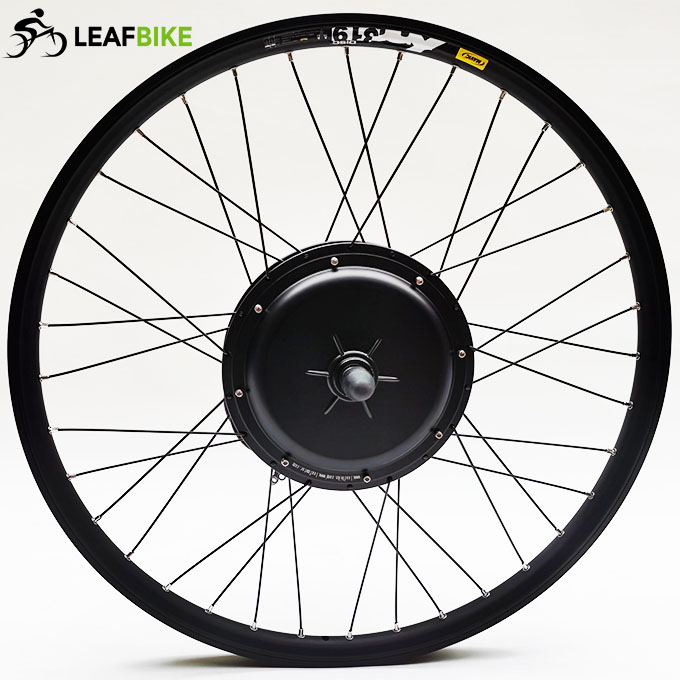

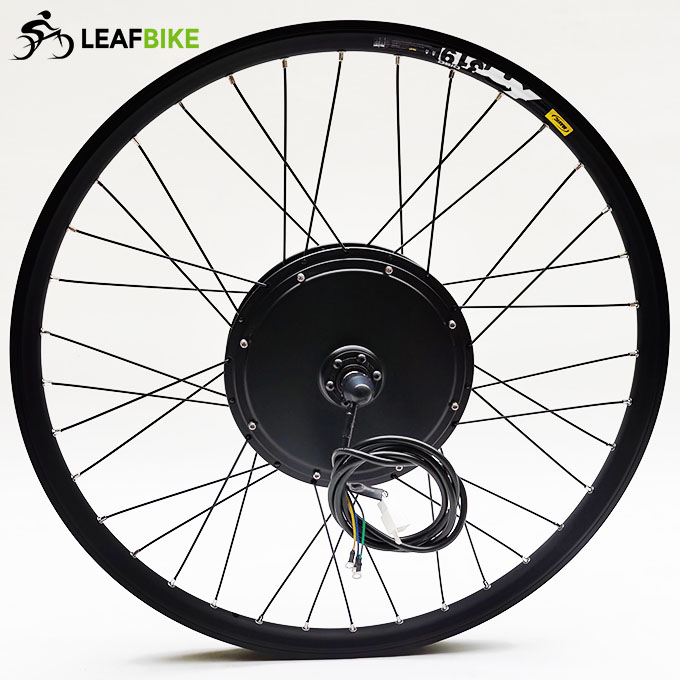

1 x 29 inch 48V 52V 1500W front hub motor wheel
1 x 48V 52V 1500W sine wave motor controller
1 x LCD -- Cable length: 1500mm
1 x Twist throttle -- Cable length: 1500mm (Optional: thumb throttle)
 1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise.. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 11.7 kg
Package Size: 66cm L x 66cm W x 23cm H
Package Type: Cardboard Box


This motor & controller system handle a 48V or 52V battery.

Share Video:
29 inch 1500w front hub motor wheel - electric bike conversion kit
Wire Diagram:
1500w front electric hub motor bike conversion kit wire diagram
1500w Front Drw.
1500w front hub motor drawing
Performance Data:
1500w-electric-hub-motor-performance-data-curve
