29 inch 36V 750W rear wheel - electric hub motor kit

Item ID #LBCK2936750RN
$399.00 $528.00
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description
The 29 inch bike motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:
>. Rim: 29 inch double wall Alloy (Rim Fit For: 29 × 1.95" or 2.1" ~ 2.5" tire)
>. Spoke: 12 gauge / 188mm Length × 36 pcs

>. Engine: Bldc electric hub motor
>>. Voltage: 36V
>>. Power: 750W
>>. Efficiency: 87.5%
>>. Max speed: 69.9 kmh – 43.3 mph
>>. Mechanical brake: Disk or  V
>>. Freewheel / Cassette: space for 6 or 7 gears
>>. Cable location: shaft end , LEFT
>>. Cable length:100cm / 40"
>>. Install: spacing of 135mm fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless motor controller
Default: Heat Shrink Bullet Crimp Female Male Wire Connectors Electrical Terminals for battery plug.(Leave message Optional: XT-60)
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 36 Volts
>>. Min. Voltage: DC 30 ± 0.5 V
>>. Rated power: 750 Watts
>>. Casing material: aluminum
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 105 mm L × 72 mm W × 38 mm H

LCD-830, More Function:
* Cruise
* Forward & Backwards (Optional)
* Regen brake
* Kmh & mph (Optional)
* Set Max speed ( 0 ~ 100 kmh / 60 mph )
* Speed ( 0 - 5 ) - "0" is off. "1" is the slowest speed. "5" is the fastest speed.
* ...

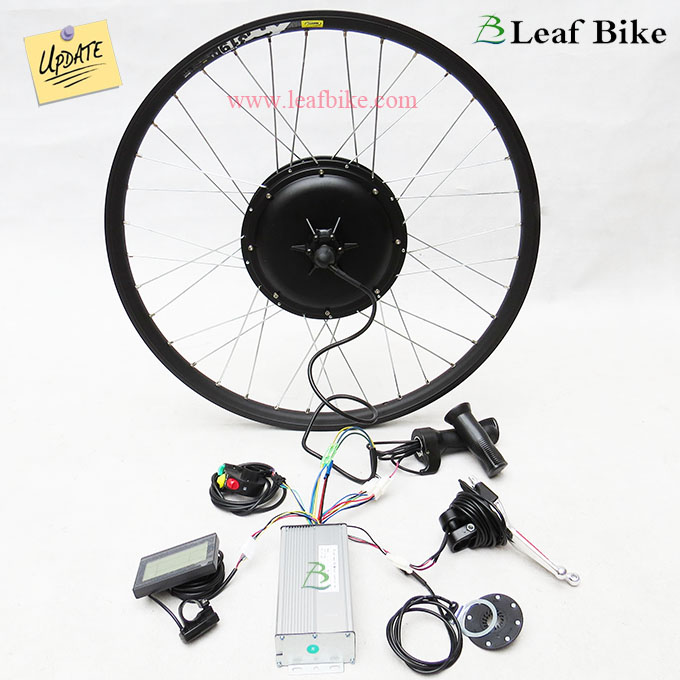

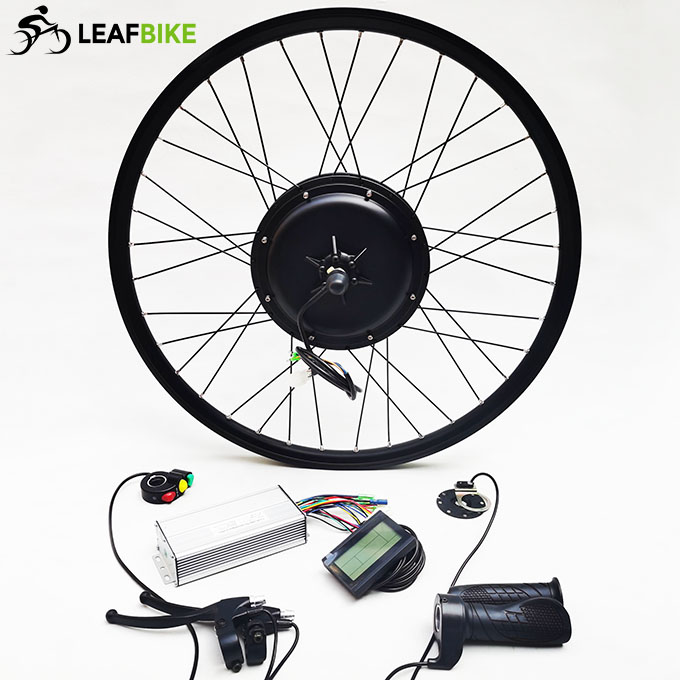

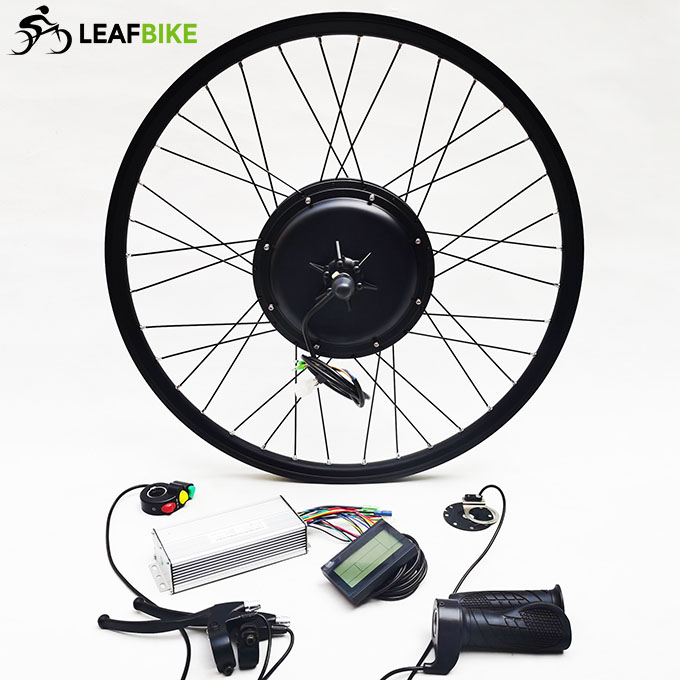

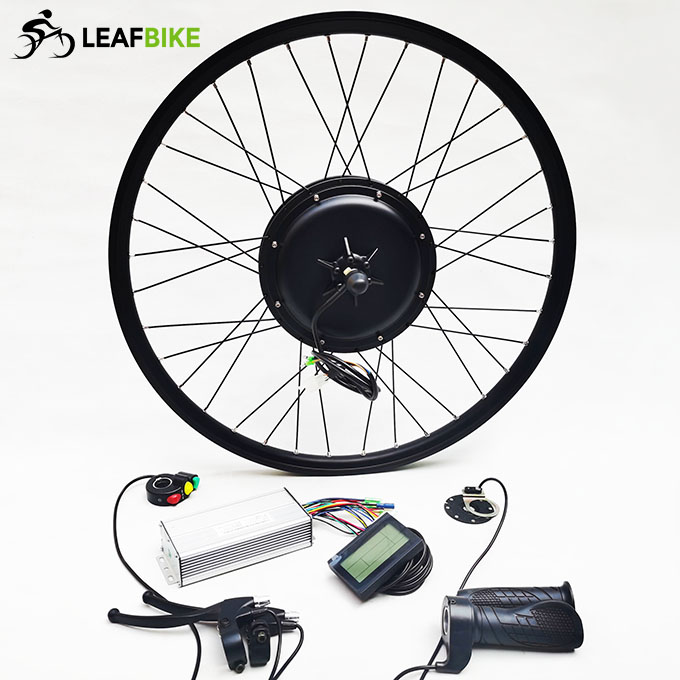

Package Content:

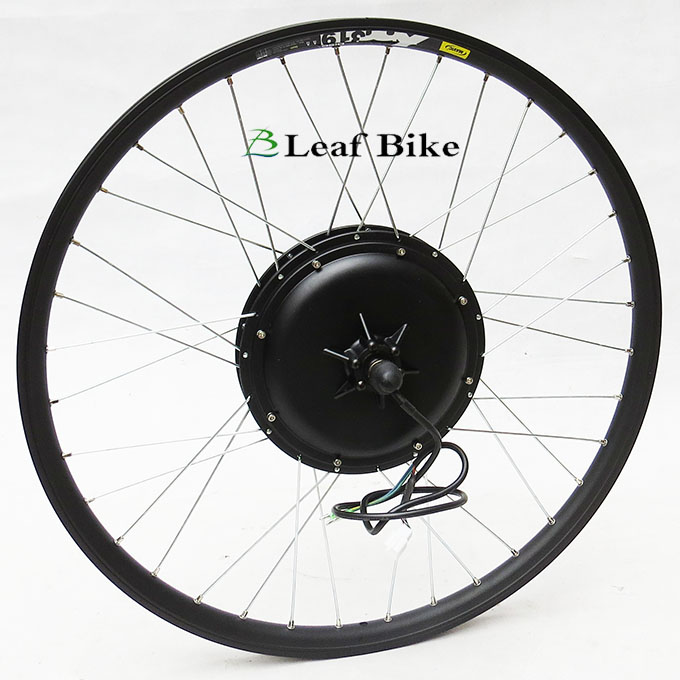

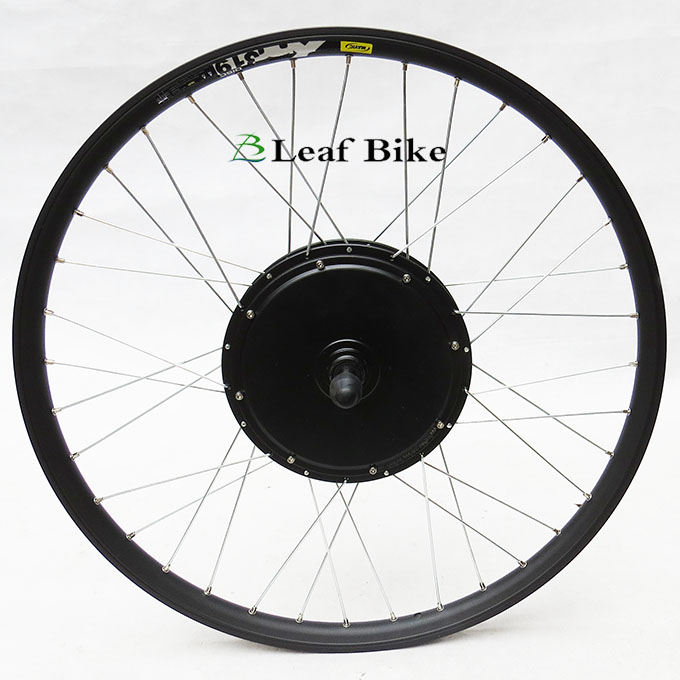

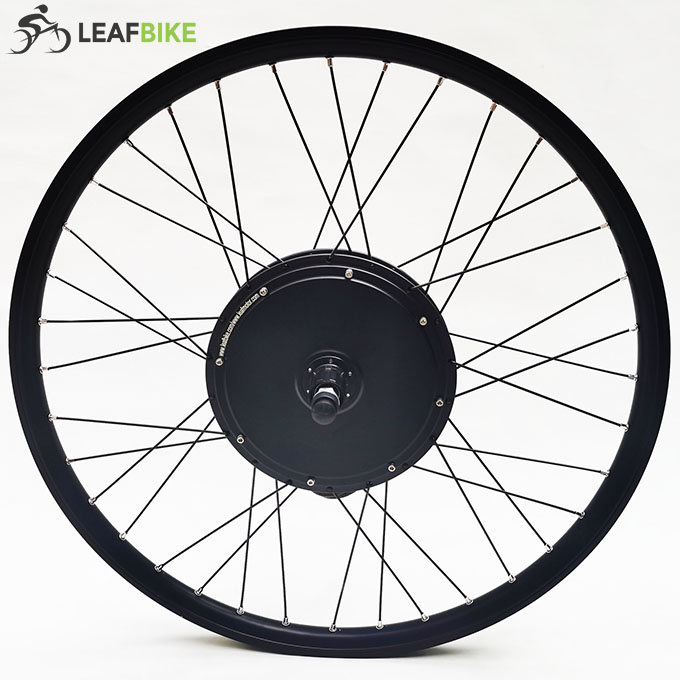

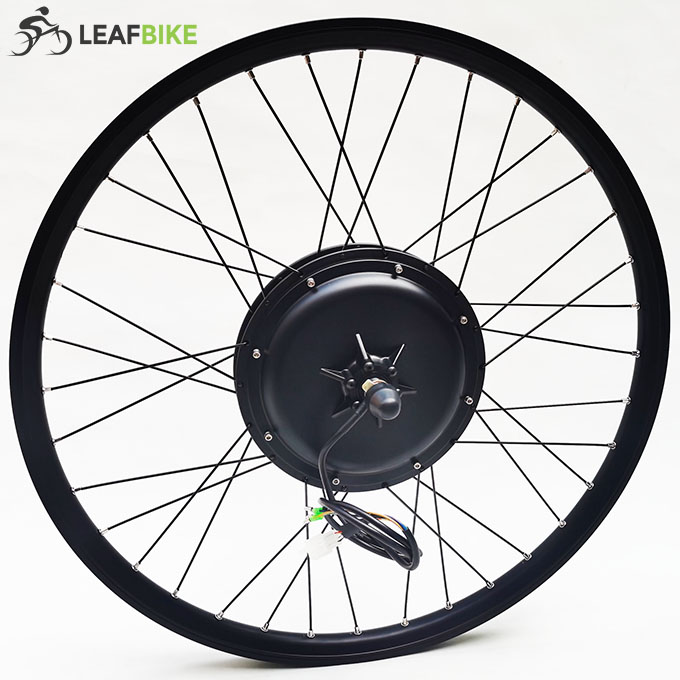

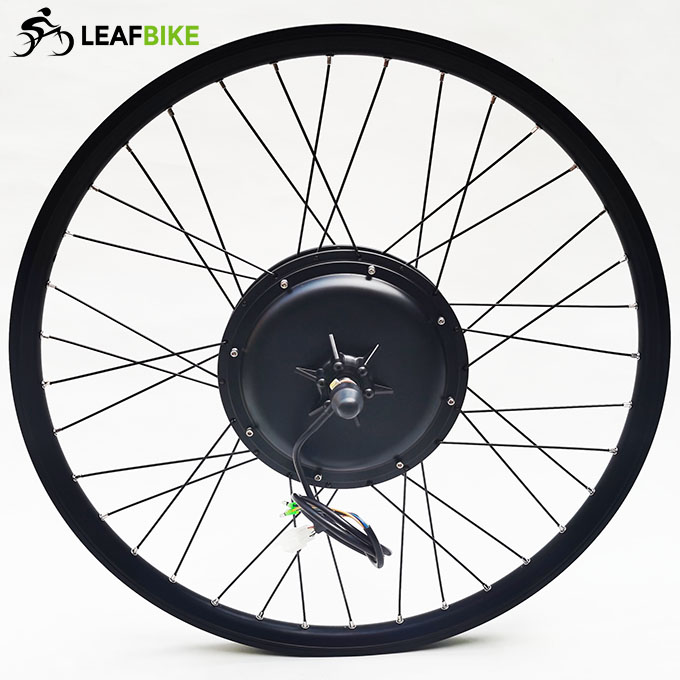

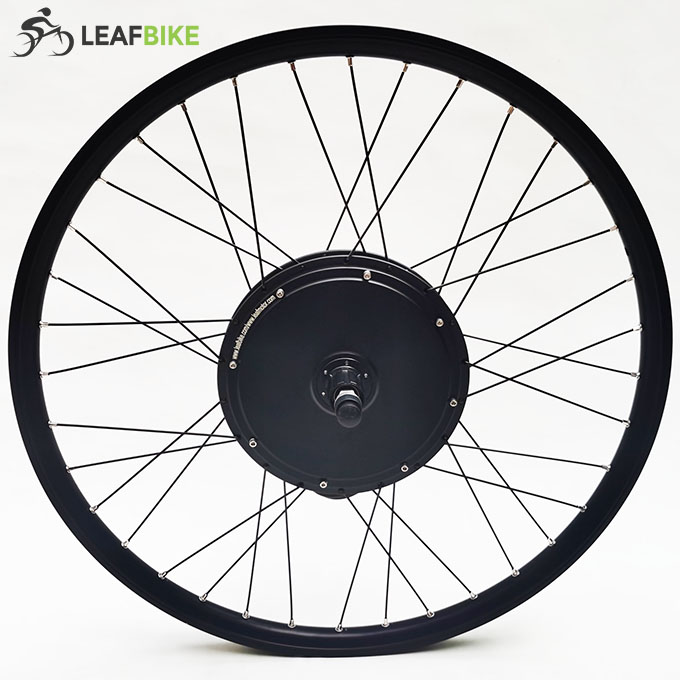

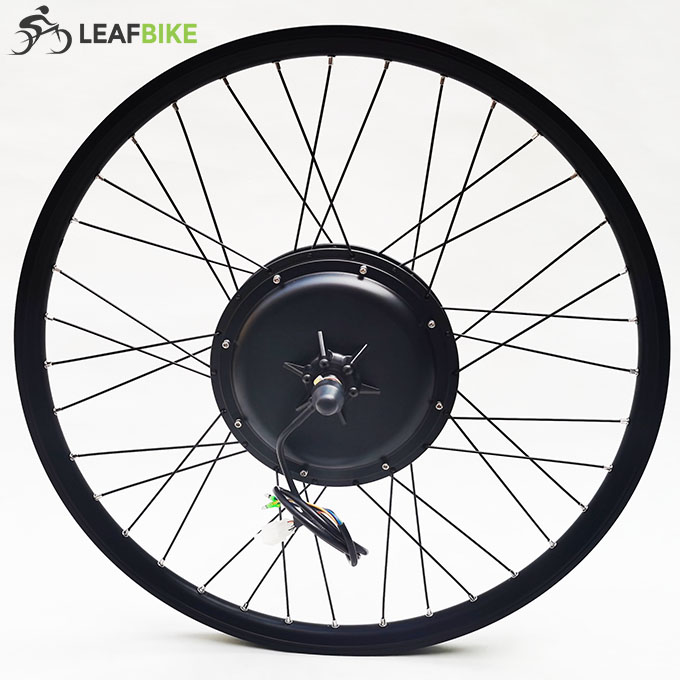

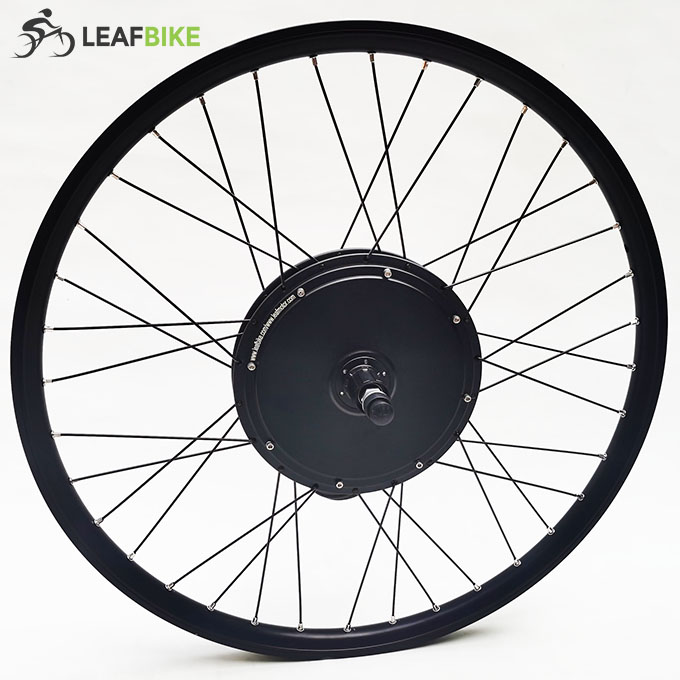

1 x 29 inch 36V 750W rear hub motor wheel
1 x 36V 750W 12-MOSFET motor controller
1 x LCD-830
1 x Standard twist throttle
1 x Brake levers
1 x Three button switches ( control cruise, regen brake, reverse .. )
1 x Pedal assist

Net weight: 10.9 kg   /  24 lbs
Package Size: 66cm L x 23cm W x 66cm H  /  26.0"  L x 9.0" W x 26.0" H
 Package Type: Cardboard Box
Shipment: by airplane (ups or Fedex or TNT or DHL express)

Notice:The packaging volume weight is greater than the actual weight.

* This 29 inch electric hub motor conversion kit system works with a 36V lithium battery.(Min 30V, 31v...36v, 37v ...Max 42V)
Share Video:
700c 36v 750w rear brushless hub motor - electric bike conversion kit

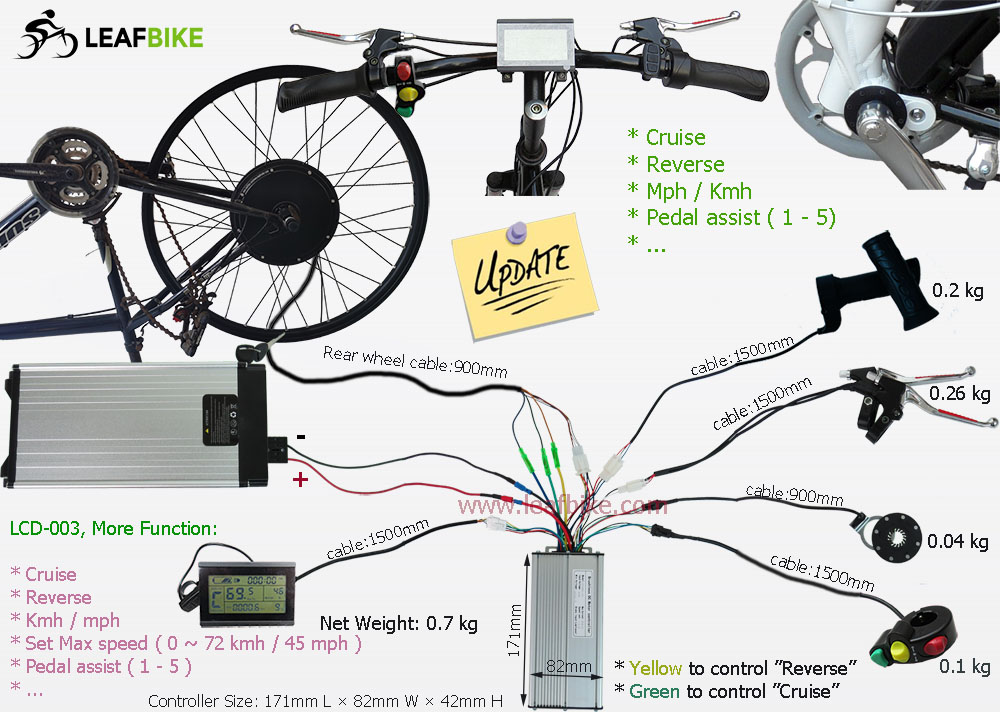

Wire Diagram:
29-inch-rear-hub-motor-electric-bike-conversion-kit-wire-diagram
1000w Rear Drw.
750w rear electric hub motor 3D drawing
Performance Data:
750w-electric-hub-motor-performance-data-curve
