29 inch 36V 750W front wheel - electric hub motor kit

Item ID #LBCK2936750FN
$336.00 $387.00
    Please select the information you wantX
Quantity :
Maybe You Need These
Maybe You Need These

The 29 inch bike motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:
>. Rim: 29 inch double wall Alloy (Rim Fit For: 29 × 1.95" / 2.1" ~ 2.5" tire)
>. Spoke: Silver 12 gauge / 188mm Length × 36 pcs
>. Default: Silver spokes
>. Optional: Black spokes -- Please leave message.

>. Engine : Bldc electric hub motor
>>. Voltage: 36V
>>.  Power: 750W
>>.  Efficiency: 90.5%
>>.  Max speed: 59.7 kmh -- 37 mph Default (Optional other speed: 35mph or 25mph,15mph...)
>>.  Mechanical brake: Disk or  V
>>.  Cable location: shaft end , LEFT
>>.  Cable length:150cm / 60"
>>.  Install: spacing of 100mm fork
>>.  Noise: < 60 db
>>.  Surface: Black painted

>. Driver: Brushless motor controller
Default: Heat Shrink Bullet Crimp Female Male Wire Connectors Electrical Terminals for battery plug.(Leave message Optional: XT-60)
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 36 Volts
>>. Min. Voltage: DC 30 ± 0.5 V
>>.  Rated power: 750 Watts
>>.  Casing material: aluminum
>>.  Maximum Current: 26 A ± 1 Amps
>>.  Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 171 mm L × 82 mm W × 42 mm H

LCD-003, More Function:
* Cruise -- Green switch to control
* Kmh & mph (Optional)
* Set Max speed ( 0 ~ 72 kmh / 45 mph )
* Pedal assist ( 1 - 5 )
* Battery gauge
* ...

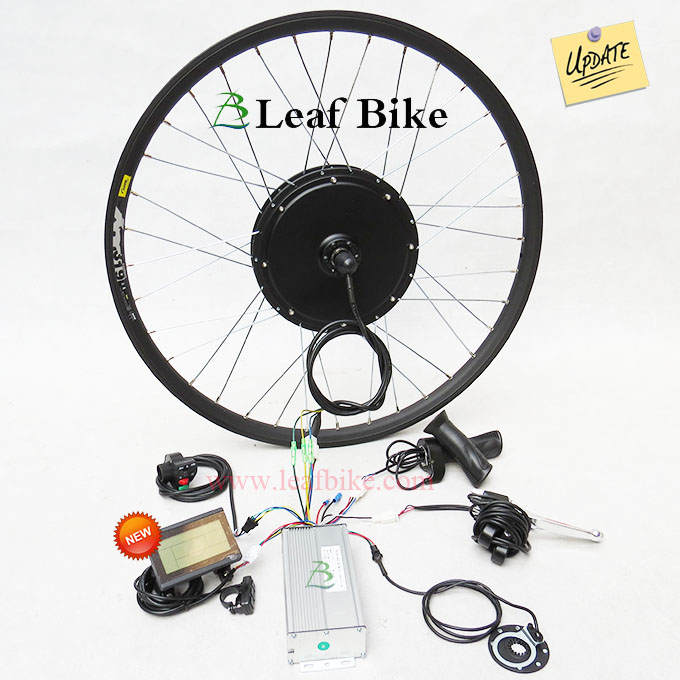

Package Content:

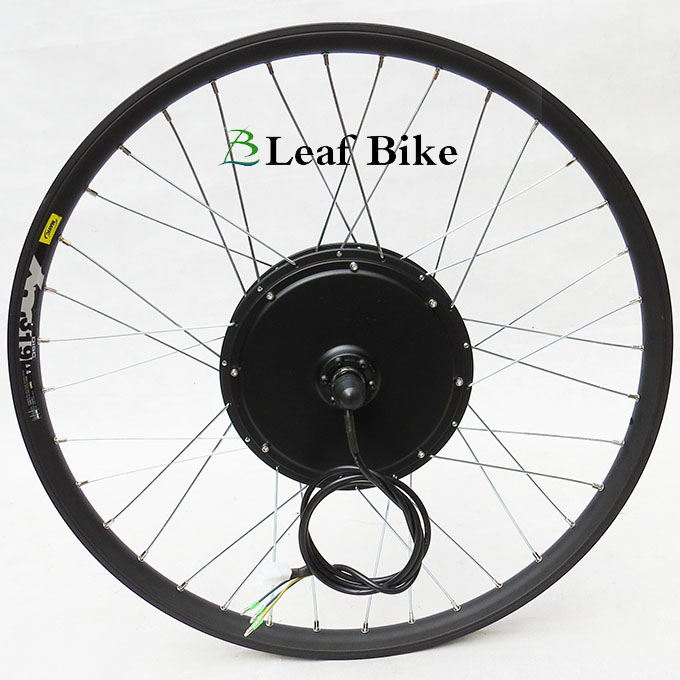

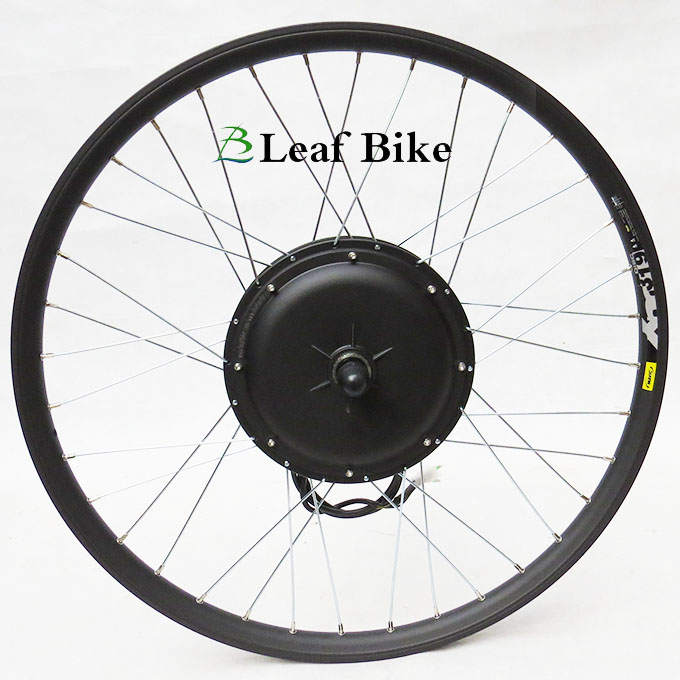

1 x 29 inch 36V 750W front hub motor wheel
1 x 36V 750W 12-MOSFET motor controller
1 x LCD-003 (display speed, mileage, battery gauge..)
1 x Twist throttle -- Cable length: 1500mm
 1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise..) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 1000mm

Net Weight: 11.2 kg   /  24.6 lbs
Package Size: 66cm L x 66cm W x 25cm H
Package Type: Cardboard Box
Shipment: by airplane (ups or Fedex or TNT or DHL express)

* This 29 inch hub motor kit system works with a 36V lithium battery.(Min 30V, 31v...36v, 37v ...Max 42V)

Recommend: 36V 13ah or 36V 15ah lithium battery

Share Video:
29 inch 750w front hub motor - electric bike conversion kit video
Wire Diagram:
750w Front Drw.
36v 750w front hub motor drawing
Performance Data:
Recommended Products: Torque Arm
Why do you need a torque arm? Because as hard as your tire is straining to go forwards,  your axle is straining to go backwards. Torque arms provide increased strength at the axle and are used to help prevent the axle from spinning out inside the drop outs. If the axle spins, then the electric wires that come out of the axle also spin and break or get stretched and pulled out of the motor.
torque arm
