28 inch 60V 2000W front wheel - electric hub motor kit

Name: 28 inch 60V 2000W front wheel - electric hub motor kit
Brand: Leaf Bike
SKU: LBCK28602000FN
Price: 387 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK28602000FN

$387.00 ~~$438.00~~

Maybe You Need These

Description

The 28 inch bike kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
This 28 inch bike conversion kit works with a 60V battery.

Main Features:

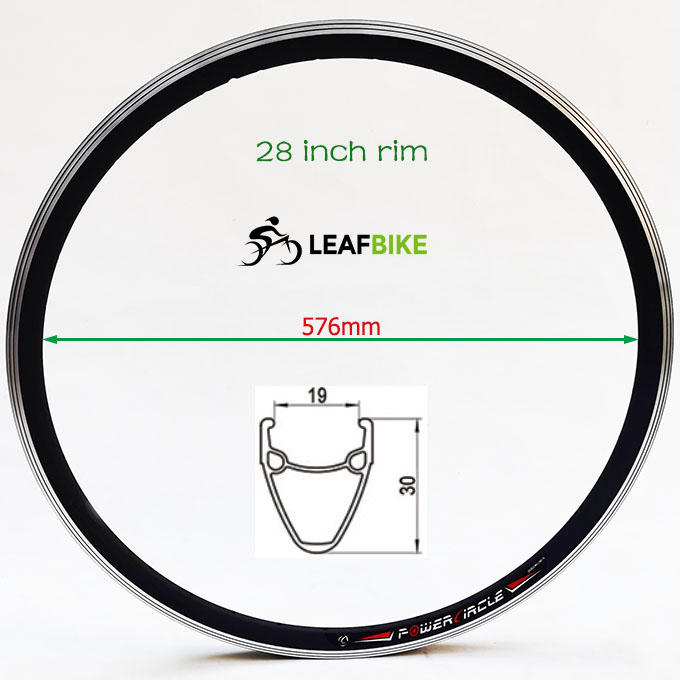

>. Rim: 28 inch double wall Alloy (Rim Fit For: 28 × 1 1/2" tire)
>. Spoke: 12 gauge / 184mm Length × 36 pcs
>. Default: Black spokes
>. Optional: Silver spokes -- Please leave message.

>. Engine: Bldc hub motor
>>. Voltage: 60V
>>. Power: 2000W
>>. Efficiency: 90.5%
>>. Max speed: 93.4 kmh -- 58.0 mph
>>. Mechanical brake: V
>>. Cable location: shaft end, LEFT
>>. Cable length: 150cm / 60"
>>. Install: spacing of 100mm fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 60 Volts
>>. Min. Voltage: DC 52.5 V
>>. Rated power: 2000 Watts
>>. Casing material: aluminium
>>. Maximum Current: 40 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155 mm L × 72 mm W × 38 mm H

With LCD, More Function:
* Cruise - Yes
* Reverse - (On / Off)
* Kmh / mph
* Speeds ( 0 - 5 ) - "0" is off. "1" is the slowest ~ "5" is the fastest.
* ...

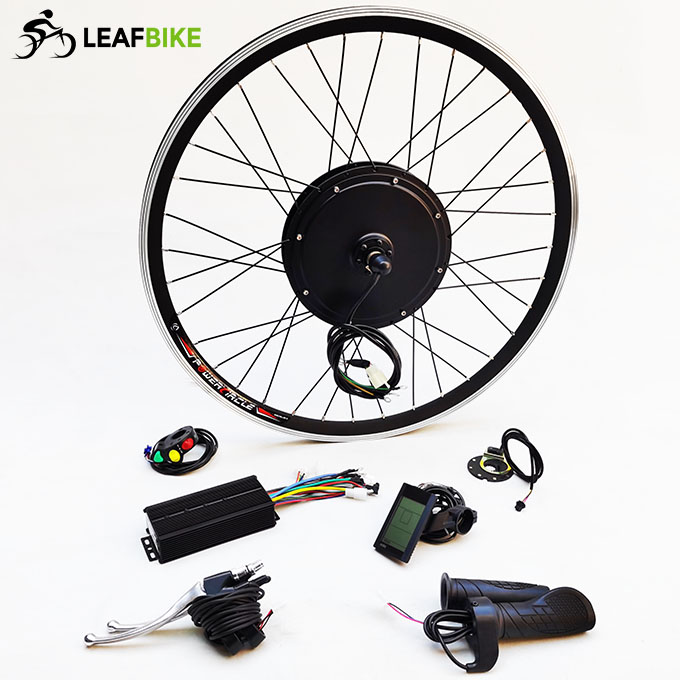

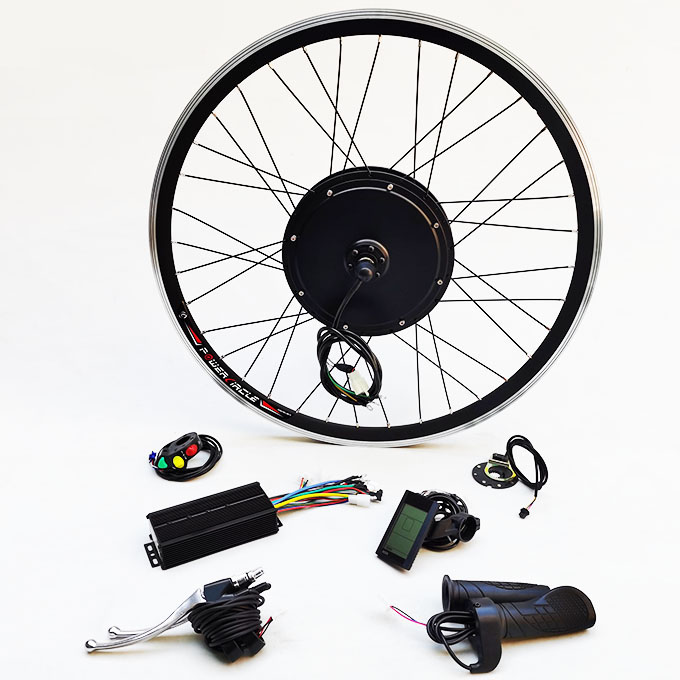

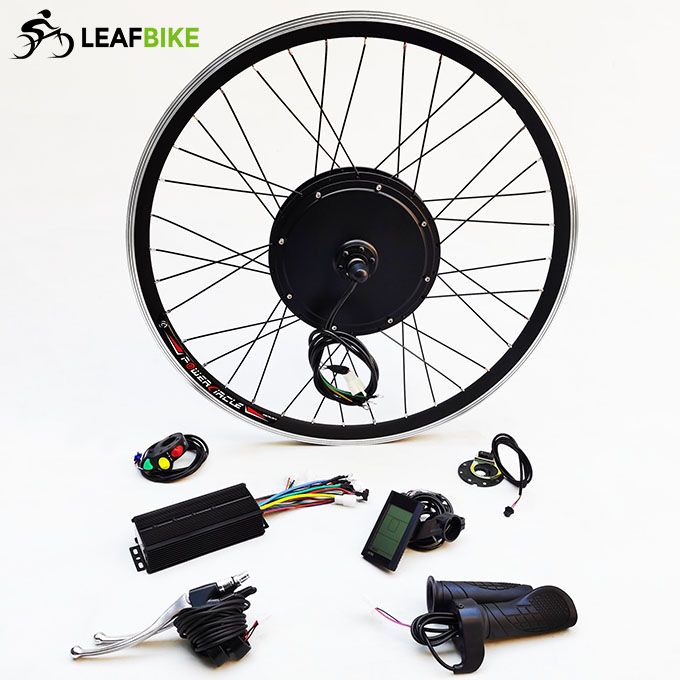

Package Content:

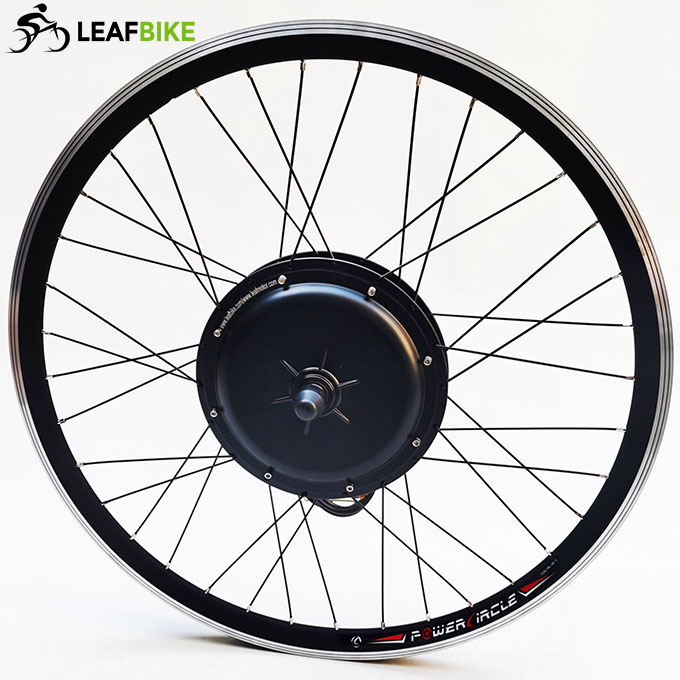

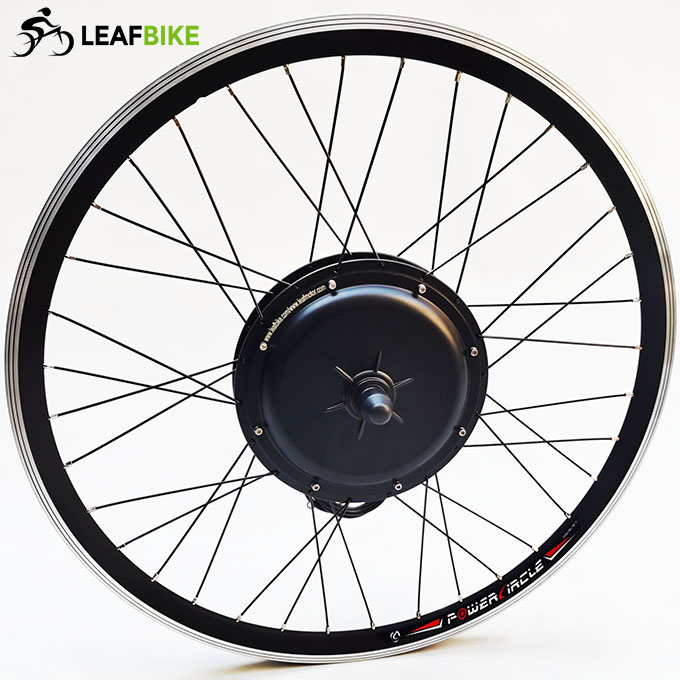

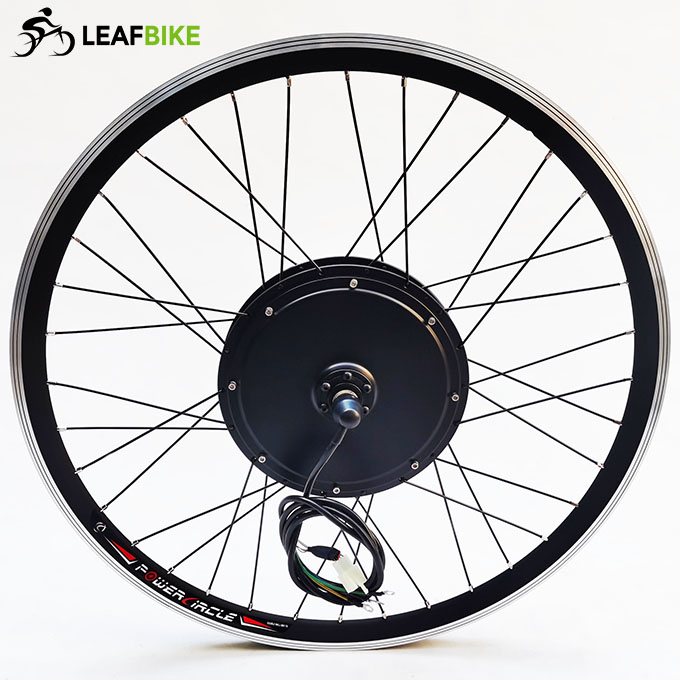

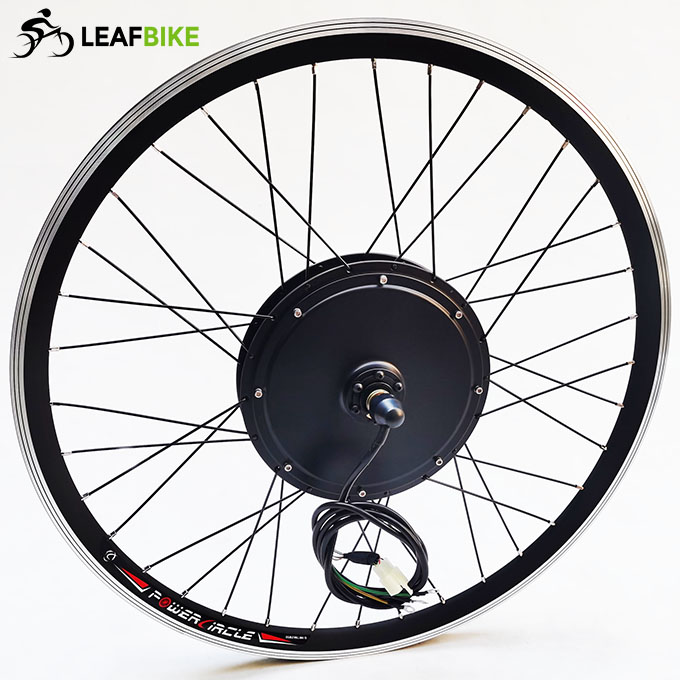

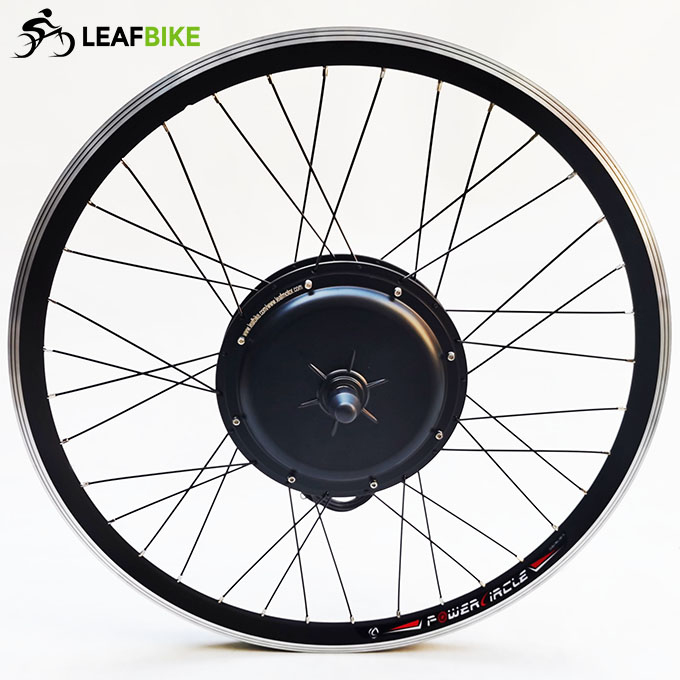

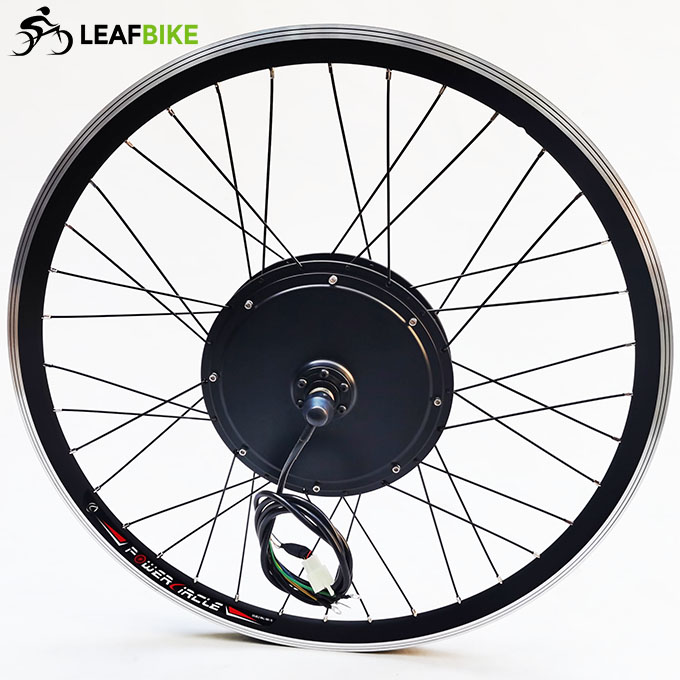

1 x 28 inch 60V 2000W front hub motor wheel

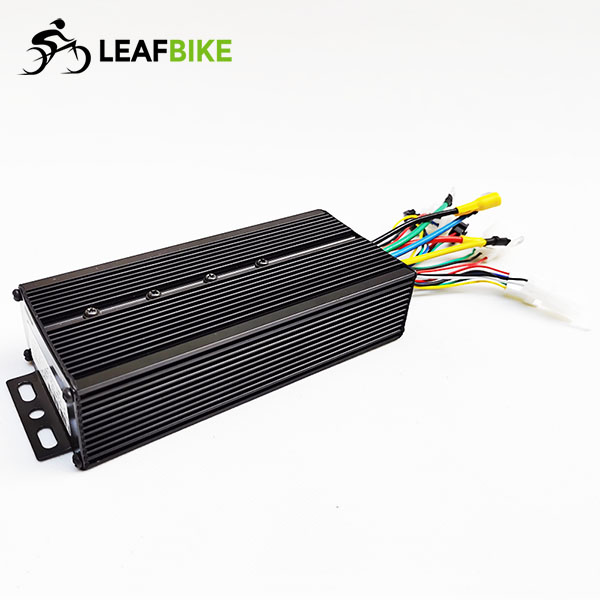

1 x 60V 2000W 18-MOSFET motor controller

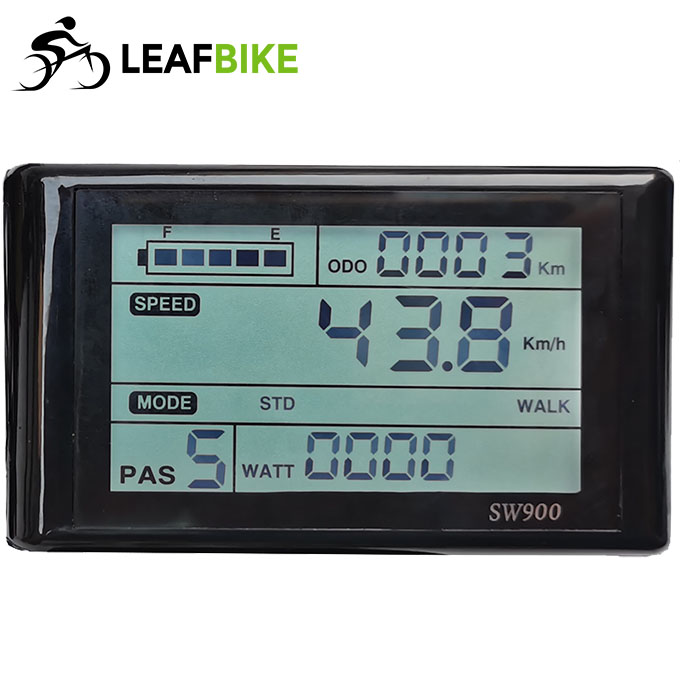

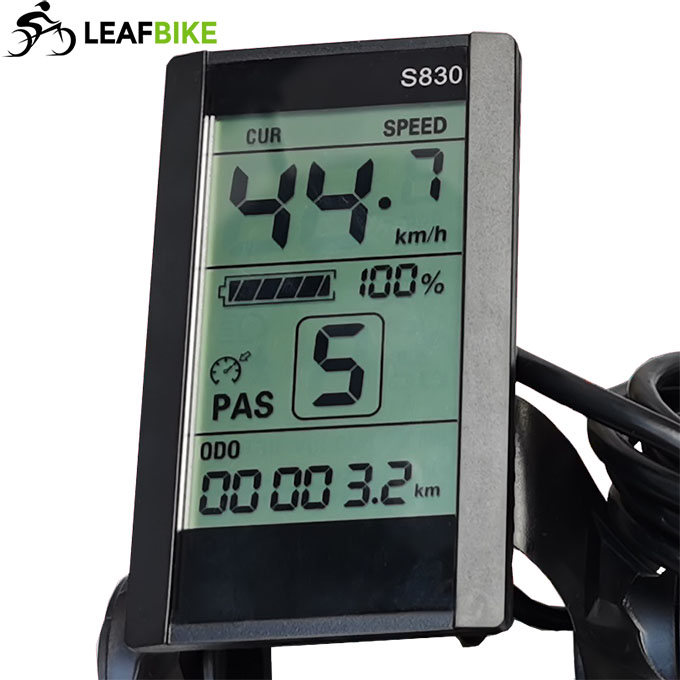

1 x LCD
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise.. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 11.7 kg
Package Size: 66cm L x 66cm W x 25cm H
Package Type: Cardboard Box

Share Video:

28 inch 60V 2000W front wheel electric hub motor bike conversion kit video

Wire Diagram:

Front Motor Drw.
