28 inch 48V 52V 1000W rear electric hub motor kit

Item ID #LBCK28481000R
$309.00 $360.00
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description

This 28 inch bike motor kit combines the full E-bike technology: direct drive Brushless Geared high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Main Features:

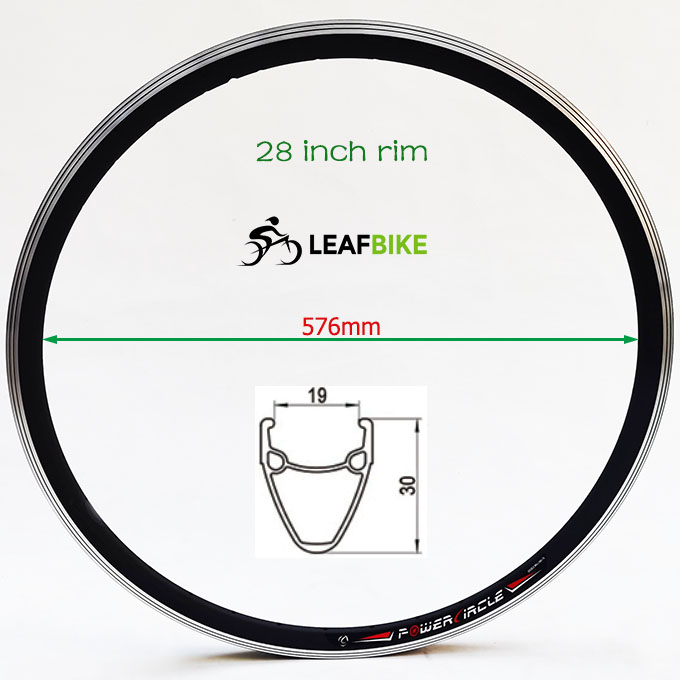

Rim: 28 inch double wall Alloy (Rim Fit For: 28 × 1.5" / 1.75" / 1.95" tire)
Motor Type: electric hub motor
Controller: LCD display
Max speed: 67.9 kmh -- 42.1 mph
Mechanical brake:  V or Drum
Install: spacing of 135mm fork

LCD-S830, More Function:
* Cruise
* Reverse
* Kmh / mph
* Set Max speed ( 0 ~ 100 kmh / 60 mph )
* Speeds ( 0 - 5 ) - "0" is off. "1" is the slowest. "5" is the fastest.
* ...

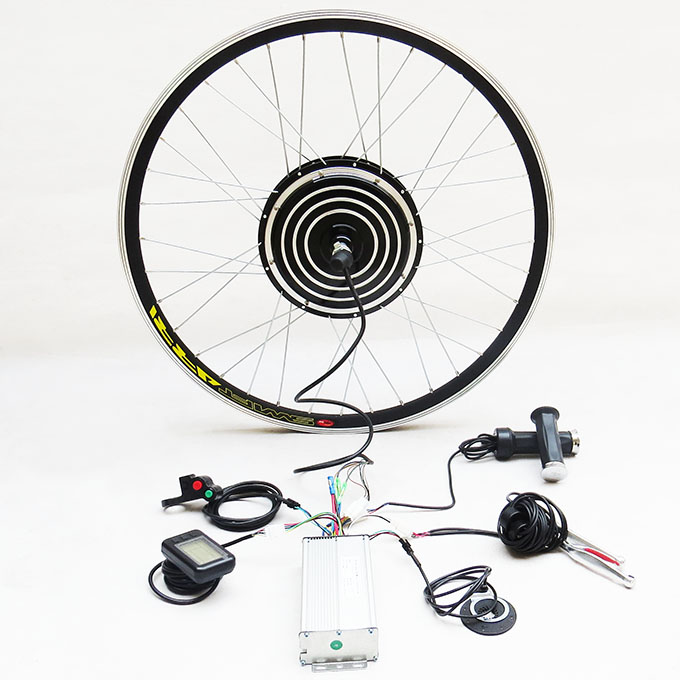

Package Content:

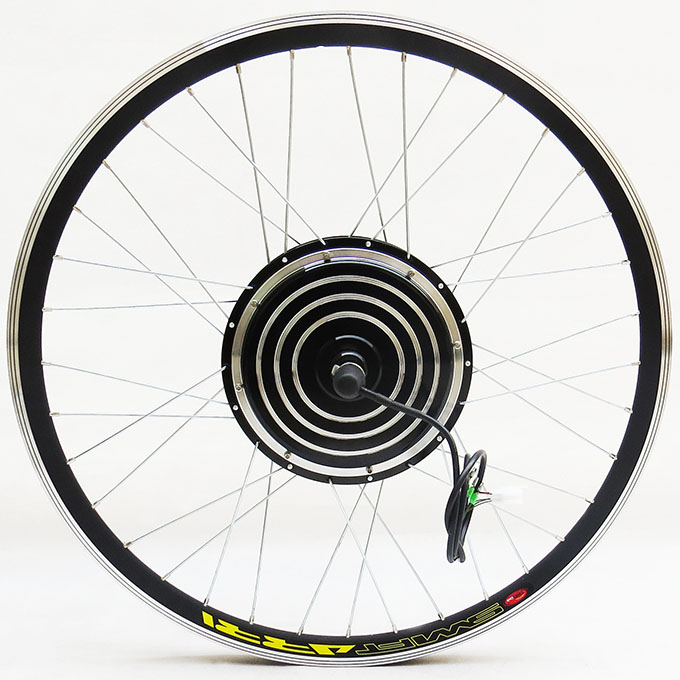

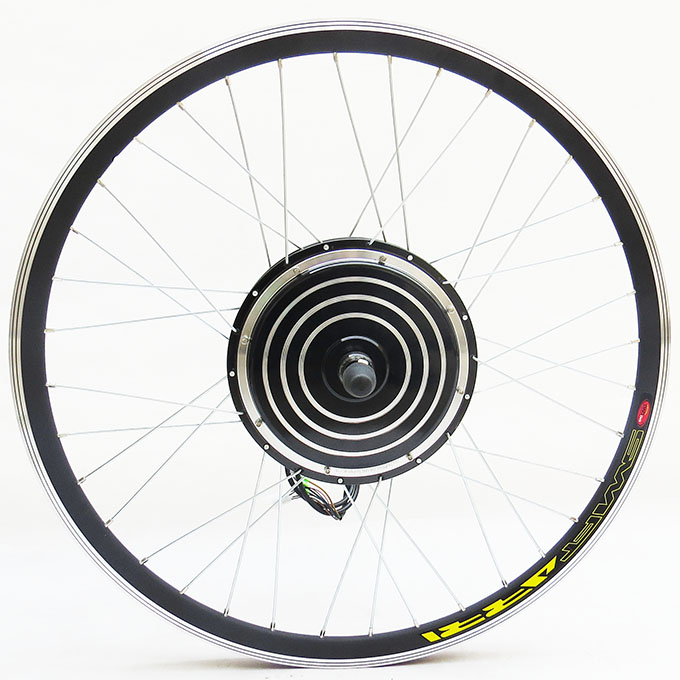

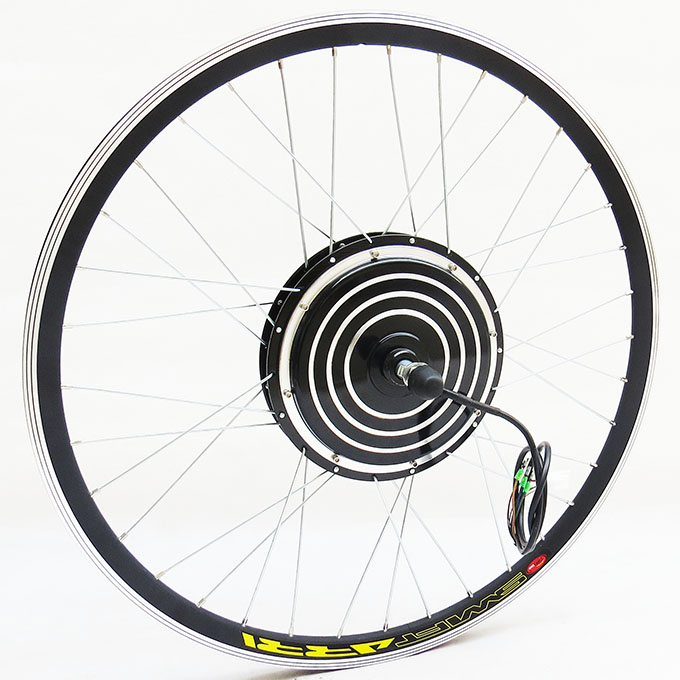

1 x 28 inch 48V / 52V 1000W rear hub motor wheel
1 x 48V / 52V 1000W 12-MOSFET motor controller

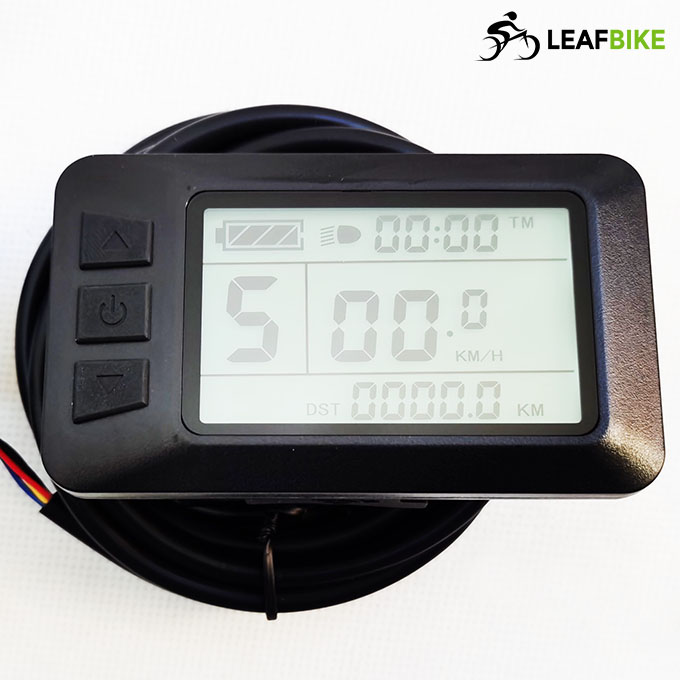

1 x LCD-S830 ( display speed, mileage, battery gauge.. )
1 x Twist throttle
1 x Brake levers
1 x Three button switches ( control cruise, regen brake, reverse .. )
1 x Pedal assist

Net Weight: 10.95 kg   /  24 lbs
Package Size: 66cm L x 66cm W x 25cm H
Package Type: Cardboard Box

Notice:The packaging volume weight is greater than the actual weight.

Share Video:

28 inch 1000w rear electric bike motor kit

Wire Diagram:

28 inch 1000w rear hub motor kit wire diagram

1000W Rear Drw.

rear electric bike motor drawing

Performance Data:

48V 1000W rear spoke hub motor performance data
