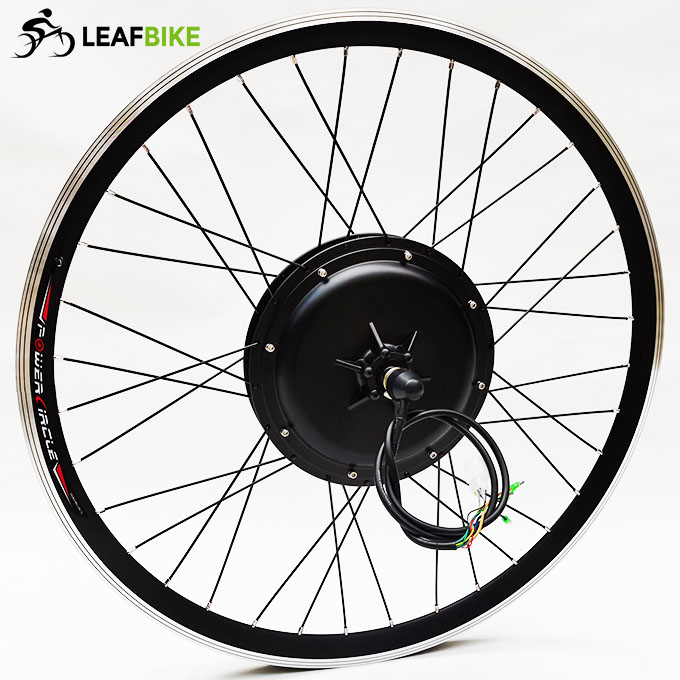

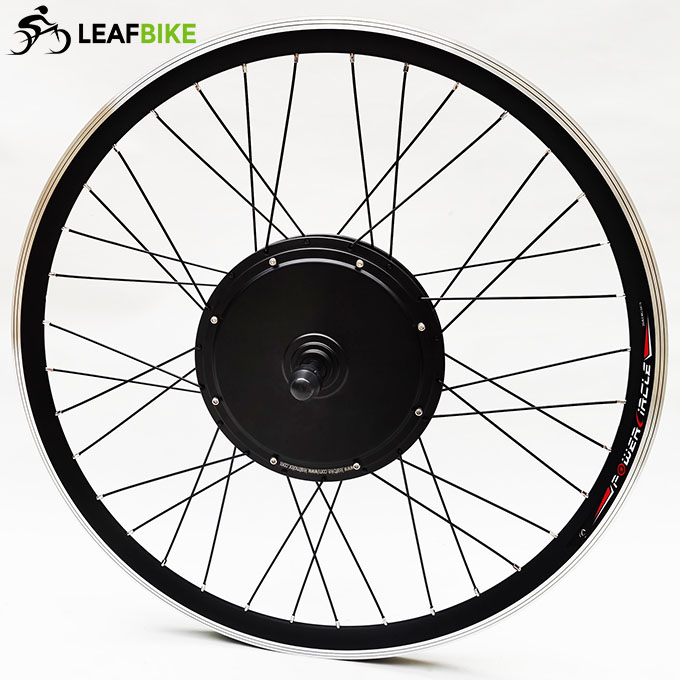

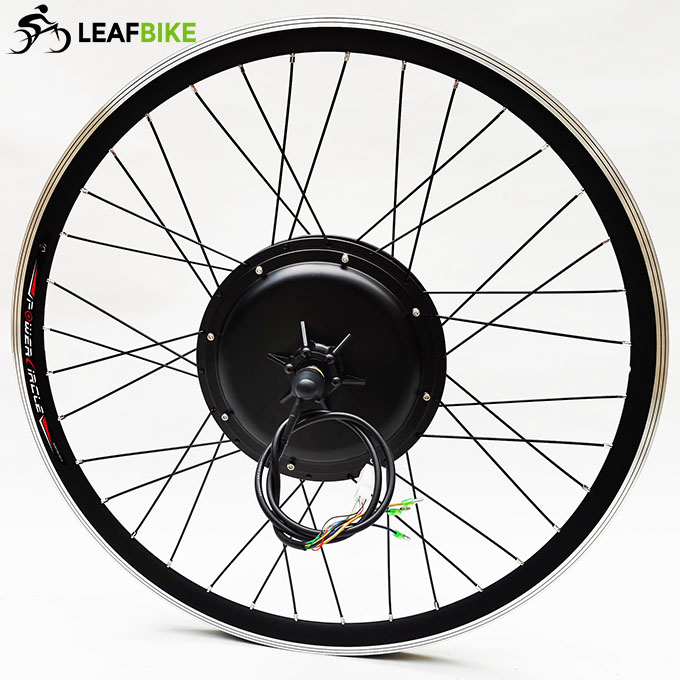

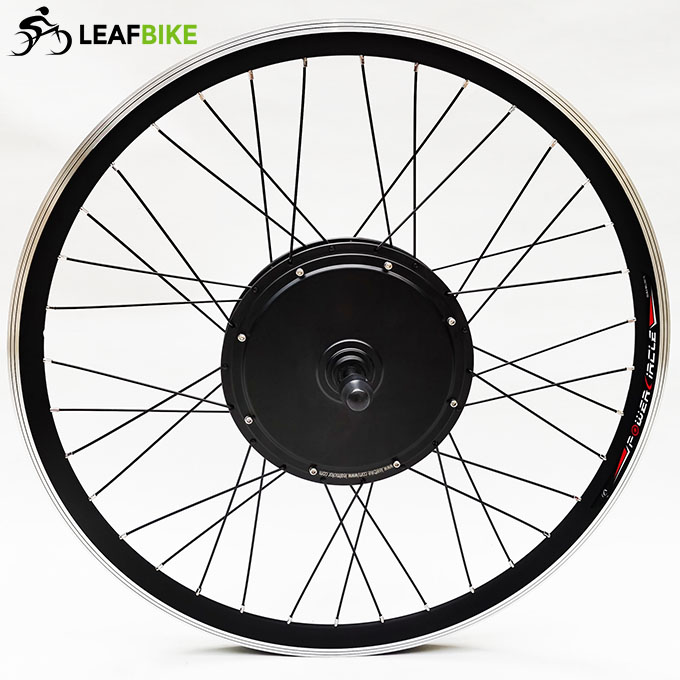

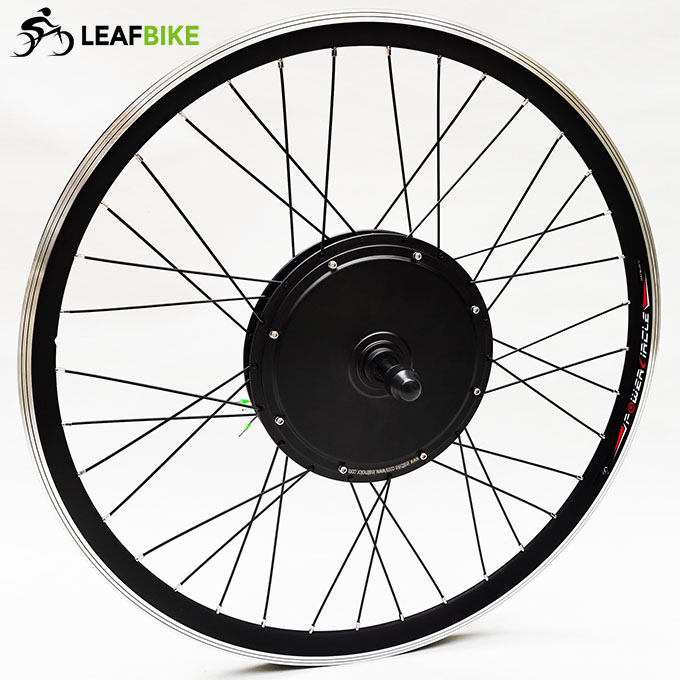

28 inch 48V 1000W rear hub motor kit

Item ID #LBCK28481000RNK
$338.00 $378.00
    Please select the information you wantX
  • Sprocket :
    Please select the information you wantX
Quantity :
Maybe You Need These
Maybe You Need These
Please watch videos for 28 inch 48V 1000W rear hub motor electric bike kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..
Share Video:
28 inch 48V 1000W rear hub motor kit video
Share Video:
28 inch 48v 1000w rear hub motor bike conversion kit

* This 28 inch hub motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:

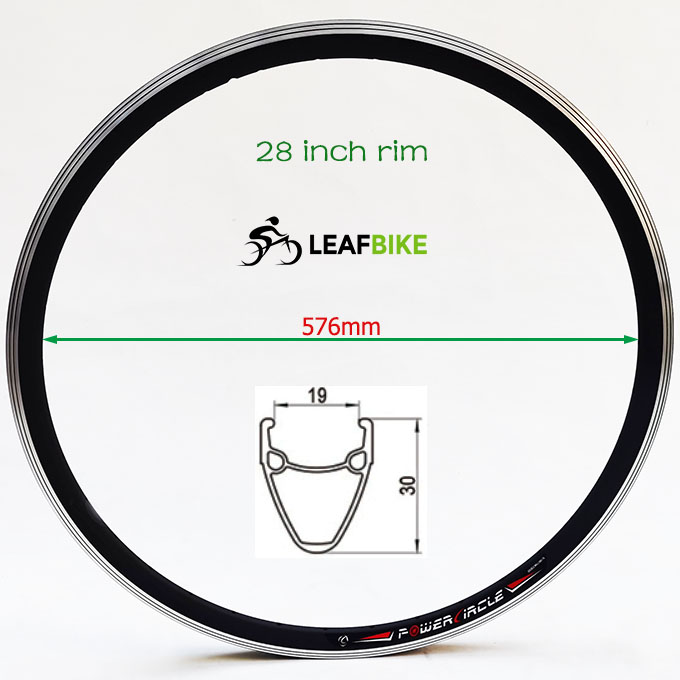

>. Rim: 28 inch double wall Alloy (Rim Fit For: 28 × 1 5/8" tire)
>. Spoke: 12 gauge / 184mm Length × 36 pcs
>. Default: Black spokes
>. Optional: Silver spokes -- Please leave message.

>. Engine : Bldc hub motor
>>. Voltage: 48V
>>.  Power: 1000W
>>.  Efficiency: 90.5%
>>.  Max speed: 72.9 kmh -- 45.3 mph Default (Optional other speed: 35mph or 25mph,15mph...please leave message)
>>. Mechanical brake: Disk or  V
>>. Sprocket: freewheel or Cassette
>>.  Cable location: shaft end, Left
>>.  Cable length:100cm / 40"
>>.  Install: spacing of 135mm fork
>>.  Noise: < 60 db
>>.  Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>.  Rated power: 1000 Watts
>>.  Casing material: aluminium
>>.  Maximum Current: 26 A ± 1 Amps
>>.  Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 171 mm L × 82 mm W × 42 mm H

With LCD, More Function:
* Cruise - Yes
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Pedal assist ( 0 - 5 )
* Battery gauge
* ...

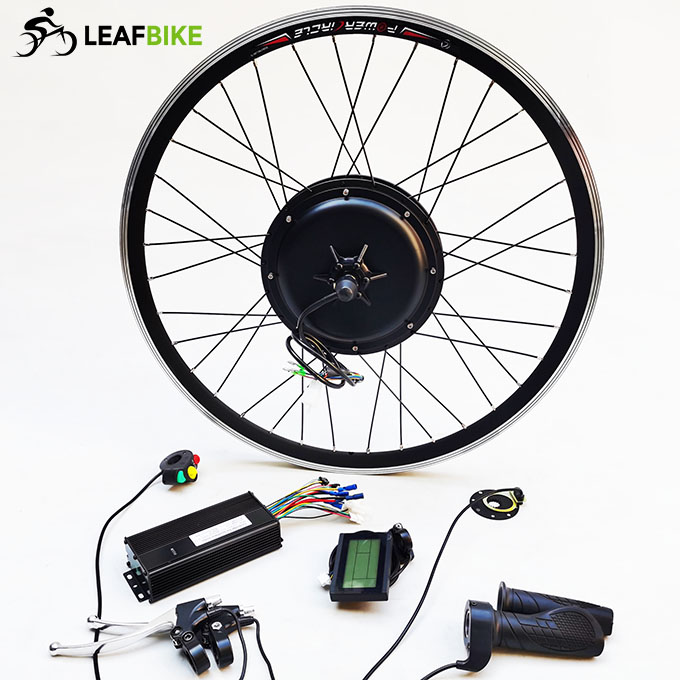

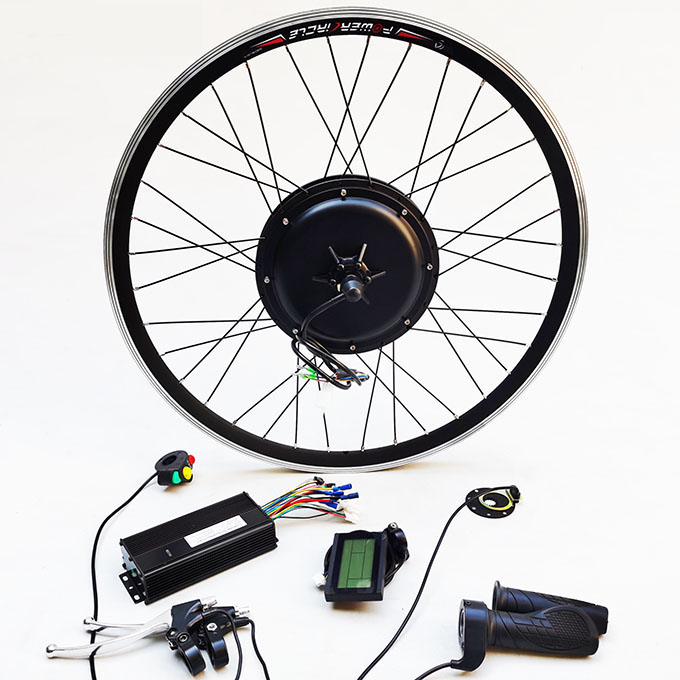

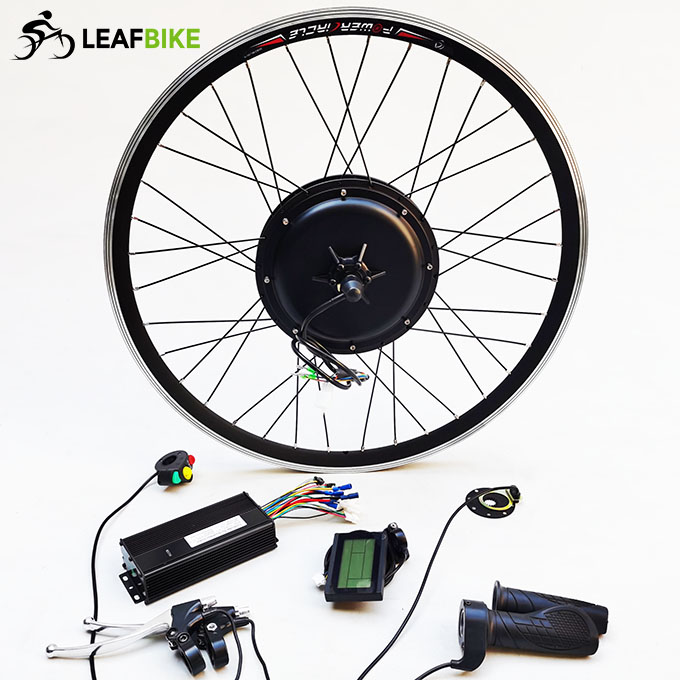

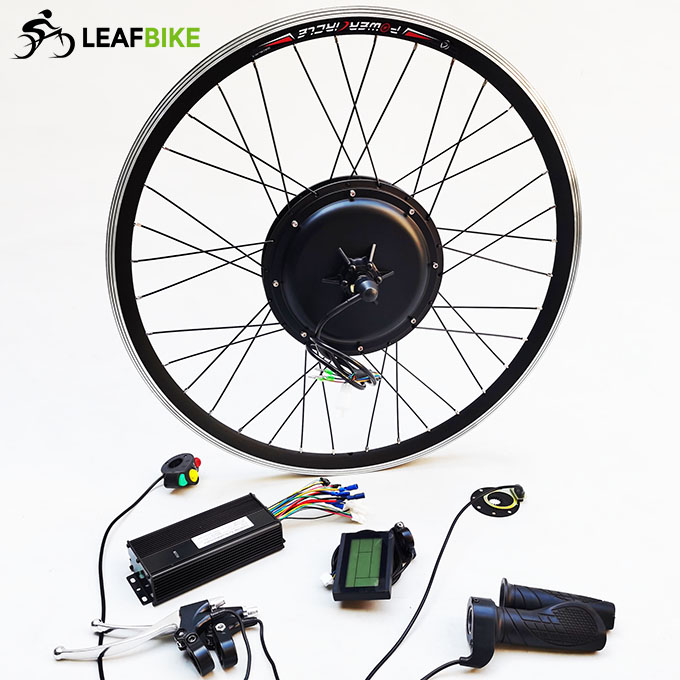

Package Content:

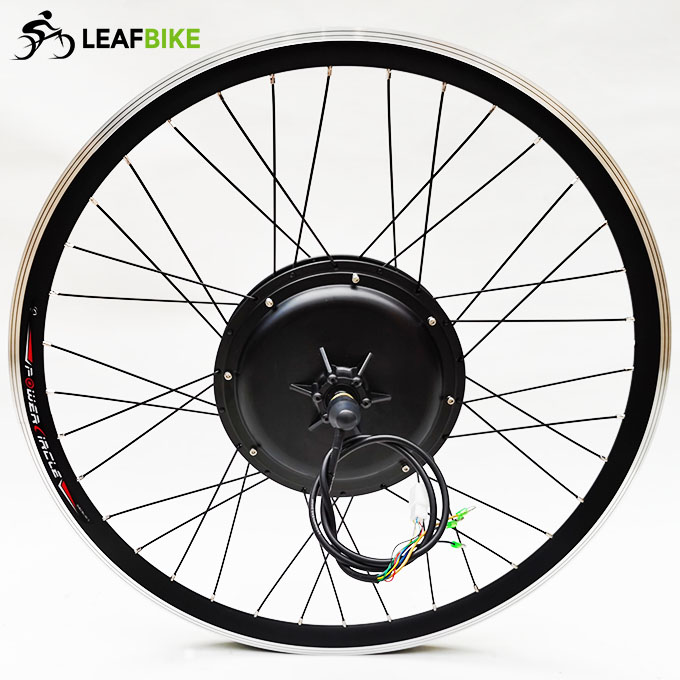

1 x 28 inch 48V 1000W rear hub motor wheel
1 x 48V 52V 1000W 12-MOSFET motor controller
1 x LCD
1 x Twist throttle -- Cable length: 1500mm (Optional: thumb throttle)
 1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise... ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 11.3 kg
Package Size: 66cm L x 66cm W x 25cm H
Package Type: Cardboard Box
Wire Diagram:
28 inch 48V 1000W rear hub motor kit wire diagram
1000W Rear Drw.
1000w rear hub motor drawing
1000W Cassette Drw.1000w cassette hub motor drawing
Performance Data:
