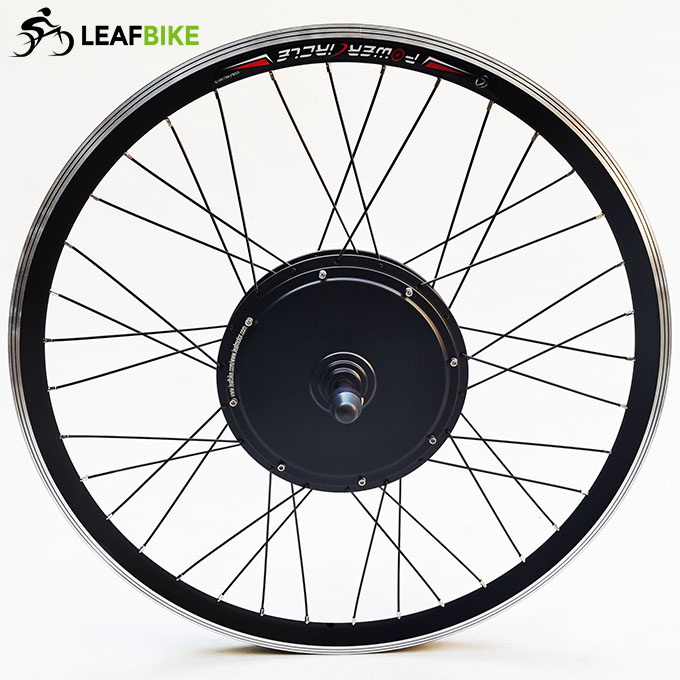

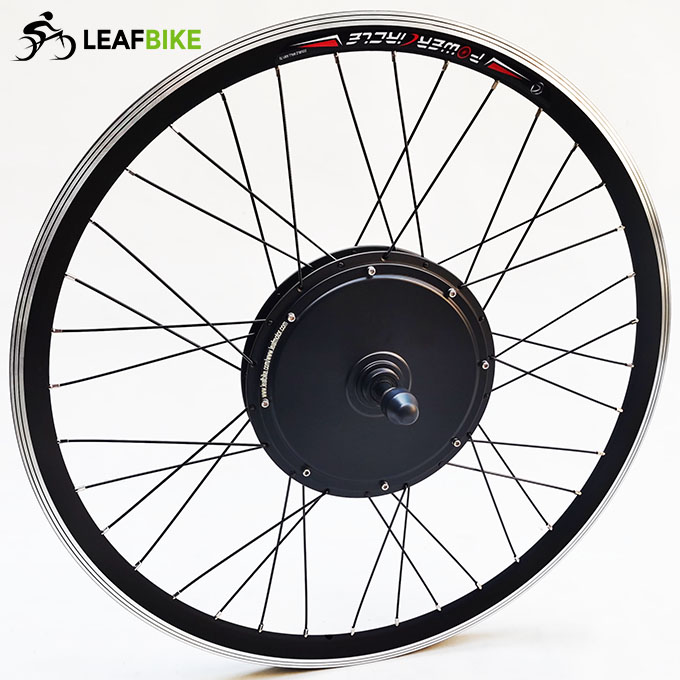

28 inch 36V 750W rear hub motor kit

Item ID #LBCK2836750RN
$325.00 $374.00
    Please select the information you wantX
  • Sprocket :
  • LCD :
    Please select the information you wantX
Quantity :
Maybe You Need These
Maybe You Need These
Please watch video for 28 inch 36V 750W rear hub motor electric bike kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..
Share Video:
28 inch 36V 750W rear hub motor kit video

This 28 inch bike motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:
>. Rim: 28 inch double wall Alloy (Rim Fit For: 28 × 1 1/2" tire)
>. Spoke: 12 gauge / 184mm Length × 36 pcs

>. Engine: Bldc hub motor
>>. Voltage: 36V
>>. Power: 750W
>>. Efficiency: 87.5%
>>. Max speed: 66.4 kmh – 41.2 mph
>>. Mechanical brake: Disk or  V
>>. Sprocket: Freewheel or Cassette
>>. Cable location: shaft end, LEFT
>>. Cable length:100cm / 40"
>>. Install: spacing of 135mm fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 36 Volts
>>. Min. Voltage: DC 30 ± 0.5 V
>>. Rated power: 750 Watts
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 105 mm L × 72 mm W × 38 mm H

With LCD, More Function:
* Cruise - Yes
* Forward & Backward (Optional: On / Off)
* Kmh & mph (Optional)
* Throttle speeds ( 0 - 5 ) -- "0" is off throttle. "1" is the slowest. "5" is the fastest.
Pedal assist speed ( 0 - 5 ) -- "0" is off pedal assist. "1 ~ 5" is the fastest. ONLY one max speed. If hope pedal with 5 kinds of max speeds, please choose the other controller of ours. Please click below link:

* ...

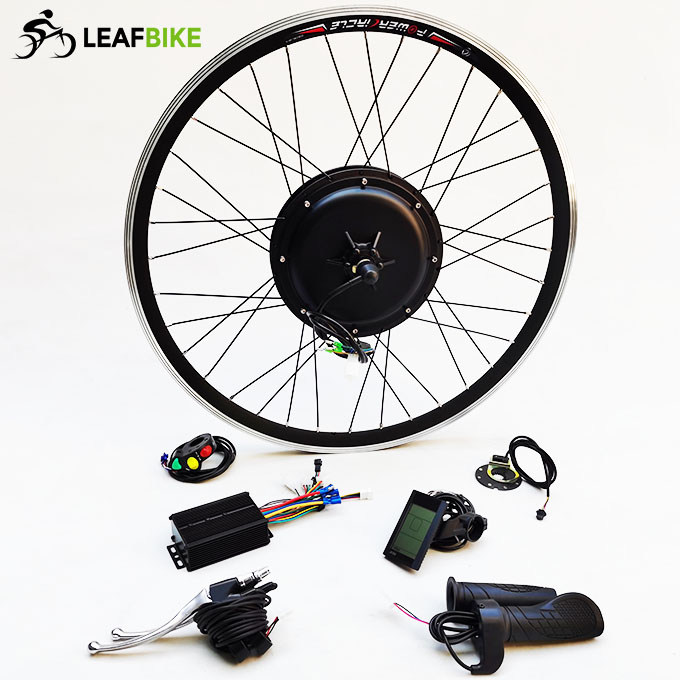

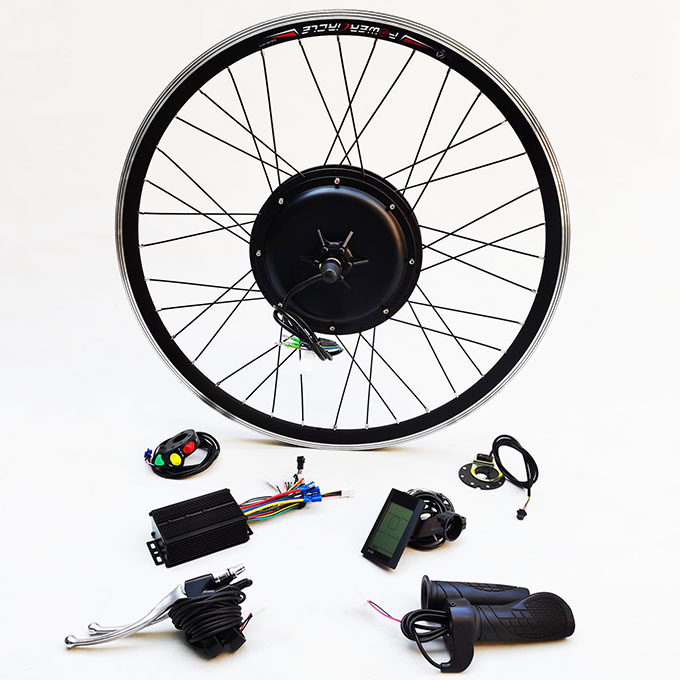

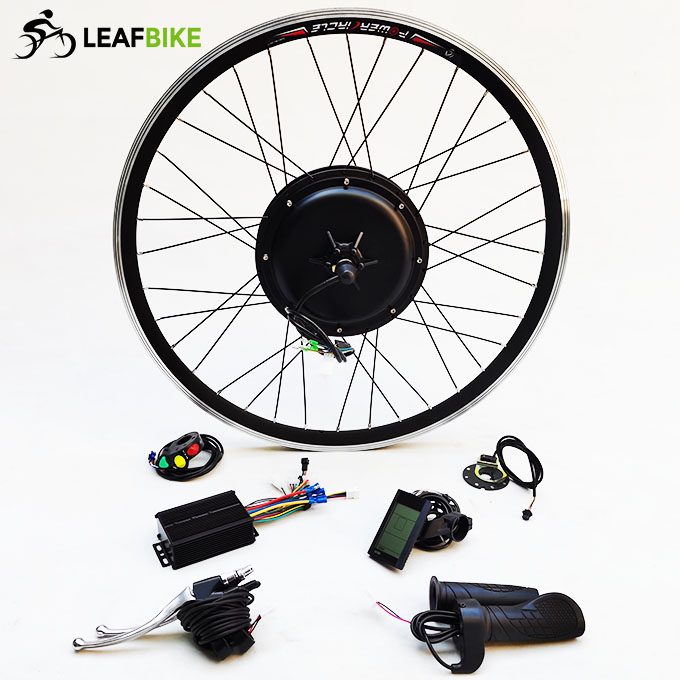

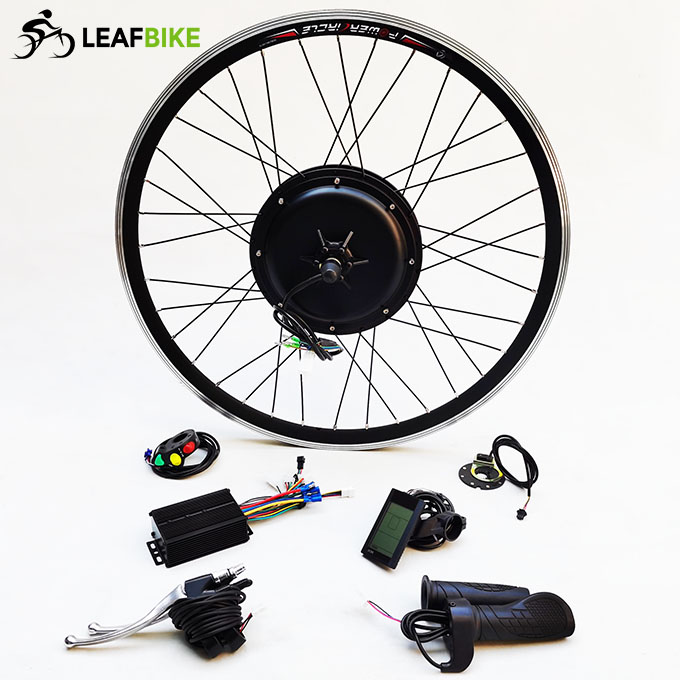

Package Content:

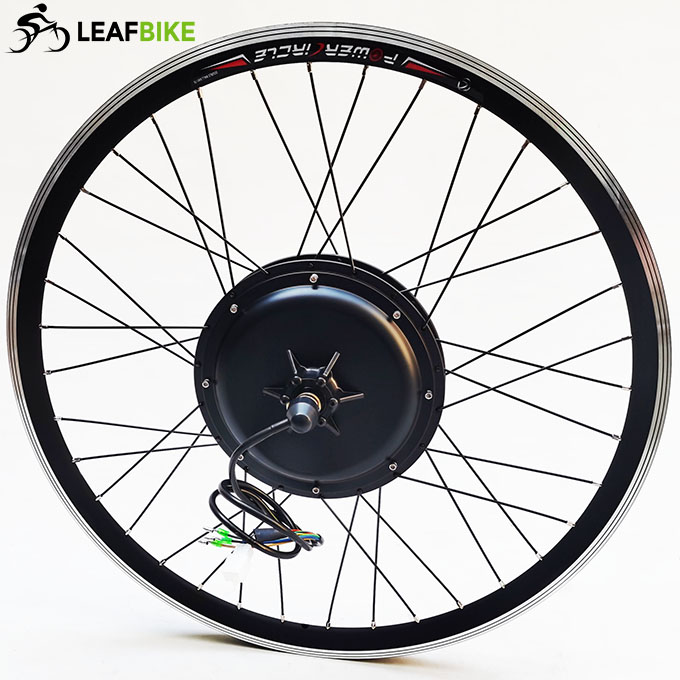

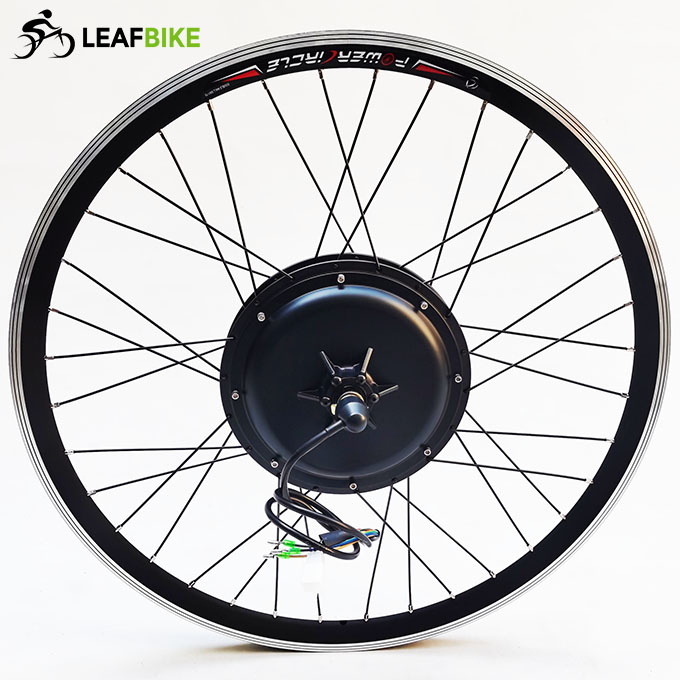

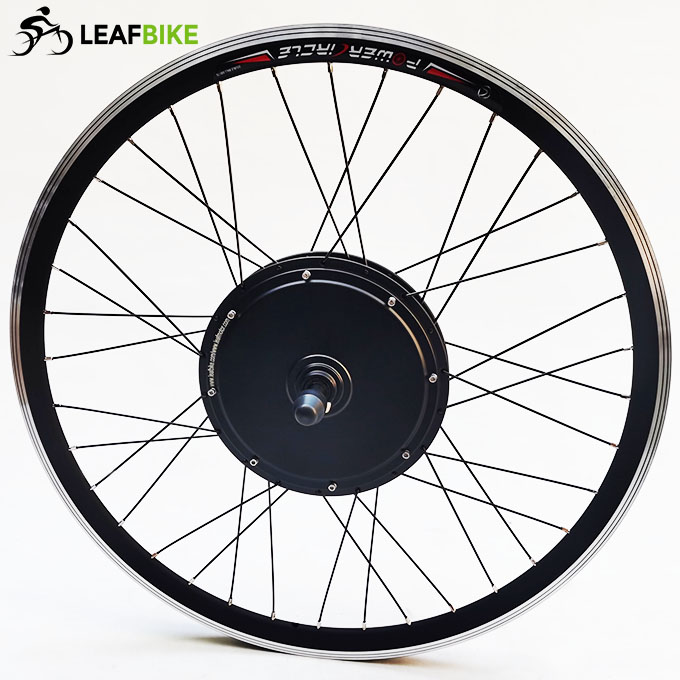

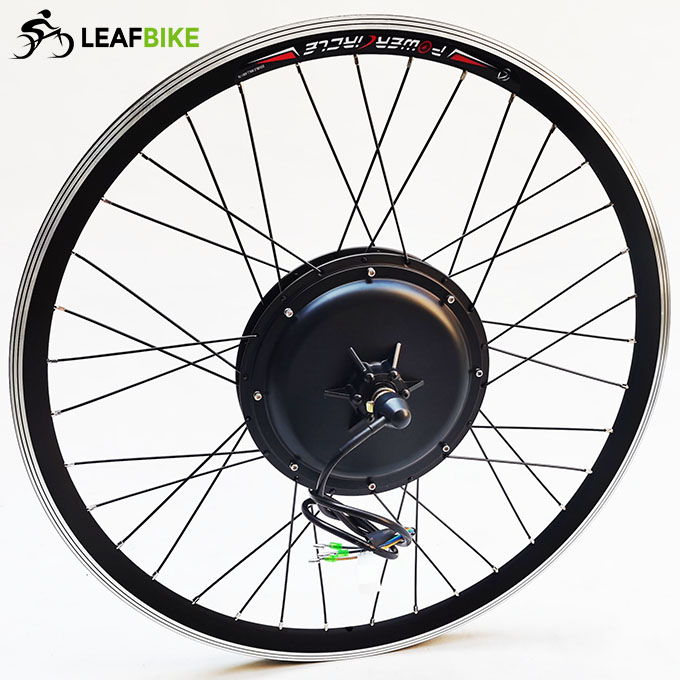

1 x 28 inch 36V 750W rear hub motor wheel
1 x 36V 750W 12-MOSFET motor controller
1 x LCD
1 x Twist throttle Default (Optional: Thumb throttle)
1 x Brake levers
1 x Three button switches ( control cruise.. )
1 x Pedal assist

Net weight: 10.8 kg
Package Size: 66cm L x 66cm W x 25cm H
 Package Type: Cardboard Box
Wire Diagram:
28 inch 750w rear hub motor electric bike conversion kit wire diagram
750W Rear Drw.
750w rear hub motor drawing
750W Cassette Drw.750w cassette hub motor drawing
Performance Data:
