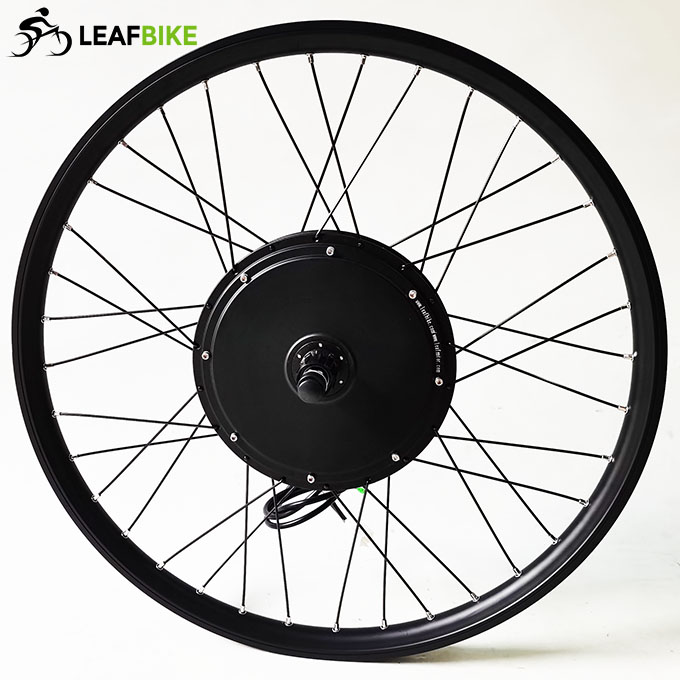

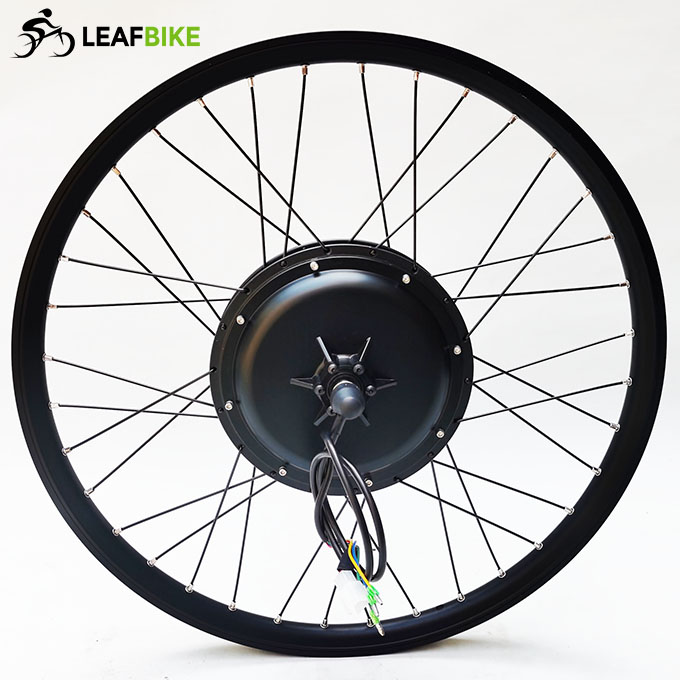

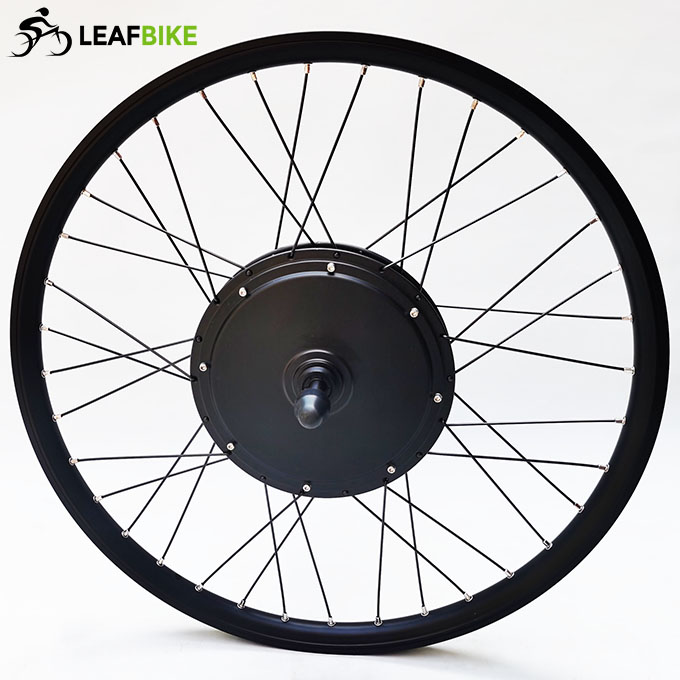

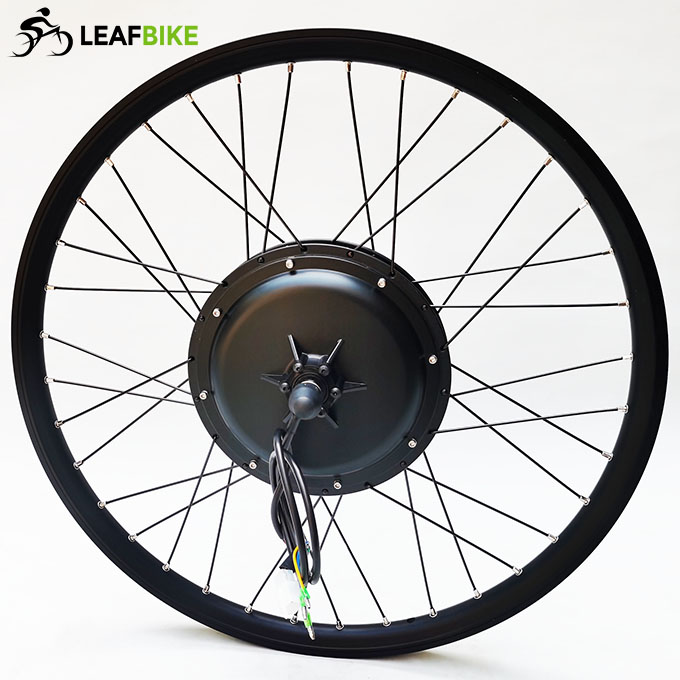

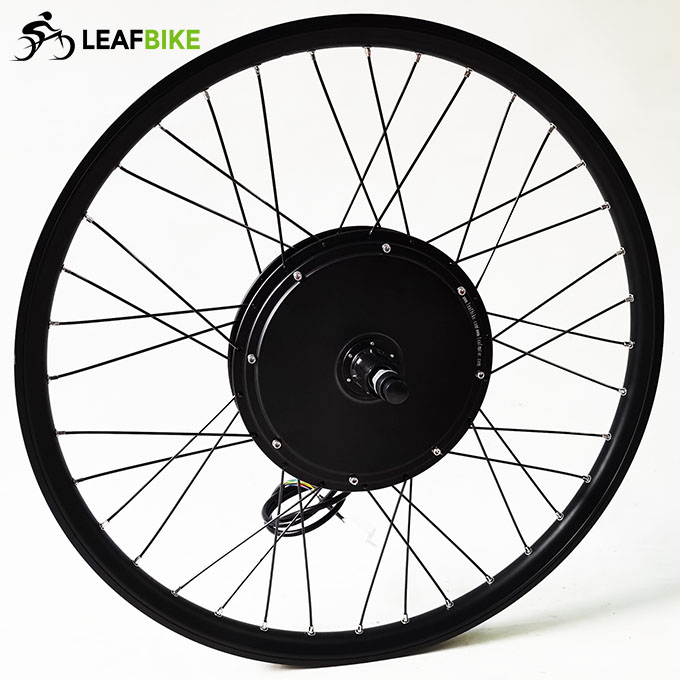

27.5 inch 48V 52V 1000W rear wheel - 650b electric hub motor kit

* This 27.5 inch bike conversion kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.


Main Features:

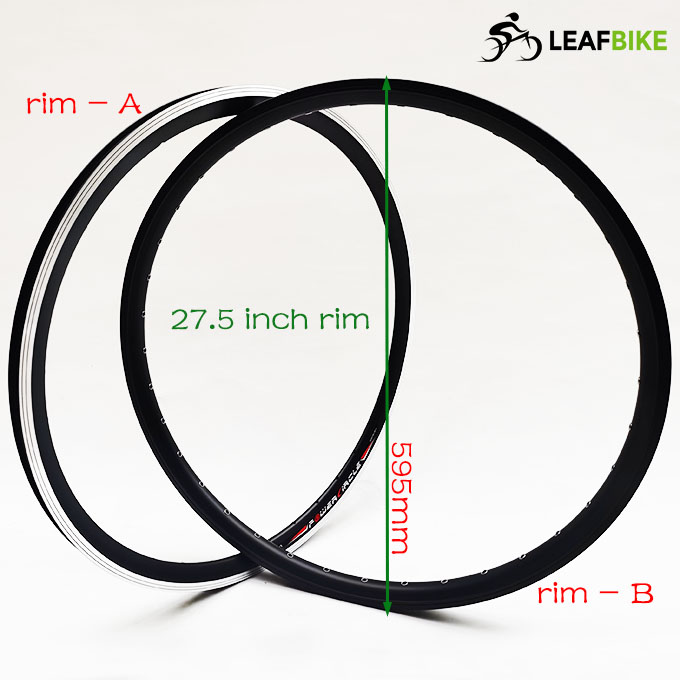

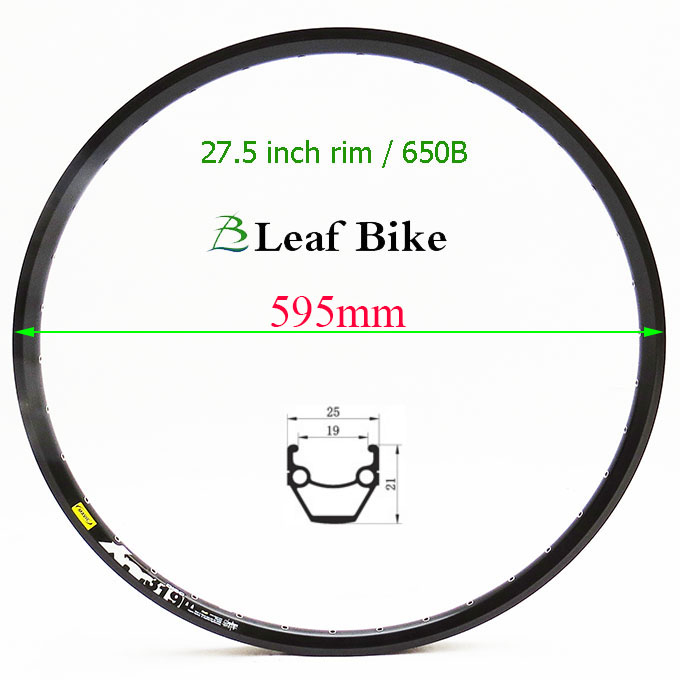

>. Rim: 27.5 inch / 650B double wall Alloy (Rim Fit For: 27.5 × 1.5" / 1.75" / 1.95" / 2.1" / 2.5" tire)
If the width of your tire / tyre is 2.1...(bigger than 1.95 inch)
Please note tire/tyre size when you place an order so that we can send a wider rim & fit for your wider tire/tyre.
>. Spoke: 12 gauge / 173mm Length × 36 pcs
>. Engine : Bldc hub motor
>>. Voltage: 48V / 52V
>>.  Power: 1000W
>>.  Efficiency: 90.5%
>>.  Max speed: 73.3 kmh -- 45.5mph Default (Optional other speed: 35mph or 25mph,15mph...please leave message)
>>. Mechanical brake: Disk or  V
>>. Freewheel / Cassette: space for single speed... 6 speed.. max 7 speed Default: Fit for Screw on Sprocket (If install Cassette Sprocket,please leave message)
>>.  Cable location: shaft end , LEFT
>>.  Cable length:100cm / 40"
>>.  Install: spacing of 135mm fork
>>.  Noise: < 60 db
>>.  Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>.  Rated power: 1000 Watts
>>.  Casing material: aluminium
>>.  Maximum Current: 26 A ± 1 Amps
>>.  Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 105 mm L × 72 mm W × 38 mm H

LCD-830, More Function:
* Cruise
* Forward & Rackward (Optional)
* Kmh & mph (Optional)
* Set Max speed ( 0 ~ 100 kmh / 60 mph )
* Speed ( 0 - 5 ) - "0" is off. "1" is the slowest. "5" is the fastest.
* Battery gauge
* ...

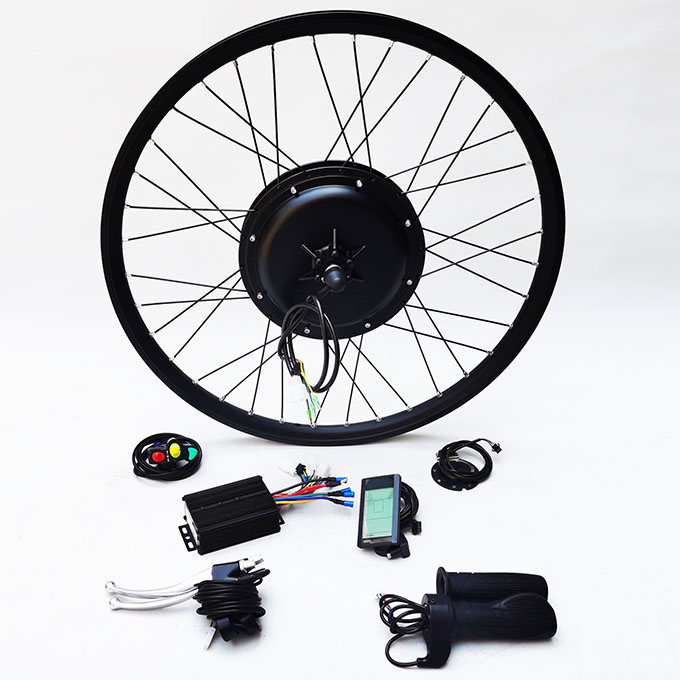

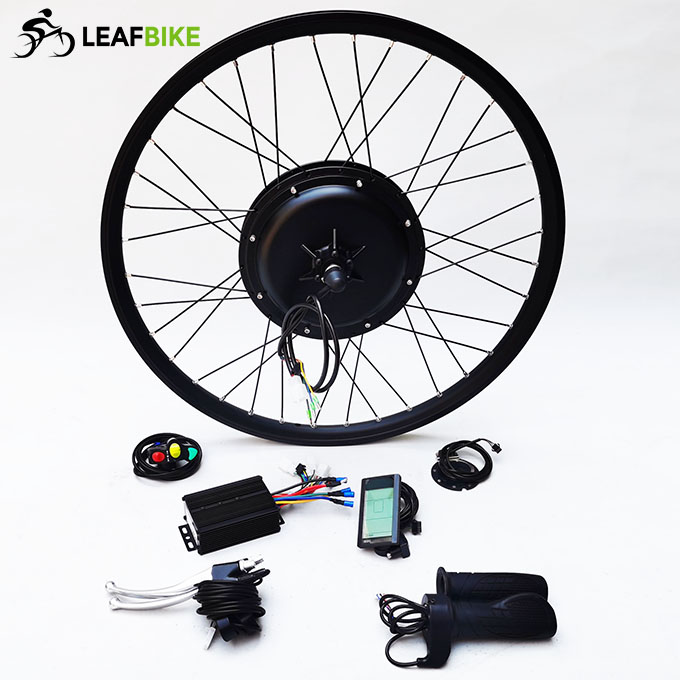

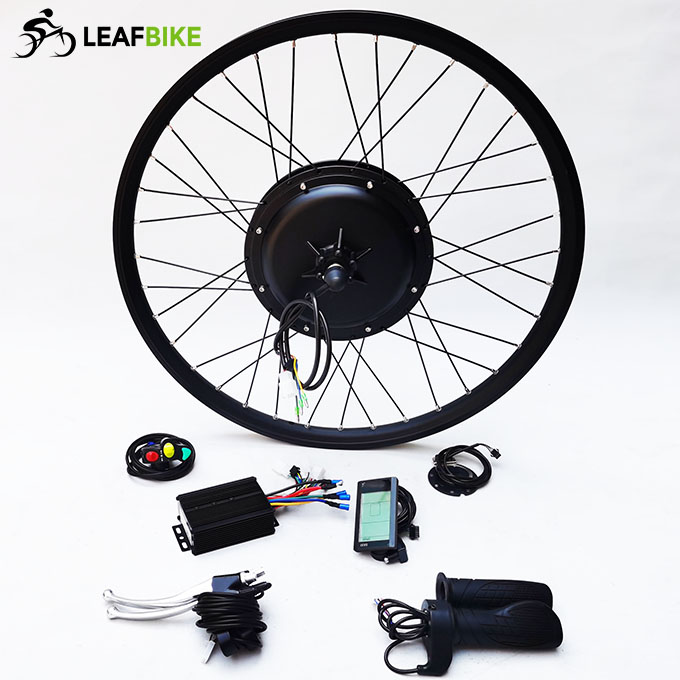

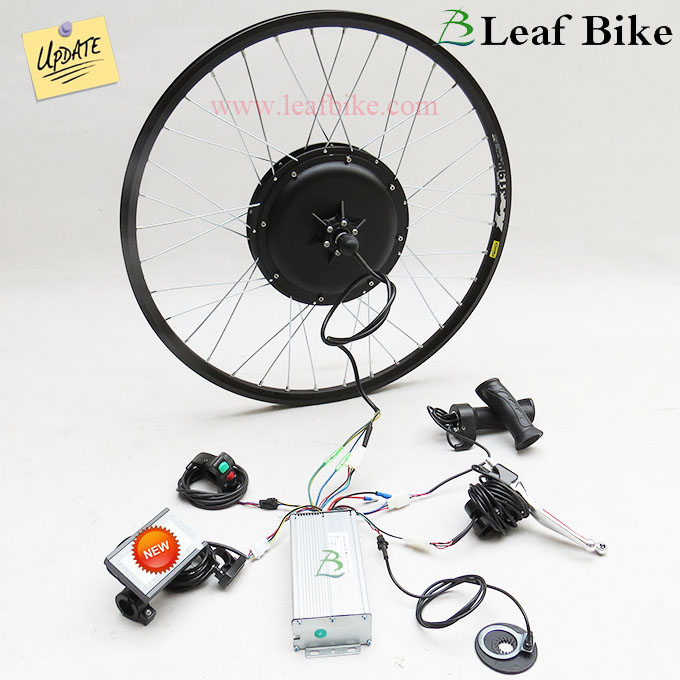

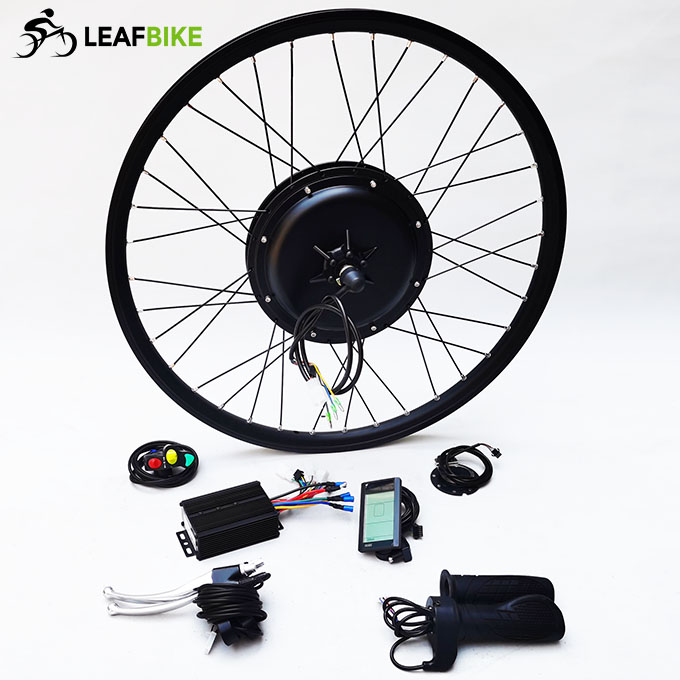

Package Content:

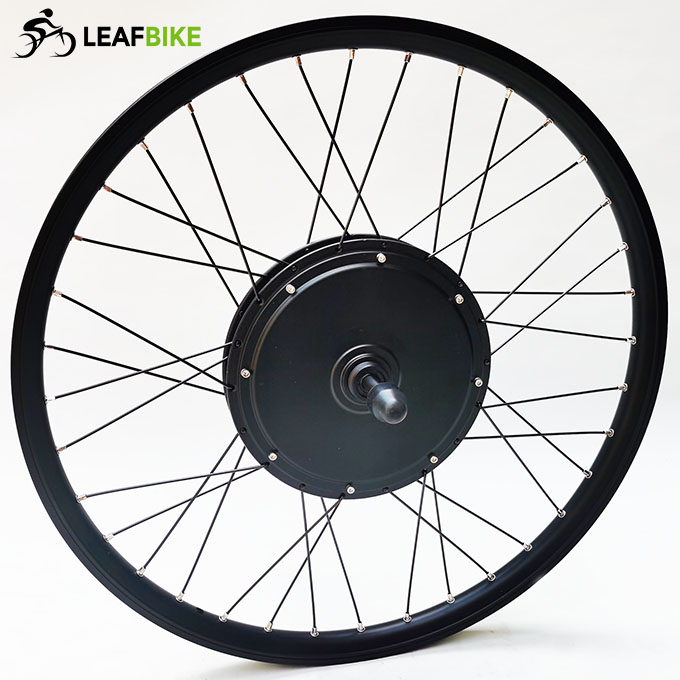

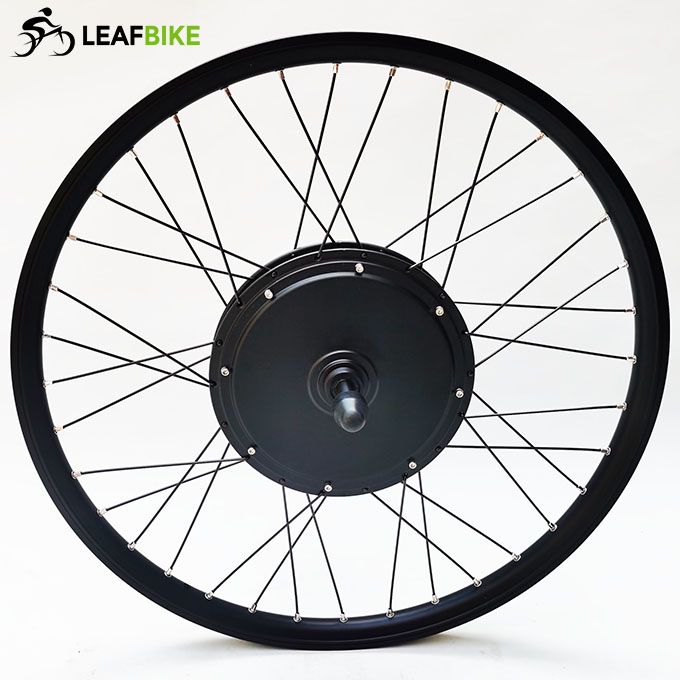

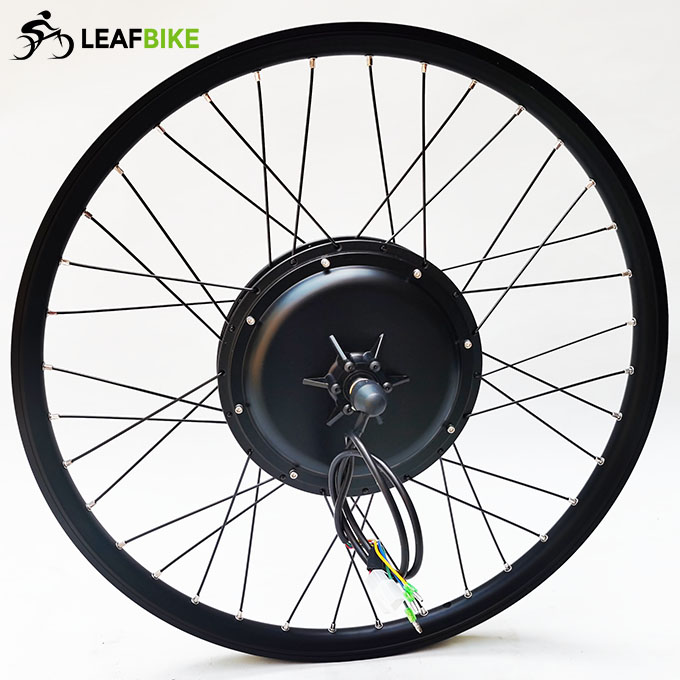

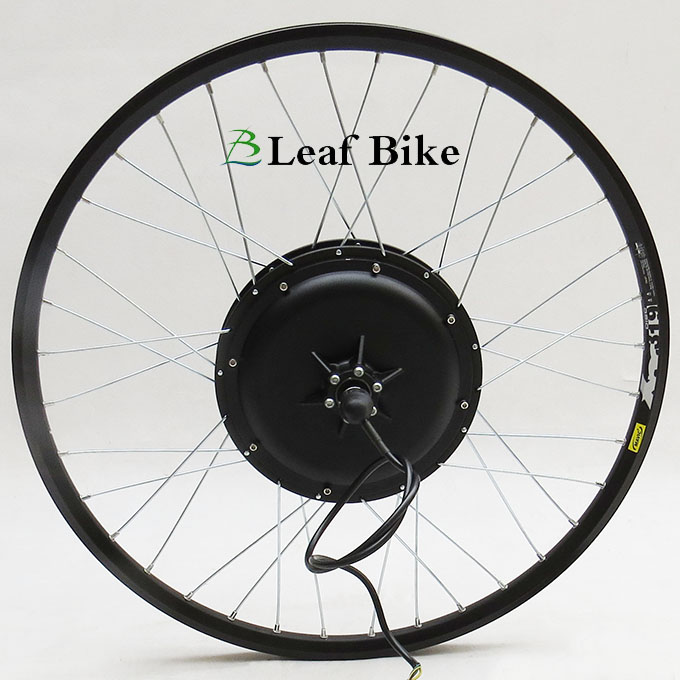

1 x 27.5 inch / 650B 48V / 52V 1000W rear hub motor wheel
1 x 48V / 52V 1000W 12-MOSFET motor controller
1 x LCD-830
1 x Twist throttle -- Cable length: 1500mm
 1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, regen brake, reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 1000mm

 Net Weight: 24.5 lbs
Package Size: 64cm L × 64cm W × 25cm H
Package Type: Cardboard Box

Share Video:

Wire Diagram:

1000W Rear Drw.

1000W Cassette Drw.

Performance Data:

Rotor Part 1:

Rotor Part 2:

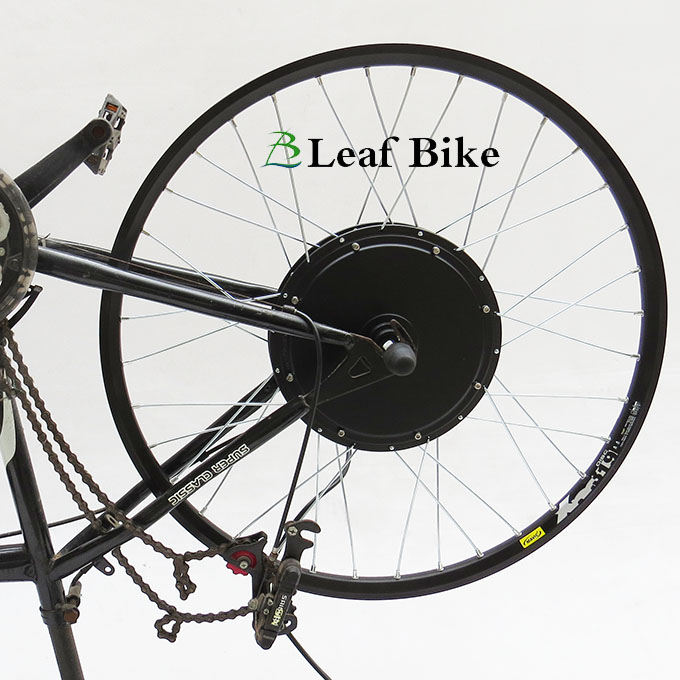

Install Motor:
