This 24 inch hub motor kit combines the full E-bike technology: direct drive Brushless Geared high torque hub Motorto change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
Main Features:

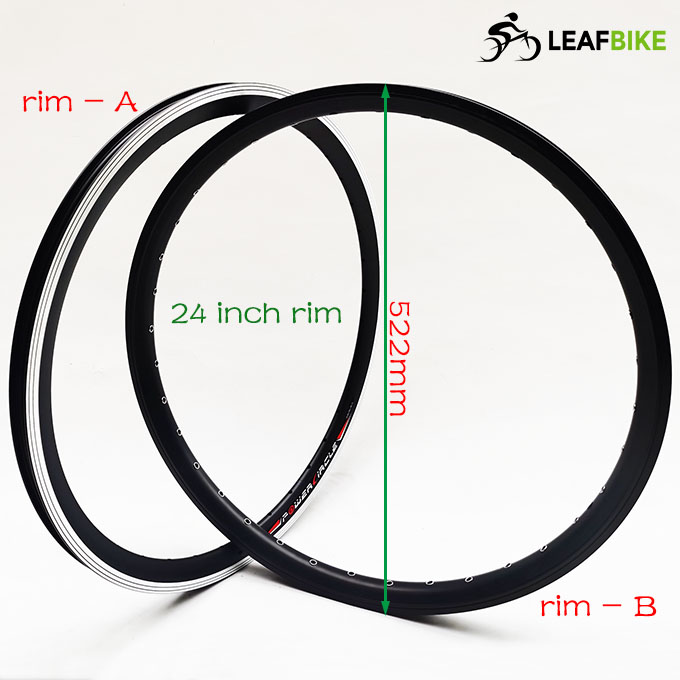

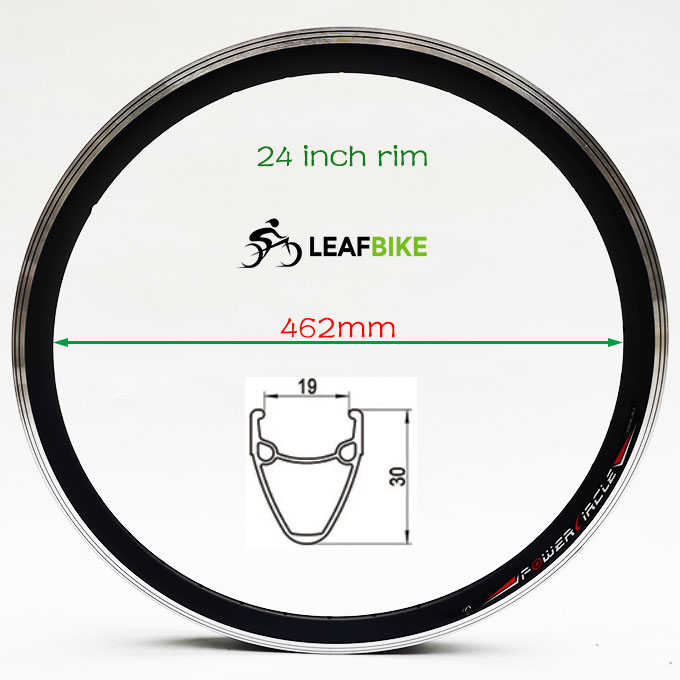

>. Rim A: 24 inch double wall Alloy (Rim Fit For: 24 x 1.5" / 1.75" tire)
>. Spoke: Silver 12 gauge / 165mm Length x 36 pcs
>. Rim B: 24 inch double wall Alloy (Rim Fit For: 24 x 1.95" / 2.0" ~ 2.5" tire)
>. Spoke: Black 12 gauge / 170mm Length x 36 pcs
>. Engine: Bldc hub motor
>>. Voltage: 48V
>>. Power: 500W
>>. Efficiency: 90.5%
>>. Max speed: 40 kmh -- 25 mph
>>. Mechanical brake: V or Disk
>>. Sprocket: Freewheel
>>. Cable location: shaft end, Right
>>. Cable length: 150cm / 60"
>>. Install: spacing of 100mm frontfork
>>. Noise: < 60 db
>>. Surface: Black painted
>. Driver: brushless controller
>>. MOSFET: 6 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 500 Watts
>>. Casing material: aluminium
>>. Maximum Current: 20 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 94.5 mm L x 61 mm W x 35 mm H

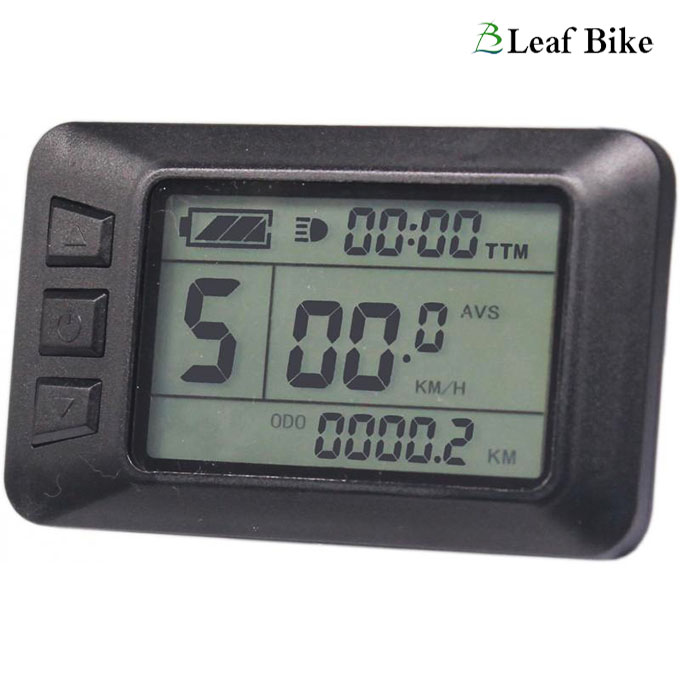

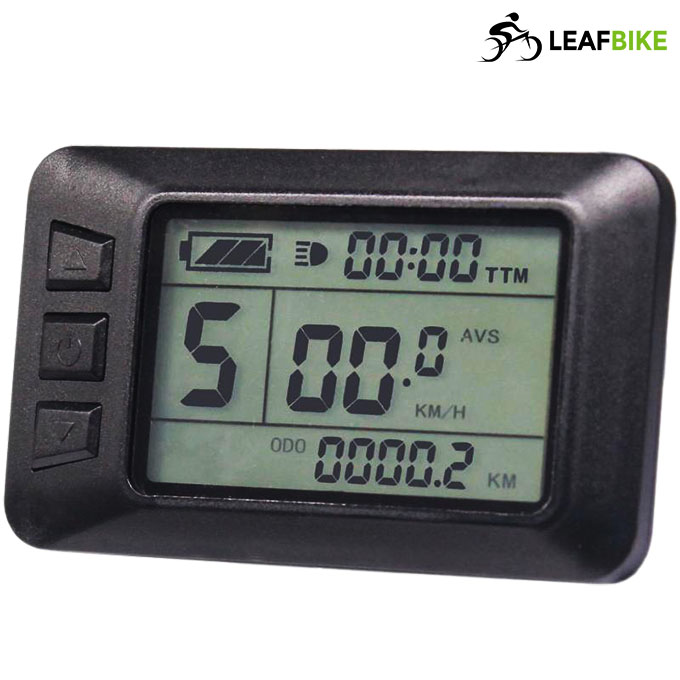

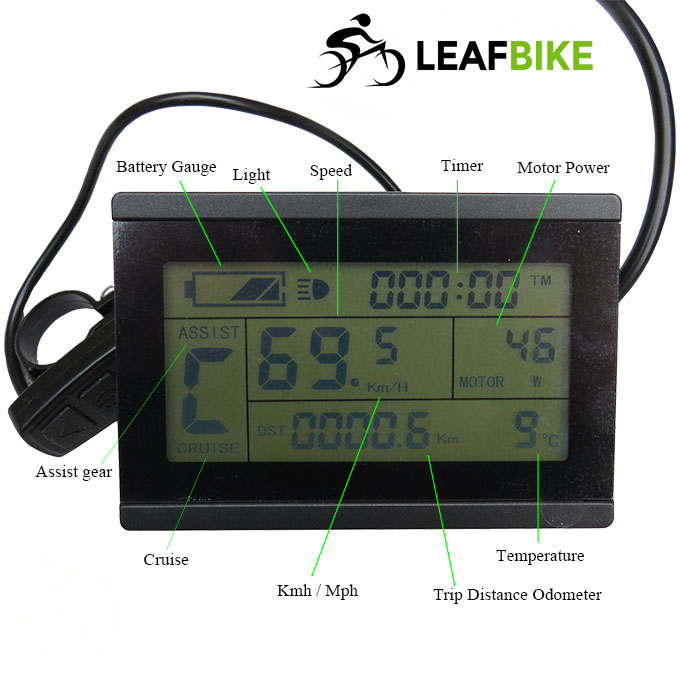

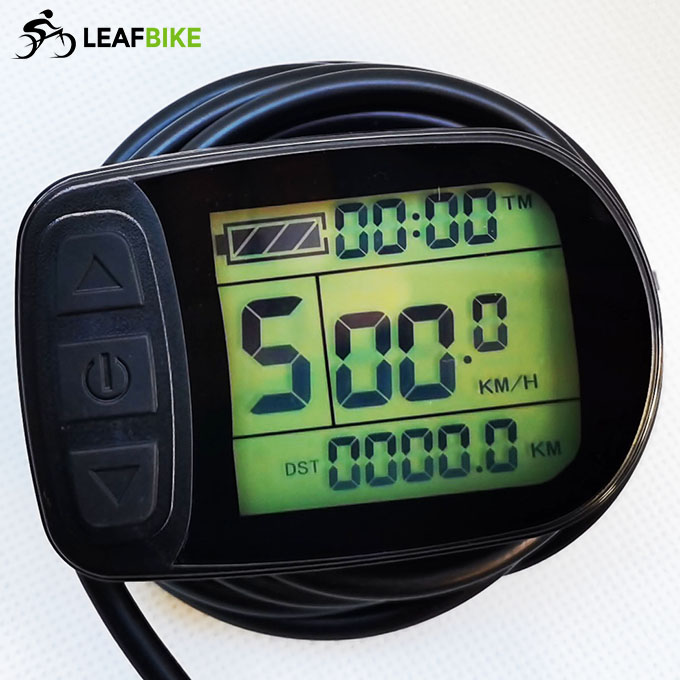

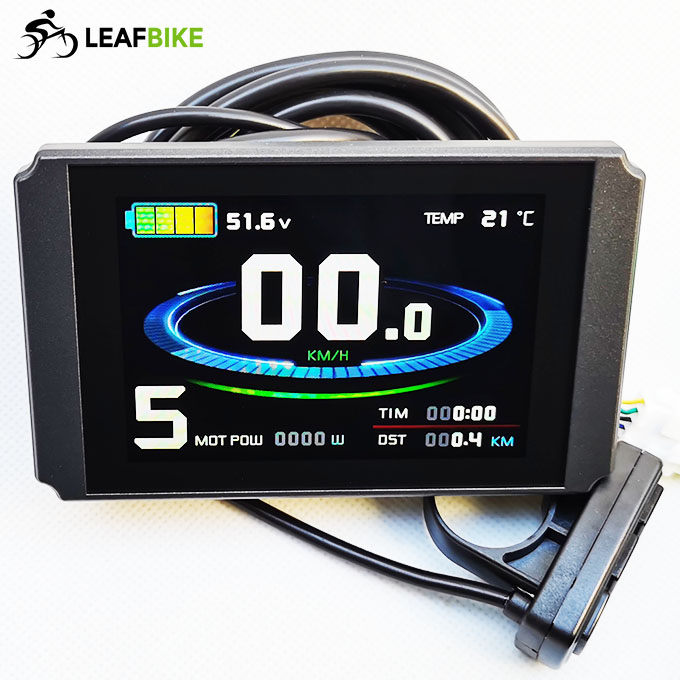

With LCD, More Function:
* Cruise -- Green button Control (While motor is working,press green button one time, it will be "CRUISE" - running as the same speed)
* Regen brake -- Red button Control ("Up / Regen ON -- Down / Regen off ")
* Kmh / mph
* Set Max speed ( 0 ~ 40 kmh / 25 mph ) -- If set be "32", Max speed will be 20mph / 32kmh
* Pedal assist ( 0 - 5 ) -- "0" is off PAS. "1-5" is on PAS. "5" is the strongest.
* ..

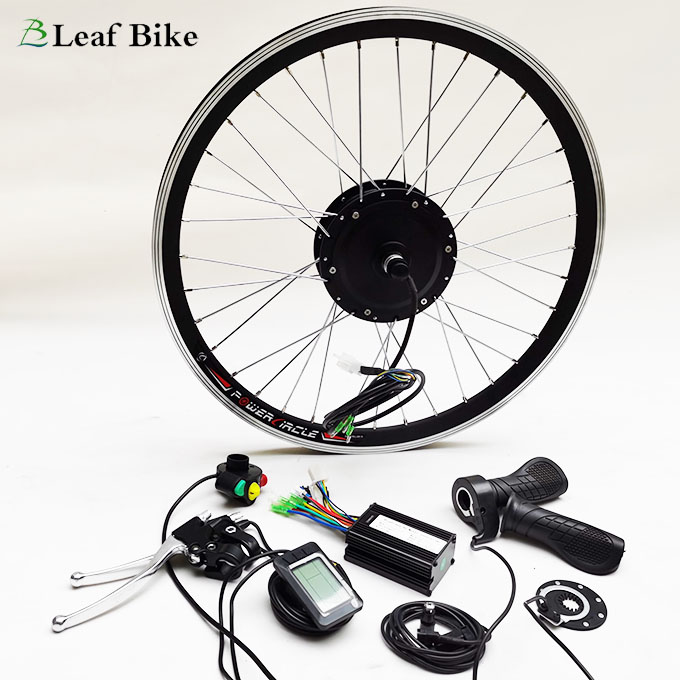

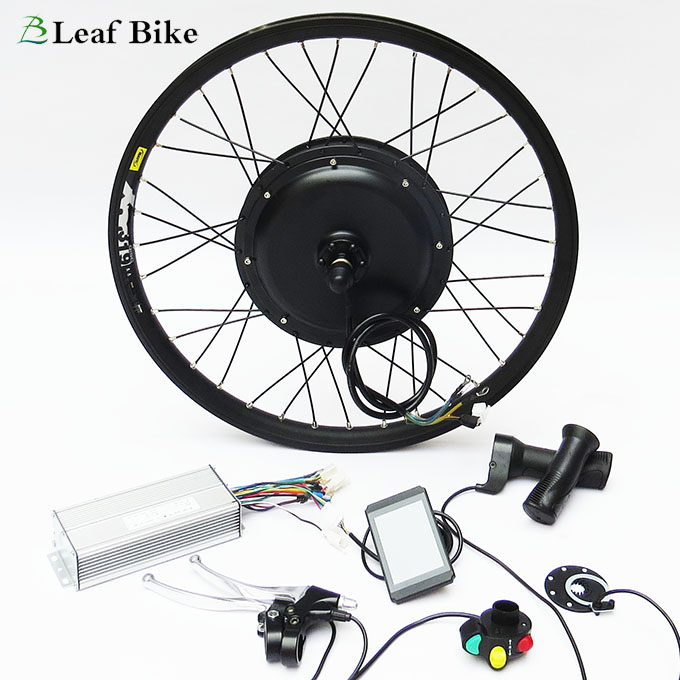

Package Content:

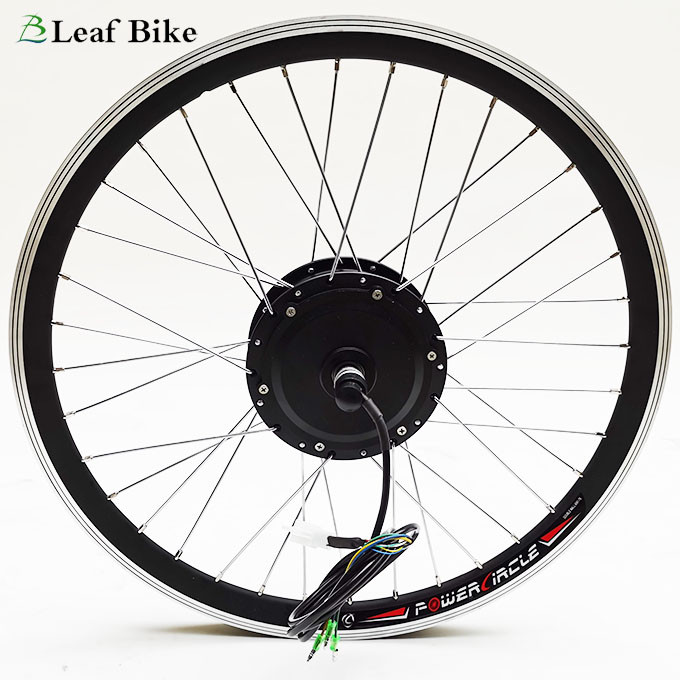

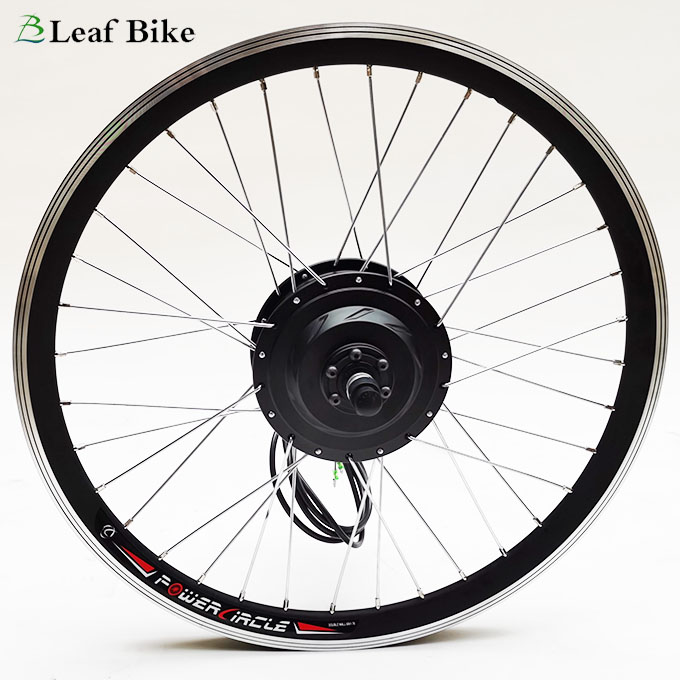

1 x 24 inch 48V 500W front brushless geared hub motor wheel
1 x 48V 500W 6-MOSFET 20A motor controller

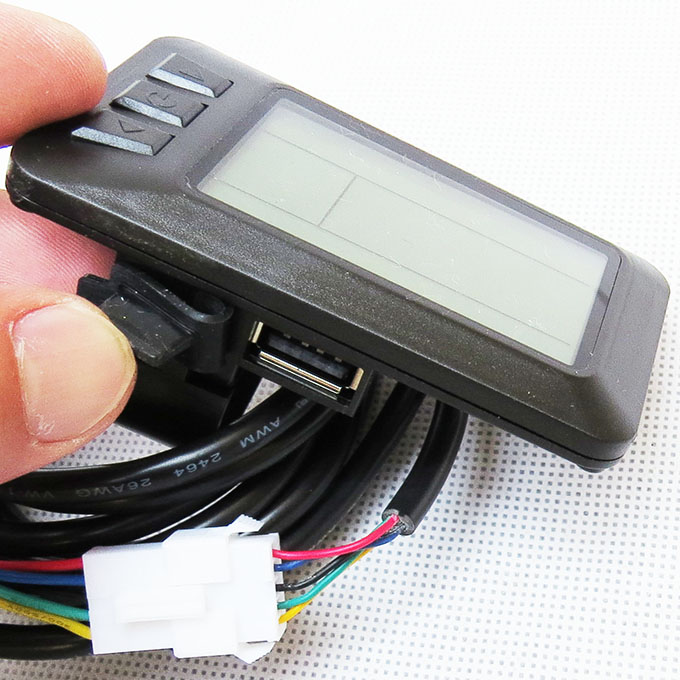

1 x LCD
1 x Speed signal wire
1 x Twist throttle
1 x Brake levers
1 x Three button switches ( control cruise..)
1 x Pedal assist
Net weight: 5.0 kg
Package Size: 56cm L x 56cm W x 56cm H
Package Type: Cardboard Box

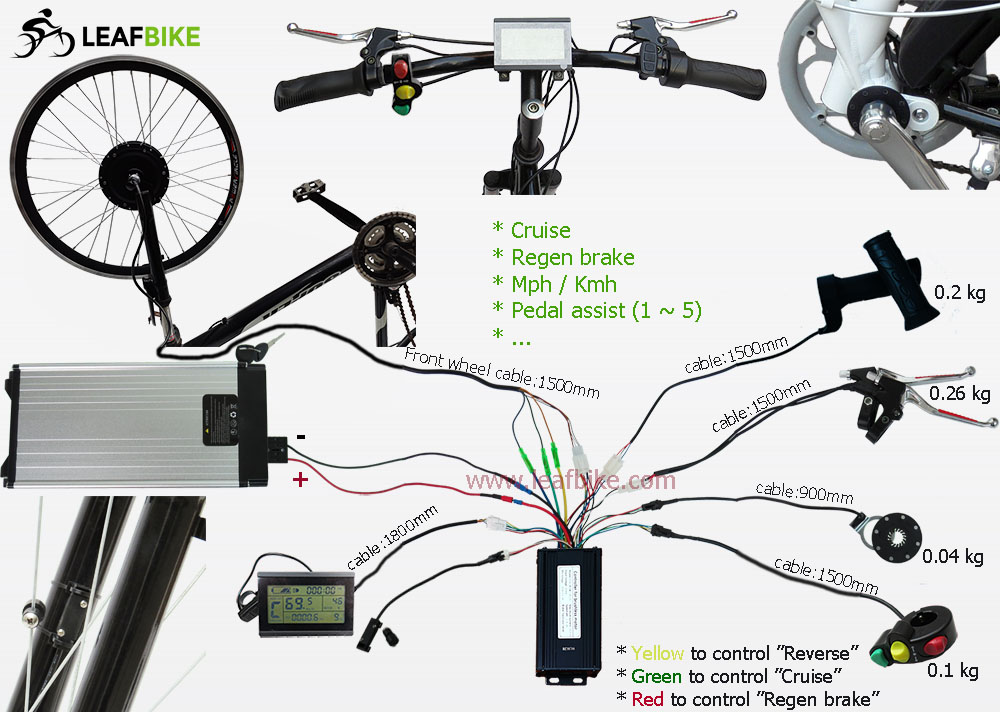

Wire Diagram:
Geared Hub Motor Drw.
