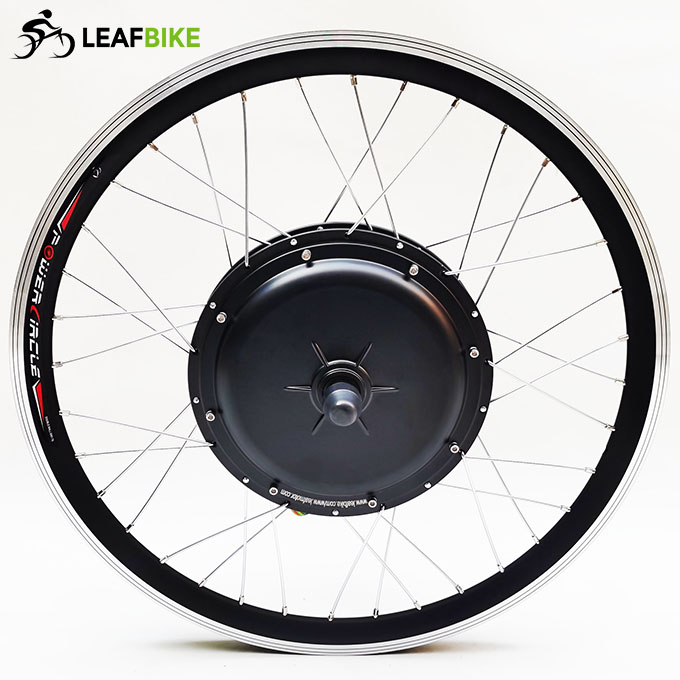

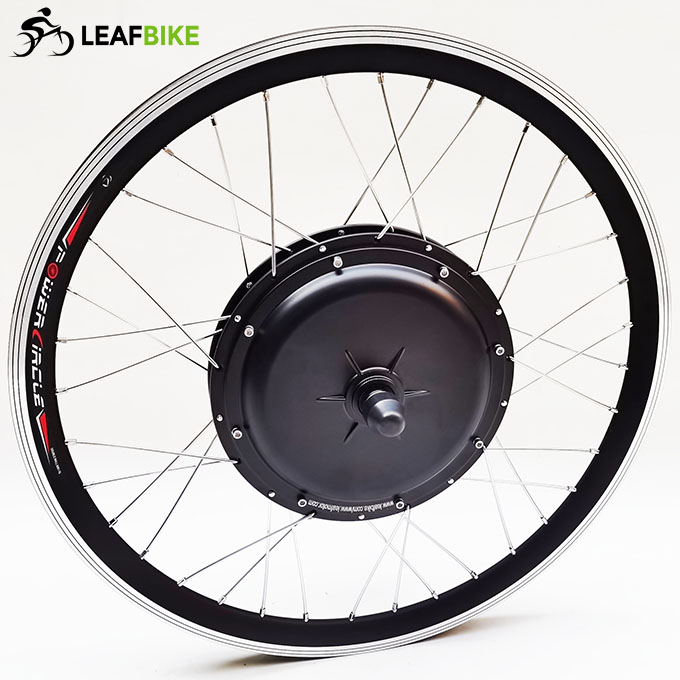

24 inch 48V 1000W front hub motor kit

Item ID #LBCK24481000FNK
$323.00 $367.00
    Please select the information you wantX
  • Tyre Size :
    24 x 1.5" / 1.75"
    24 x 1.95" / 2.0" ~ 2.5"
  • LCD :
    LCD-003
    LCD-005
    LCD-07U
    LCD-08HUP
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description
Please watch videos for 24 inch 48V 1000W front hub motor electric bike conversion kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh..
Share Video:
24 inch 48V 1000W front hub motor kit video
Share Video:
24 inch 48v 1000w front hub motor - ebike conversion kit

The 24 inch bike motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:

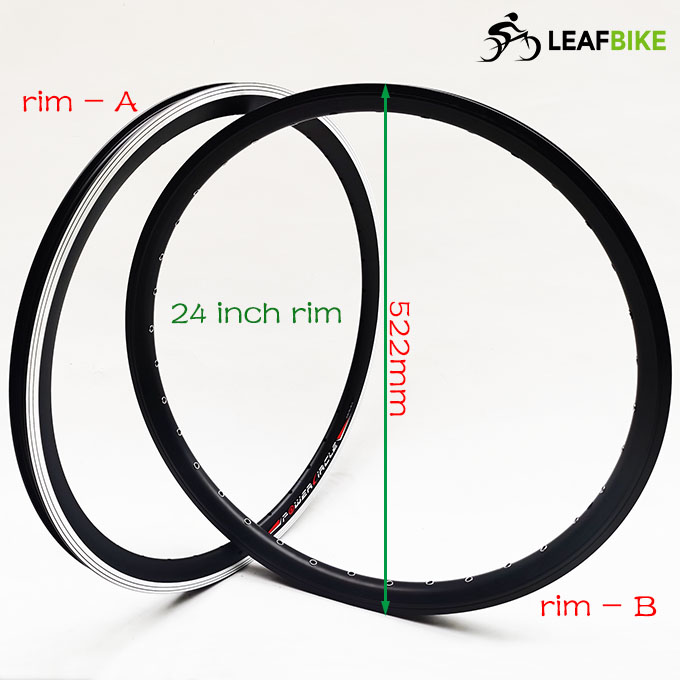

Rim A: 24 inch double wall Alloy (Rim Fit For: 24 × 1.5" / 1.75" tire)
Spoke: Silver 12 gauge / 130mm Length × 36 pcs

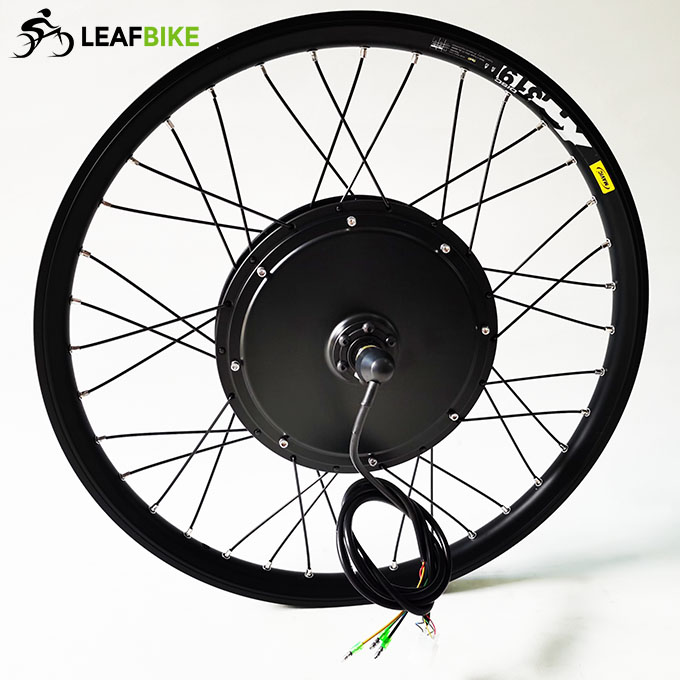

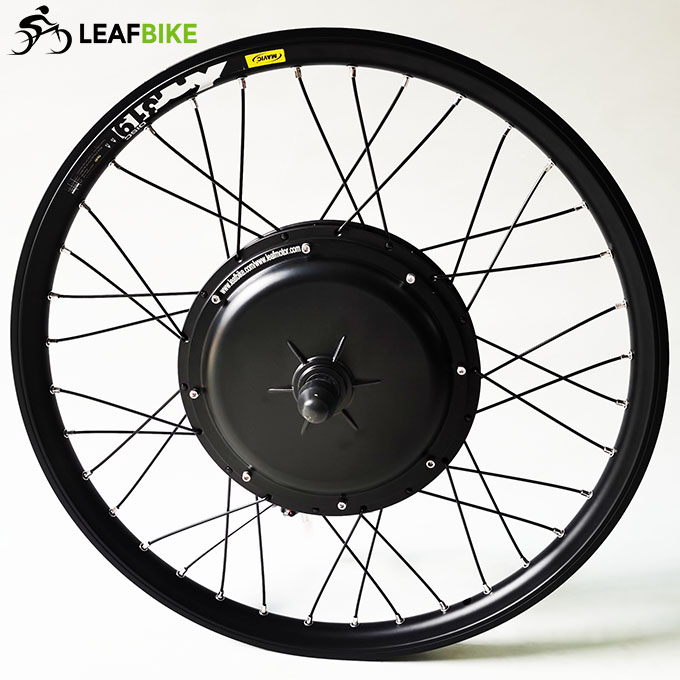

Rim B: 24 inch double wall Alloy (Rim Fit For: 24 × 1.95" / 2.0" ~ 2.5" tire)
Spoke: Black 12 gauge / 135mm Length × 36 pcs

Hub motor: brushless gearless dc motor
Controller: LCD display
Max speed: 72.5 kmh -- 44.5 mph Default (Optional other speed: 35mph or 25mph,15mph...)
Mechanical brake: V or Disk
Install: spacing of 100mm fork

With LCD, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Set Max speed ( 0 ~ 72 kmh )
* Speeds ( 0 - 5 ) - "0" is off. "1" is the slowest speed. "5" is the fastest speed.
* Battery gauge
* ...

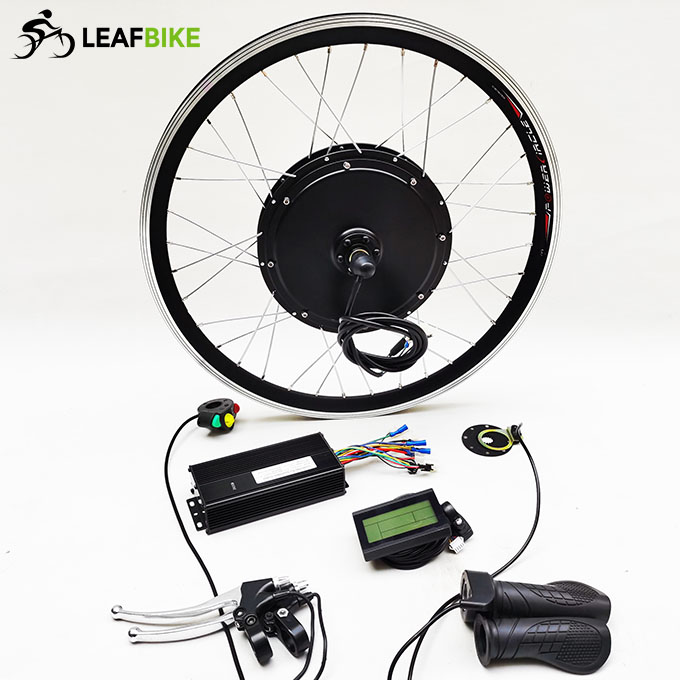

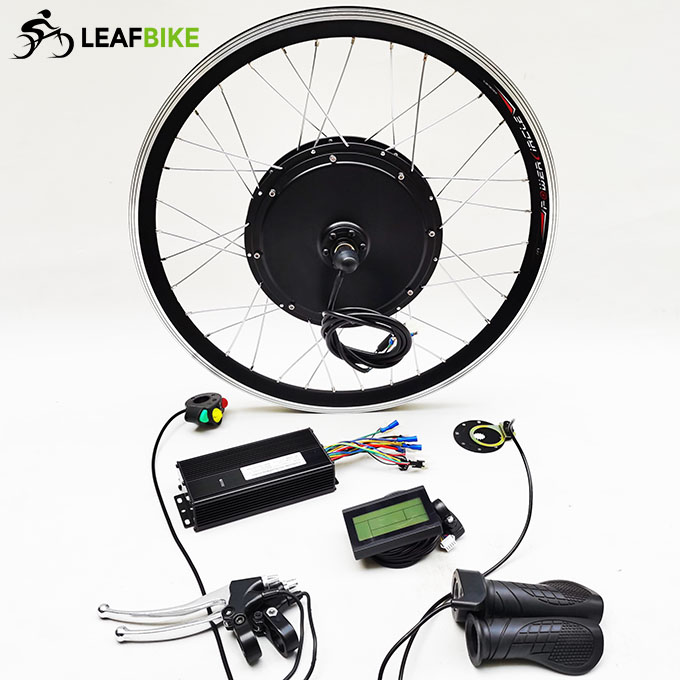

Package Content:

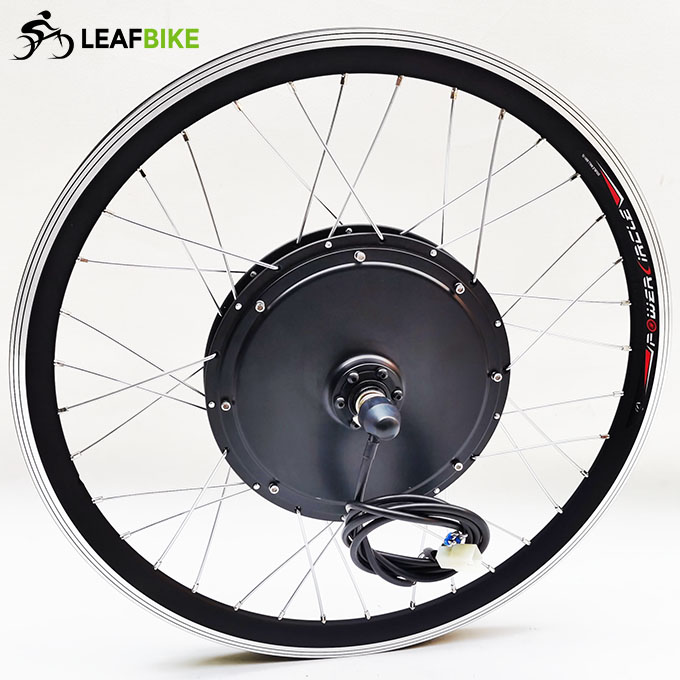

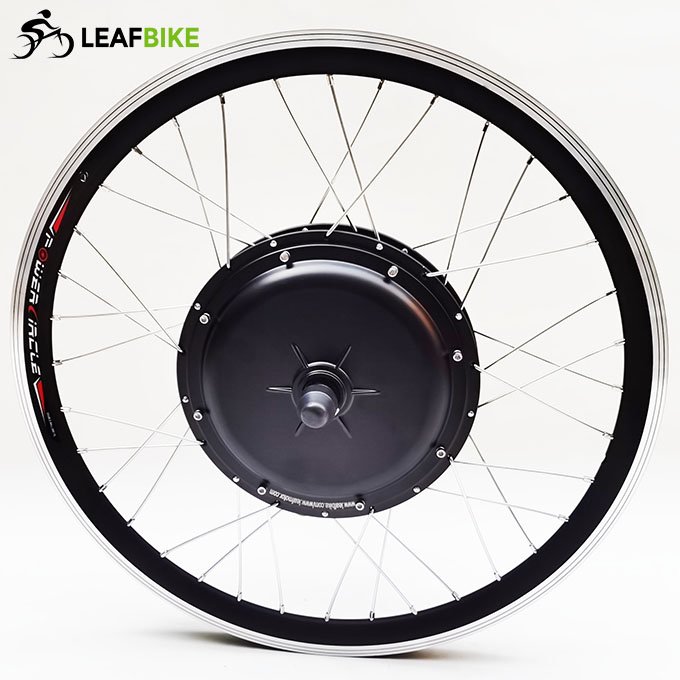

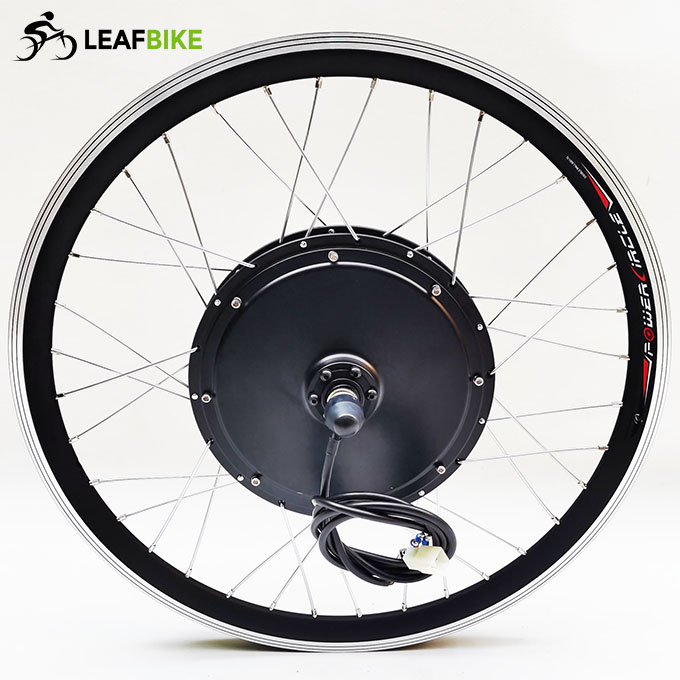

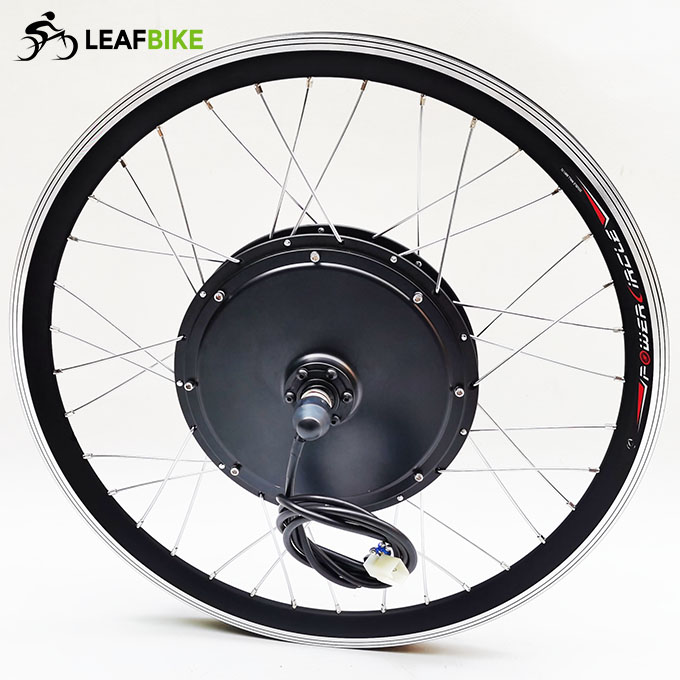

1 x 24 inch 48V 1000W front hub motor wheel
1 x 48V 1000W 12-MOSFET motor controller
1 x LCD
1 x Twist throttle
1 x Brake levers
1 x Three button switches ( control cruise...)
1 x Pedal assist

Net Weight: 10.8 kg
Package Size: 56cm L × 56cm W × 23cm H  /  22.0" L x 22.0" W x 9.0" H
 Package Type: Cardboard Box

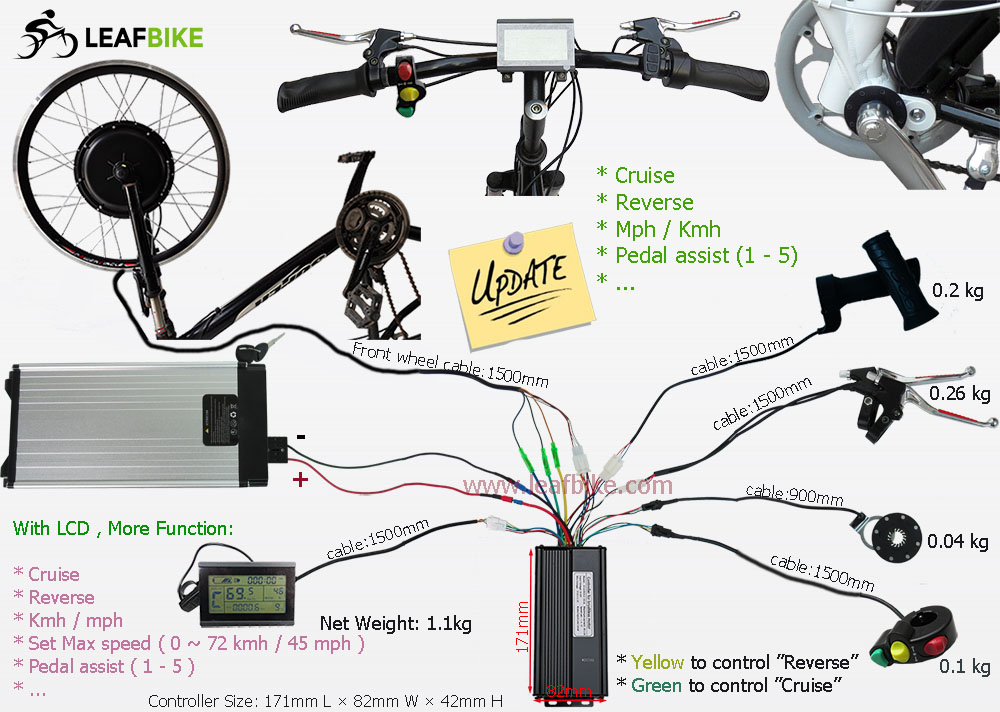

Wire Diagram:
24 inch 48V 1000W front hub motor kit wire diagram
1000w Bike Motor Drw.48v 1000w front hub motor drawing
Performance Data:
1000w-hub-motor-curve-data

Recommended Products: Torque Arm
Why do you need a torque arm? Because as hard as your tire is straining to go forwards,your axle is straining to go backwards. Torque arms provide increased strength at the axle and are used to help prevent the axle from spinning out inside the drop outs. If the axle spins, then the electric wires that come out of the axle also spin and break or get stretched and pulled out of the motor.
torque arm
