The conversion kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
Main Features:

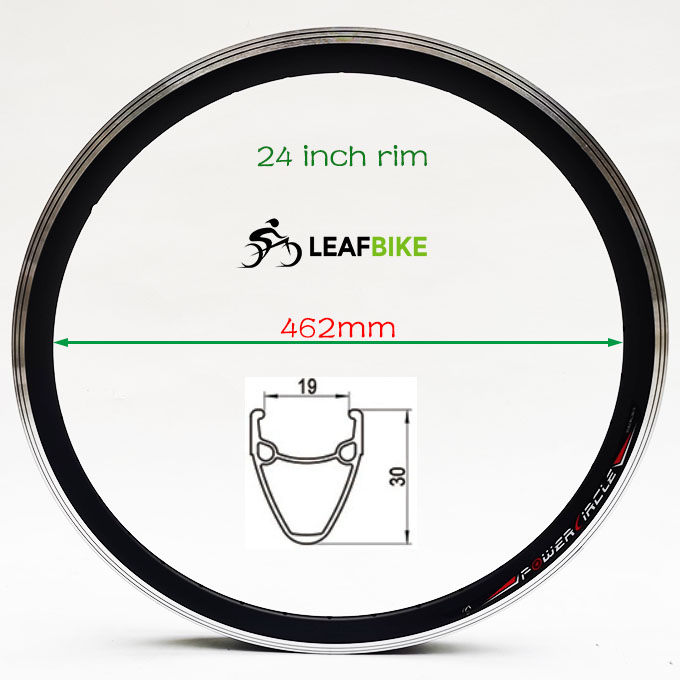

Rim: 24 inch Alloy (Rim Fit For: 24 x 1.75" / 1.95" tire)
Hub motor: brushless gearless dc motor
Controller: LCD display
Max speed: 25 kmh
Mechanical brake: Disc
Install: spacing of 100mm fork

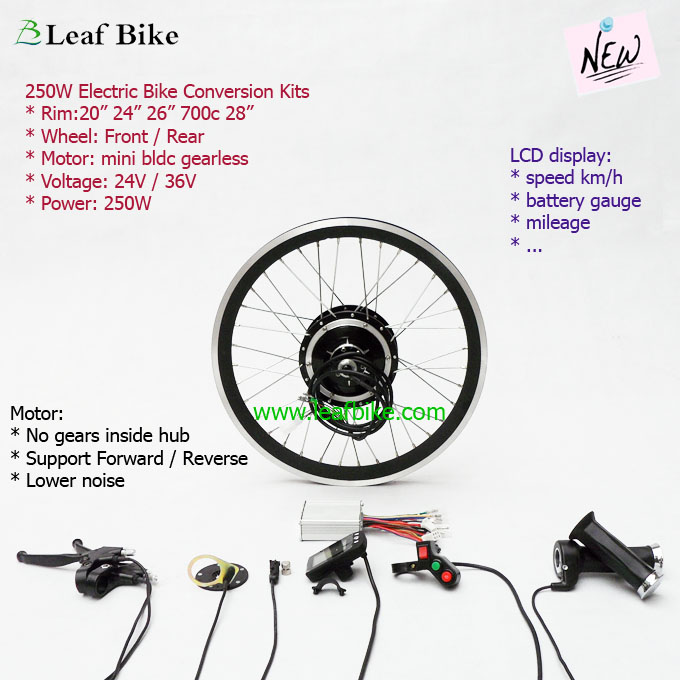

Package Content:
1 x 24 inch 24V 250W front bldc hub motor wheel
1 x 24V 250W 6-MOSFET motor controller
1 x LCD ( display speed, mileage, battery gauge.. )
1 x Twist throttle
1 x Brake lever
1 x Three button switches
Net Weight: 6.58 kg / 14.5 lbs
Package Size: 62cm L x 62cm W x 25cm H
Package Type: Cardboard Box
Wire Diagram:
Front Hub Motor Drw.
