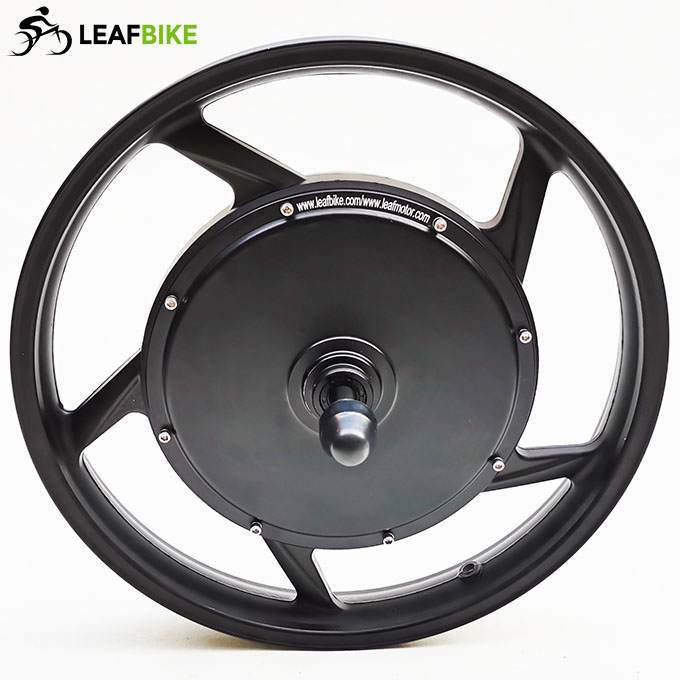

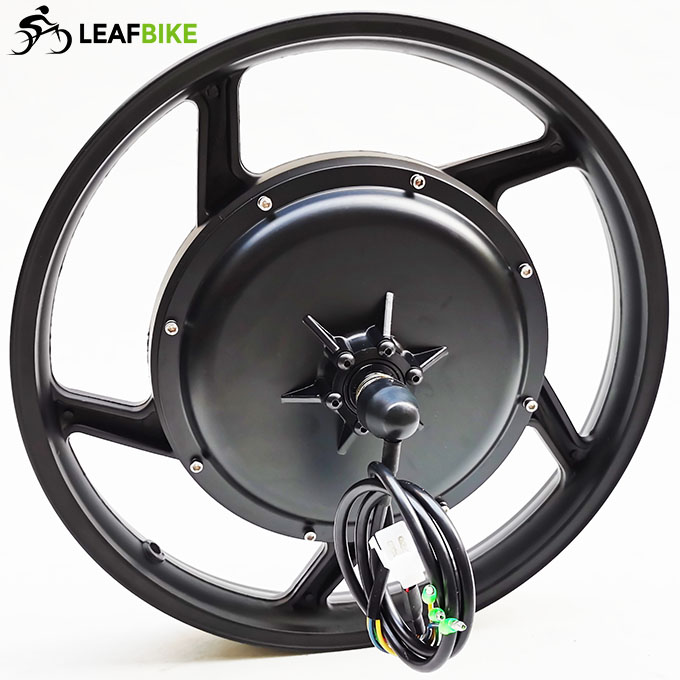

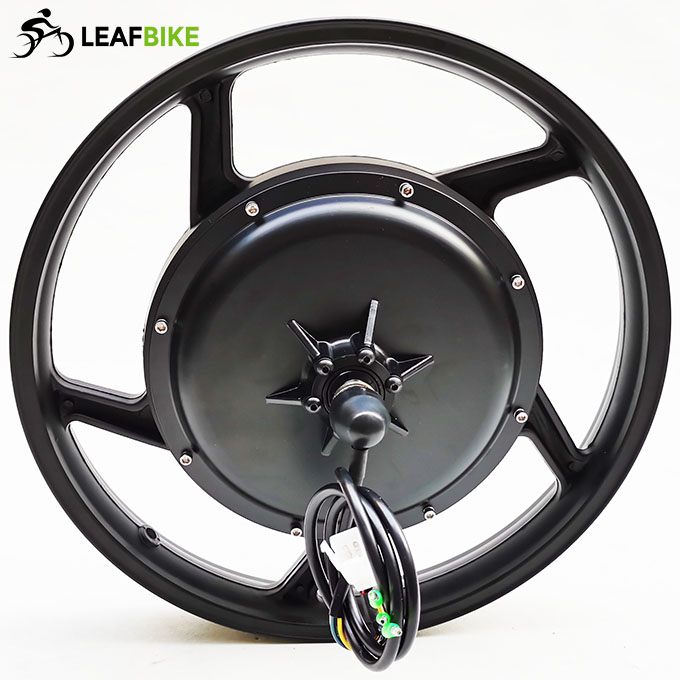

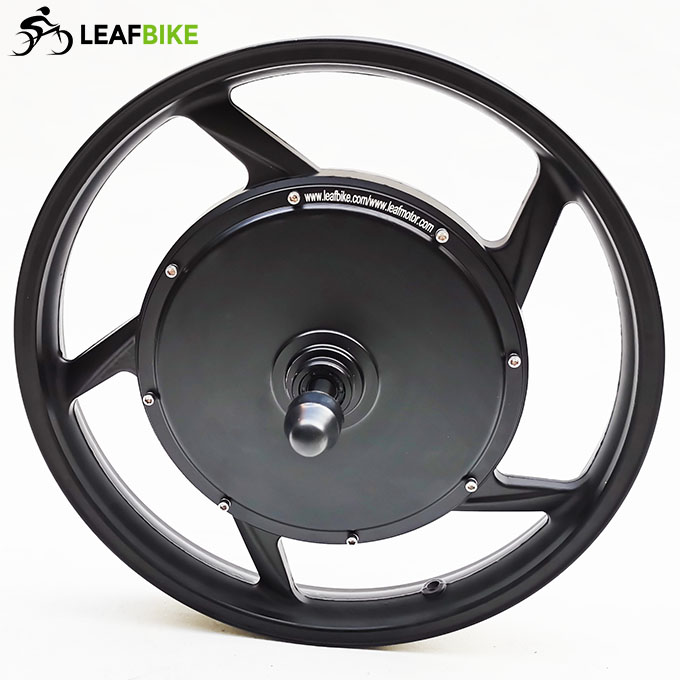

18 inch 48V / 52V 1000W rear scooter motor kit

* This 18 inch electric scooter motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:
Hub: Ø372mm Casted Alloy (Hub Fit For: 18 × 2.125"  ~ 2.5" scooter tire) - Not fit for 2.5 - 18 inch motorcycle tire
Motor Type: electric scooter motor
Controller: With LCD-008H Color screen
Max speed: 64.6 kmh -- 40.0 mph
Mechanical brake: V or Disk
Install: spacing of 135mm fork

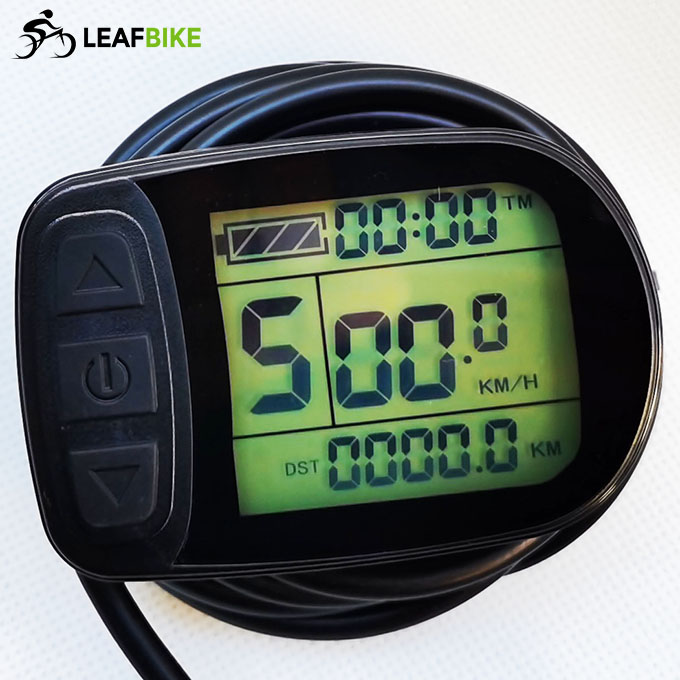

LCD-008HU With USB Port & Color screen, More Function:
* Cruise
* Forward & Backwards (Optional)
* Regen brake
* Kmh & mph (Optional)
* Set Max speed ( 0 ~ 72 kmh / 45 mph )
* Pedal assist ( 1 - 5 )
* Temperature
* Motor power
* Timer
* Battery gauge
* ...

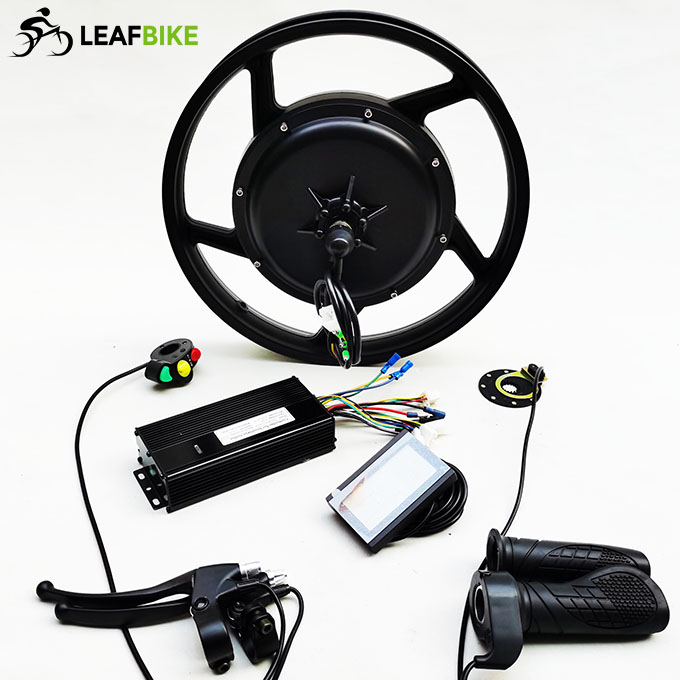

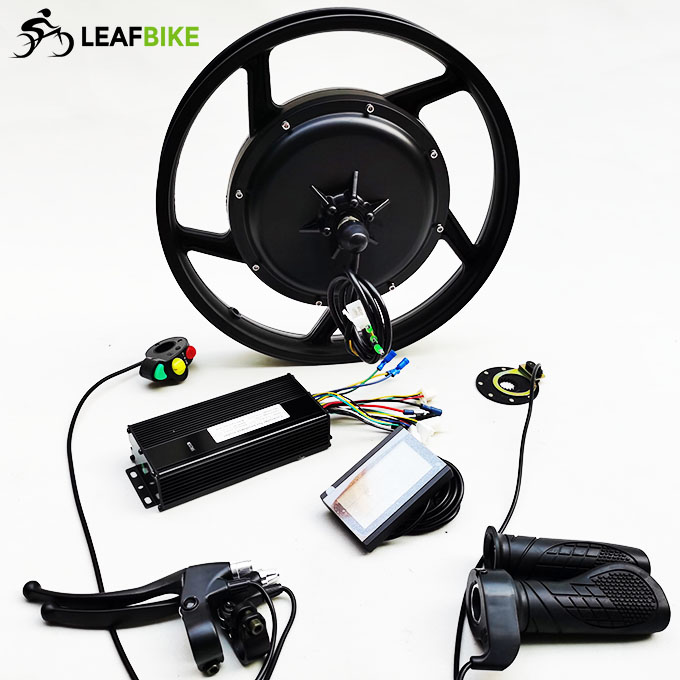

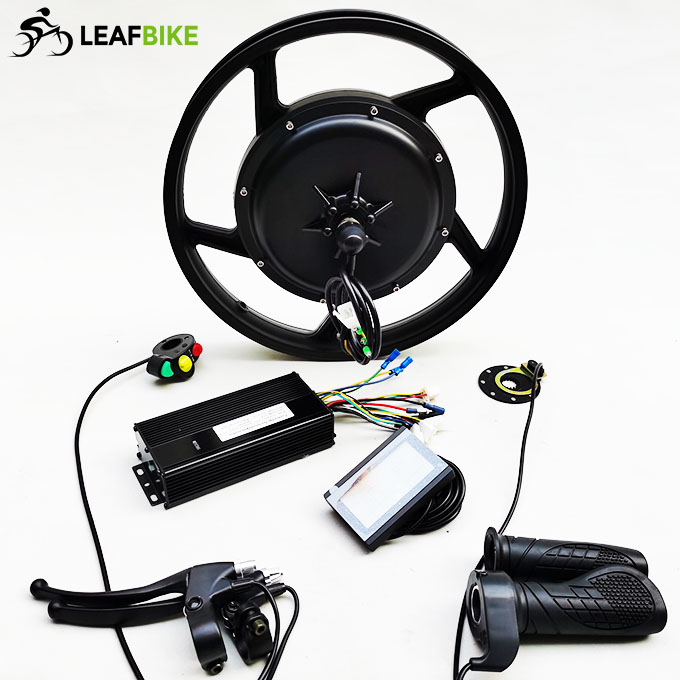

Package Content:

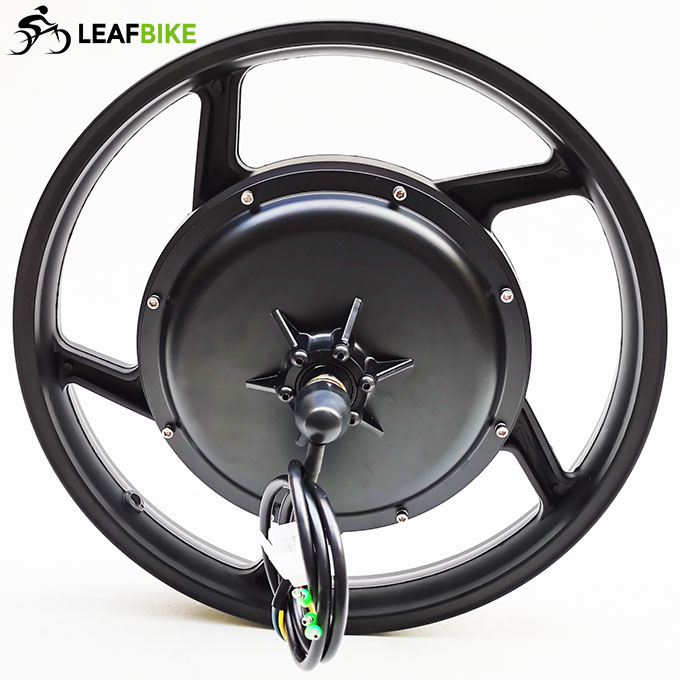

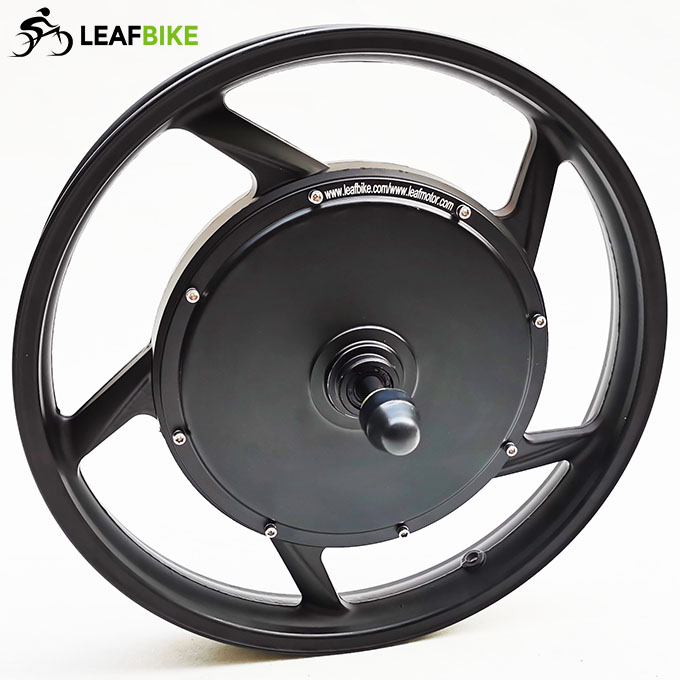

1 x 18 inch 48V / 52V 1000W rear hub motor wheel
1 x 48V / 52V 1000W 12-MOSFET motor controller
1 x LCD-008HU With USB Port & Color screen
1 x Twist throttle
1 x Brake lever
1 x Three button switches ( control cruise, regen brake, reverse .. )
1 x Pedal assist

Net Weight: 9.05 kg   /    Gross Weight: 10.25 kg
Package Size: 46cm L x 46cm W x 31cm H
 Package Type: Cardboard Box

Share Video:

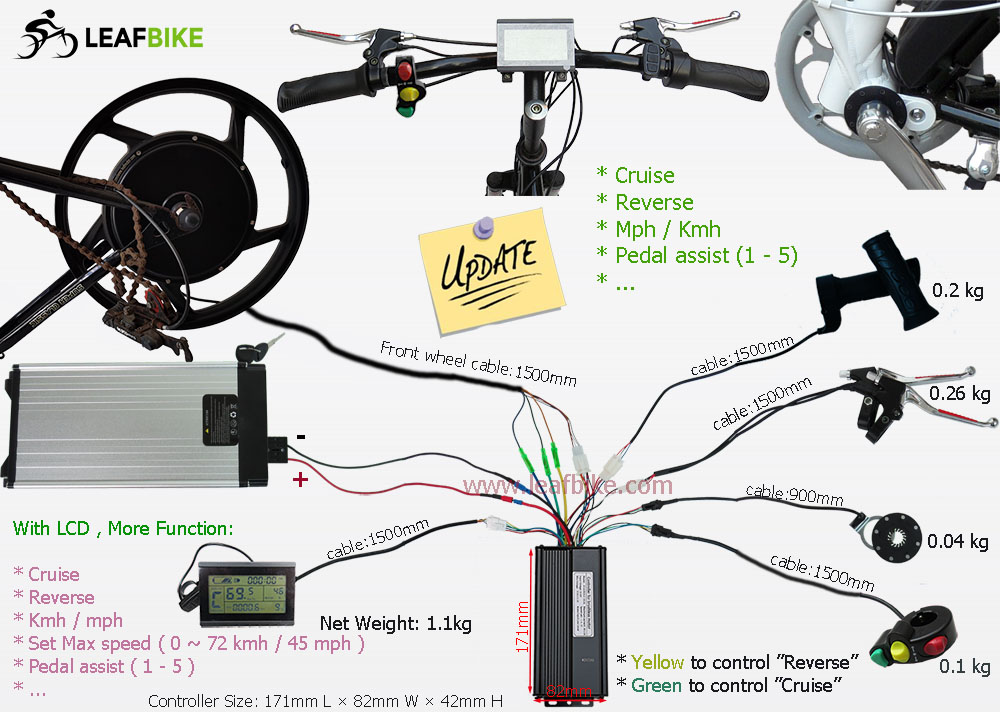

Wire Diagram:

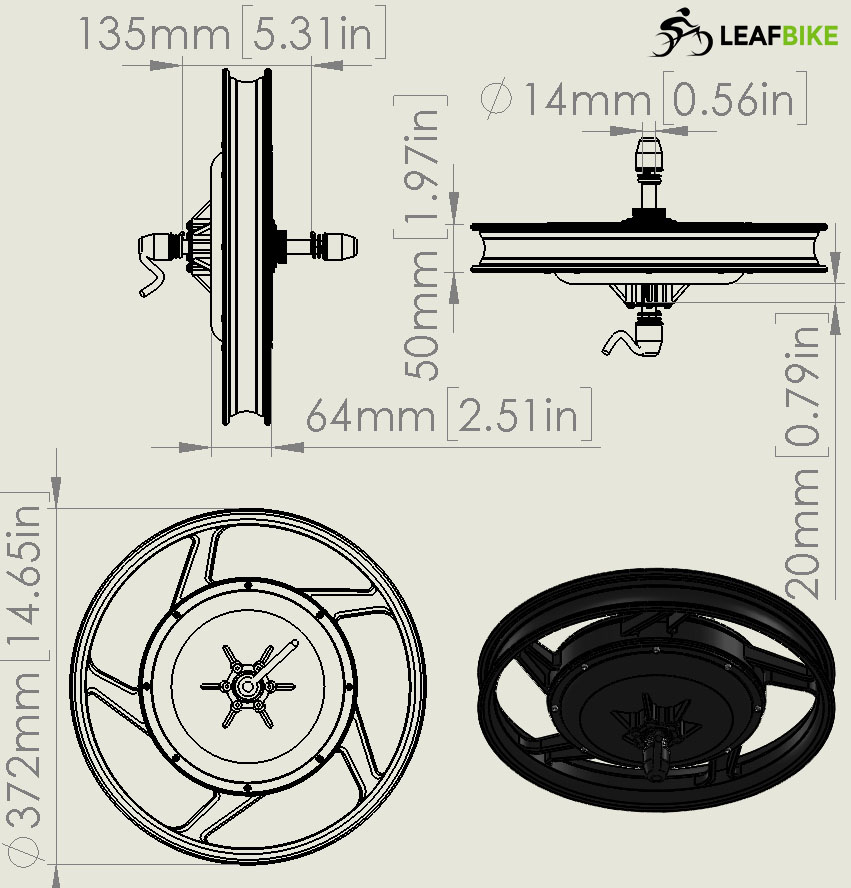

18 inch Rear Drw.

Performance Data:
