18 inch 48V 1000W electric scooter kit - front hub motor wheel

Item ID #LBCK18481000FNK
$316.00 $360.00
    Please select the information you wantX
  • LCD :
    LCD-003
    LCD-005
    LCD-07U
    LCD-08HUP
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description

 The 18 inch scooter motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Main Features:
Hub: Ø372mm Alloy casted (Hub Fit For: 18 × 2.125" ~ 2.5" scooter tire) - Not fit for 2.5 - 18 inch motorcycle tire
Motor Type: electric scooter motor
Controller: LCD display
Max speed: 35mph
Mechanical brake: V or U
Install: spacing of 100mm fork

With LCD, More Function:
* Cruise
* Forward & Backwards (Optional)
* Kmh & mph (Optional)
* Set Max speed ( 0 ~ 72 kmh )
* Pedal assist ( 0 - 5 ) - "0" is off throttle. "1" is the slowest. "5" is the fastest.
* Battery gauge
* ...

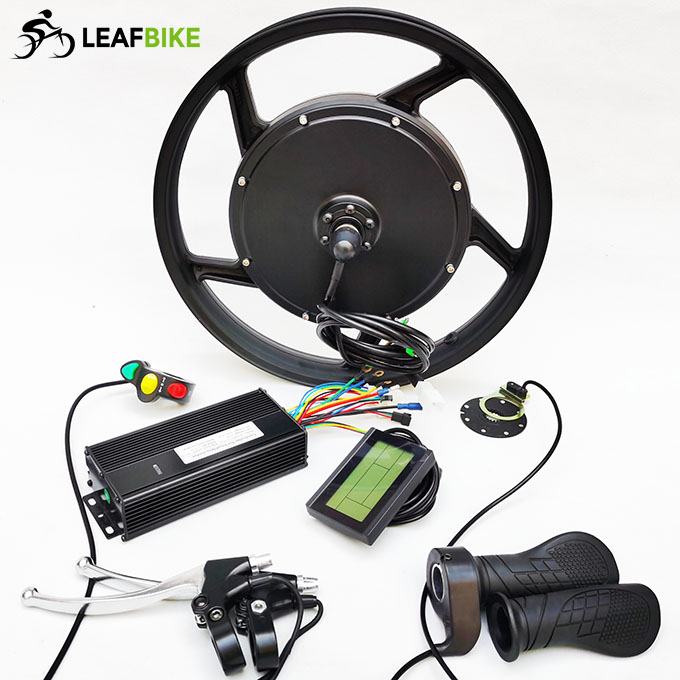

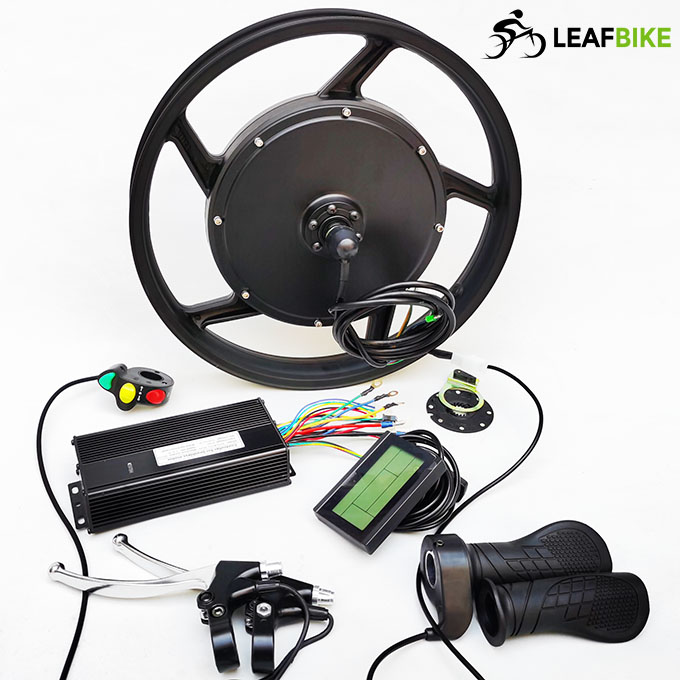

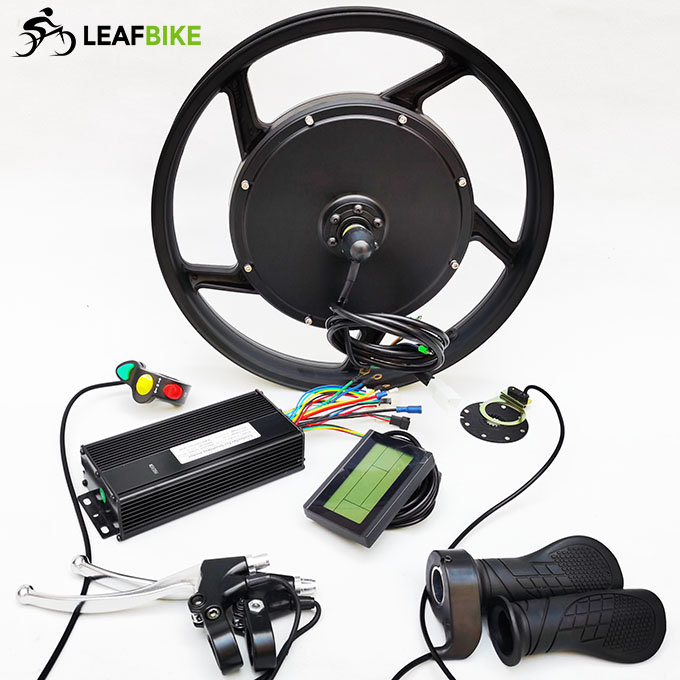

Package Content:

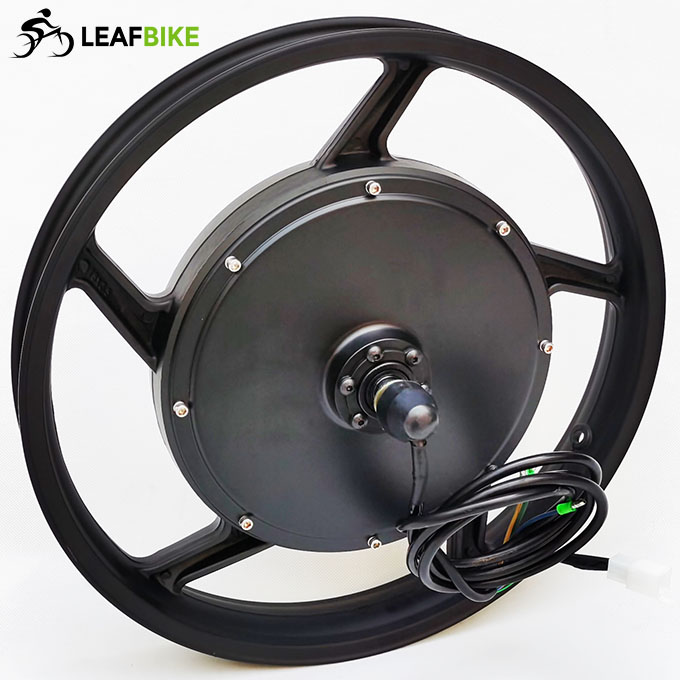

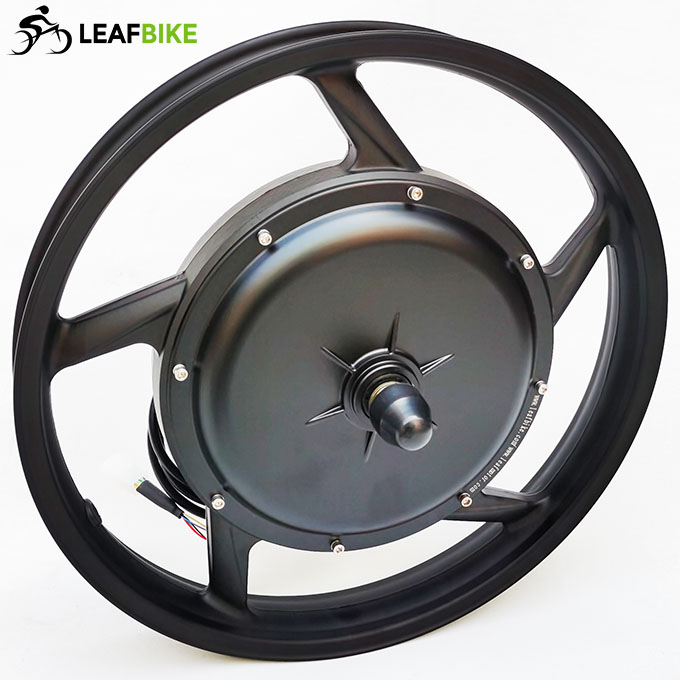

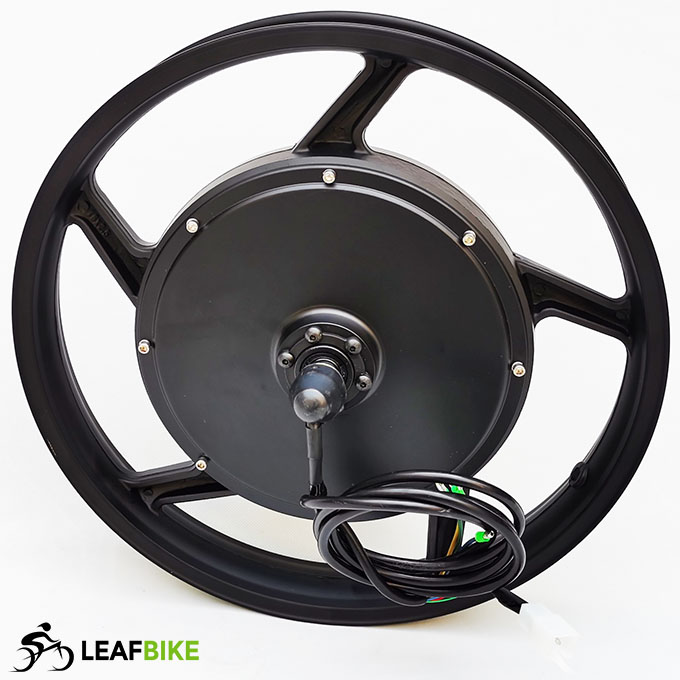

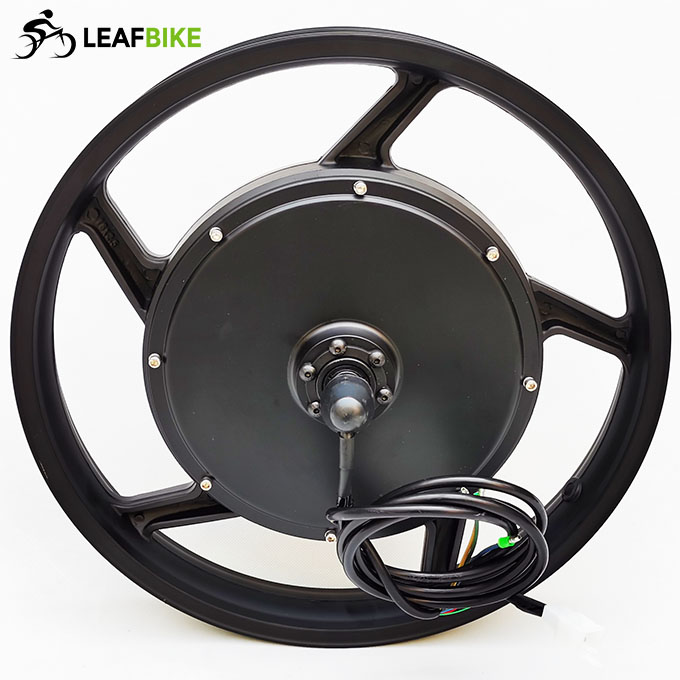

1 x 18 inch 48V 1000W front hub motor wheel
1 x 48V 1000W 12-MOSFET motor controller
1 x LCD
1 x Twist throttle
1 x Brake lever
1 x Three button switches ( control cruise, reverse .. )
1 x Pedal assist

Net Weight: 9.7 kg   /  21.3 lbs
Package Size: 46cm L x 46cm W x 25cm H

Package Type: Cardboard Box

Share Video:
18 inch 48v 1000w front hub motor bike conversion kit video
Wire Diagram:
18 inch 48v 1000w front hub motor bike conversion kit wire diagram
1000w Front Drw.
18 inch front hub motor drawing
Performance Data:
1000w hub motor curve
Recommended Products: Torque Arm
Why do you need a torque arm? Because as hard as your tire is straining to go forwards,  your axle is straining to go backwards. Torque arms provide increased strength at the axle and are used to help prevent the axle from spinning out inside the drop outs. If the axle spins, then the electric wires that come out of the axle also spin and break or get stretched and pulled out of the motor.

torque arm
