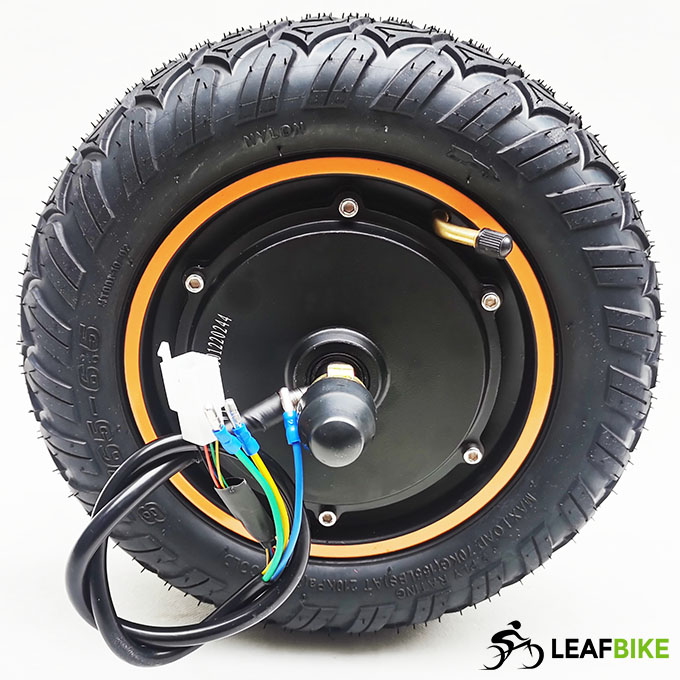

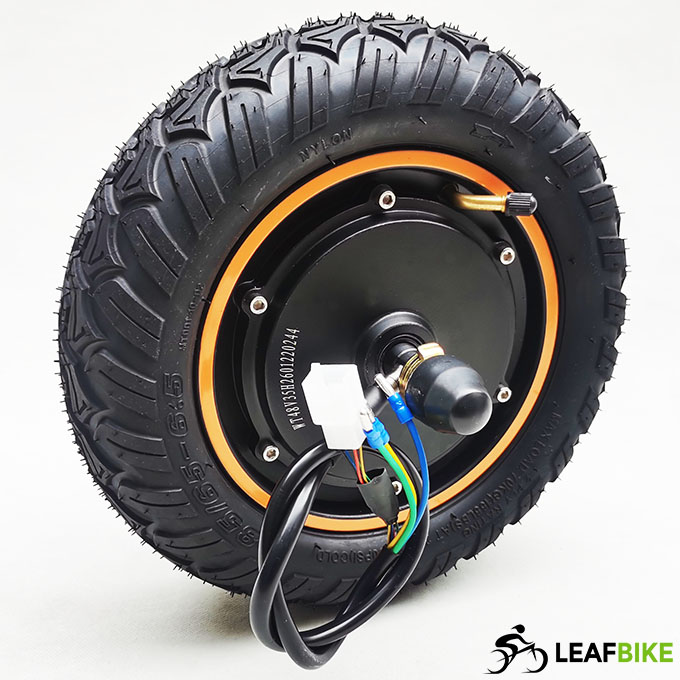

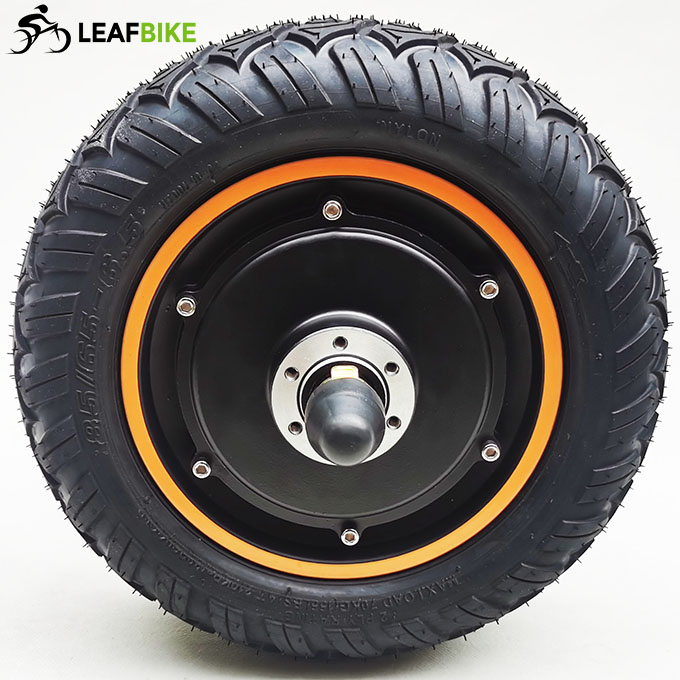

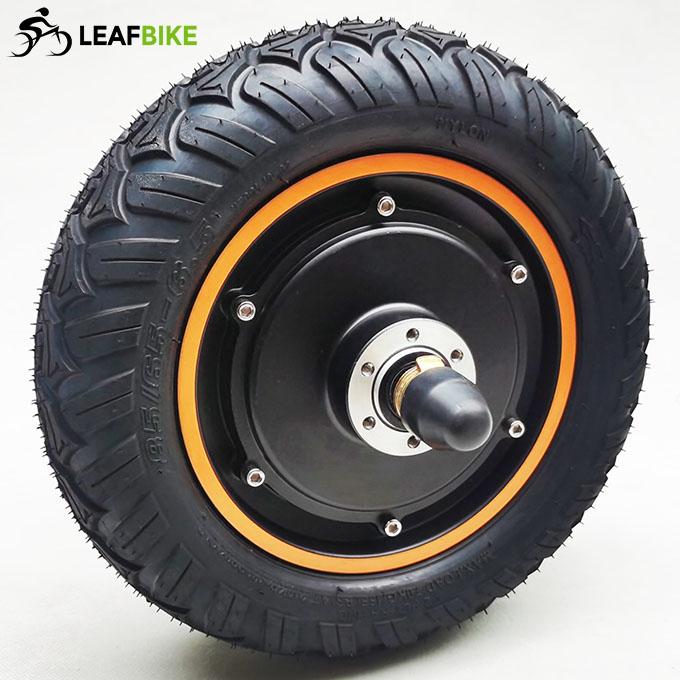

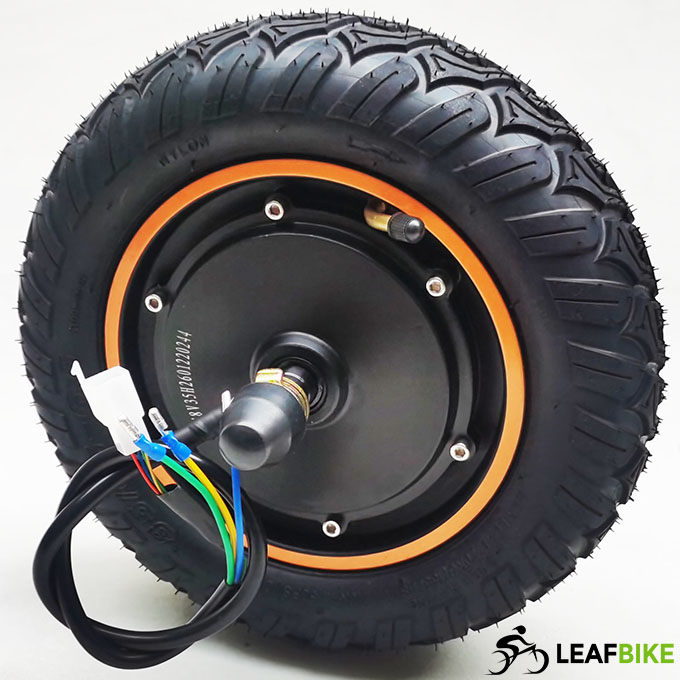

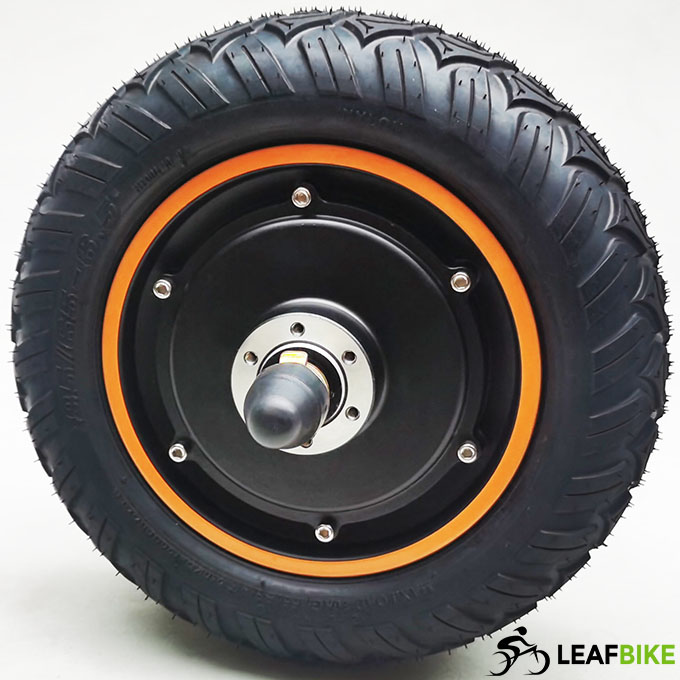

>. Engine: Bldc hub motor
>>. Voltage: 48V / 52V
>>. Power: 800W
>>. Efficiency: 86%
>>. Max speed: 62.3 kmh -- 38.6 mph
>>. Mechanical brake: Disc
>>. Cable location: shaft end, Right
>>. Cable length: 60cm / 23"
>>. Install: spacing of 135mm fork (Min. 125mm ~ Max. 145mm)
>>. Noise: < 60 db
>>. Surface: Black
>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 1000 Watts
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 171 mm L x 82 mm W x 42 mm H
With LCD, More Function:
* Cruise -- Green switch control it
* Forward & Backwards (Optional) -- Yellow switch control it
* Kmh & mph (Optional)
* Max speed ( 0 ~ 62 kmh )
* Pedal assist ( 0 - 5 )
* Battery gauge
* ..

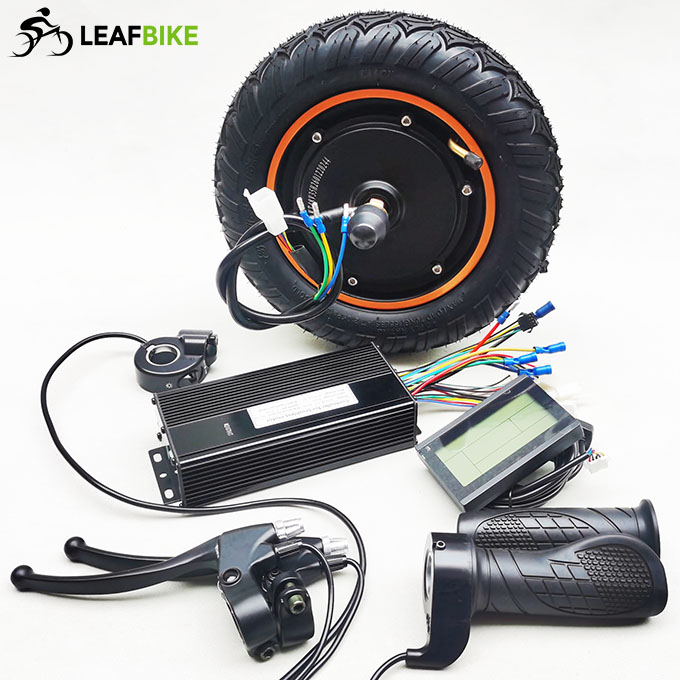

Package Content:
1 x 48V 800W scooter motor wheel with 85 / 65 - 6.5 tire
1 x 48V 1000W 12-MOSFET motor controller

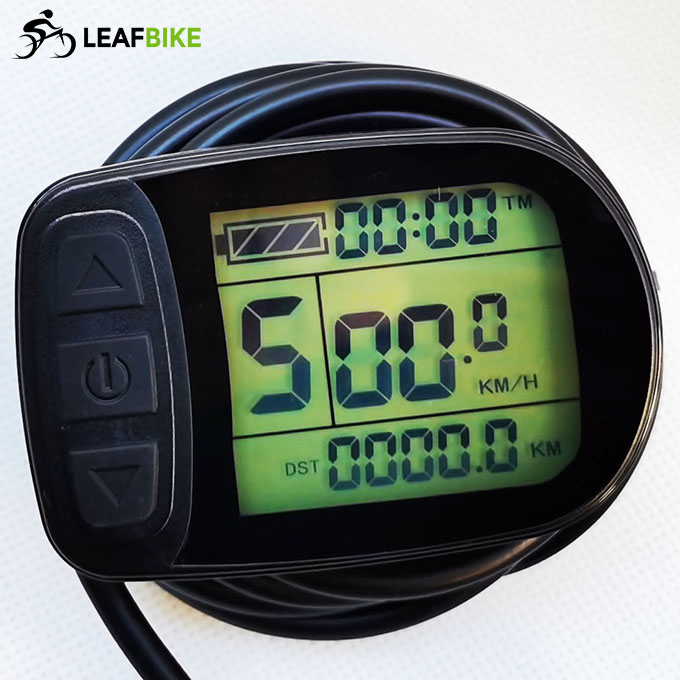

1 x LCD
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, reverse.. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm
Net Weight: 8.2 kg
Package Size: 37cm L x 37cm W x 25cm H
Package Type: Cardboard Box
Share Video:
Wire Diagram:
