10 inch 36V 500W rear electric scooter motor conversion kit

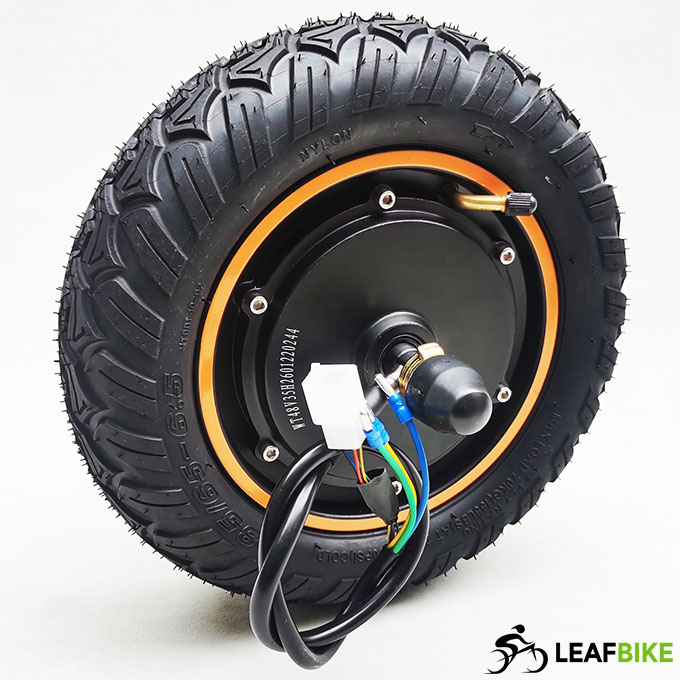

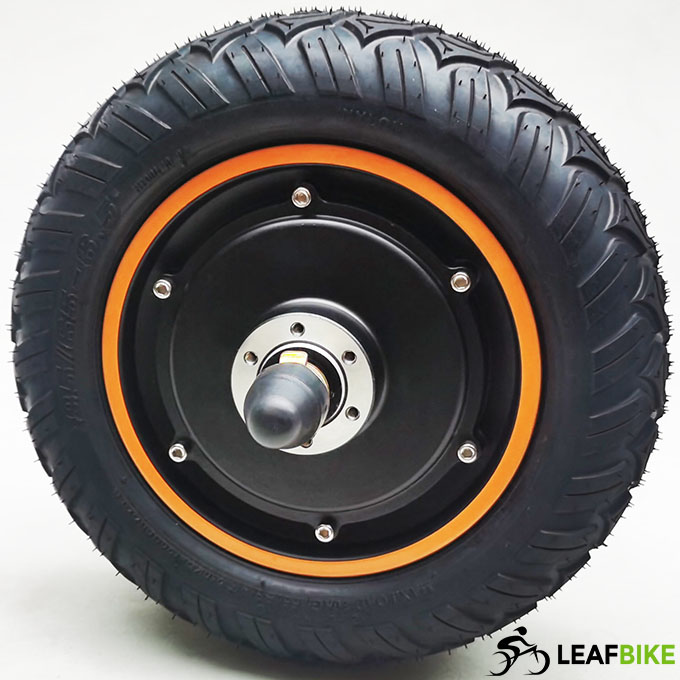

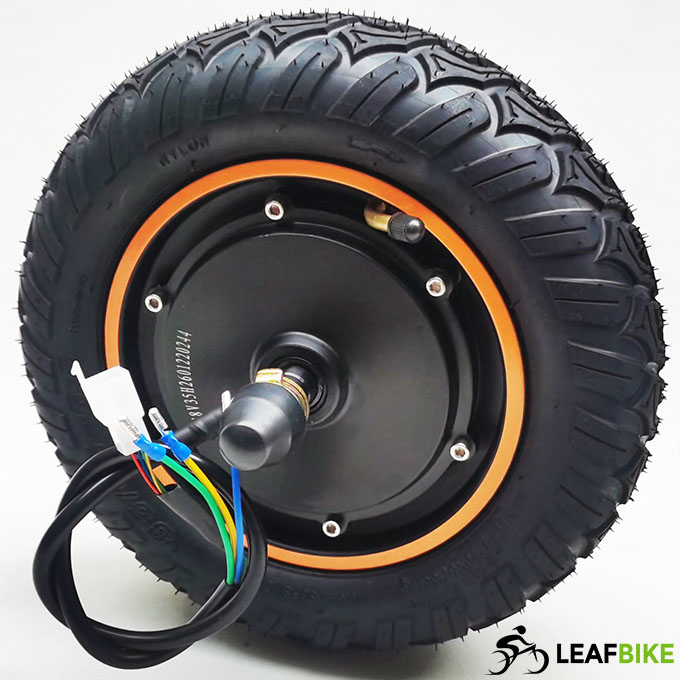

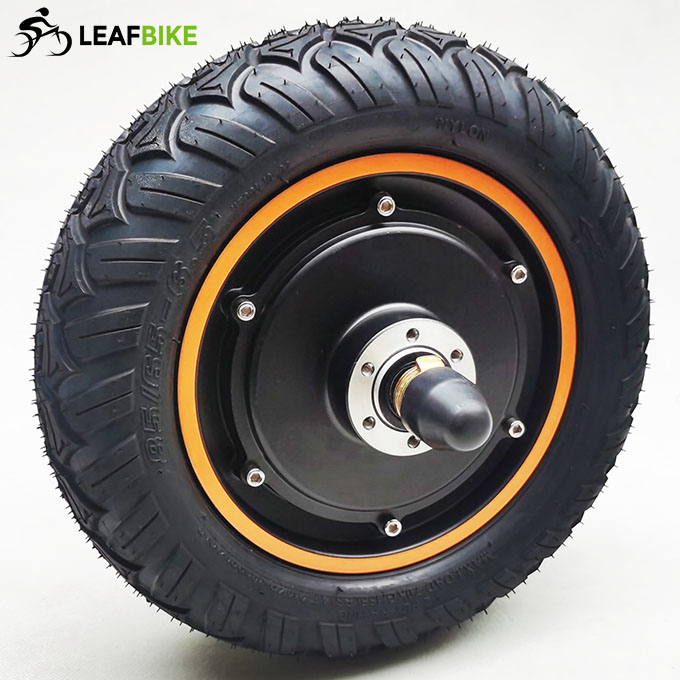

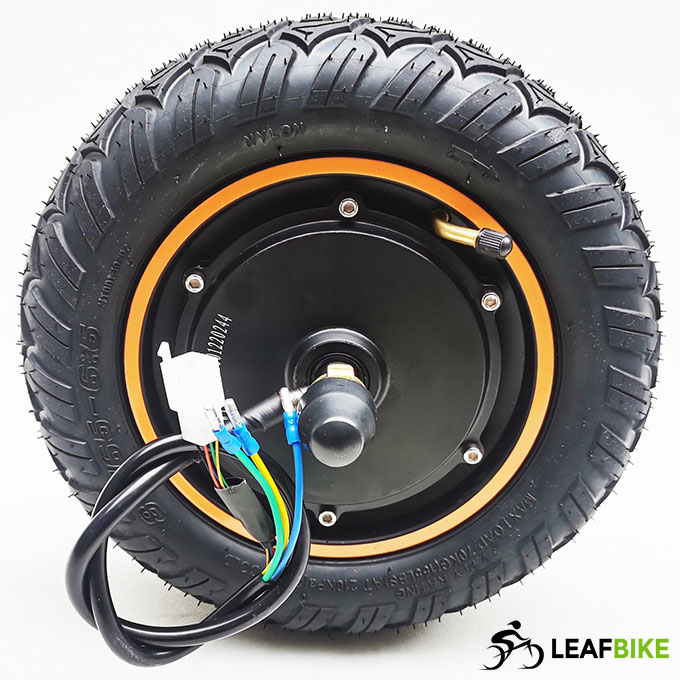

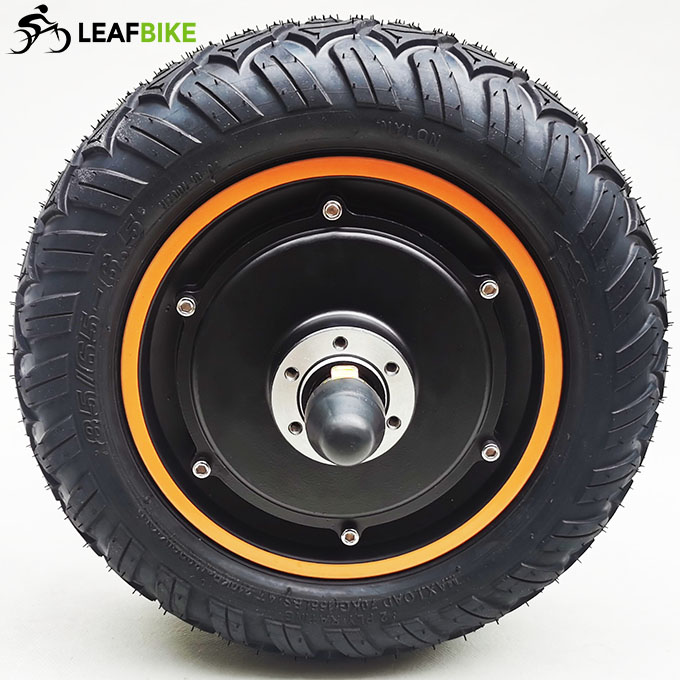

Name: 10 inch 36V 500W rear electric scooter motor conversion kit
Brand: Leaf Bike
SKU: LBCK1036500SK
Price: 307 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK1036500SK

$307.00 ~~$351.00~~

Maybe You Need These

Description

This 10 inch scooter motor kit works with a 36V battery.

Main Features:
>. Tire: 85 / 65 - 6.5

>. Engine: Bldc hub motor
>>. Voltage: 36V
>>. Power: 500W
>>. Efficiency: 86%
>>. Max speed: 47.7 kmh -- 29.6 mph
>>. Mechanical brake: Disc
>>. Cable location: shaft end, Right
>>. Cable length: 60cm / 23"
>>. Install: spacing of 130mm fork (Min. 125mm ~ Max. 140mm)
>>. Noise: < 60 db
>>. Surface: Black

>. Driver: brushless controller
>>. MOSFET: 6 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 36 Volts
>>. Min. Voltage: DC 30 ± 0.5 V
>>. Rated power: 500 Watts
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 95 mm L x 61 mm W x 35 mm H

With LCD, More Function:
* Cruise -- Green switch control it
* Forward & Backwards (Optional) -- Yellow switch control it
* Kmh & mph (Optional)
* Max speed ( 0 ~ 47 kmh )
* Pedal assist ( 0 - 5 )
* Battery gauge
* ..

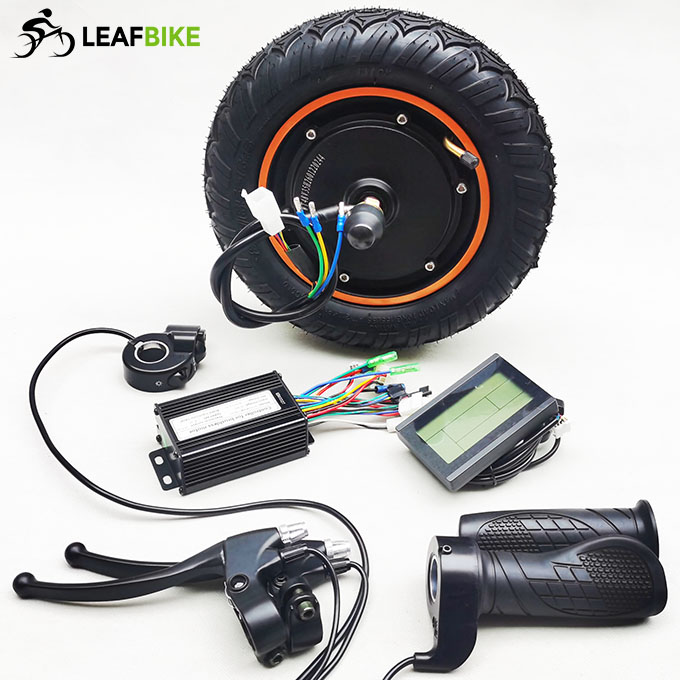

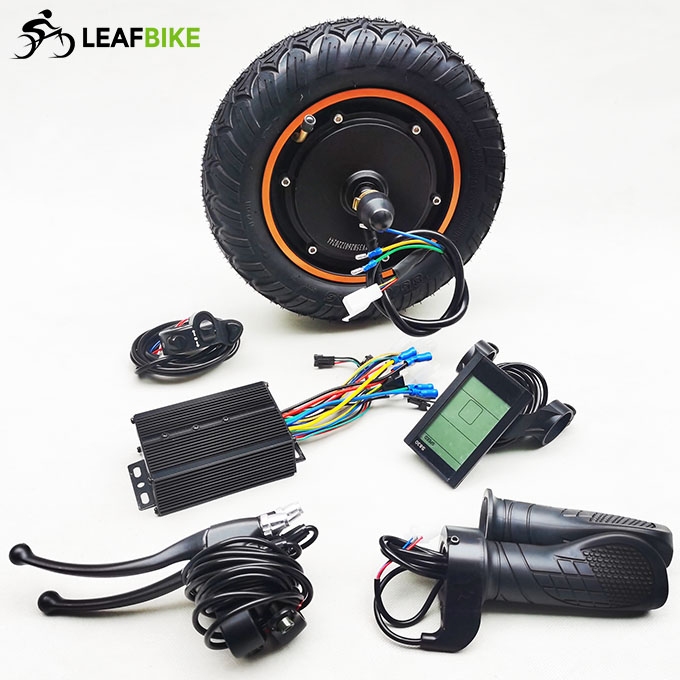

Package Content:
1 x 36V 500W scooter motor wheel with 85 / 65 - 6.5 tire
1 x 36V motor controller
1 x LCD
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, reverse.. ) -- Cable length: 1500mm

Net Weight: 7.9 kg
Package Size: 37cm L x 37cm W x 25cm H
Package Type: Cardboard Box

Share Video:

10 inch 48V 800W electric scooter motor kit video

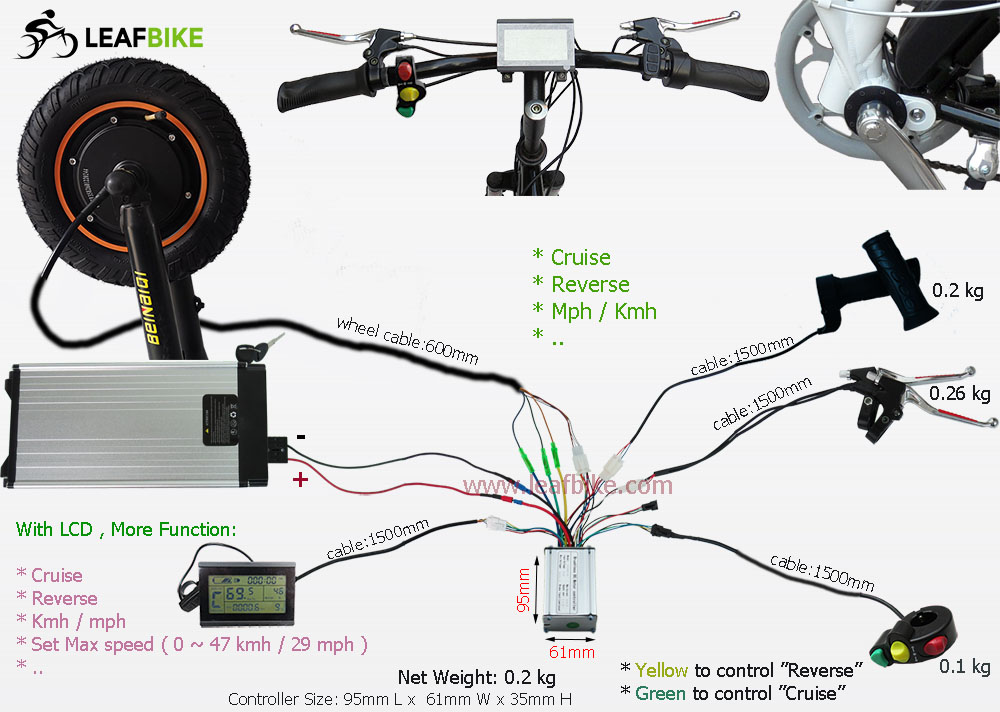

Wire Diagram:
