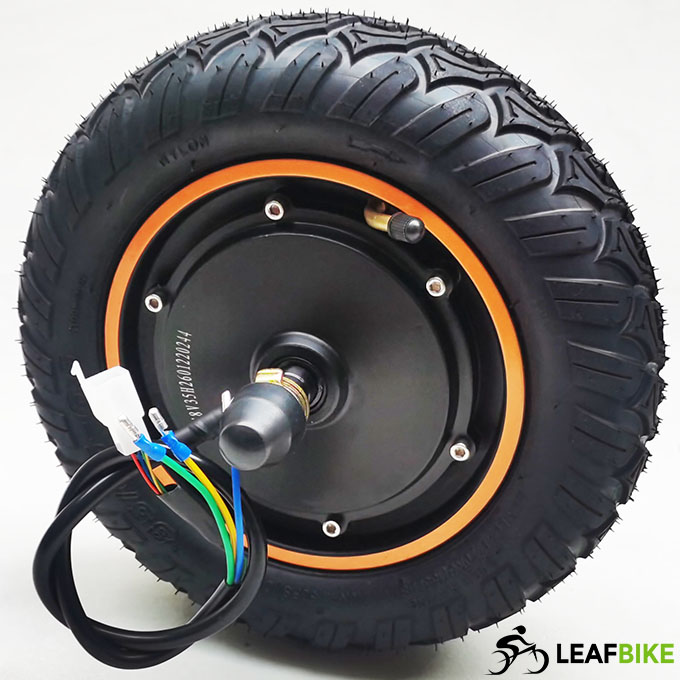

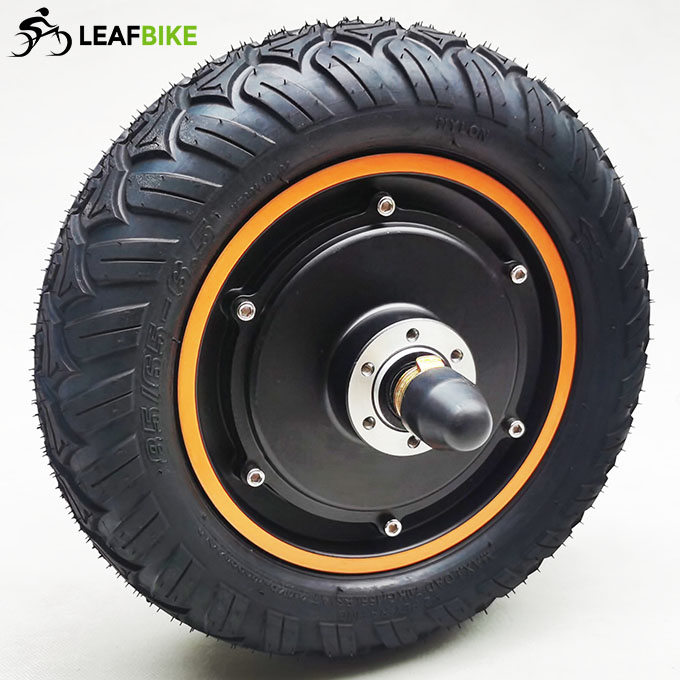

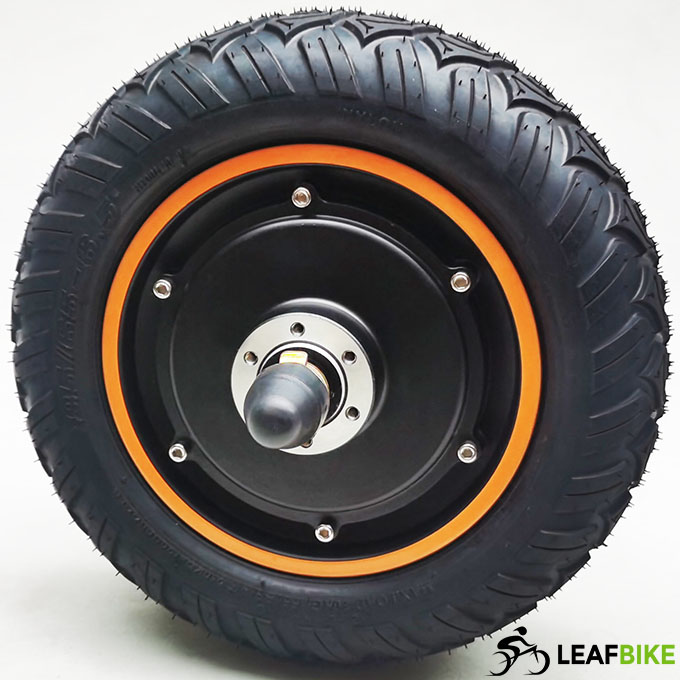

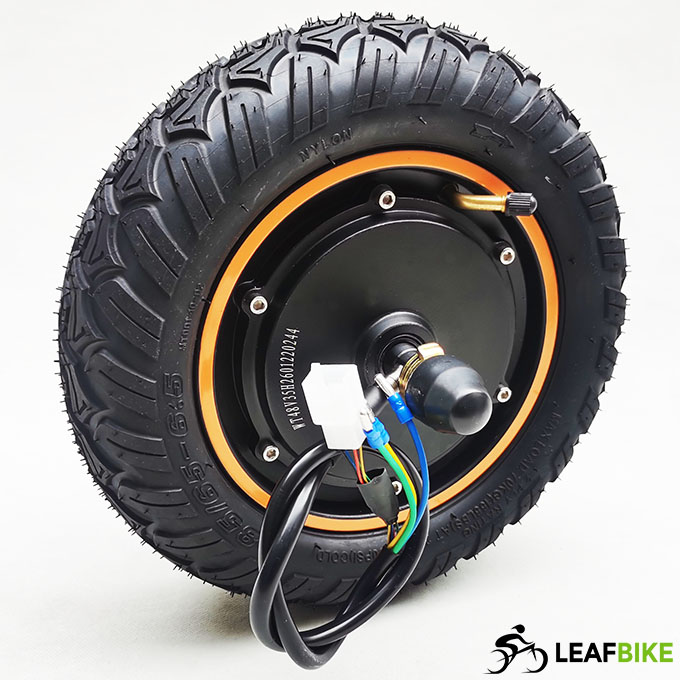

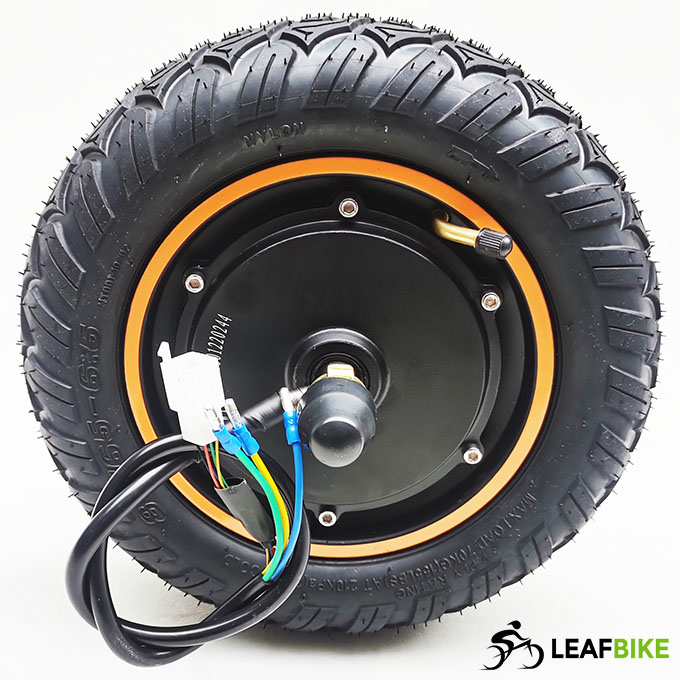

10 inch 48V 52V 800W electric scooter kit - rear wheel

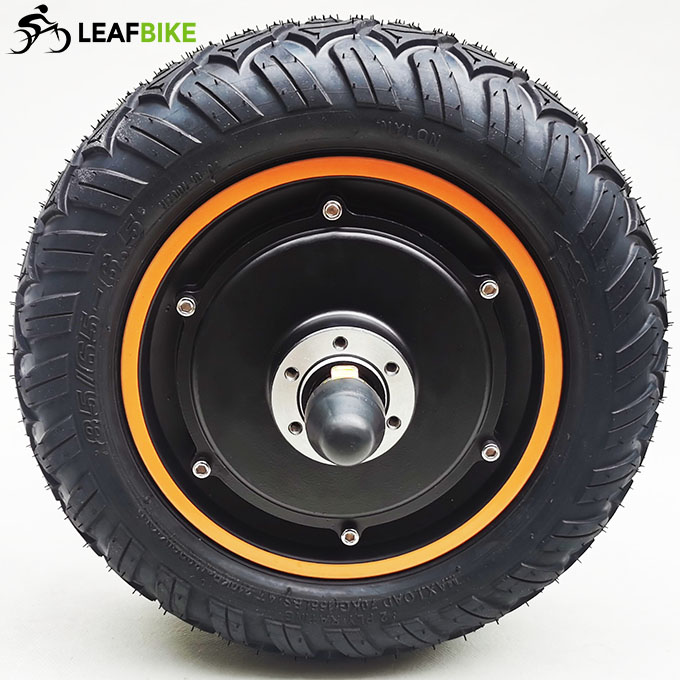

Name: 10 inch 48V 52V 800W electric scooter kit - rear wheel
Brand: Leaf Bike
SKU: LBCK1048800S
Price: 297 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK1048800S

$297.00 ~~$346.00~~

Maybe You Need These

Description

This 10 inch scooter motor kit works with a 48V or 52V battery.

Main Features:
>. Tire: 85 / 65 - 6.5

>. Engine: Bldc hub motor
>>. Voltage: 48V / 52V
>>. Power: 800W
>>. Efficiency: 86%
>>. Max speed: 61.8 kmh -- 38.2 mph (No load)
>>. Mechanical brake: Disc
>>. Cable location: shaft end, Right
>>. Cable length: 60cm / 23"
>>. Install: spacing of 130mm fork ( Min. 125mm ~ Max. 140mm)
>>. Noise: < 60 db
>>. Surface: Black

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 1000 Watts
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 105 mm L x 72 mm W x 38 mm H

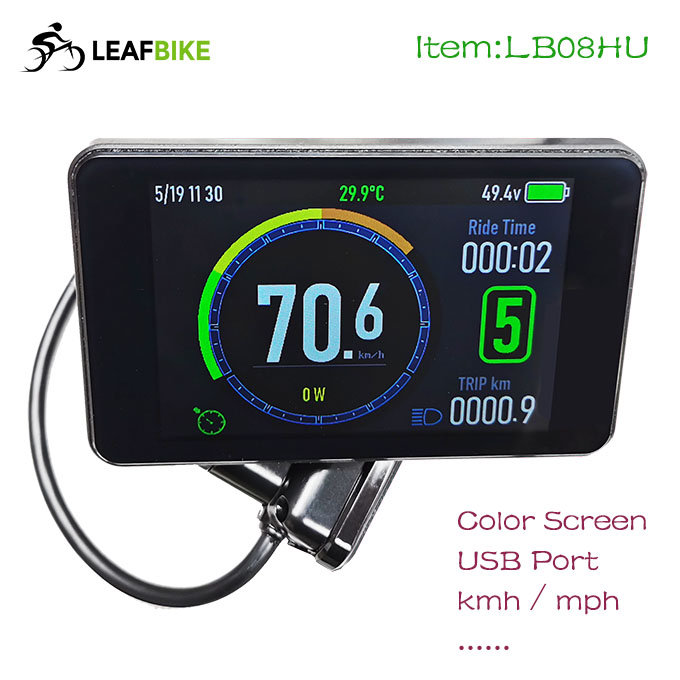

With LCD, More Function:
* Cruise -- Green switch control it
* Forward & Backwards (Optional) -- Yellow switch control it
* Kmh & mph (Optional)
* Speeds ( 0 - 5 ) - "0" is off throttle. "1" is the slowest speed. "5" is the fastest speed.
* Battery gauge
* ..

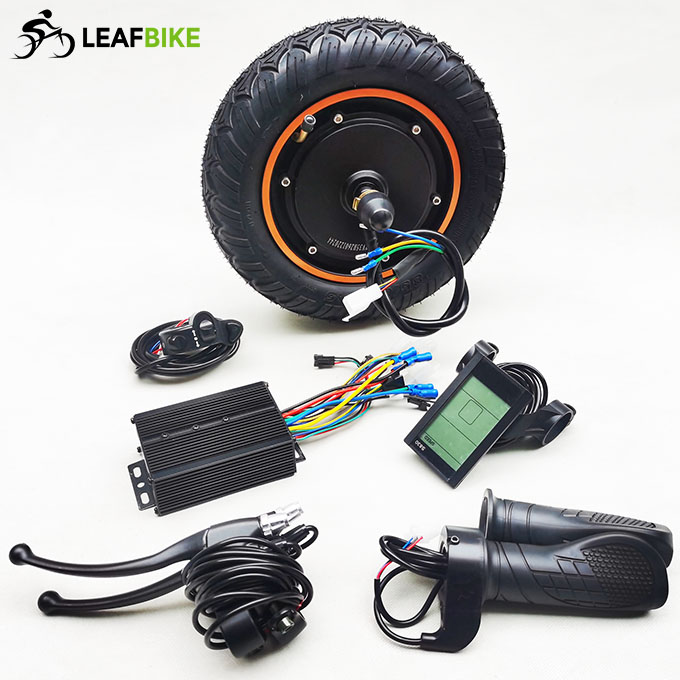

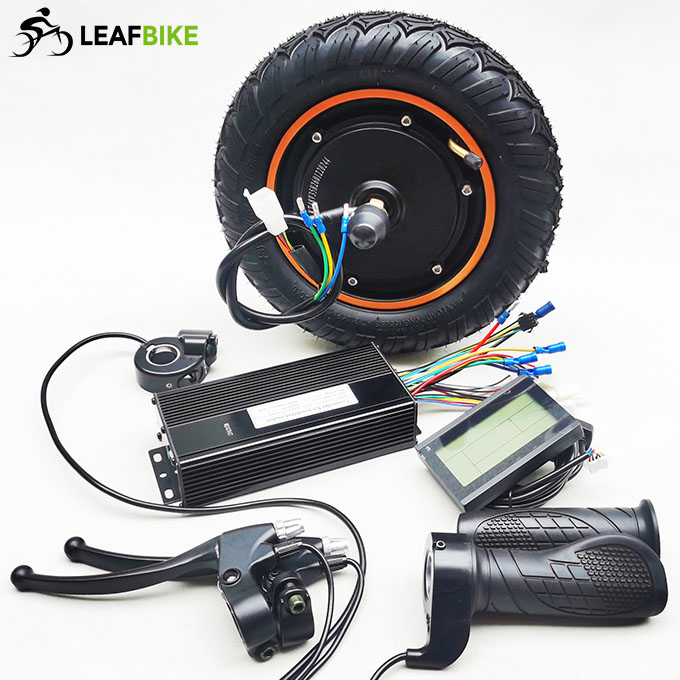

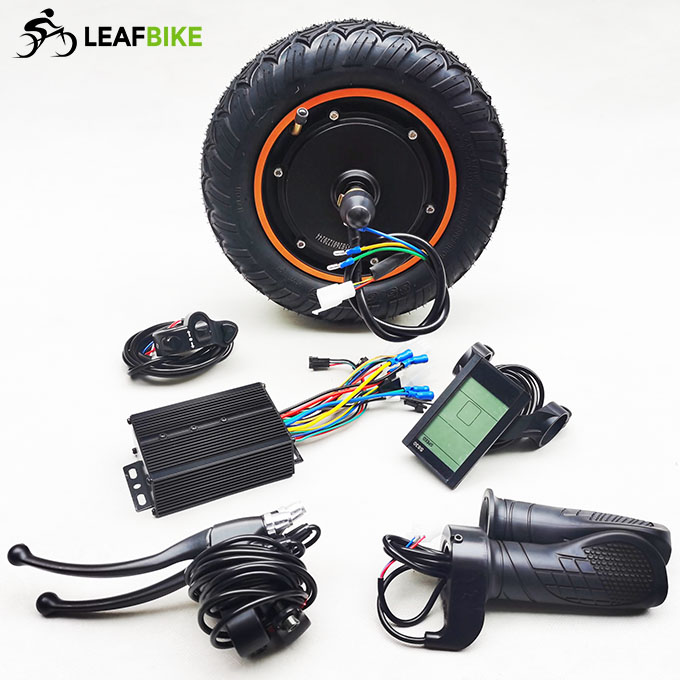

Package Content:
1 x 48V 52V 800W scooter motor wheel with 85 / 65 - 6.5 tire
1 x 48V 52V motor controller
1 x LCD
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, reverse.. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 8.0 kg
Package Size: 37cm L x 37cm W x 25cm H
Package Type: Cardboard Box

Share Video:

10 inch 48V 52V 800W rear bldc hub motor electric scooter conversion kit video

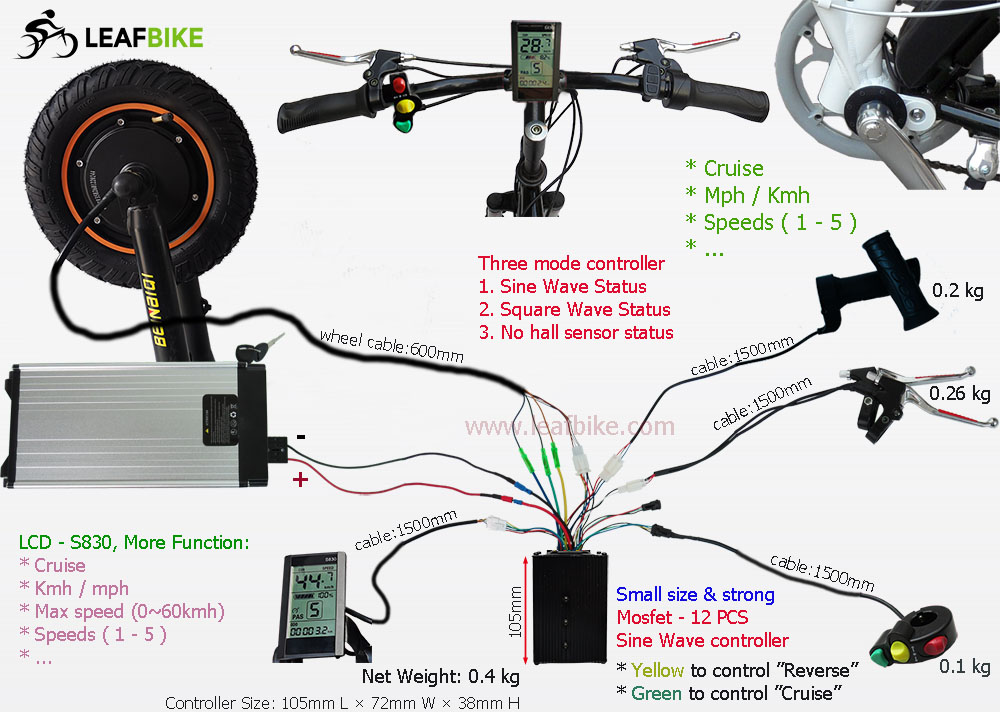

Wire Diagram:
