48V 52V 500W electric bike motor controller - Black color

Item ID #LBC48500MB
$105.00 $105.00
    Please select the information you wantX
Quantity :
Maybe You Need These
Maybe You Need These
Please watch video for 48V 52V 500W electric bike motor controller.
Share Video:
26 inch 1000w rear electric bike conversion kit

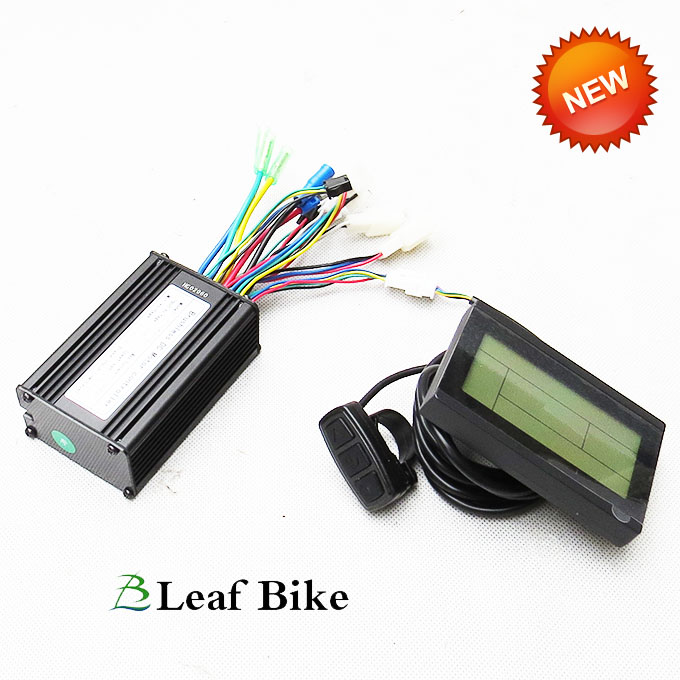

48V / 52V 500W Electric Bicycle Brushless Motor Controller For E-bike & Scooter -- 6-MOSFET
It's fit to drive 48V 250 ~ 500W brushless with hall sensor hub motor.
Suitable for Electric for electric bike & scooter
>>. With LCD: YES
>>. Rated Voltage: DC48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Power: 500 Watts
>>.  Casing material: aluminium
>>.  Maximum Current: 20 A ± 1 Amps
>>.  Thermal: aluminum shell and the substrate - Black color
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 95 mm L × 61 mm W × 35 mm H
>>. Weight: 0.45 kg

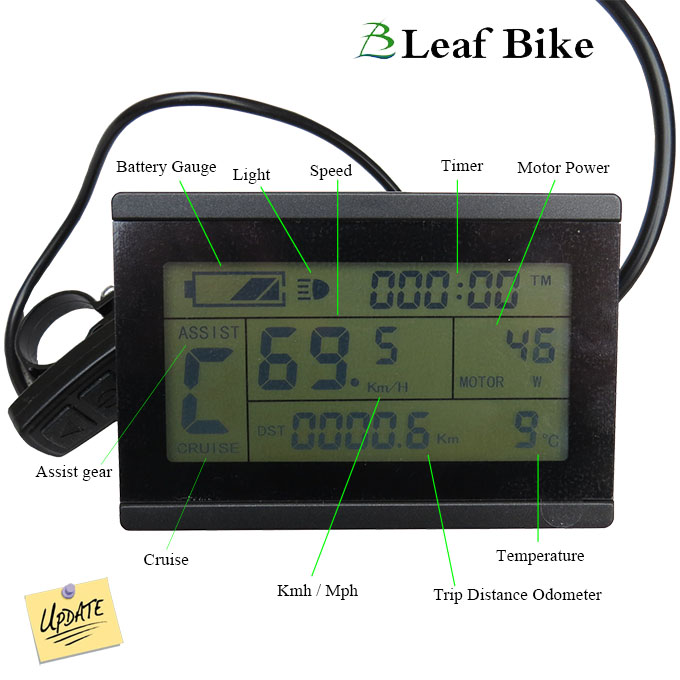

Working with LCD-003
Display: speed, mileage, battery gauge...
. Mute when start
. Speed limit
. Power cut brake
. Blockage protection
. Current limit protection
. E-ABS brake
. Short circuit protection
. Avoid out of control
. 1:1 pedal assist function
. Undervoltage protection

Additional features:
* Cruise
* Reverse
* Pedal assist ( 1 - 5 )
* Mph / kmh
* ....
