48V 52V 500W bike motor controller

Item ID #LBC48500L
$95.00 $99.00
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description

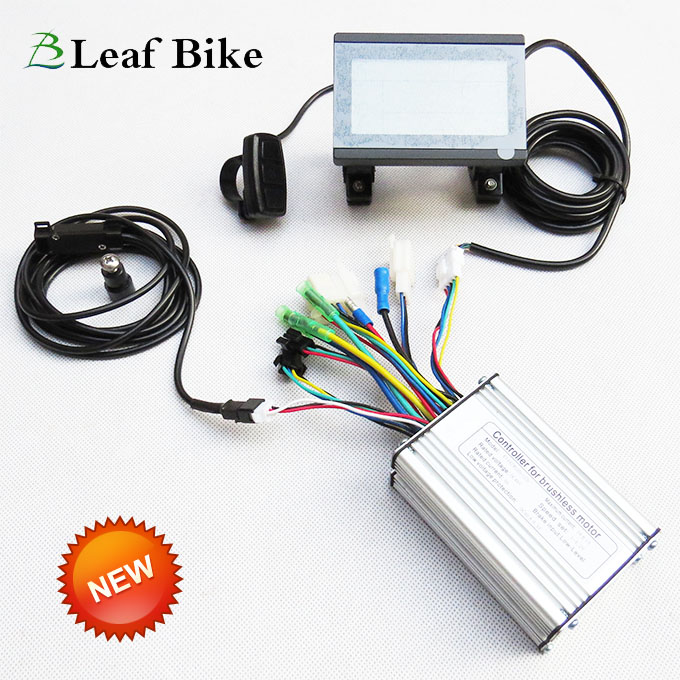

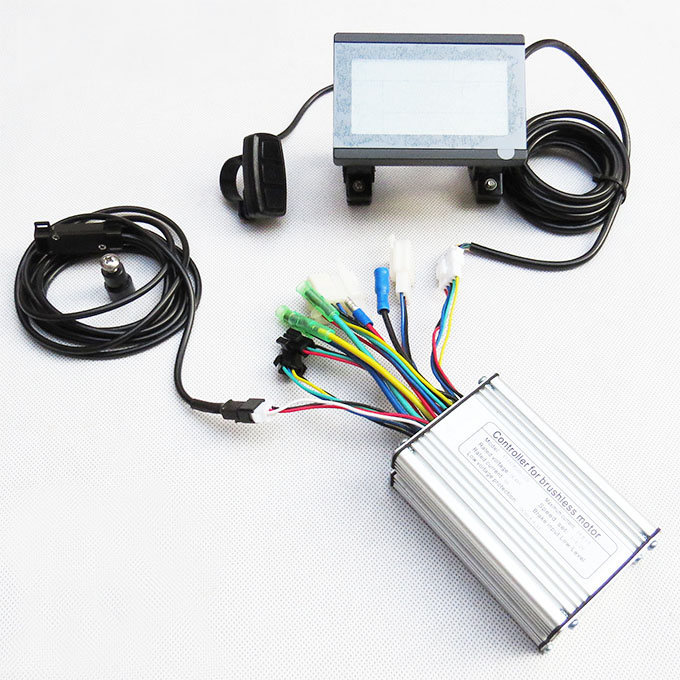

48V / 52V Electric Bicycle Brushless Motor Controller For E-bike & Scooter -- Stronger & Better 6-MOSFET
It's fit to drive 48V 300 ~ 500W brushless with hall sensor hub motor.


Features:
Suitable for Electric for electric bike & scooter
Rated Voltage: DC 48 / 52 Volts
Min. Voltage: DC 40 ± 0.5 V
Rated power: 500 Watts
Casing material: aluminium
Maximum Current: 18 A ± 1 Amps
Thermal: aluminum shell and the substrate

3 phase 120° brushless motor
Operating Conditions: -20~45 °C
Waterproof design
Size: 95 mm L × 61 mm W × 35 mm H
Weight: 0.4 kg

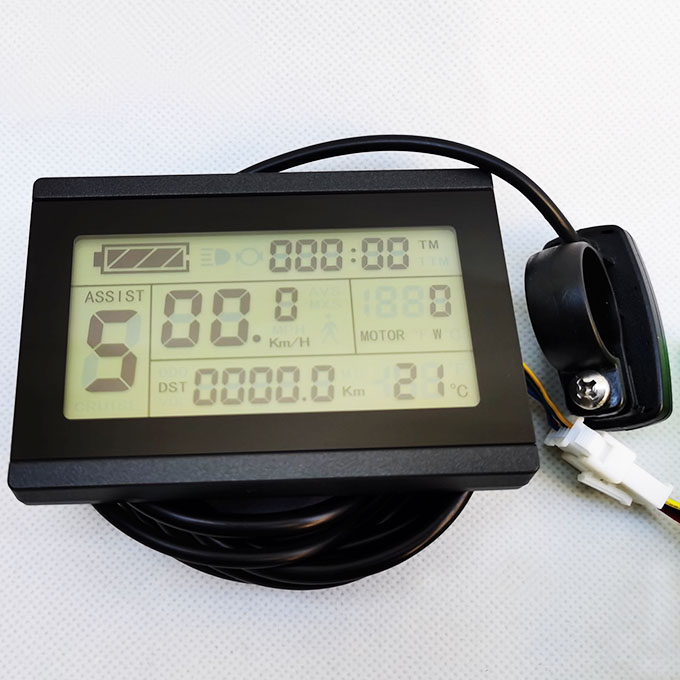

Working with LCD
Display: speed, mileage, battery gauge...

Functions:
Mute when start
Speed limit
Power cut brake
Blockage protection
Current limit protection
E-ABS brake
Short circuit protection
Avoid out of control
1:1 pedal assist function
Undervoltage protection

Additional features:
* Cruise
* Reverse
* Regen brake
* Pedal assit ( 1 - 5 )
* Mph / kmh
* ....

Share Video:

26 inch 1000w rear electric bike conversion kit

Wire Diagram:

1000w hub motor electric bike conversion kit wire diagram
