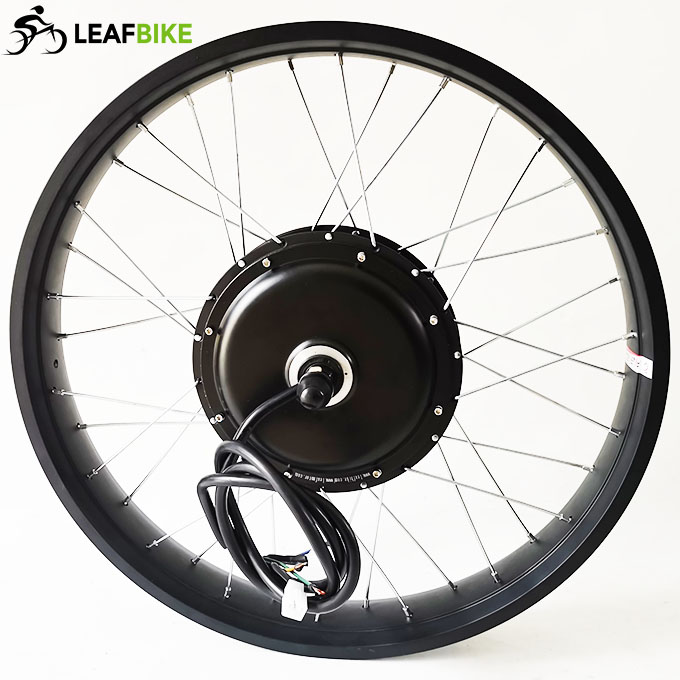

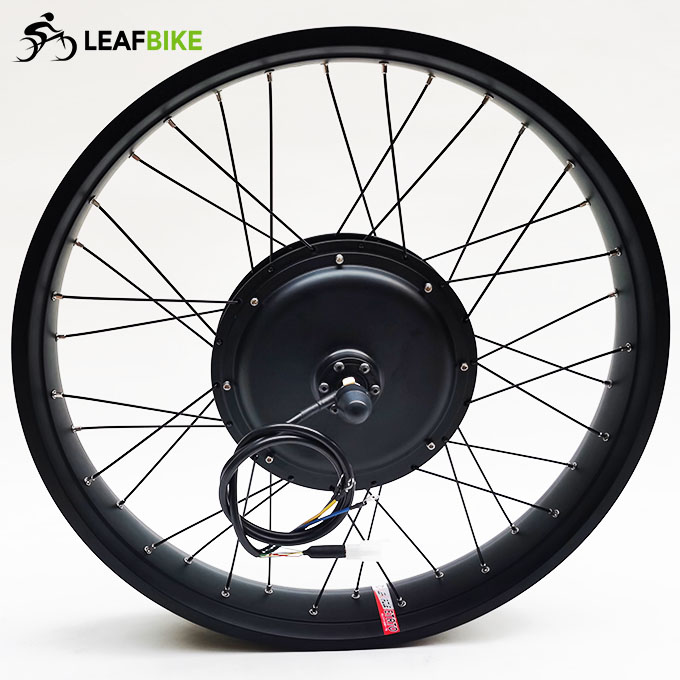

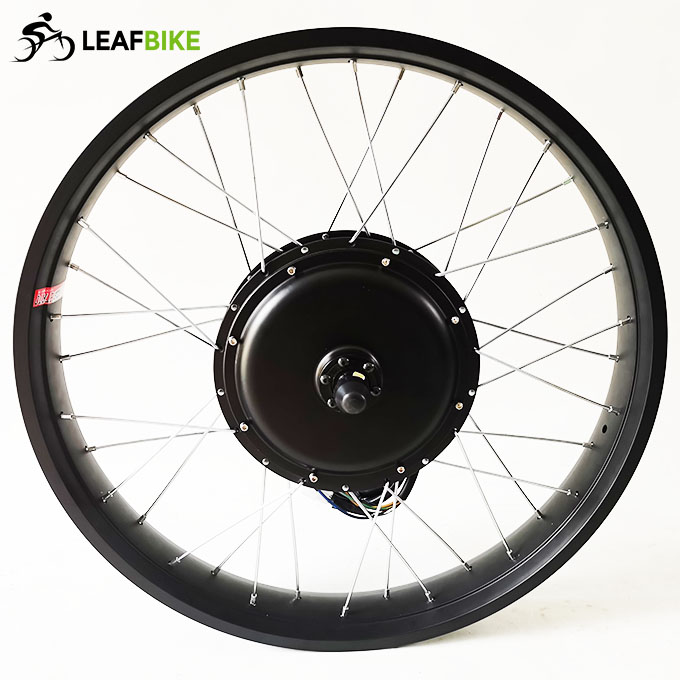

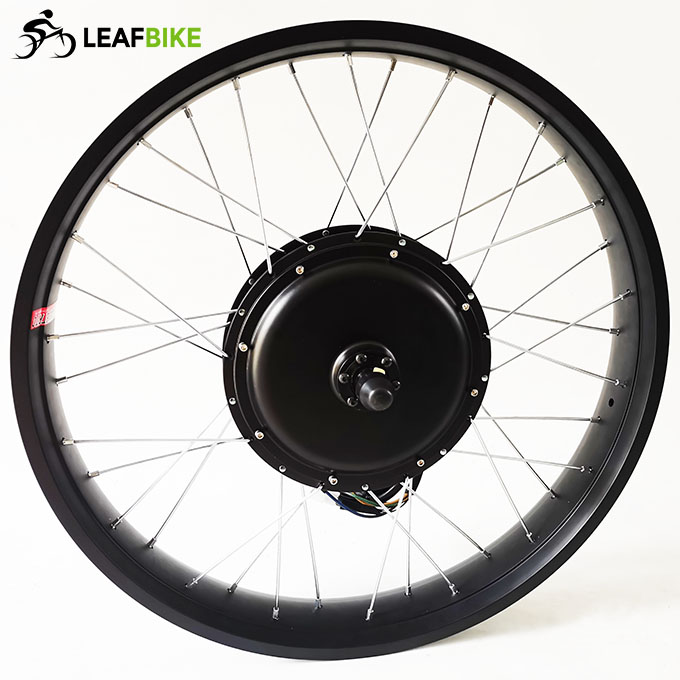

24 inch 48V 52V 2000W front hub motor - Beach Snow Fat Tire bike conversion kit

Name: 24 inch 48V 52V 2000W front hub motor - Beach Snow Fat Tire bike conversion kit
Brand: Leaf Bike
SKU: LBCK24482000FS
Price: 495 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK24482000FS

$495.00 ~~$570.00~~

Maybe You Need These

Description

The 24 inch fat bike kit combines the full E-bike technology: direct drive Brushless Gearless high torque Hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun. Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.
This 24 inch fat bike conversion kit works with a 48V or 52V battery.

Main Features:
>. Rim: 24 x 3 inch double wall Alloy (Rim Fit For: 24 x 4.00" tire)
>. Spoke: Silver color 10 gauge / 135mm Length x 36 pcs

>. Engine: Bldc hub motor
>>. Voltage: 48V / 52V
>>. Power: 2000W
>>. Efficiency: 90.5%
>>. Max speed: 40 mph Default (Optional other speed: 35mph or 25mph,15mph..)
>>. Mechanical brake: Disc
>>. Cable location: shaft end, Left
>>. Cable length: 100cm / 40"
>>. Front frame fork / Install: spacing of 135mm
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 2000 Watts
>>. Casing material: aluminium
>>. Maximum Current: 40 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155 mm L x 72 mm W x 38 mm H

LCD-S830, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Speeds ( 0- 5 ) -- "0" is off. "1" is the slowest. "5" is the fastest.
* Battery gauge
* ..

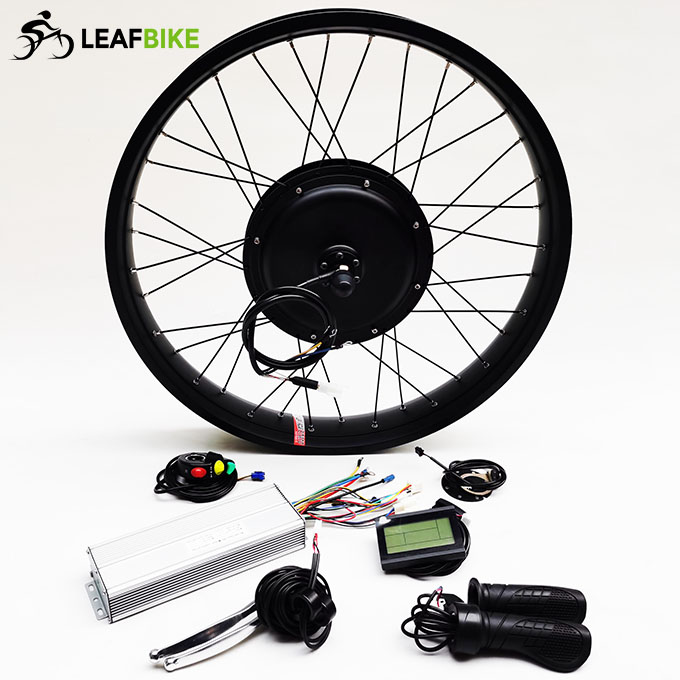

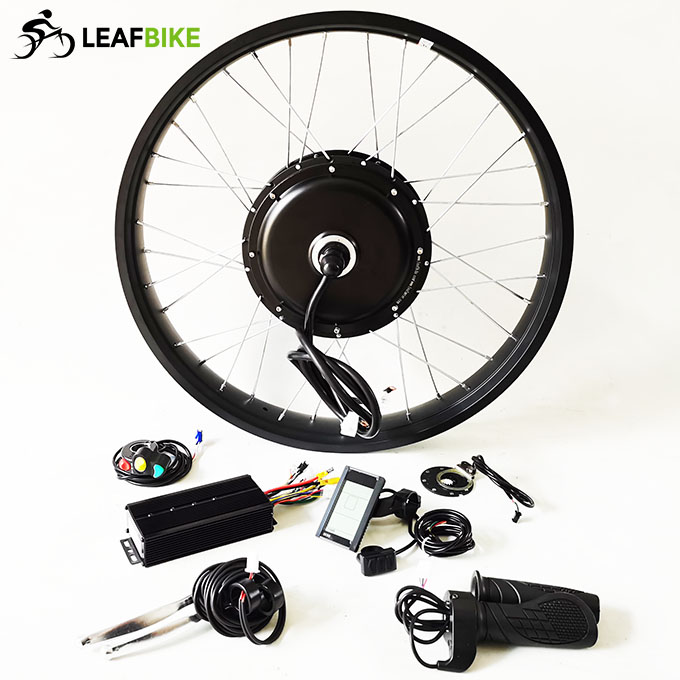

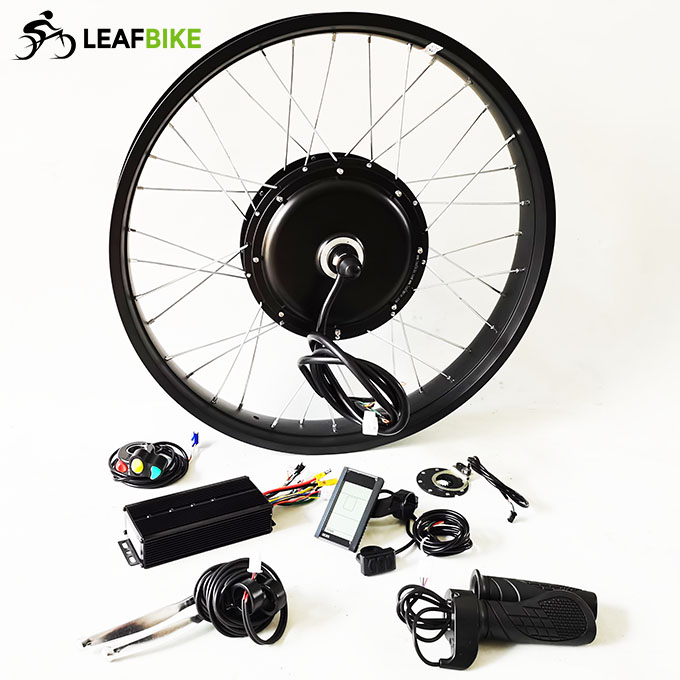

Package Content:

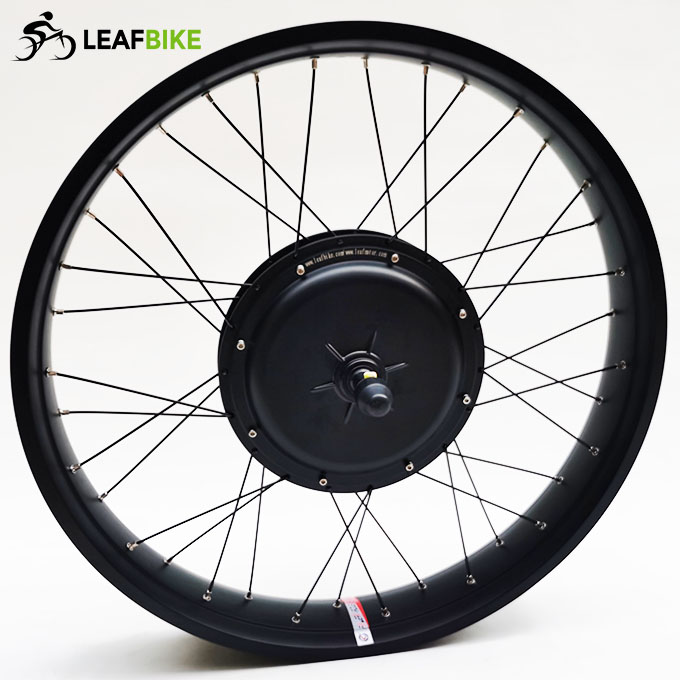

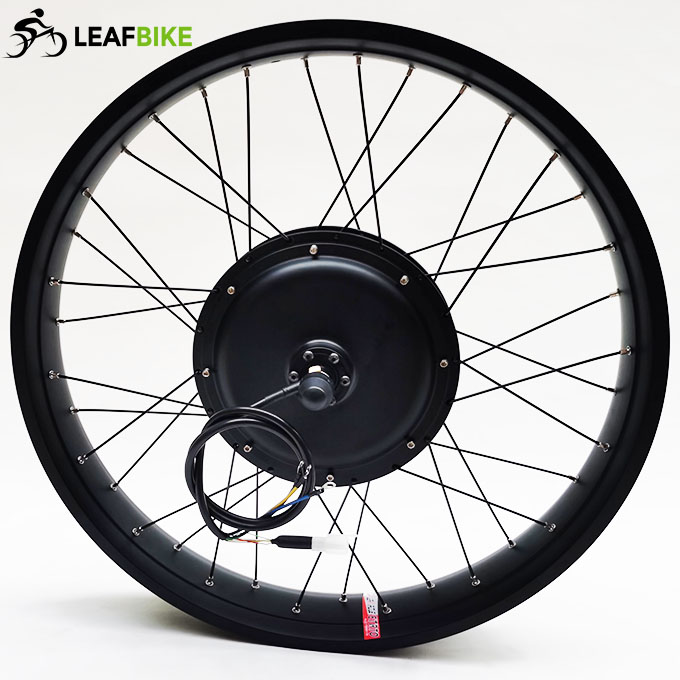

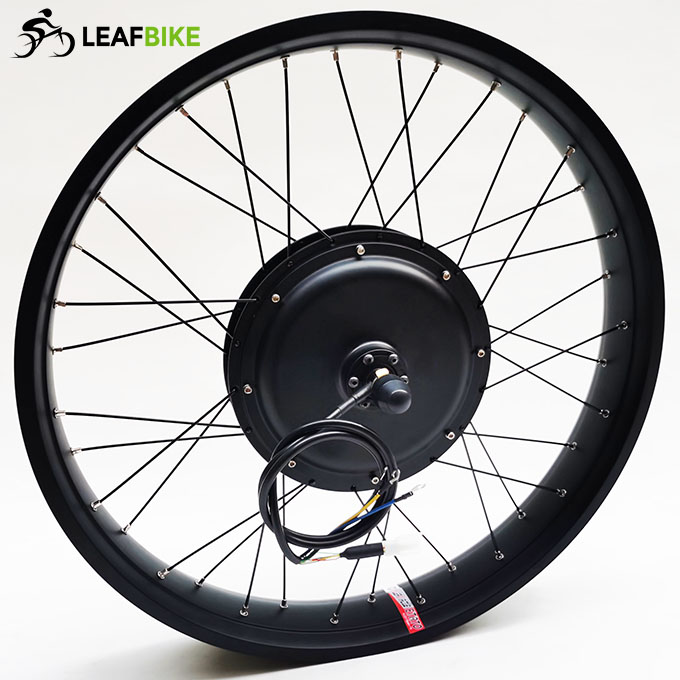

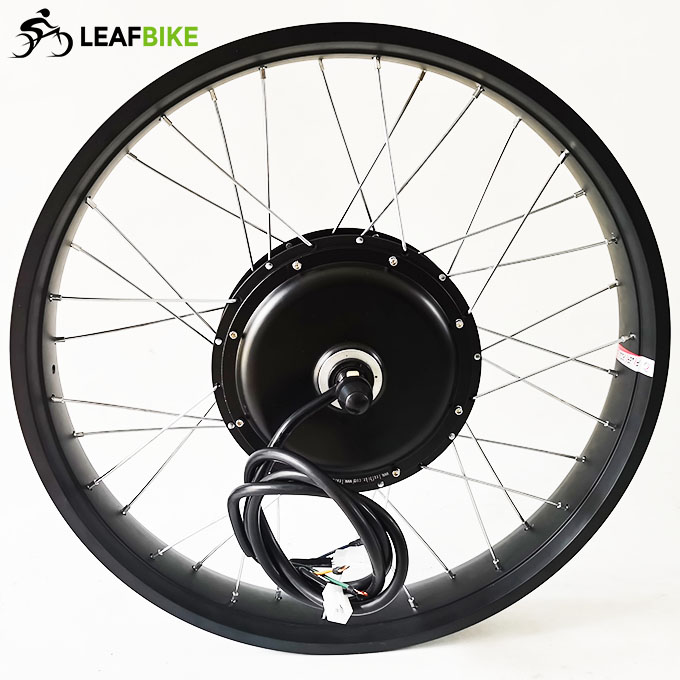

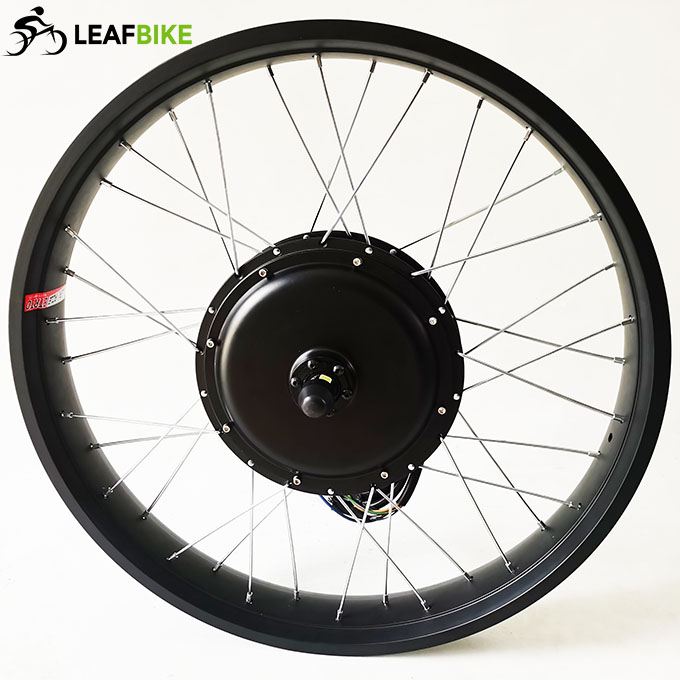

1 x 24 inch 48V 52V 2000W front fat beach snow hub motor wheel - (Rim Fit For: 24 x 4.00" tire)

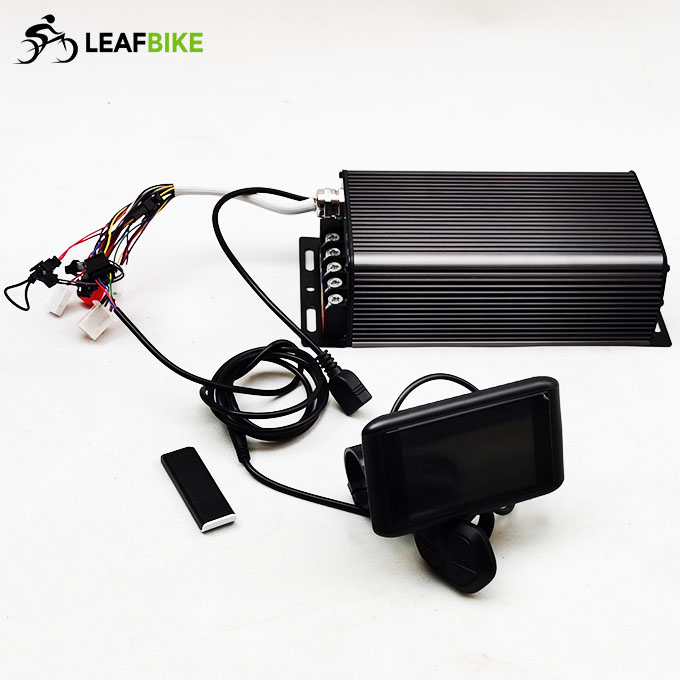

1 x 48V 52V motor controller
1 x LCD ( display speed, mileage, battery gauge.. )
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise.. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 12.3 kg
Package Size: 56cm L x 56cm W x 25cm H
Package Type: Cardboard Box

Wire Diagram:

Fat Snow Front Drw.

2000w front beach snow fat bike motor drawing

Performance Data:
