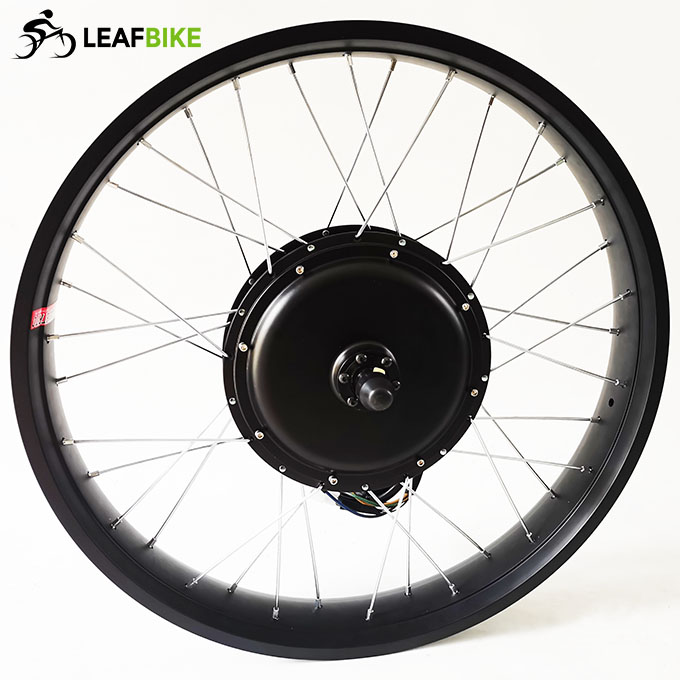

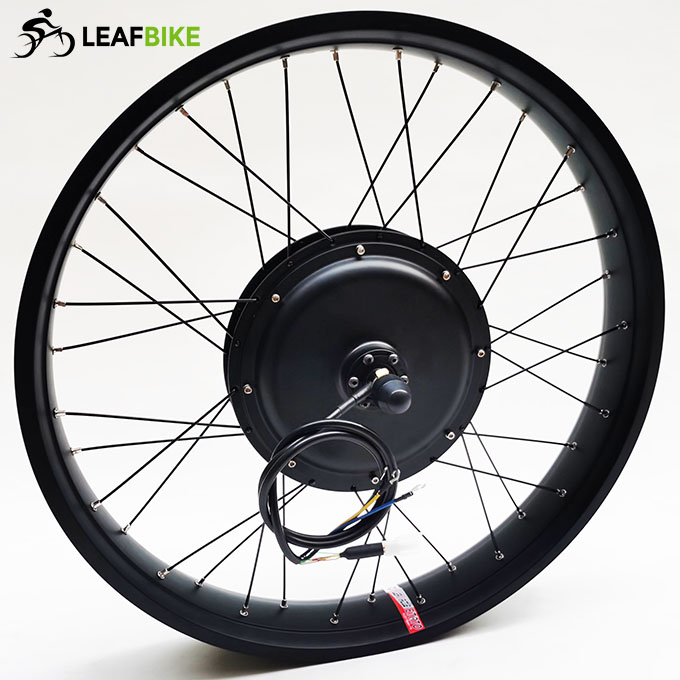

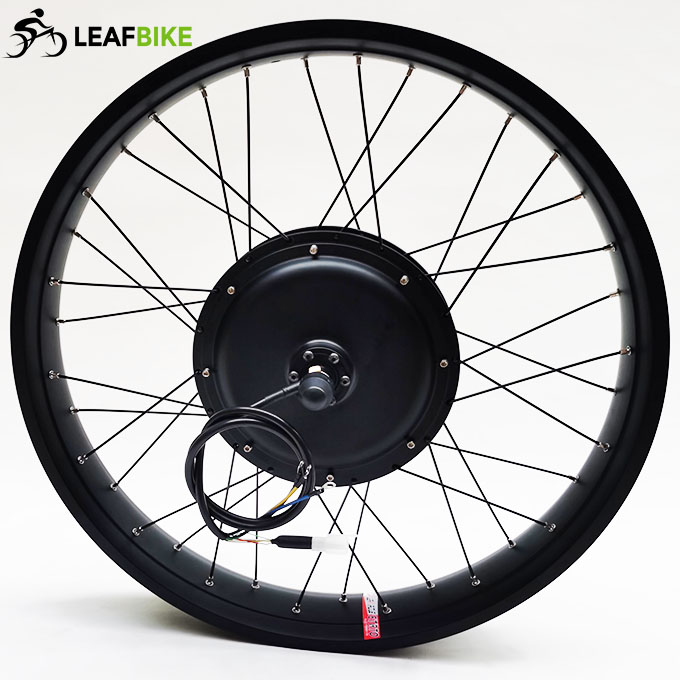

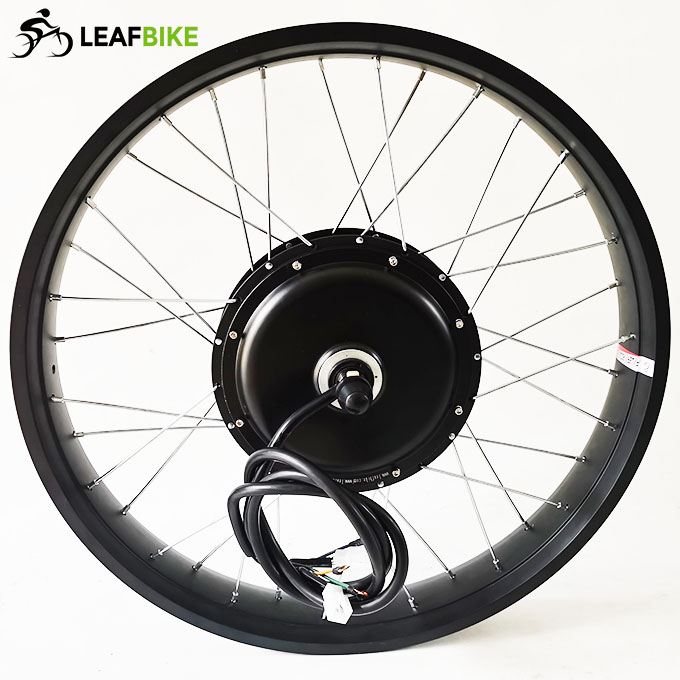

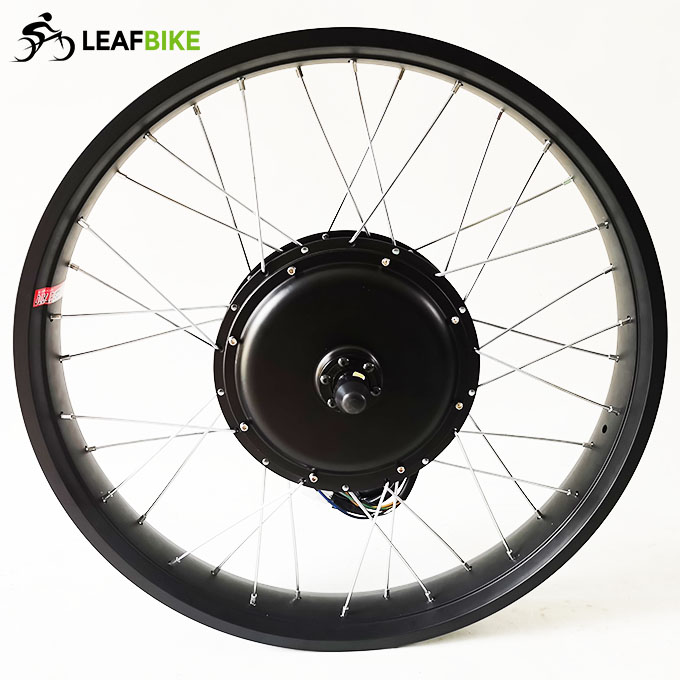

24 inch 48V 52V 2000W front hub motor - Beach Snow Fat Tire bike conversion kit

Item ID #LBCK24482000FS
$495.00 $570.00
    Please select the information you wantX
  • Snow Bike Front Dropout :
    135mm
  • Controller :
    40A sine wave controller

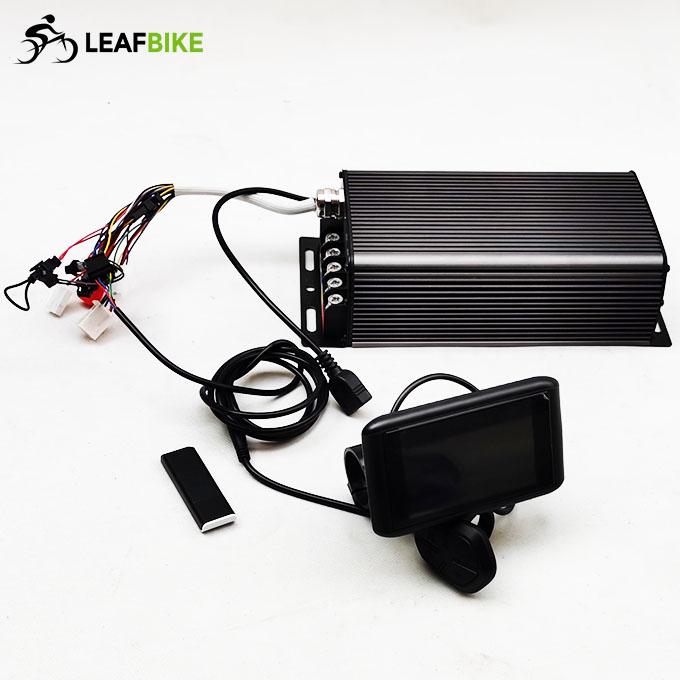

    48V ~ 72V programmable controller
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description
Please watch videos for 24 inch 48V 52V 2000W front hub motor electric bike conversion kit Beach Snow Fat Tire kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..
35mph Video:
Share Video:

* The 24 inch fat bike kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:
>. Rim: 24 × 3 inch double wall Alloy (Rim Fit For: 24 × 4.00" tire)
>. Spoke: Silver color 10 gauge / 135mm Length × 36 pcs

>. Engine : Bldc hub motor
>>. Voltage: 48V / 52V
>>.  Power: 2000W
>>.  Efficiency: 90.5%
>>.  Max speed: 40 mph Default (Optional other speed: 35mph or 25mph,15mph...)
>>.  Mechanical brake: Disk or  V
>>.  Cable location: shaft end, Left
>>.  Cable length:100cm / 40" (5mm phase wires + 2 sets of hall sensors)
>>.  Front frame fork / Install: spacing of 135mm
>>.  Noise: < 60 db
>>.  Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>.  Rated power: 2000 Watts
>>.  Casing material: aluminium
>>.  Maximum Current: 40 A ± 1 Amps
>>.  Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155 mm L × 72 mm W × 38 mm H

LCD-S830, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Max speed ( 0 ~ 100 kmh / 60 mph )
* Speeds ( 0 - 5 ) -- "0" is off. "1" is the slowest. "5" is the fastest.
* Battery gauge
* ...

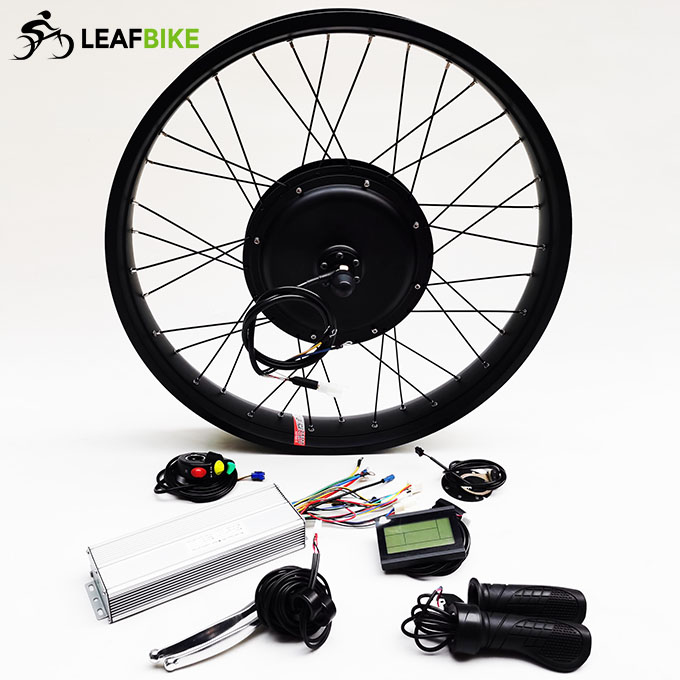

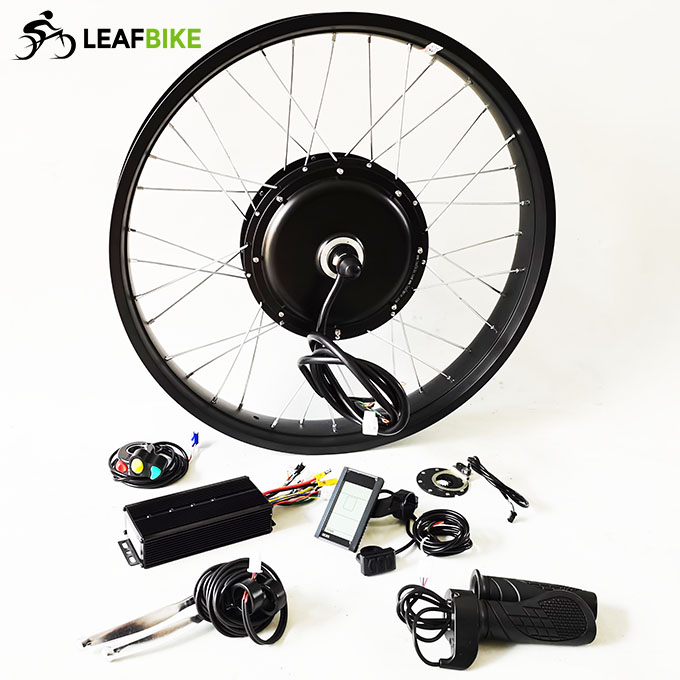

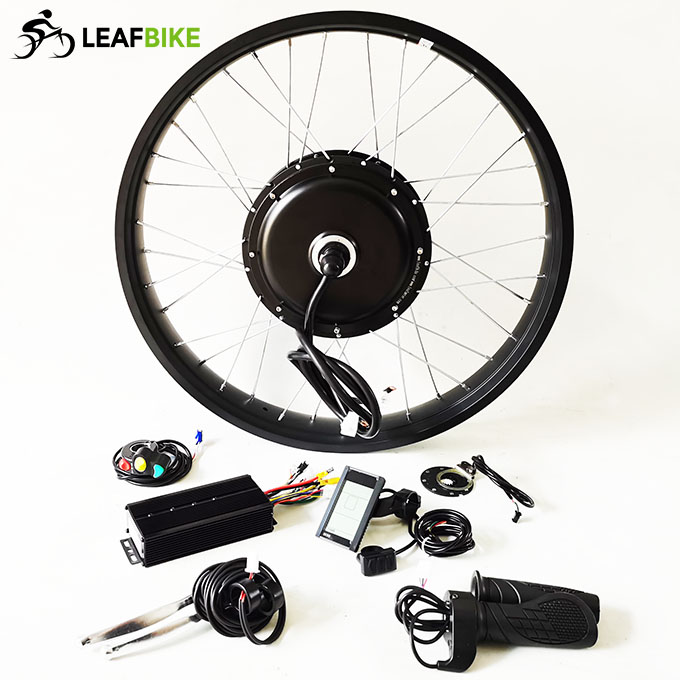

Package Content:

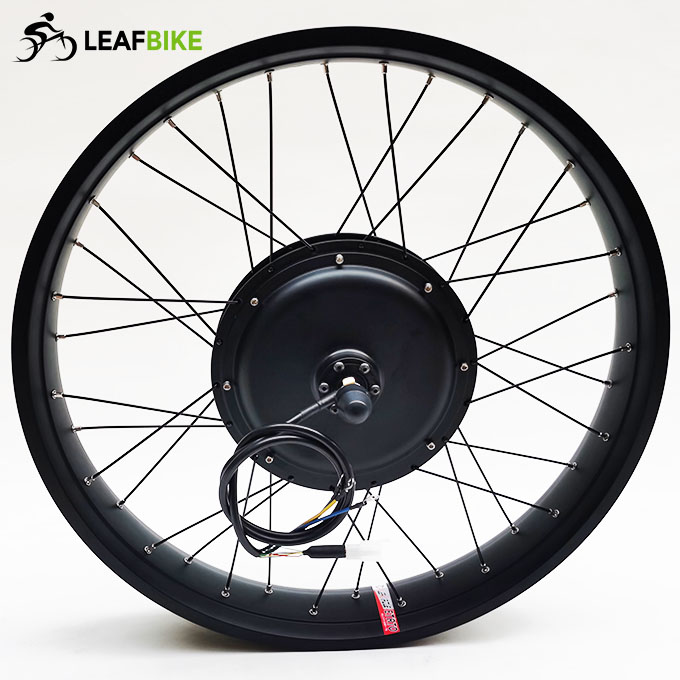

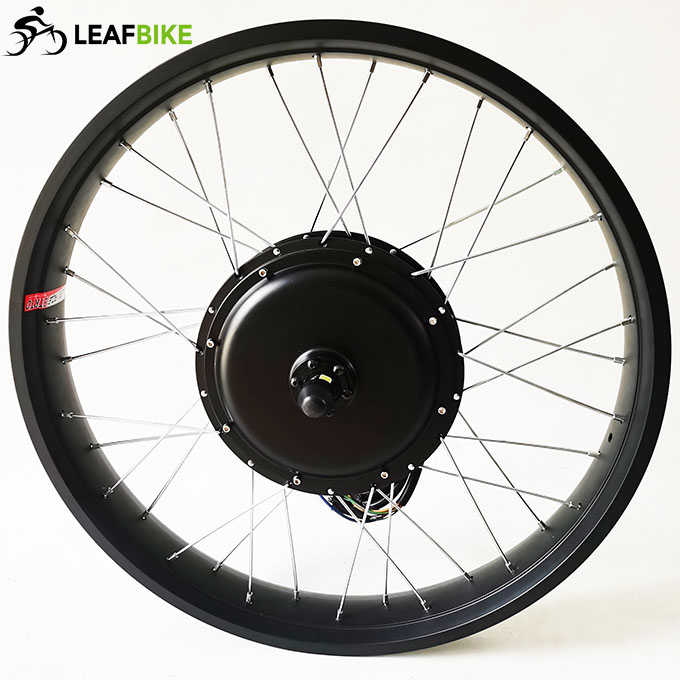

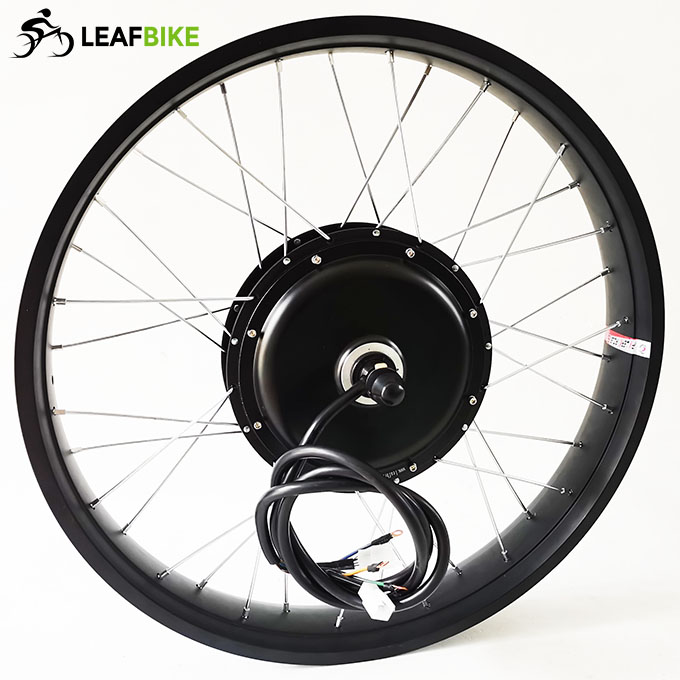

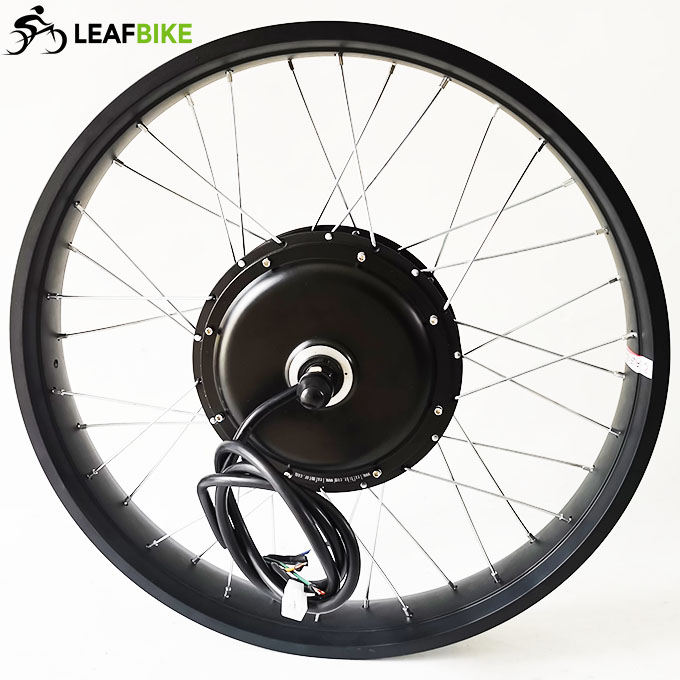

1 x 24 inch 48V / 52V 2000W front fat beach snow hub motor wheel - (Rim Fit For: 24 × 4.00" tire)
1 x 48V / 52V 18-MOSFET 45A motor controller
1 x LCD ( display speed, mileage, battery gauge.. )
1 x Twist throttle -- Cable length: 1500mm
 1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 12.3 kg
Package Size: 56cm L x 56cm W x 25cm H
Package Type: Cardboard Box
Wire Diagram:
Fat Snow Front Drw.2000w front beach snow fat bike motor drawing
Performance Data:
48v-1500w-curve
