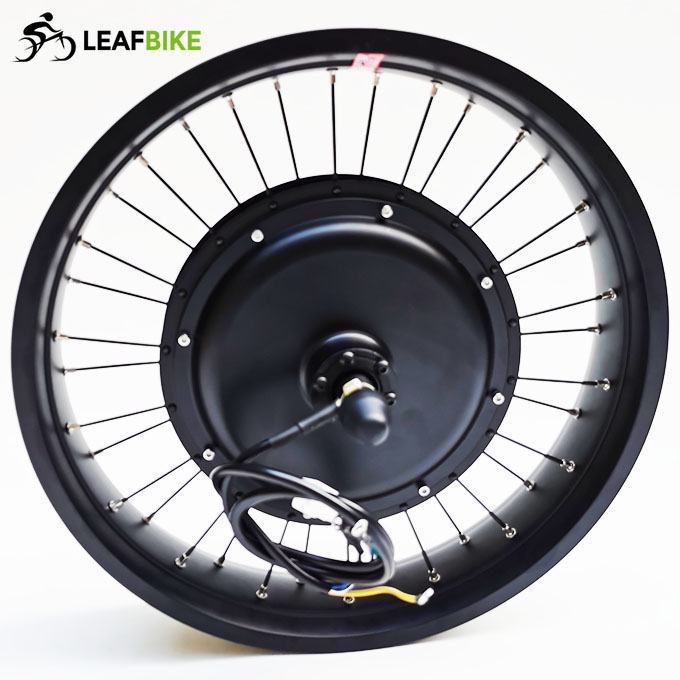

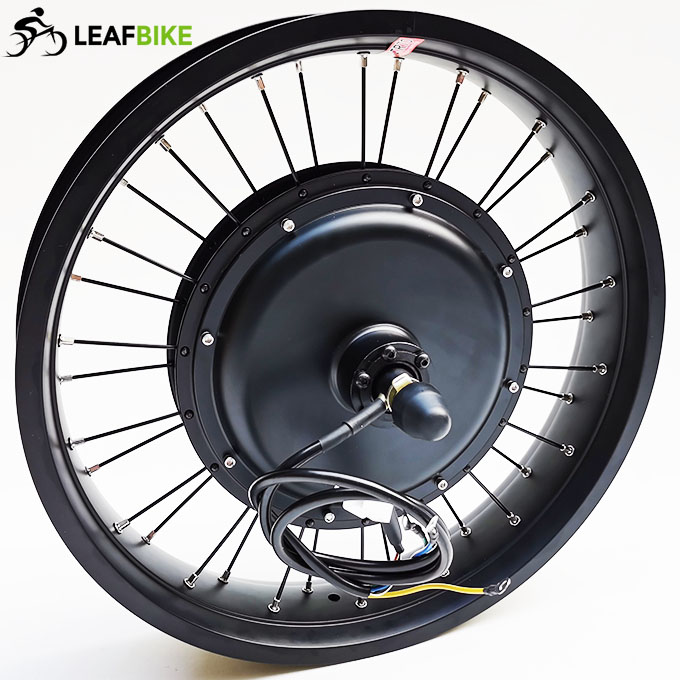

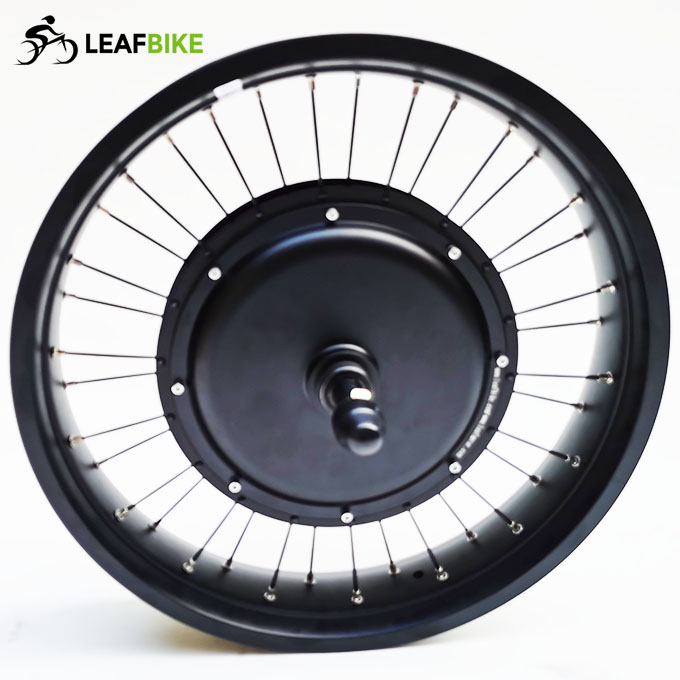

20 inch 60V 2000W rear hub motor - Beach Snow Fat Tire bike conversion kit

Main Features:

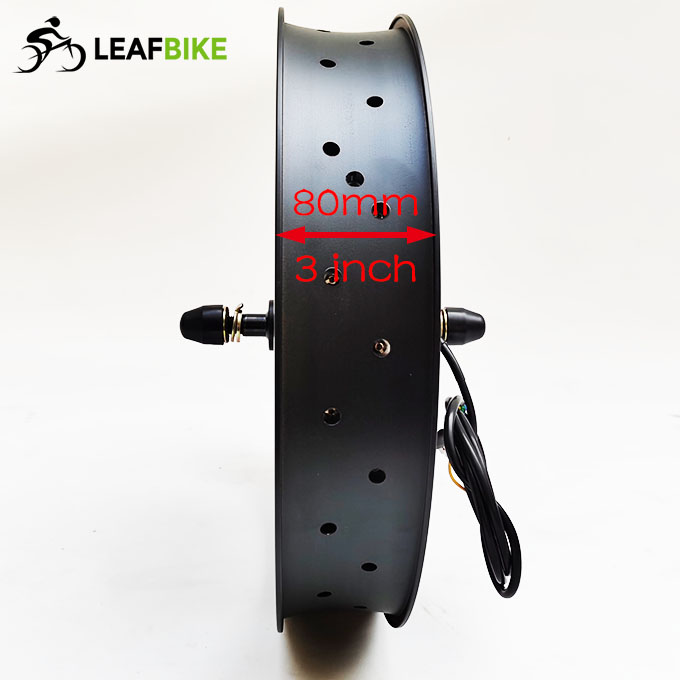

>. Rim: 20 × 3 inch double wall Alloy (Rim Fit For: 20 × 4.00" tire)
>. Spoke: 12 gauge / 72mm Length × 36 pcs

>. Engine : Bldc hub motor
>>. Voltage: 60V
>>.  Power: 2000W
>>.  Efficiency: 90.5%
>>.  Max speed: 68.9 kmh -- 42.7 mph Default (Optional other speed: 35mph or 25mph,15mph...)
>>.  Mechanical brake: Disk or  V
>>.  Freewheel: Single speed or 6 speed, 7 speed sprocket
>>.  Cable location: shaft end, LEFT
>>.  Cable length:100cm / 40"
>>. Rear frame fork / Install: spacing of 170mm ~ 200mm (170mm version Default or 190mm version optional)
>>.  Noise: < 60 db
>>.  Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 60 Volts
>>. Min. Voltage: DC 50 ± 0.5 V
>>.  Rated power: 2000 Watts
>>.  Casing material: aluminium
>>.  Maximum Current: 45 A ± 1 Amps
>>.  Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155 mm L × 73 mm W × 38 mm H

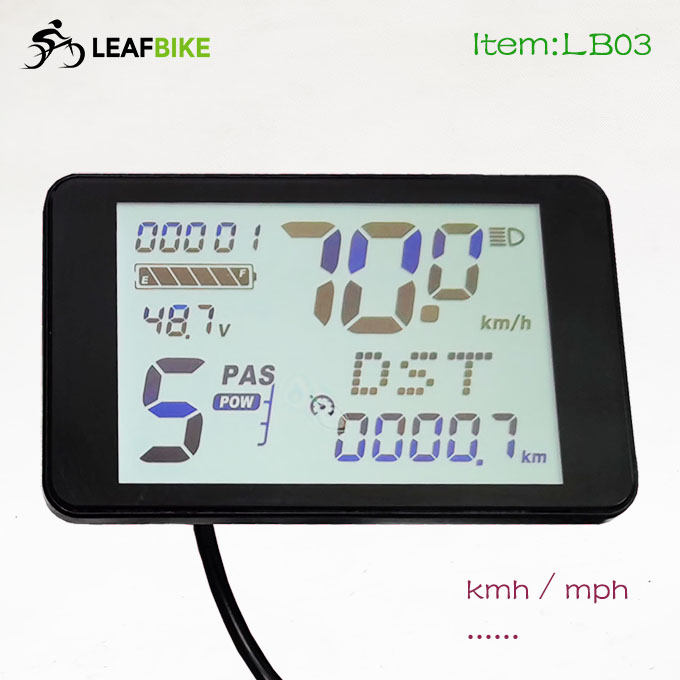

LCD-900, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Set Max speed ( 0 ~ 100 kmh / 60 mph )
* Speeds ( 1 - 5 ) - "0" is off. "1" is the slowest. "5" is the fastest.
* Battery gauge
* ...

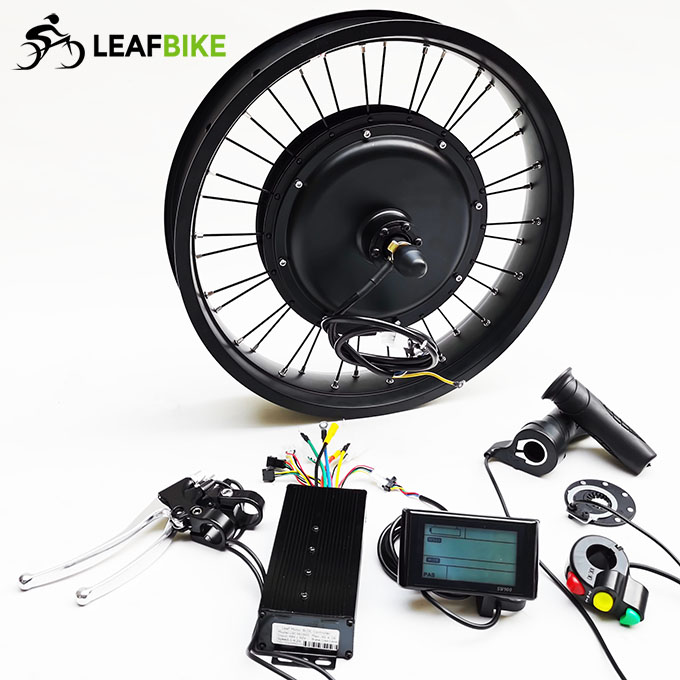

Package Content:
1 x 20 inch 60V 2000W rear hub motor wheel - 20 * 4.00 fat tire / snow / beach
1 x 60V 18-MOSFET 45A motor controller
1 x LCD-900 ( display speed, mileage, battery gauge.. )
1 x Twist throttle -- Cable length: 1500mm
 1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 1000mm

Net Weight: 12kg
Package Size: 50cm L x 50cm W x 28cm H
Package Type: Cardboard Box

Share Video:

Wire Diagram:

170mm dropout Drw.

Performance Data:

190mm dropout Drw.
