20 inch 2000W ~ 5000W high power rear hub motor - bike conversion kit

$695.00 $694.00
    Please select the information you wantX
  • Dropout :
    Please select the information you wantX
Quantity :
Maybe You Need These
Maybe You Need These
Please watch video for 20 inch high power rear hub motor electric bike conversion kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..
Share Video:

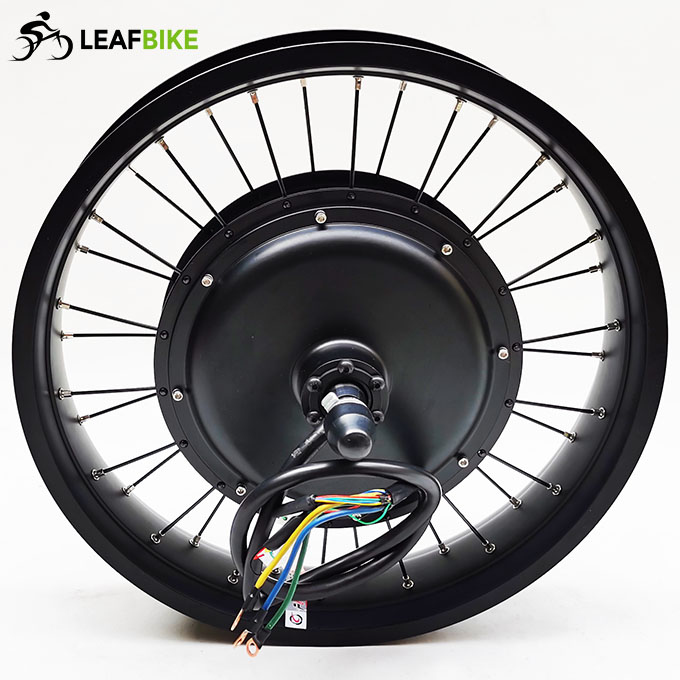

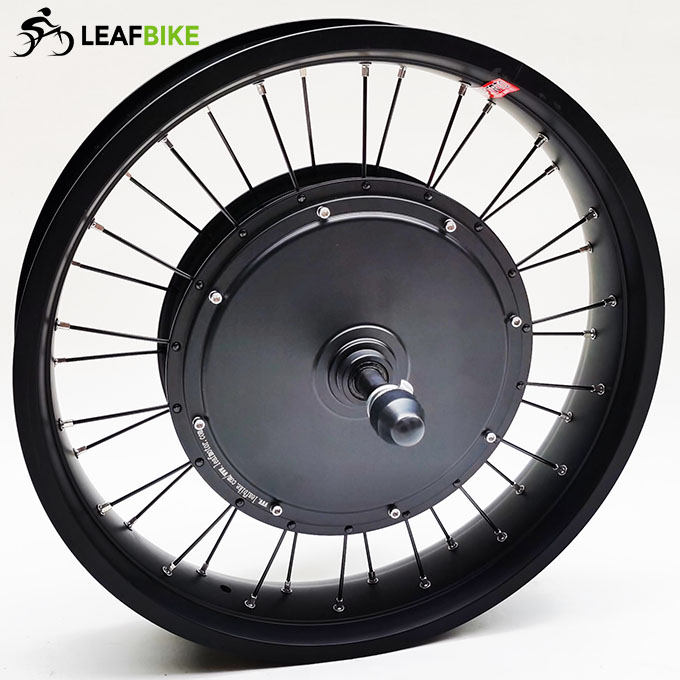

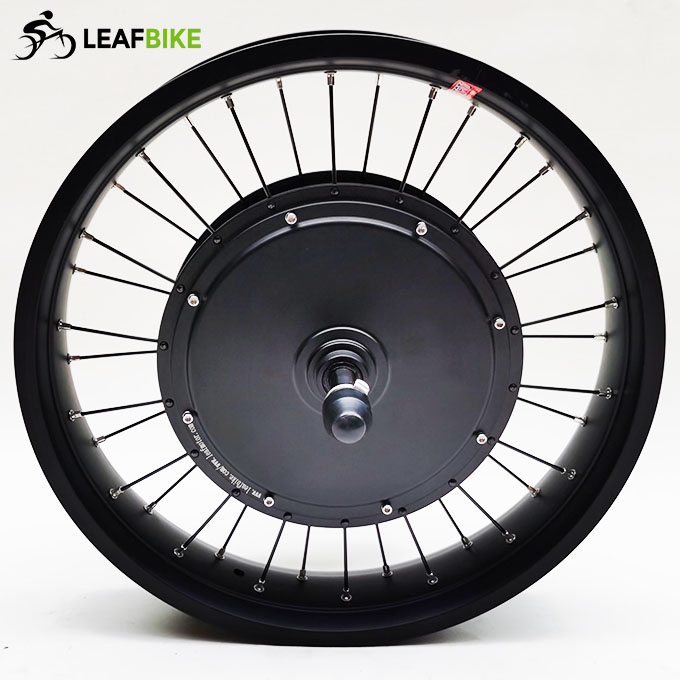

20 inch high power rear hub motor electric bike conversion kit

* This 20 inch beach snow fat hub motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
Main Features:

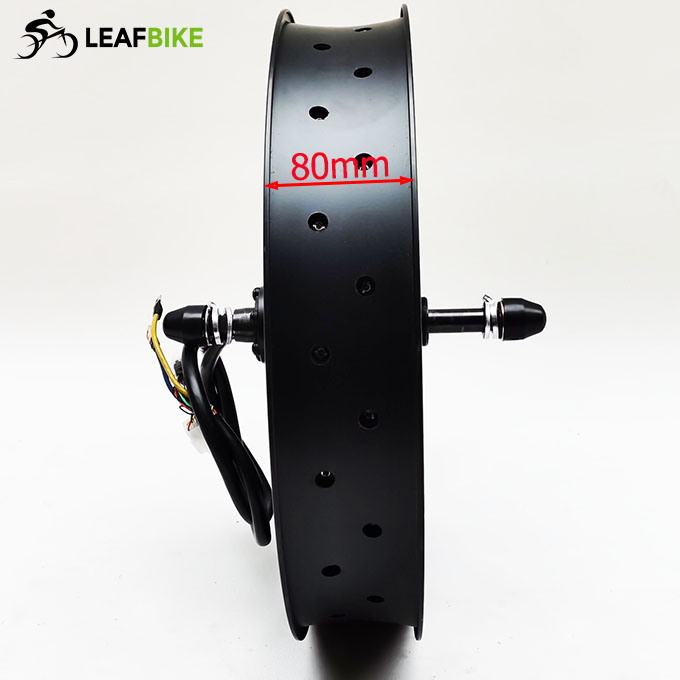

>. Rim: 20 x 3.00 inch Alloy (Rim Fit For: 20 × 4.00" tire)
>. Spoke: 12 gauge / 72mm Length × 36 pcs

>. Engine : Bldc hub motor with one group of spare hall sensors
>>. Voltage: 48V / 60V / 72V
>>.  Power: 2000W ~ 5000W
>>.  Efficiency: > 90.5%
>>.  Max speed: > 60kmh
>>.  Mechanical brake: Disk or  V
>>.  Cable location: shaft end, LEFT
>>.  Cable length:100cm / 40"
>>.  Install: spacing of 170mm or 190mm fork
>>.  Noise: < 60 db
>>.  Surface: Black painted

>. Driver: brushless controller
>>. Working Voltage: DC 48~72 Volts
>>.  Casing material: aluminium
>>.  Maximum Current: 60 Amps
>>.  Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design

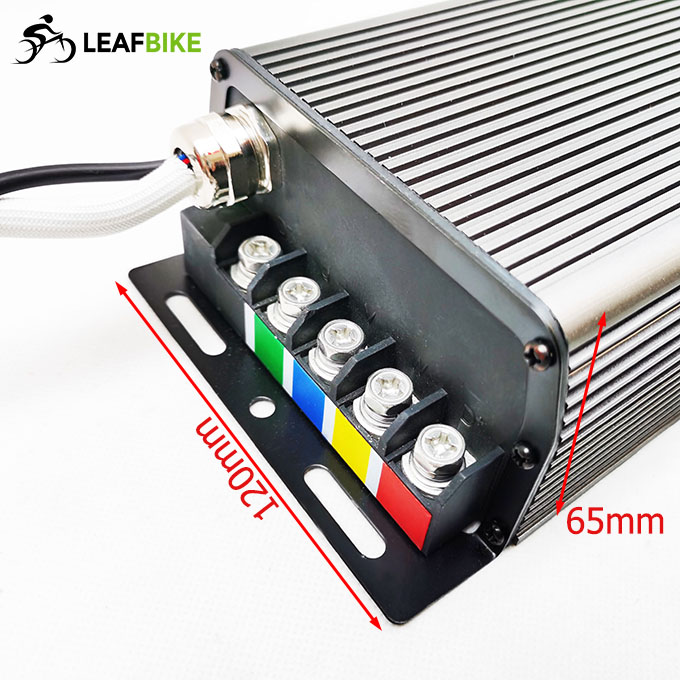

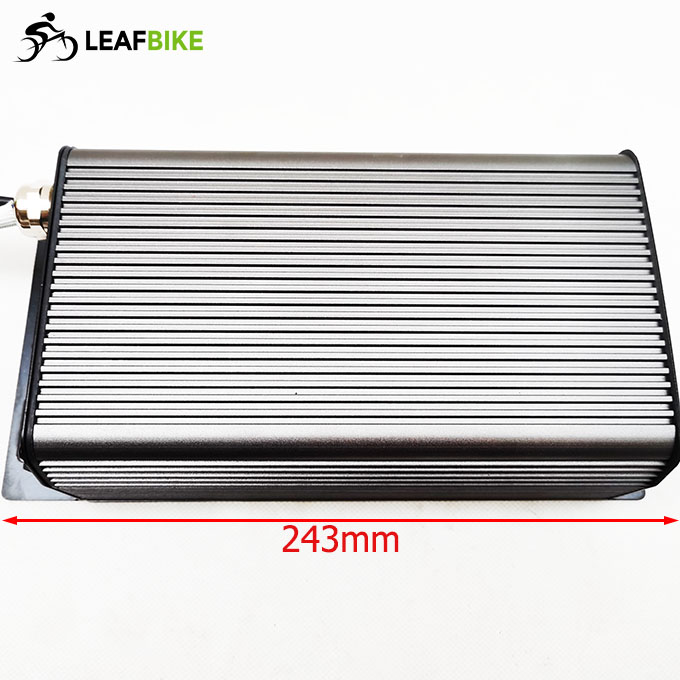

>>. Size: 243 mm L × 120 mm W × 65 mm H

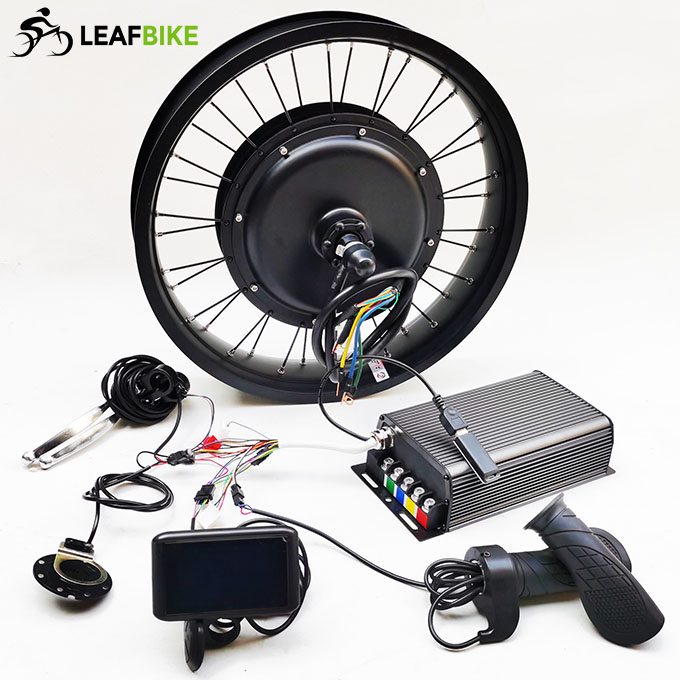

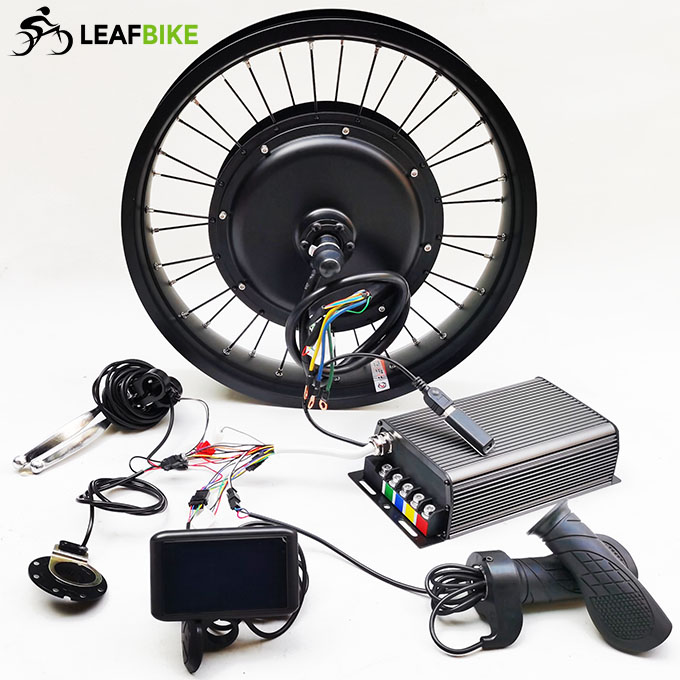

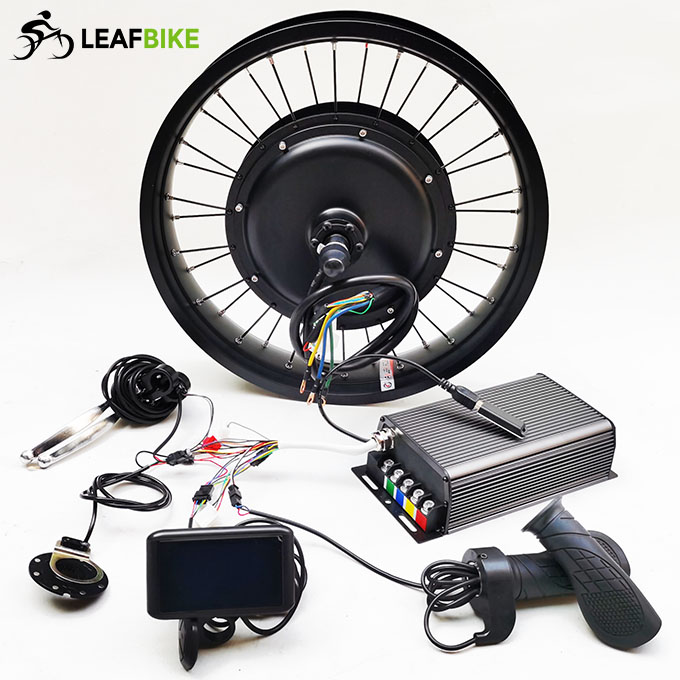

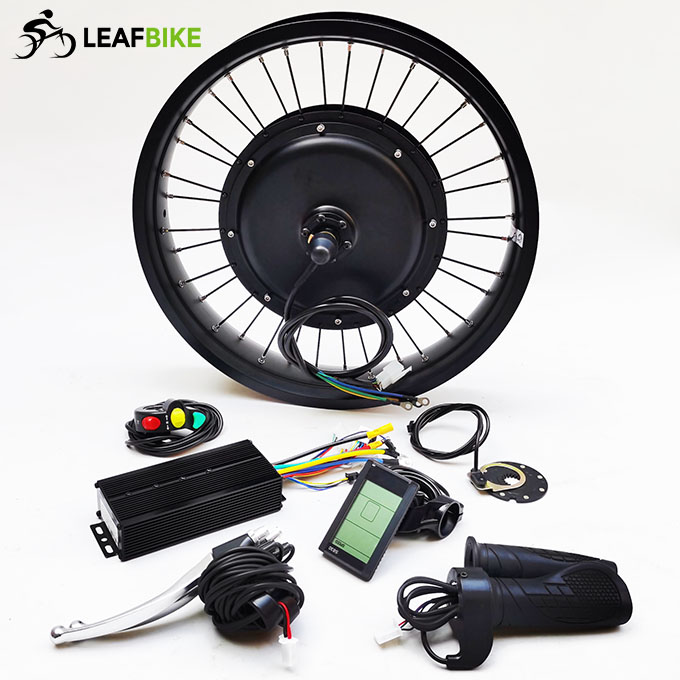

Package Content:

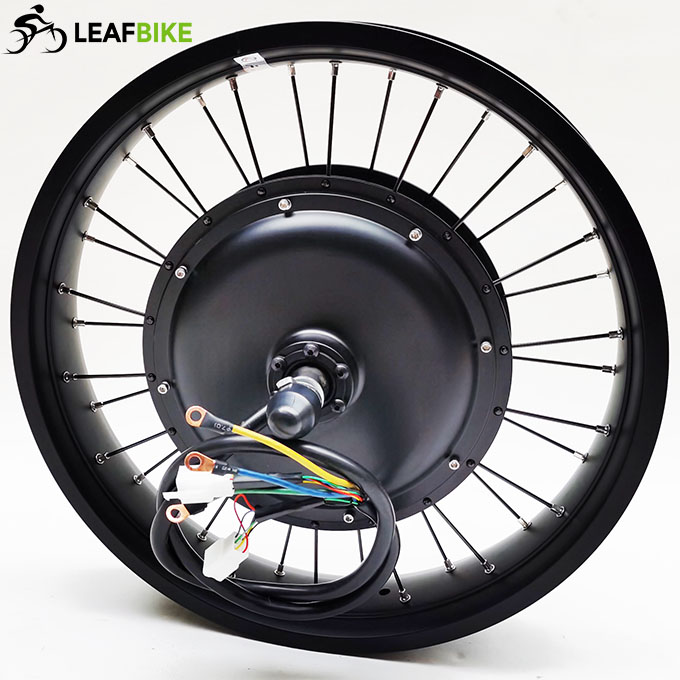

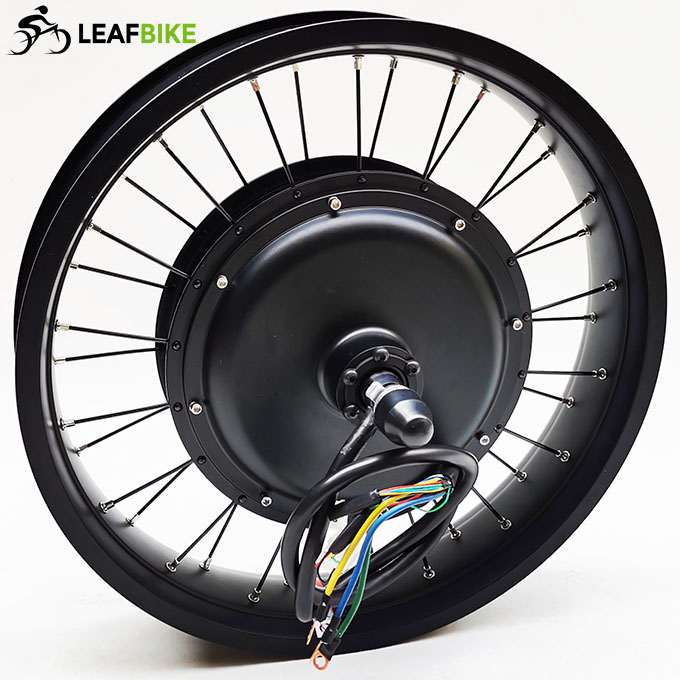

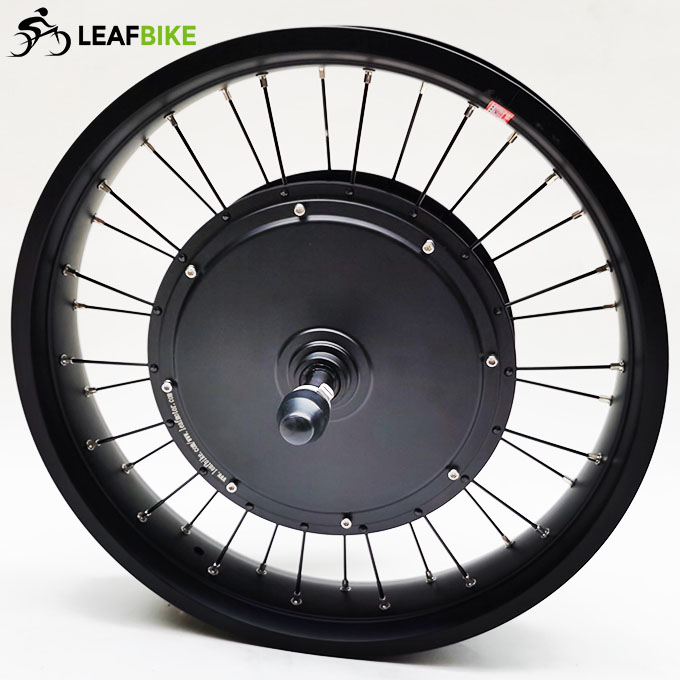

1 x 20 inch 2000~5000W high power rear hub motor wheel

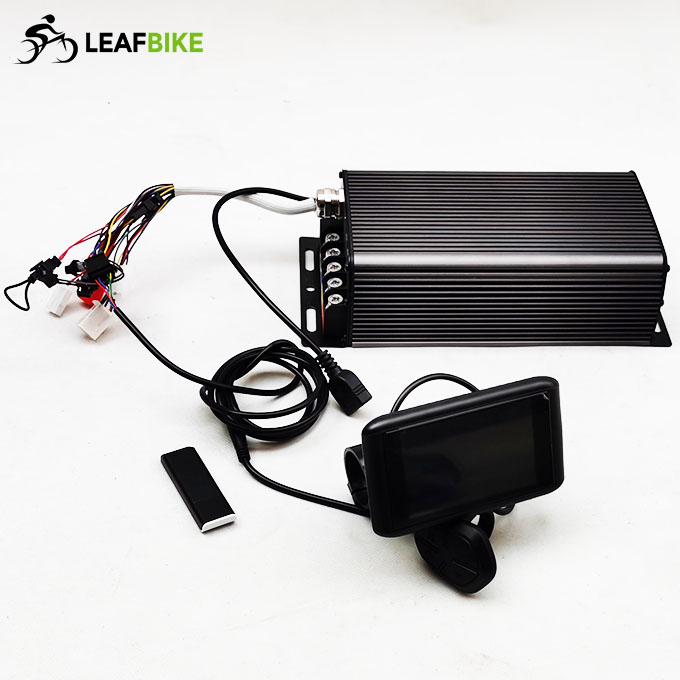

1 x 48~72V 60A controller

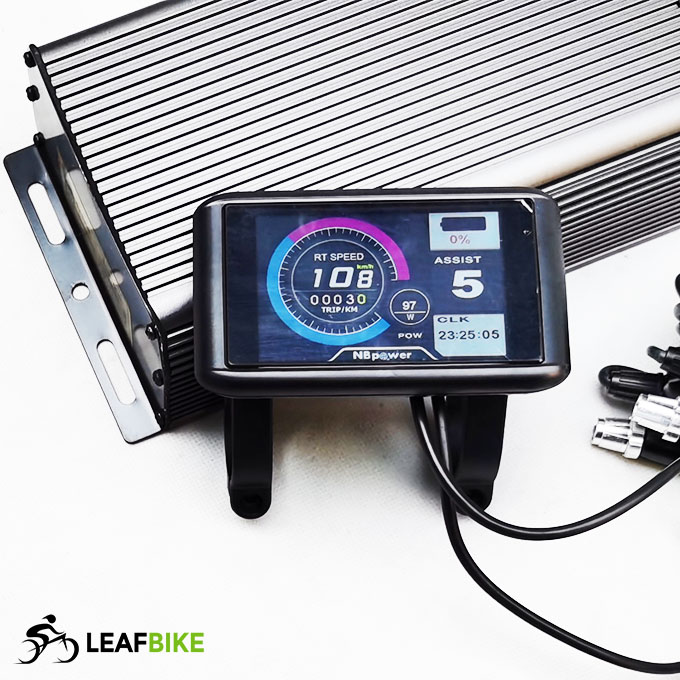

1 x Color screen LCD
1 x Bluetooth
1 x Twist throttle
 1 x Brake levers
1 x Pedal assist

 Net Weight: 18.7kg (after packing)
Package Size: 50cm L × 50cm W × 28cm H
Package Type: Cardboard Box
170mm Drw.
170mm dropout beach snow fat bike motor drawing
190mm dropout Drw.190mm dropout beach snow fat bike motor drawing
