20 inch 60V 2000W front hub motor - Beach Snow Fat Tire bike conversion kit

This Brand New 18 - Mosfet electric motor controller with Sine wave, Square wave, No hall, three modes compatible.

What are three modes?
* First mode: Sine Wave Status - Motor without noise,Very quiet !
If one of motor hall sensor is broken, controller still can work in Sine Wave Status.

* Second mode: Square Wave Status - Motor with a little noise, < 60db, speed is about 8% faster than Sine Wave Status.
If two of motor hall sensors are broken, controller can work in Square Wave Status.

* Third mode: No Hall Status - Motor with a little noise, < 60db, speed is about 8% faster than Sine Wave Status.
If all of three hall sensors are broken, controller can work in No hall Status.

If your motor's hall sensors are broken, don't need to replace hall sensors. Just use this controller that can recover your motor to work.
If you don't know how to match motor wires to controller.

Just plug two blues together, controller into learning status and looking for correct working way. After 1-2 seconds, it can find correct working way,then disconnect these two blue wires' plugs. From now on,it always works with this kind of correct way.

Main Features:

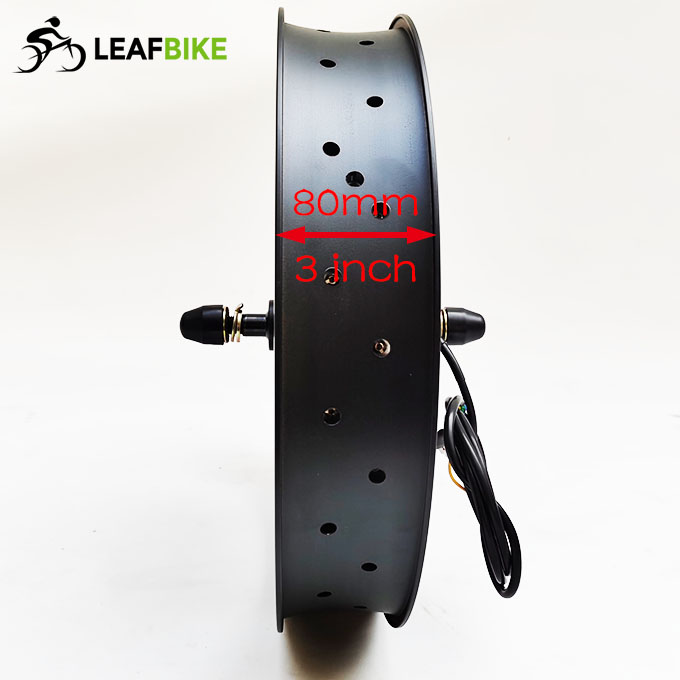

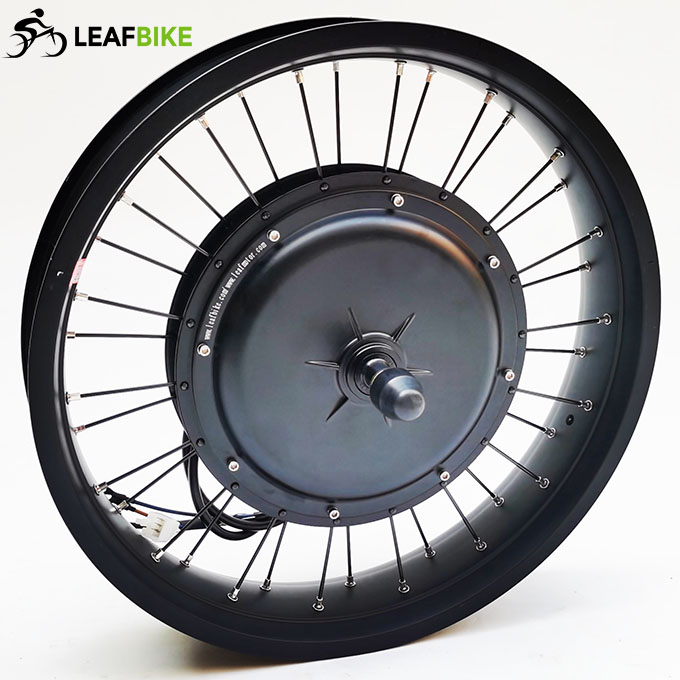

>. Rim: 20 × 3 inch double wall Alloy (Rim Fit For 20 × 4.00" tire)
>. Spoke: 12 gauge / 72mm Length × 36 pcs

>. Engine : Bldc hub motor
>>. Voltage: 60V
>>.  Power: 2000W
>>.  Efficiency: 90.5%
>>.  Max speed: 40 mph Default (Optional other speed: 30mph, 25mph,15mph...)
>>.  Mechanical brake: Disk or  V
>>.  Cable location: shaft end, LEFT
>>.  Cable length:100cm / 40"
>>. Front frame fork / Install: spacing of 135mm
>>.  Noise: < 60 db
>>.  Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>.  Rated power: 1500 Watts
>>.  Casing material: aluminium
>>.  Maximum Current: 45 A ± 1 Amps
>>.  Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155 mm L × 72 mm W × 38 mm H

With LCD, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Set Max speed ( 0 ~ 100 kmh / 60 mph )
* Speed ( 0 - 5 ) - "0" is off. "1" is the slowest. "5" is the fastest.
* Battery gauge
* ...

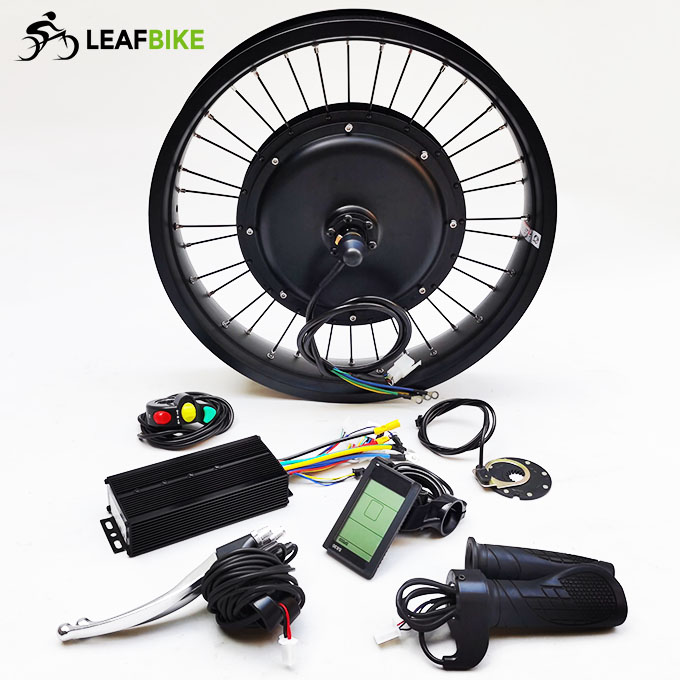

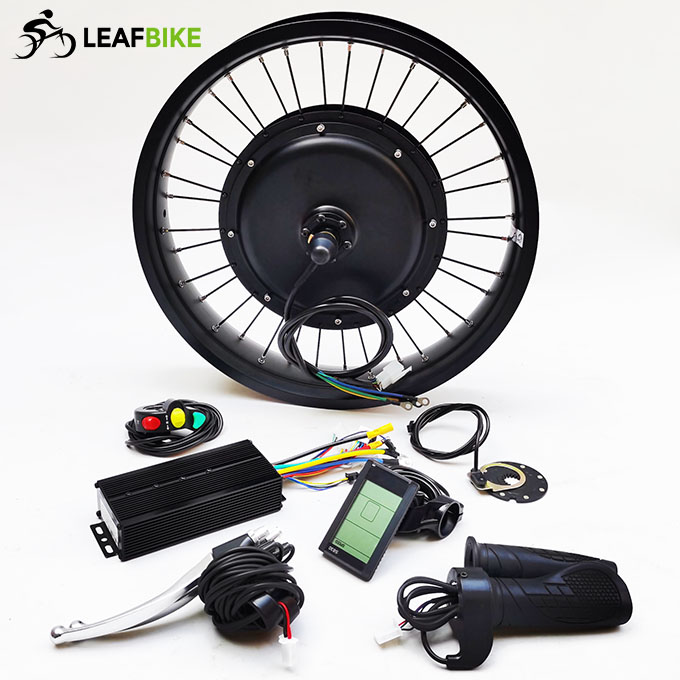

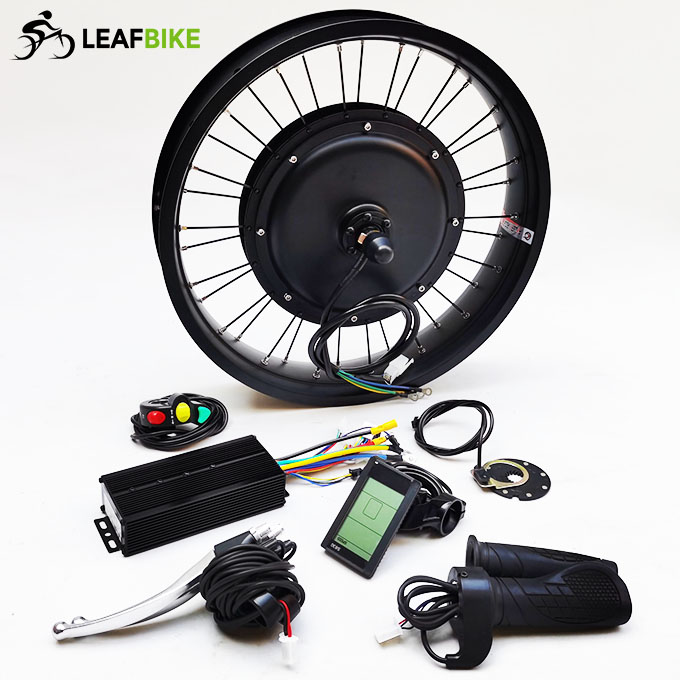

Package Content:

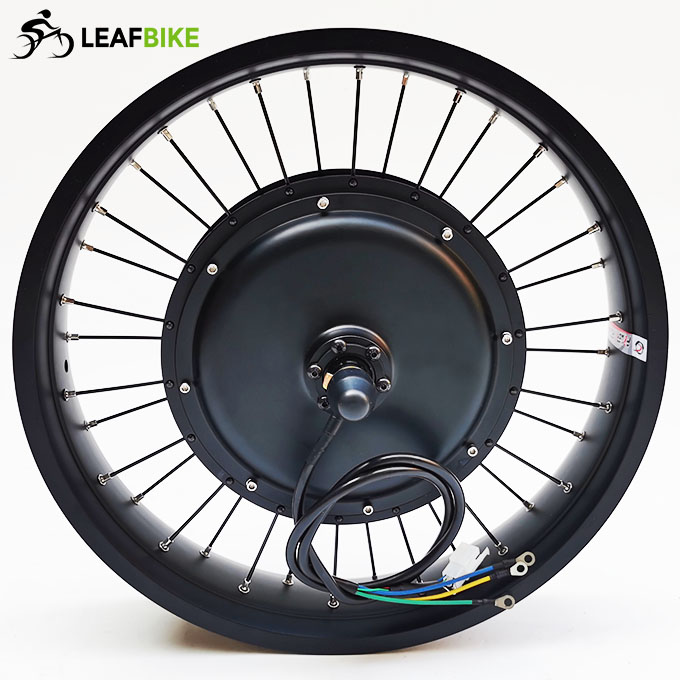

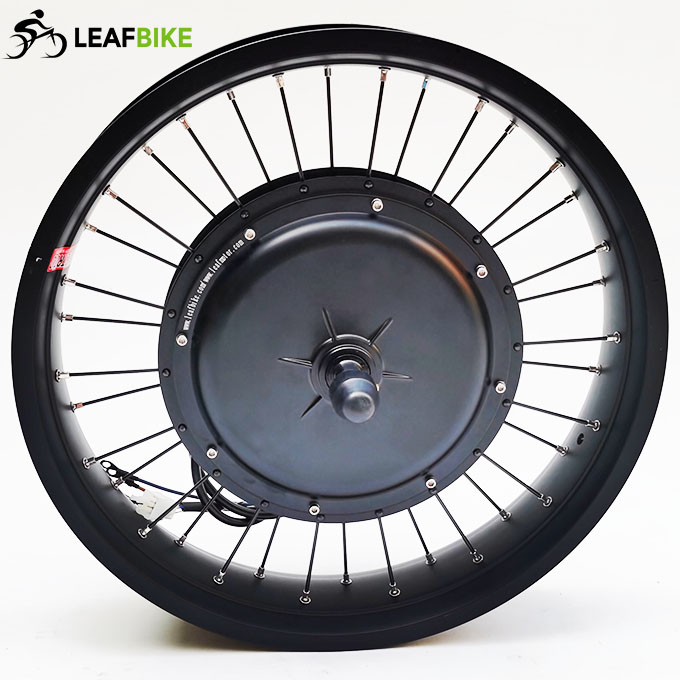

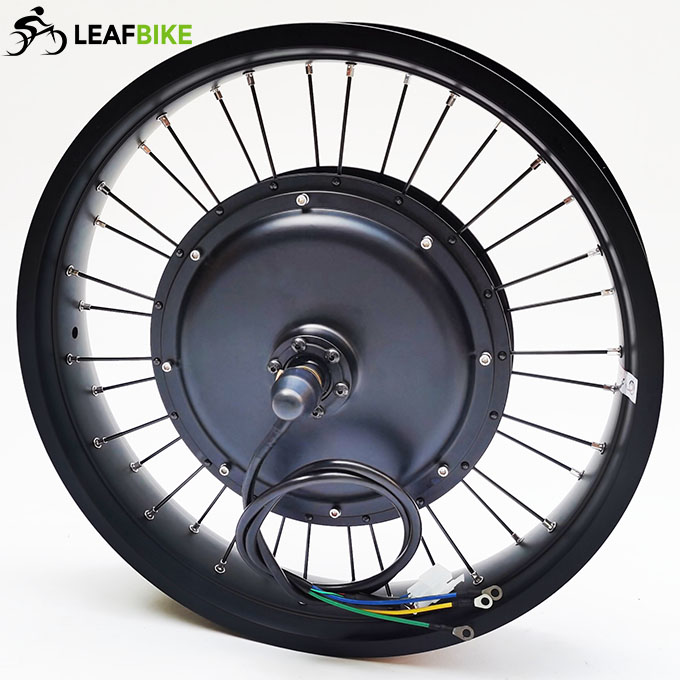

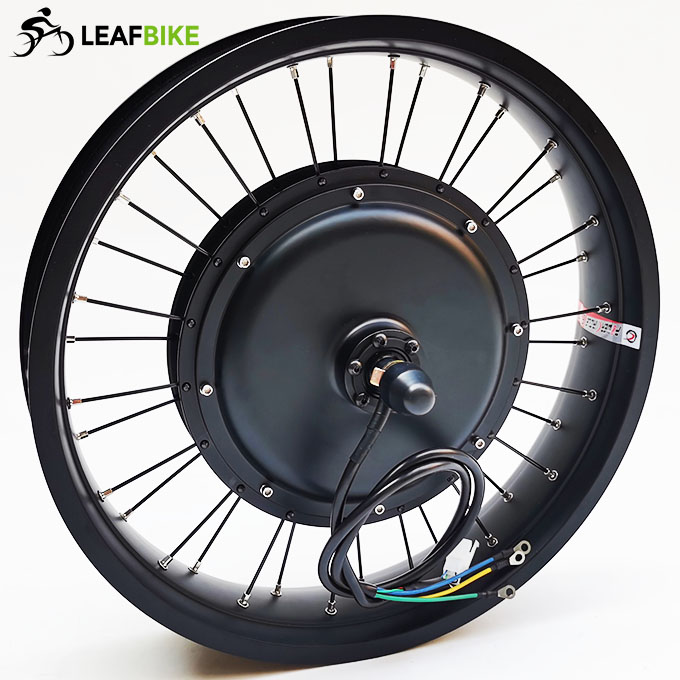

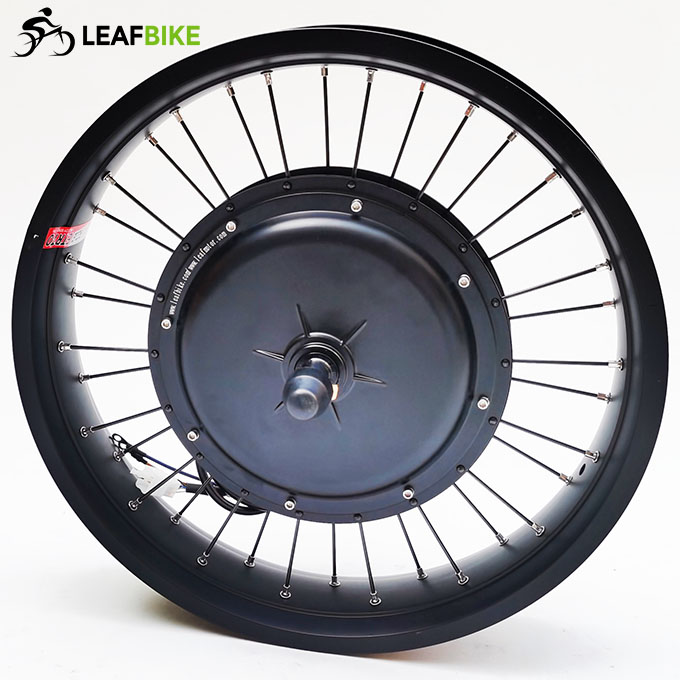

1 x 20 inch 60V 2000W front hub motor wheel - (Rim Fit For: 20 x 4.00 fat tire / snow / beach)
1 x 60V 18-Mosfet motor controller
1 x LCD
1 x Twist throttle -- Cable length: 1500mm
 1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise.. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 1000mm

Net Weight: 11 kg   /  24.2 lbs
Package Size: 50cm L x 50cm W x 25cm H
Package Type: Cardboard Box
