20 inch 48V / 52V 500W 750W 1000W freewheel Cassette beach snow fat bike hub motor conversion kit

Item ID #LBCK2048750RB
$463.00 $590.00
    Please select the information you wantX
  • Dropout :
    135 Front
    170 Freewheel
    190 Freewheel
    190 Cassette
  • Power :
    48V / 52V 500W
    48V / 52V 750W
    48V / 52V 1000W
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description
20 inch 48V / 52V 500W 750W 1000W freewheel Cassette beach snow fat bike hub motor conversion kit combines the full E-bike technology: direct drive Brushless Gear high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.


Main Features:
>. Rim: 20 x 3.00 double wall Alloy (Rim Fit For: 20 × 4.00 tire)
>. Spoke: Black 12 gauge / 124 mm Length × 36 pcs


>. Engine: Hub Motor
>>. Voltage: 48V / 52V
>>. Power: 500 / 750 / 1000W
>>. Efficiency: 90.5%
>>. Max speed: 32 kmh -- 20 mph Default (Optional other speed:15mph...)
>>. Mechanical brake: Disk or  V
>>. Cable location: shaft end, Right
>>. Cable length: 90cm / 35"
>>. Install: spacing of 135mm front fork
                  spacing of 170mm or 190mm rear fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 105 mm L × 72 mm W × 38 mm H

LCD-830, More function:
* Cruise - Green switch to control
* Forward & Backward (Optional) - Yellow switch to control
* Regen brake -- Red switch to control
* Kmh & mph (Optional)
* Set Max speed ( 0 ~ 100 kmh / 60 mph ) - If hope max 25kmh, just set LCD to be "25", then e-bike 's max speed is 25kmh.
* Speed ( 0 - 5 ) - "0" is off. "1" is the slowest. "5" is the fastest.
* Battery gauge
* ...

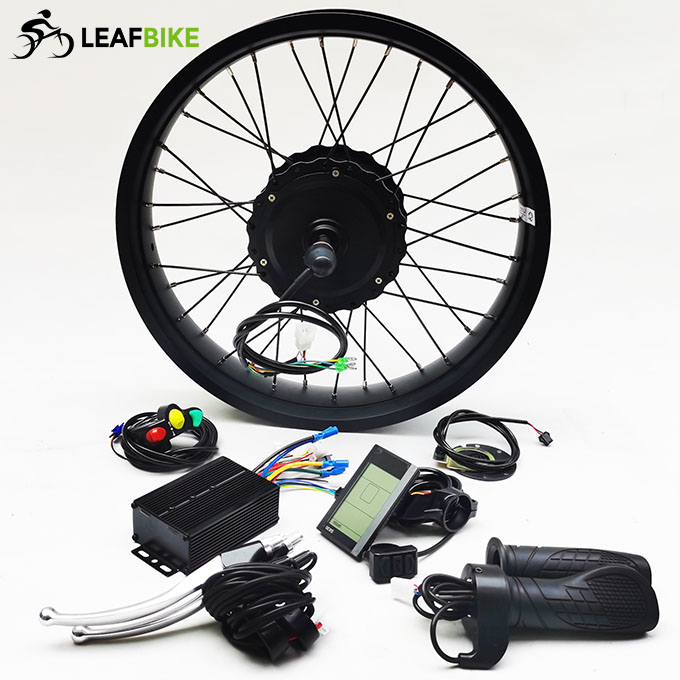

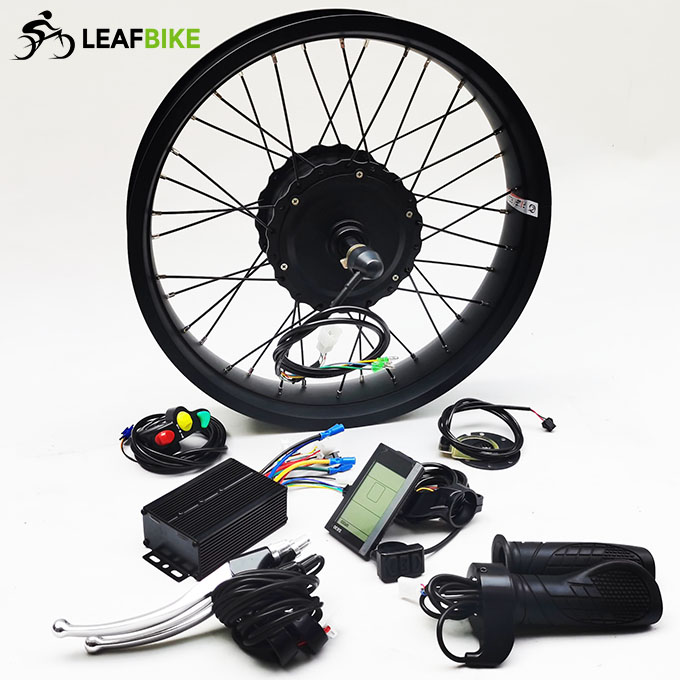

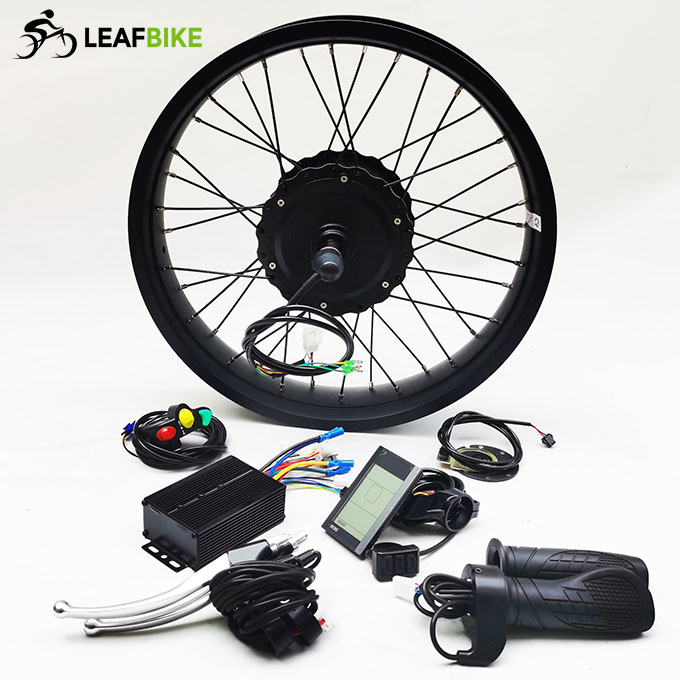

Package Content:

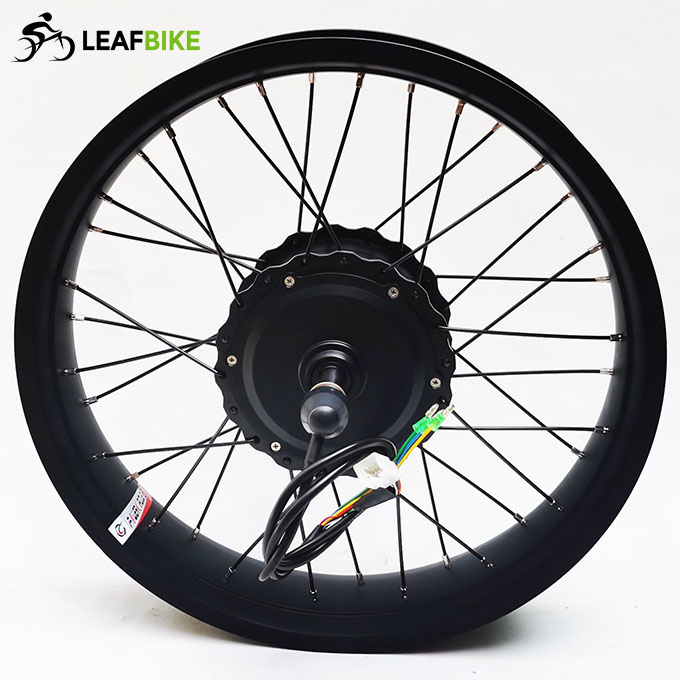

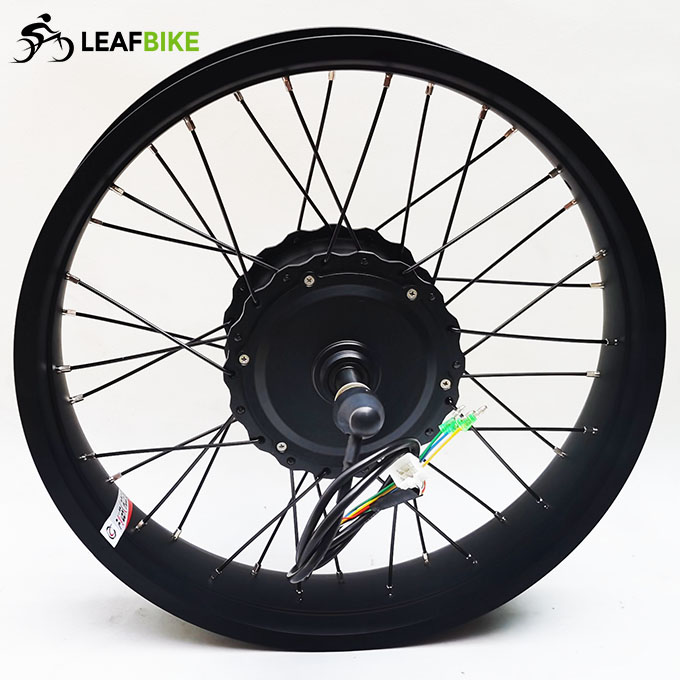

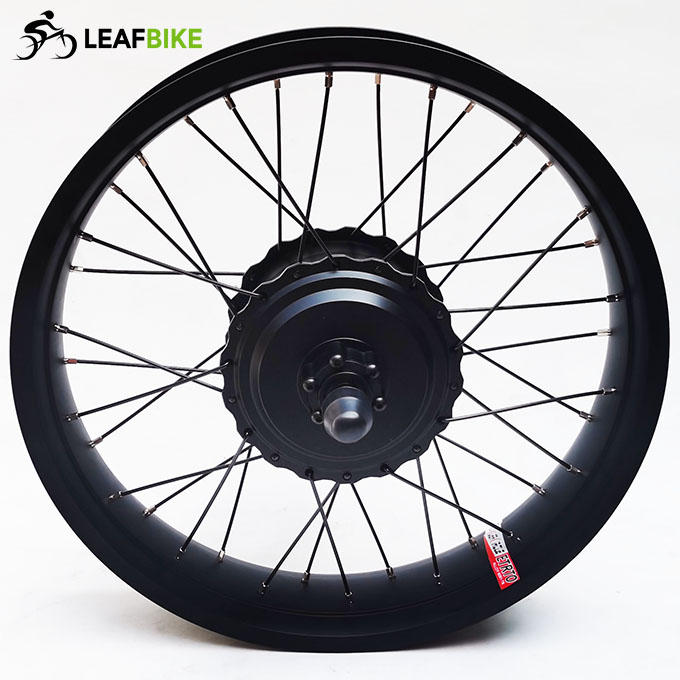

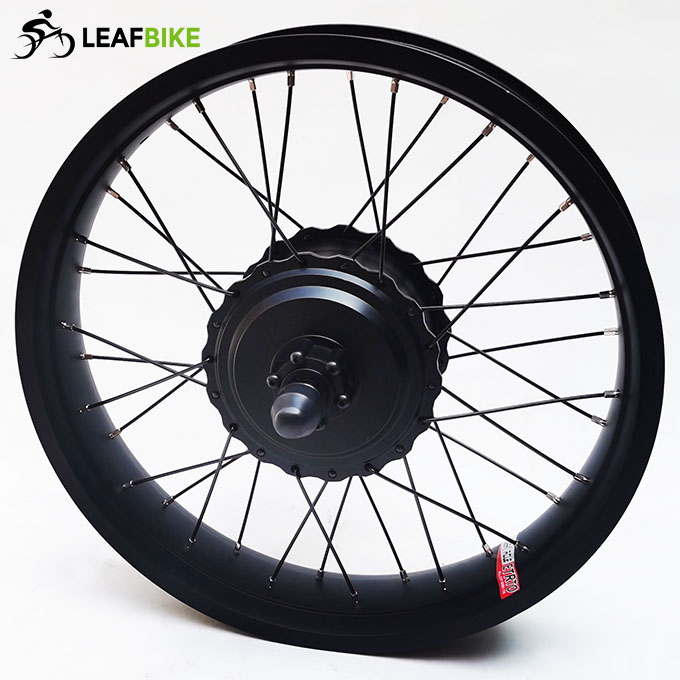

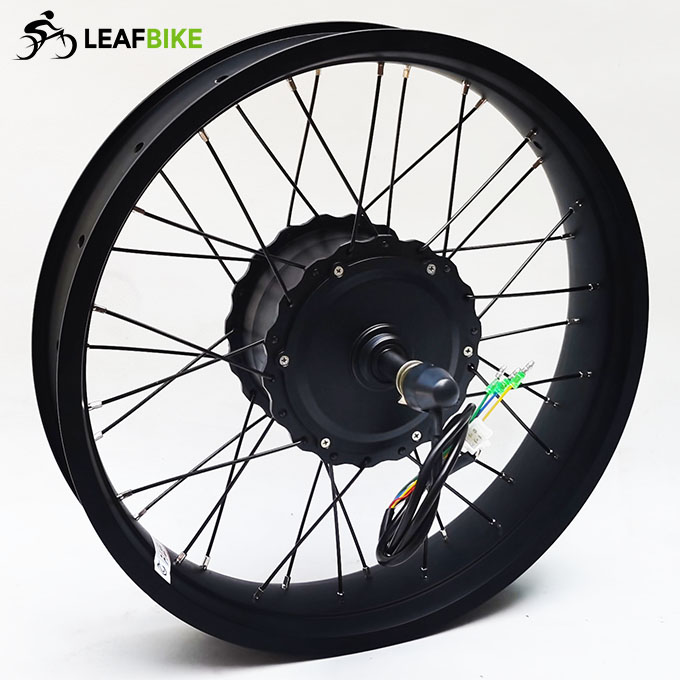

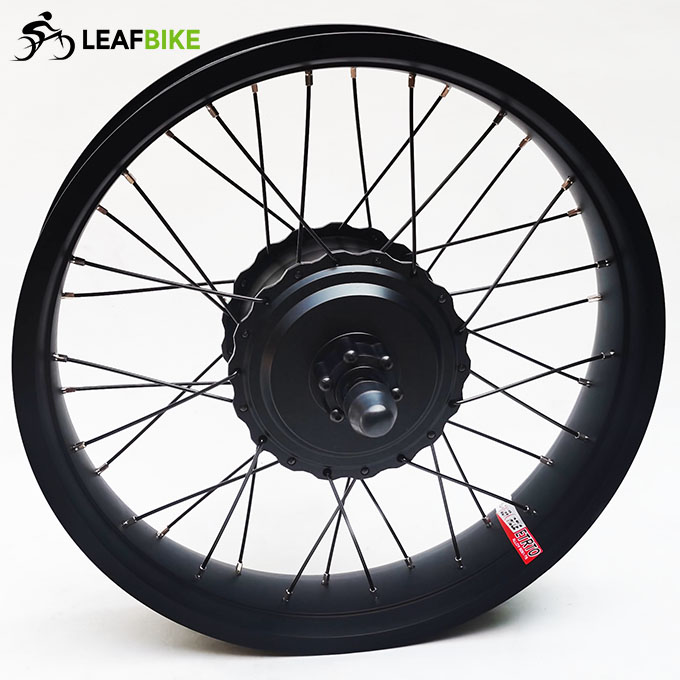

1 x 20 inch 48V / 52V 500W 750W 1000W freewheel Cassette beach snow fat bike hub motor wheel
1 x 48V / 52V 12-MOSFET motor controller
1 x LCD-830
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, regen brake, reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 1500mm

Net Weight: 9.36 kg   /  20.6 lbs
Package Size: 50cm L x 23cm W x 50cm H  /  19.7"  L x 8.7" W x 19.7" H
Package Type: Cardboard Box


Share Video:
Wire Diagram:
250w geared bldc hub motor
135mm Front:
170mm Freewheel:
190mm Freewheel:
190mm Cassette:
Performance Data:
data-36v-250w-geared-hub-motor
