20 inch 48V 1500W front hub motor - Beach Snow Fat Tire bike conversion kit

Item ID #LBCK20481500FSK
$410.00 $454.00
    Please select the information you wantX
  • Front Dropout :
  • LCD :
    Please select the information you wantX
Quantity :
Maybe You Need These
Maybe You Need These
Please watch videos for 20 inch 48V 1500W front hub motor electric beach snow fat bike conversion kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh..
Max 20kmh:
20 inch 48v 1500w front fat bike motor kit video
Share Video:
20 inch 48v 1500w fat beach snow hub motor - electric bike conversion kit

* This 20 inch fat bike conversion kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Main Features:

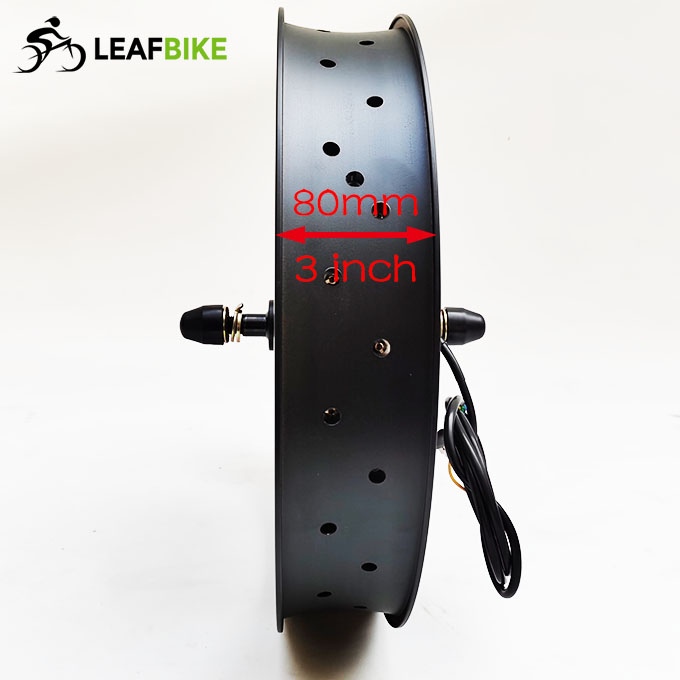

>. Rim: 20 × 3 inch double wall Alloy (Rim Fit For 20 × 4.00" tire)
>. Spoke: 12 gauge / 72mm Length × 36 pcs

>. Engine : Bldc hub motor
>>. Voltage: 48V
>>.  Power: 1500W
>>.  Efficiency: 90.5%
>>.  Max speed: 57.9 kmh -- 35.9 mph Default (Optional other speed:25mph,15mph...)
>>.  Mechanical brake: Disk or  V
>>.  Cable location: shaft end, LEFT
>>.  Cable length:100cm / 40"
>>. Front frame fork / Install: spacing of 135mm
>>.  Noise: < 60 db
>>.  Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>.  Rated power: 1500 Watts
>>.  Casing material: aluminium
>>.  Maximum Current: 40 A ± 1 Amps
>>.  Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 171 mm L × 82 mm W × 42 mm H

With LCD, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Set Max speed ( 0 ~ 72 kmh )
* Pedal assist ( 0 - 5 )
* Battery gauge
* ...

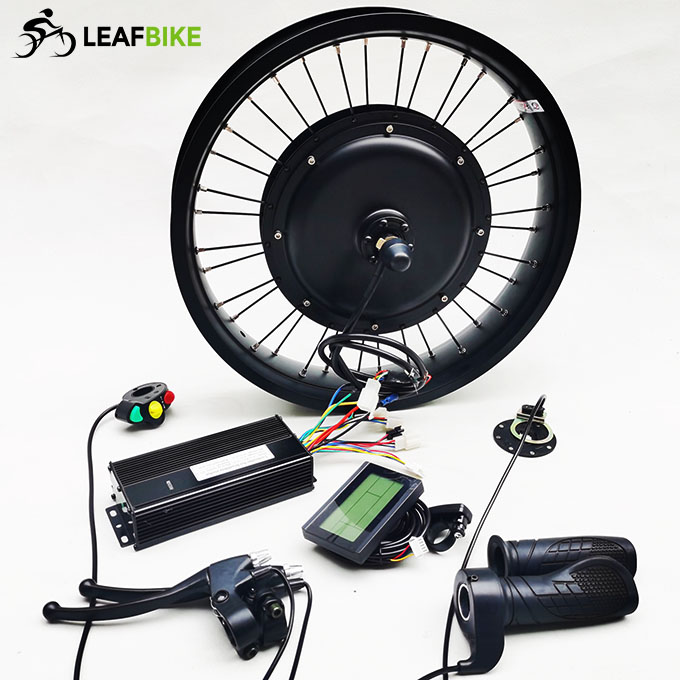

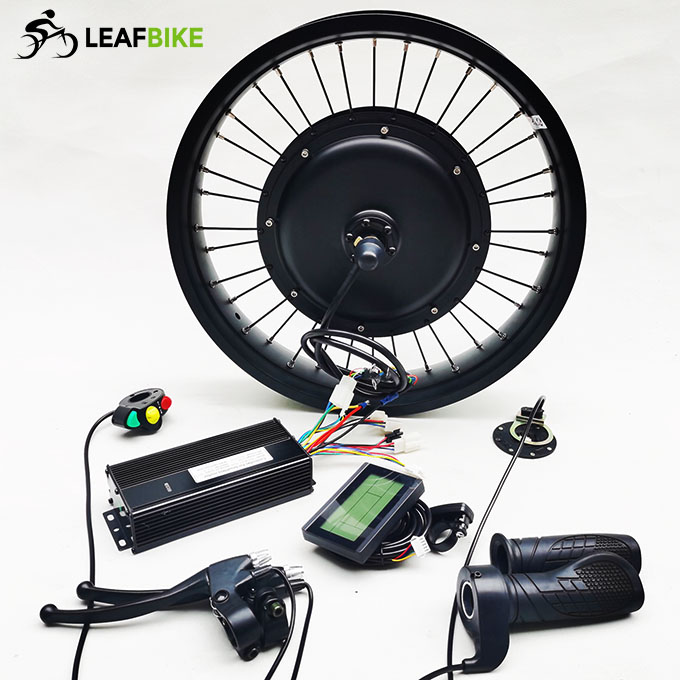

Package Content:

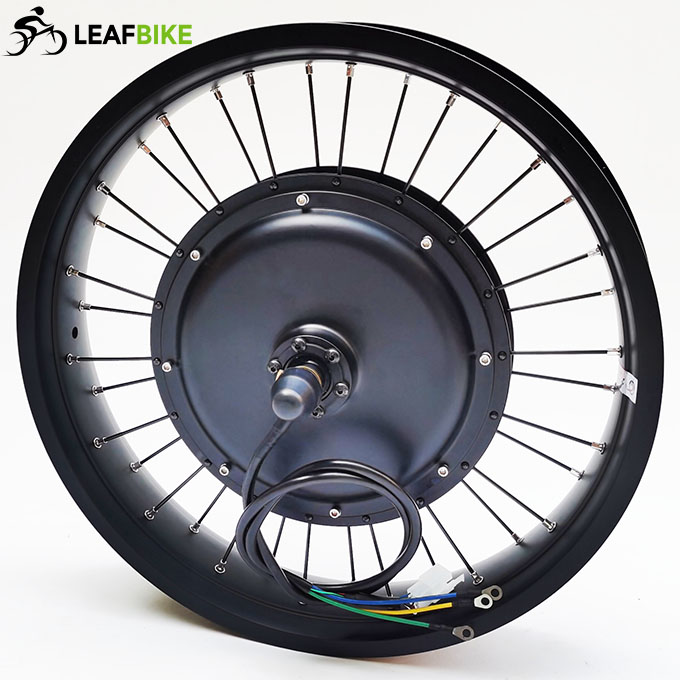

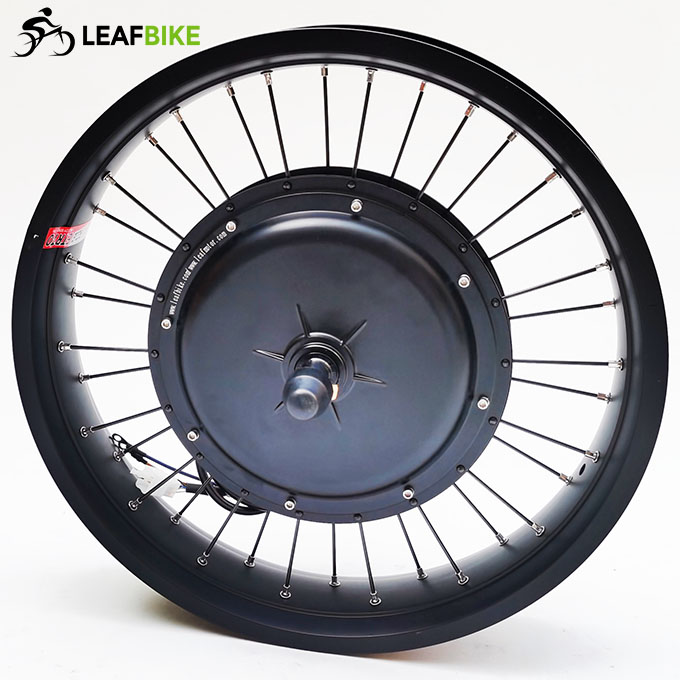

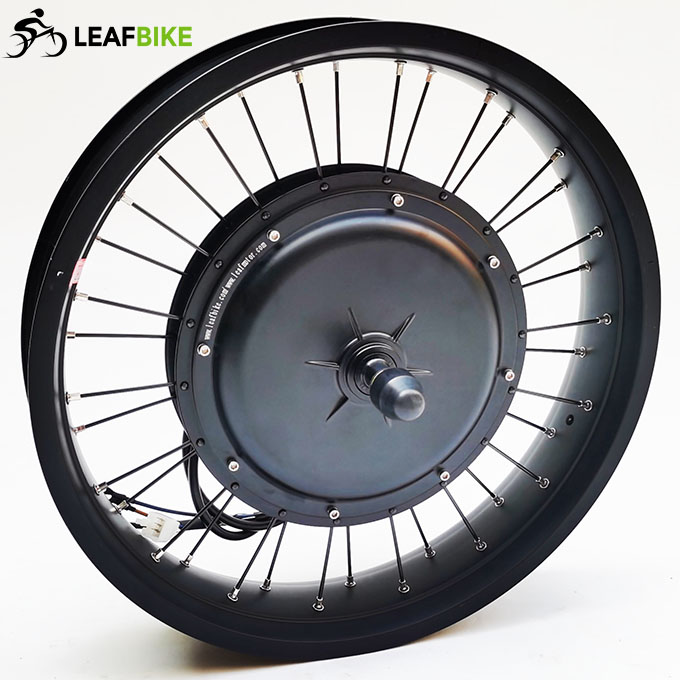

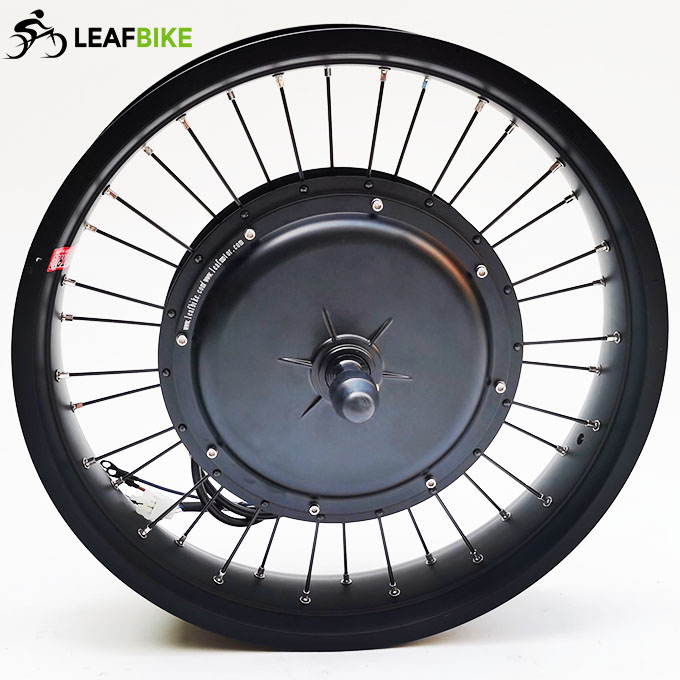

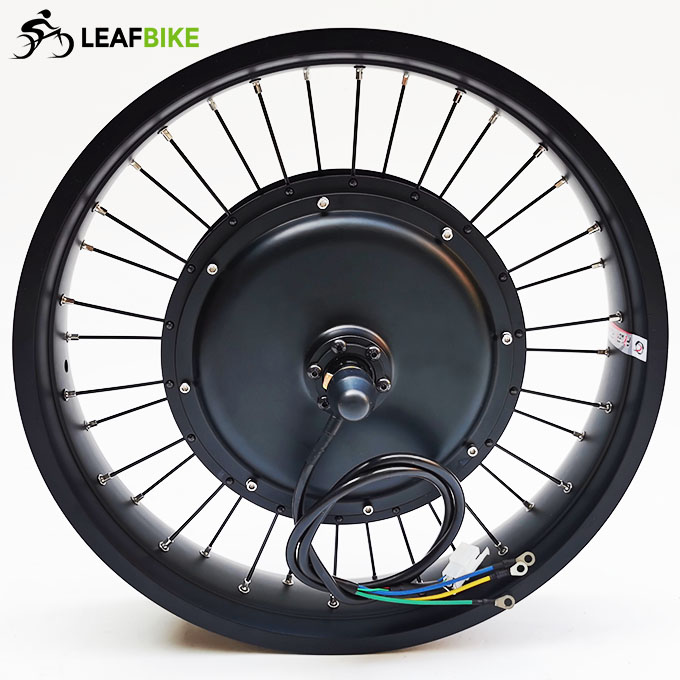

1 x 20 inch 48V 1500W front hub motor wheel - (Rim Fit For: 20 x 4.00 fat tire / snow / beach)
1 x 48V motor controller
1 x LCD
1 x Twist throttle -- Cable length: 1500mm
 1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise.. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 11 kg
Package Size: 50cm L x 50cm W x 25cm H
Package Type: Cardboard Box

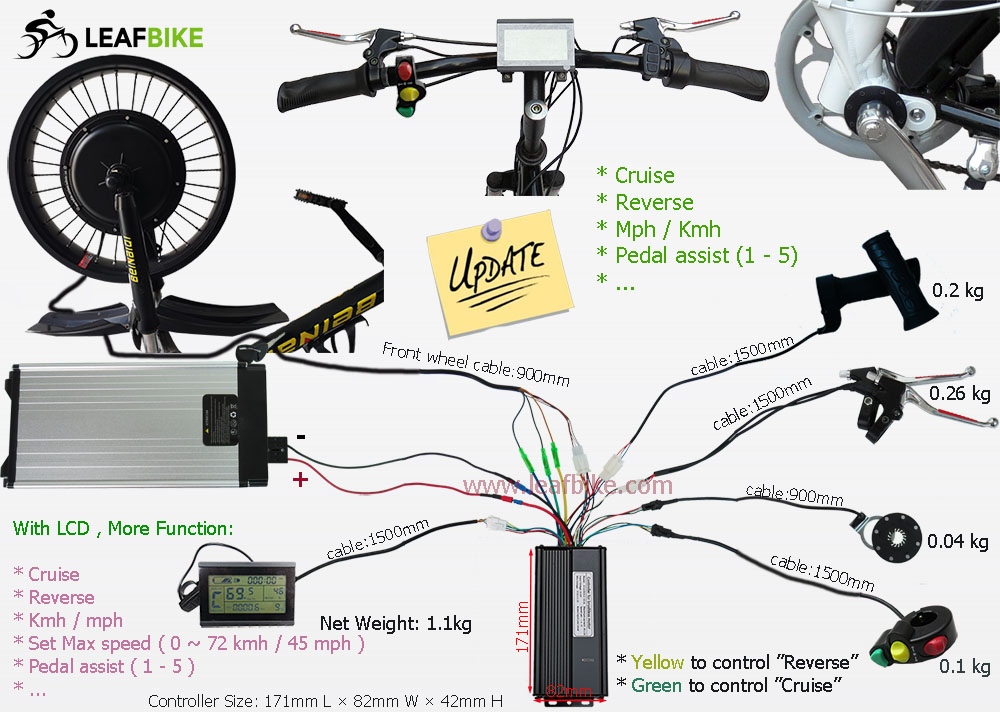

Wire Diagram:
20 inch 48V 1500W front fat hub motor electric bike conversion kit wire diagram

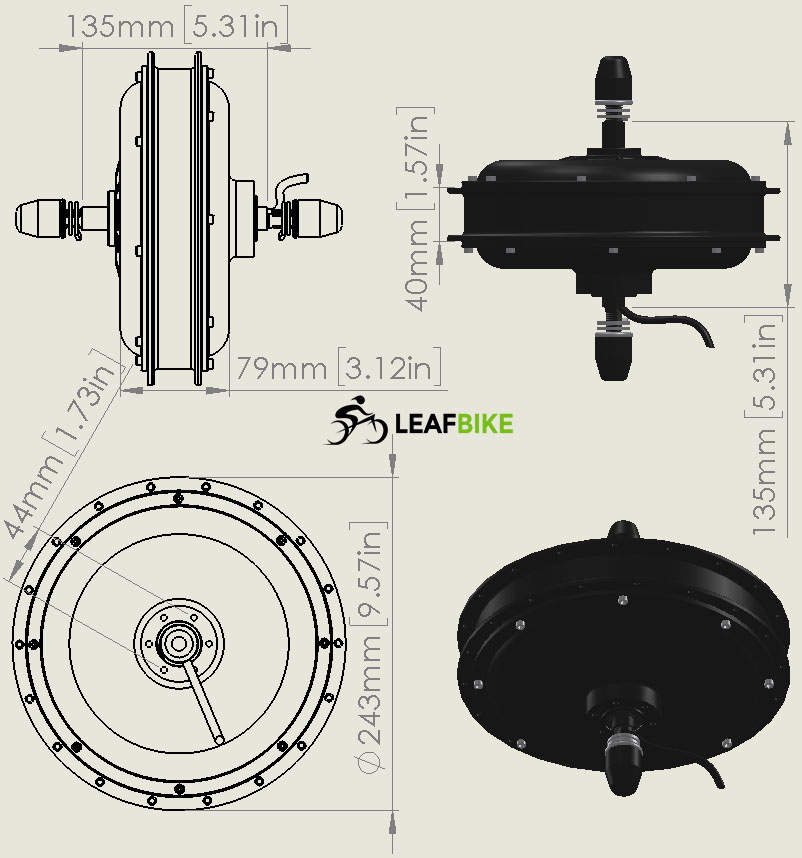

Fat Snow Front Drw.1500W front beach snow fat bike motor drawing
Performance Data:
