20 inch 36V 300W 500W 750W freewheel cassette beach snow fat bike hub motor conversion kit

Item ID #LBCK2036500RB
$363.00 $412.00
    Please select the information you wantX
  • Dropout :
    135 Front
    170 Freewheel
    190 Freewheel
    190 Cassette
  • Power :
    36V 300W
    36V 500W
    36V 750W
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description
Please watch videos for 20 inch 36V 300W 500W 750W freewheel Cassette beach snow fat bike hub motor conversion kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..
750W 170mm FW:
20 inch 36V 750W 170mm dropout freewheel beach snow fat bike gear hub motor conversion kit video

20 inch 36V 300W 500W 750W freewheel Cassette beach snow fat bike hub motor conversion kit combines the full E-bike technology: direct drive Brushless Gear high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Main Features:
>. Rim: 20 x 3.00 double wall Alloy (Rim Fit For: 20 × 4.00 tire)
>. Spoke: Black 12 gauge / 124 mm Length × 36 pcs


>. Engine: Hub Motor
>>. Voltage: 36V
>>. Power: 300 / 500 / 750W
>>. Efficiency: 90.5%
>>. Max speed: 26.2 kmh -- 16.2 mph Default (Optional other speed: 32 kmh, 45 kmh...)
>>. Mechanical brake: Disk or  V
>>. Cable location: shaft end, Right
>>. Cable length: 90cm / 35"
>>. Install: spacing of 135mm front fork
                  spacing of 170mm or 190mm rear fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 36 Volts
>>. Min. Voltage: DC 30 ± 0.5 V
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 105 mm L × 72 mm W × 38 mm H

LCD-830, More function:
* Cruise - Green switch to control
* Kmh & mph (Optional)
* Speeds ( 0 - 5 ) - "0" is off. "1" is the slowest. "5" is the fastest.
* Battery gauge
* ...

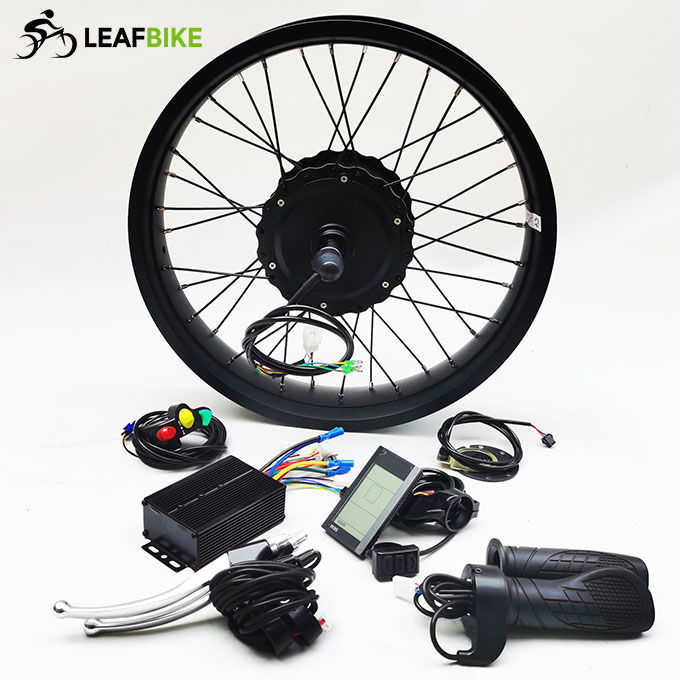

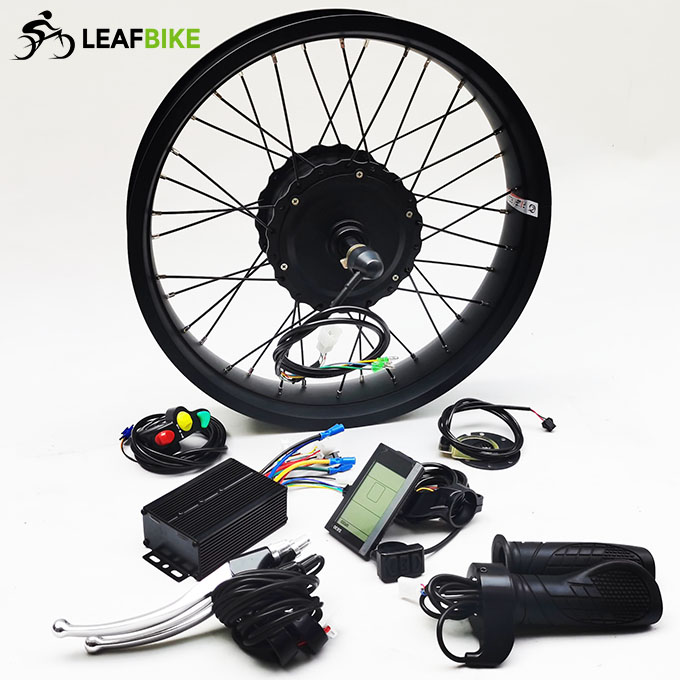

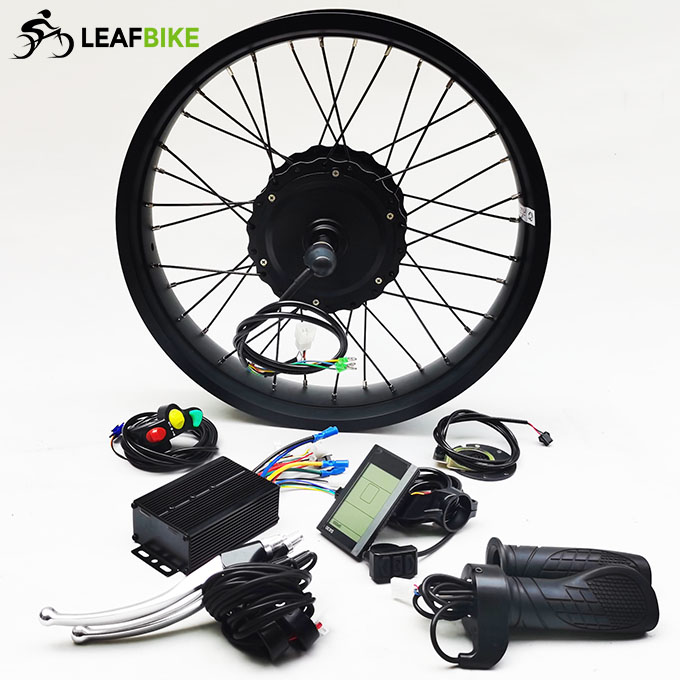

Package Content:

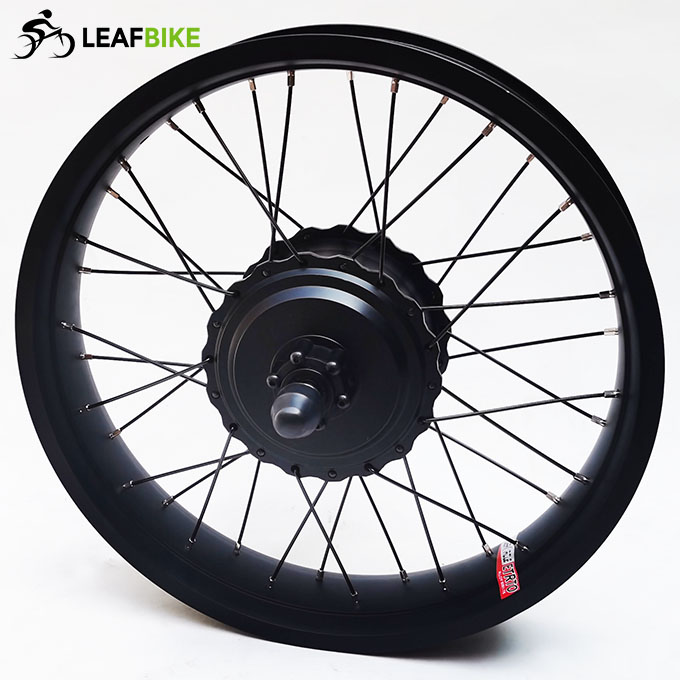

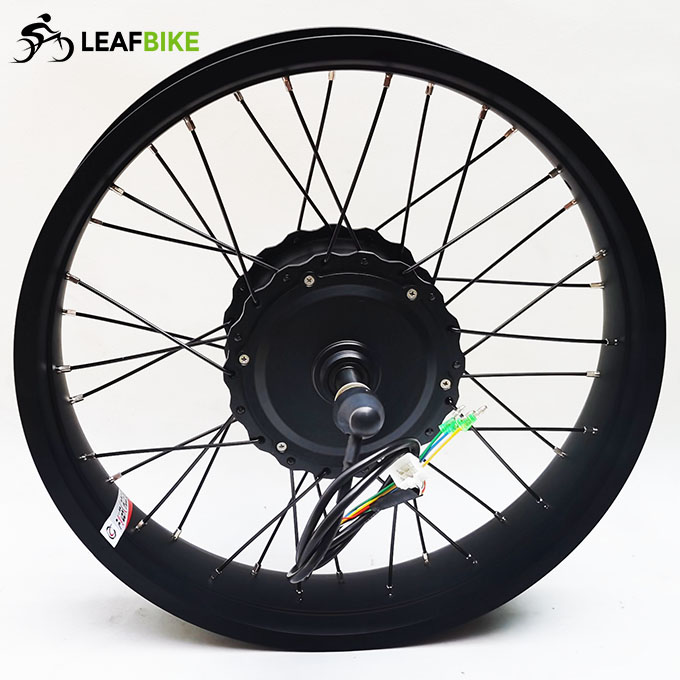

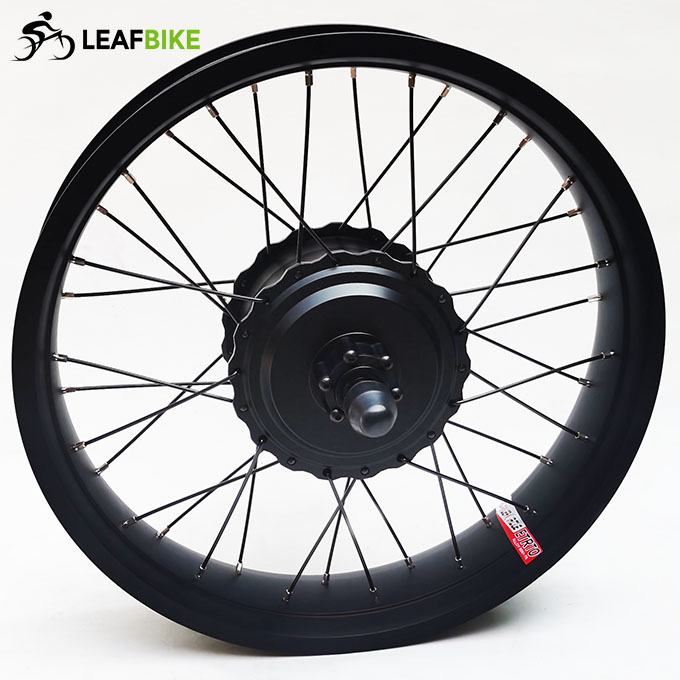

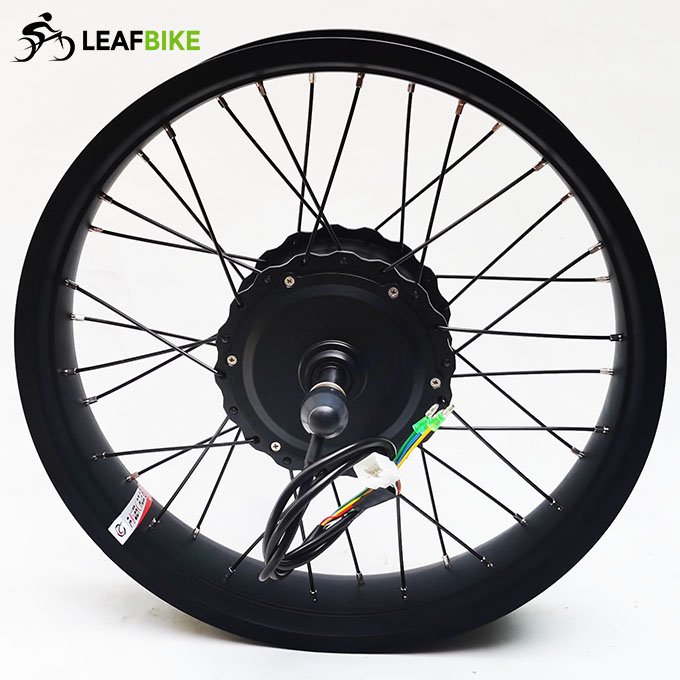

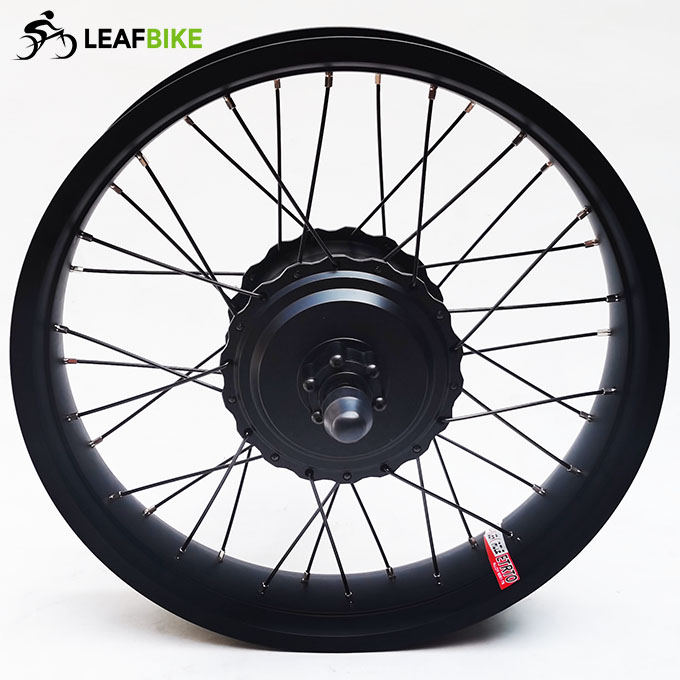

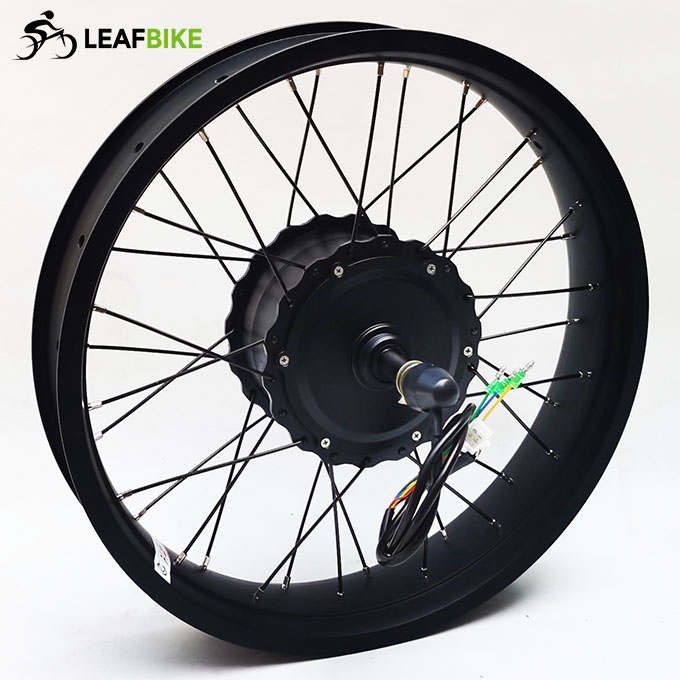

1 x 20 inch 36V 300W 500W 750W freewheel cassette beach snow fat bike hub motor wheel
1 x 36V 12-MOSFET motor controller
1 x LCD-830
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 9.3 kg
Package Size: 50cm L x 50cm W x 28cm H
Package Type: Cardboard Box
Wire Diagram:
20 inch 36V 300W 500W 750W freewheel cassette beach snow fat bike hub motor conversion kit wire diagram
135mm Front:
135mm front geared fat bike motor drawing
170mm Freewheel:
170mm freewheel geared fat bike motor drawing
190mm Freewheel:
190mm freewheel fat bike motor drawing
190mm Cassette:
190mm cassette fat bike motor drawing
