20 inch 60V 2000W single side shaft motor fat bike conversion kit

Item ID #LBCK20602000BSFSK
$465.00 $514.00
    Please select the information you wantX
  • Driven Way :
    Left Drive
    Right Drive

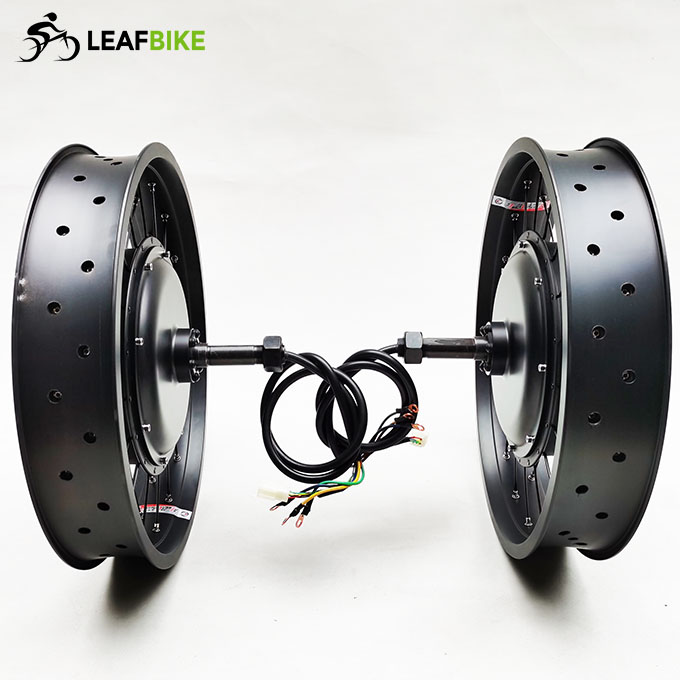

    Double Drive
    Please select the information you wantX
Quantity :
Maybe You Need These
Maybe You Need These
Please watch video for 20 inch 60V 2000W single side shaft motor fat bike conversion kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 15kmh, 32kmh, 45kmh ..
Share Video:
20 inch 60V 2000W beach snow fat tire single side shaft motor kit video

* This 20 inch 60V 2000W single side shaft motor fat bike conversion kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:

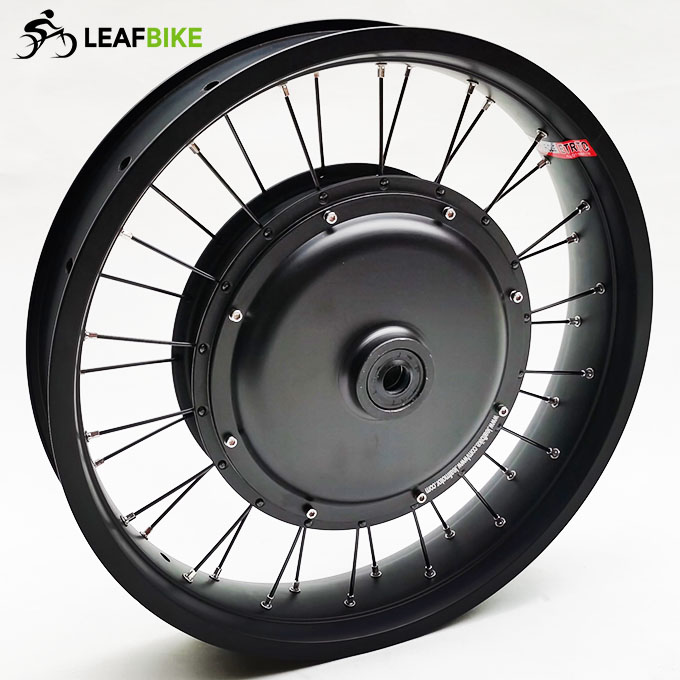

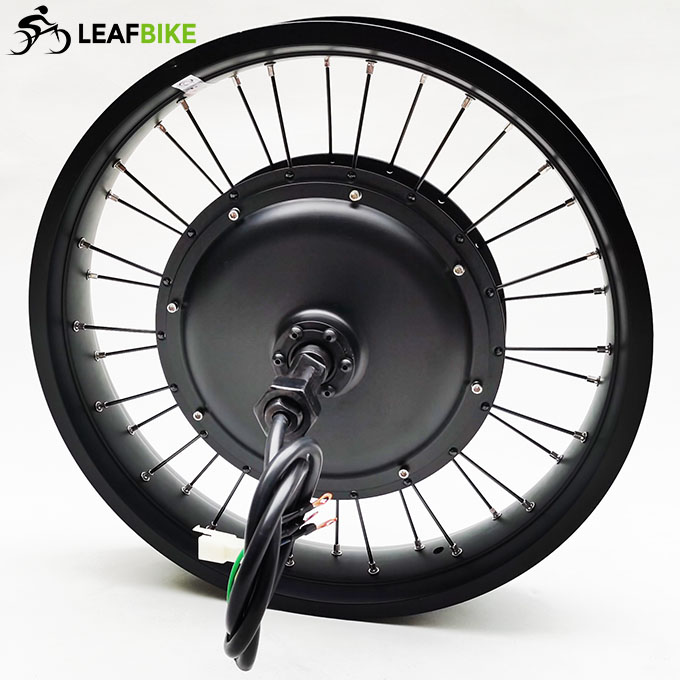

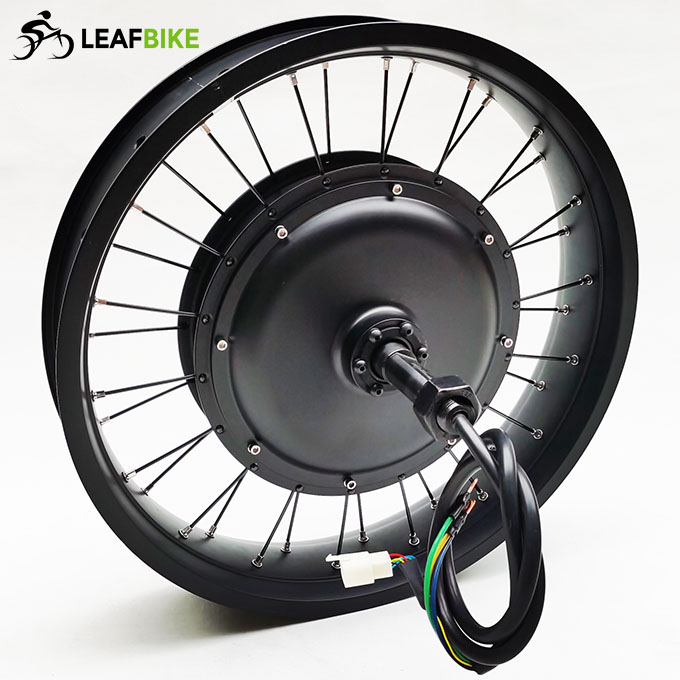

>. Rim: 20 × 3 inch double wall Alloy (Rim Fit For: 20 × 4.00" tire)
>. Spoke: 12 gauge / 72mm Length × 36 pcs

>. Engine : Bldc hub motor
>>. Voltage: 60V
>>.  Power: 2000W
>>.  Efficiency: 90.5%
>>.  Max speed: 25kmh
>>.  Mechanical brake: Disk

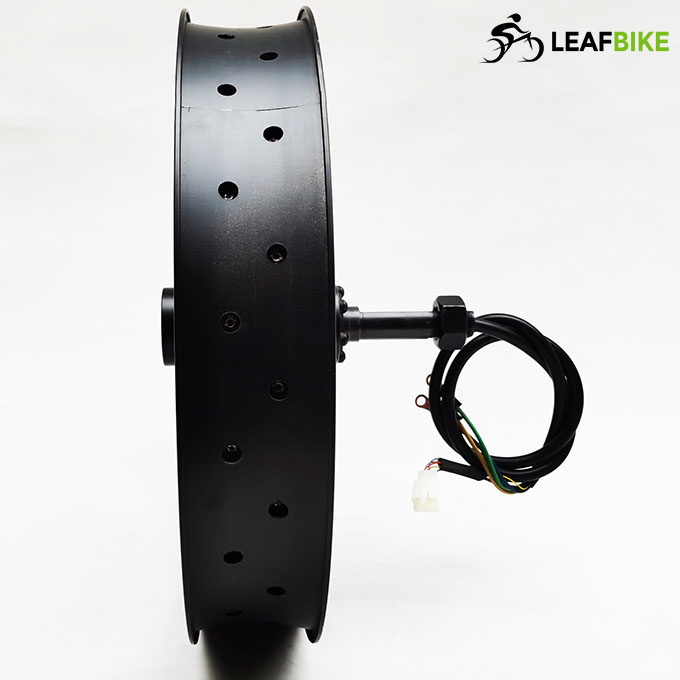

>>.  Cable location: shaft end
>>.  Cable length:100cm / 40"
>>.  Noise: < 60 db
>>.  Surface: Black painted

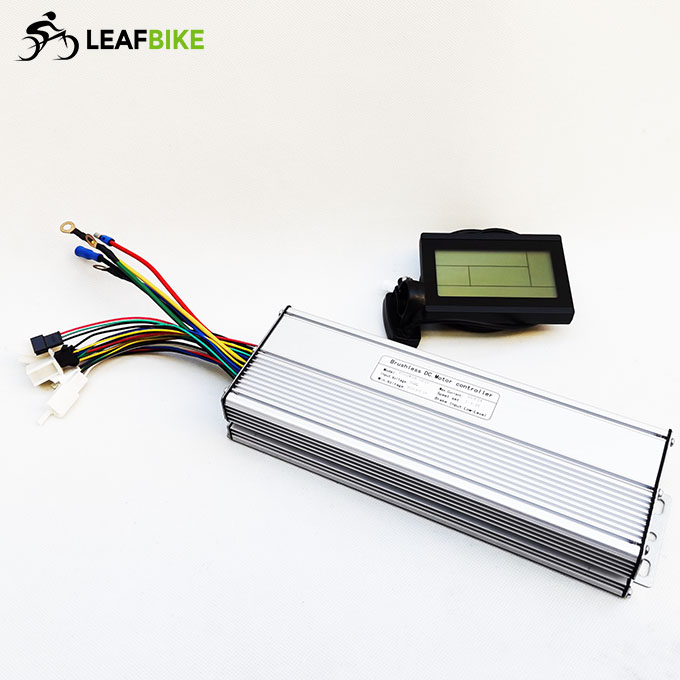

>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 60 Volts
>>. Min. Voltage: DC 50 ± 0.5 V
>>.  Rated power: 2000 Watts
>>.  Casing material: aluminium
>>.  Maximum Current: 55 A ± 2 Amps
>>.  Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 234 mm L × 82 mm W × 42 mm H

With LCD-003, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Set Max speed ( 0 ~ 72 kmh )
* Pedal assist ( 0 - 5 )
* Battery gauge
* ...

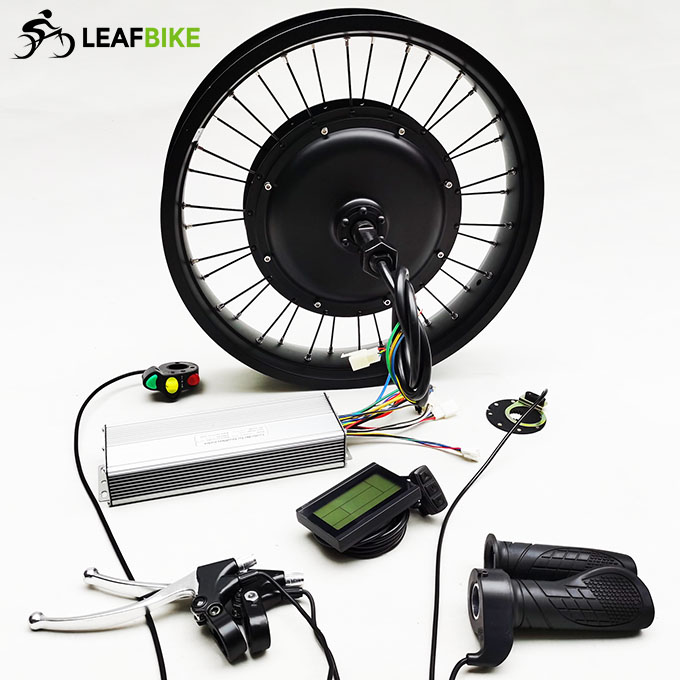

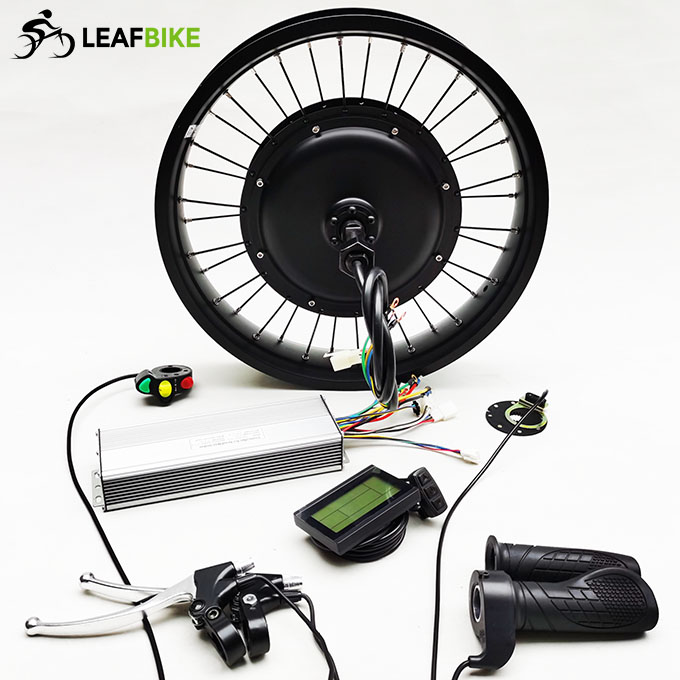

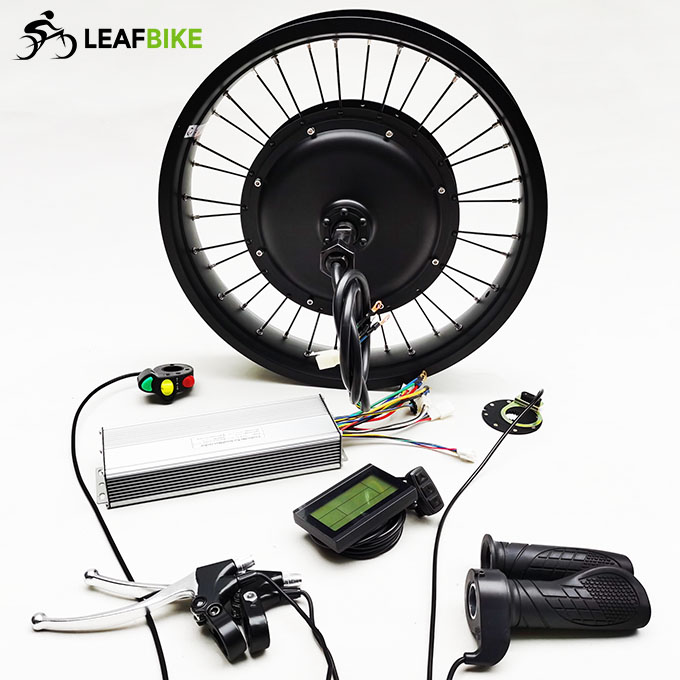

Package Content:

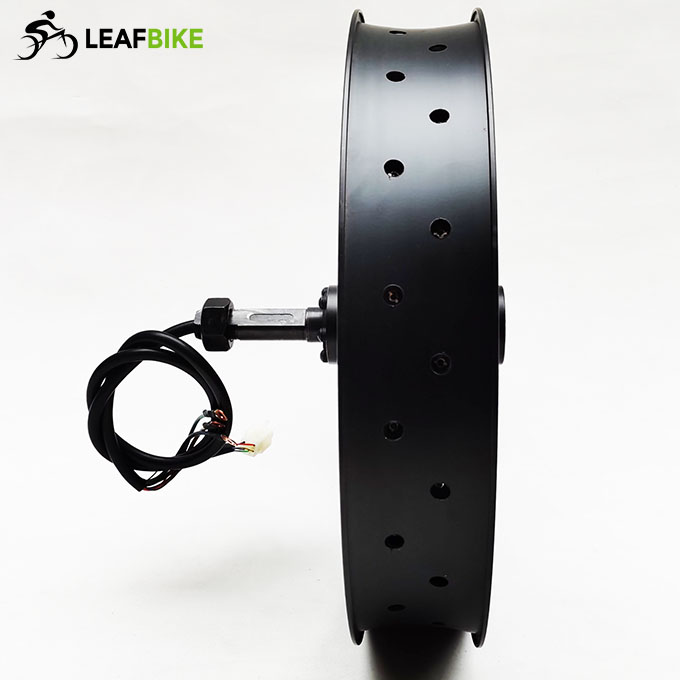

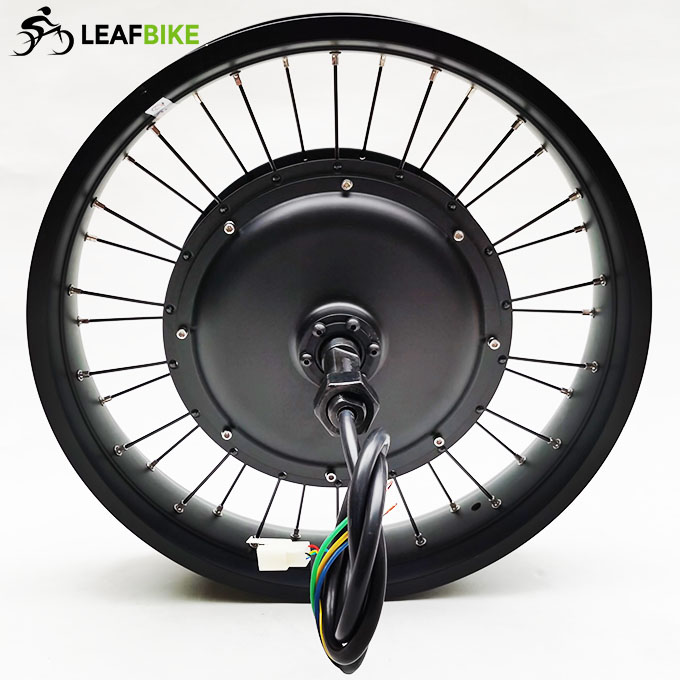

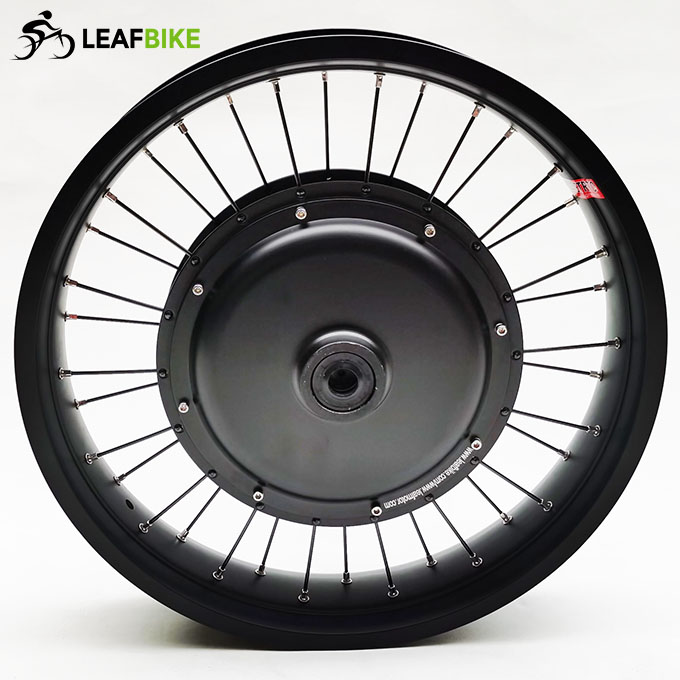

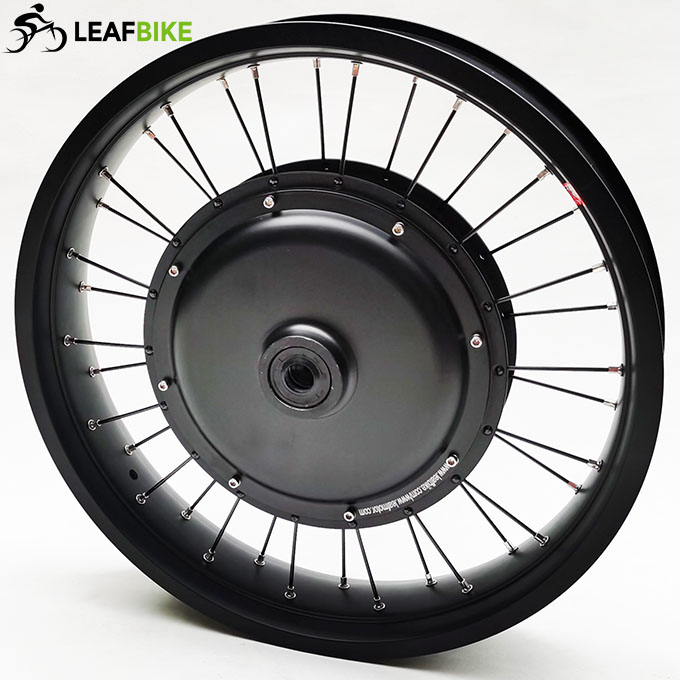

1 x 20 inch 60V 2000W single side shaft motor fat wheel
1 x 60V motor controller
1 x LCD-003
1 x Twist throttle -- Cable length: 1500mm
 1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 11.3 kg
Package Size: 50cm L x 50cm W x 27cm H
Package Type: Cardboard Box

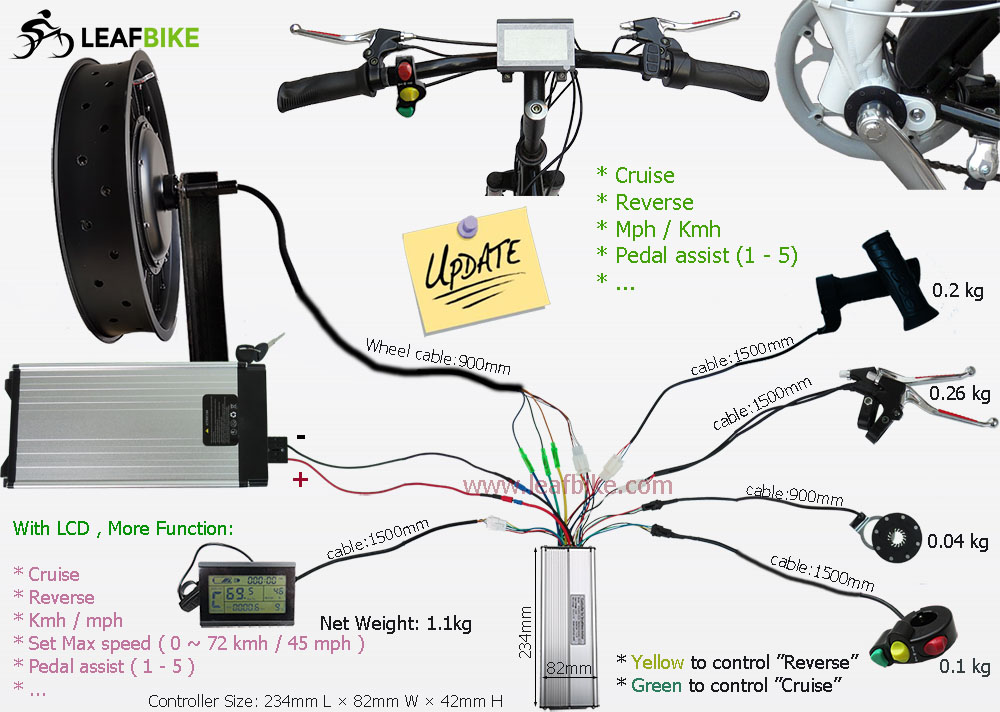

Wire Diagram:
20 inch 60V 2000W single side shaft motor fat bike conversion kit drawing
Single Shaft Motor Drw.2000w single shaft motor drawing
