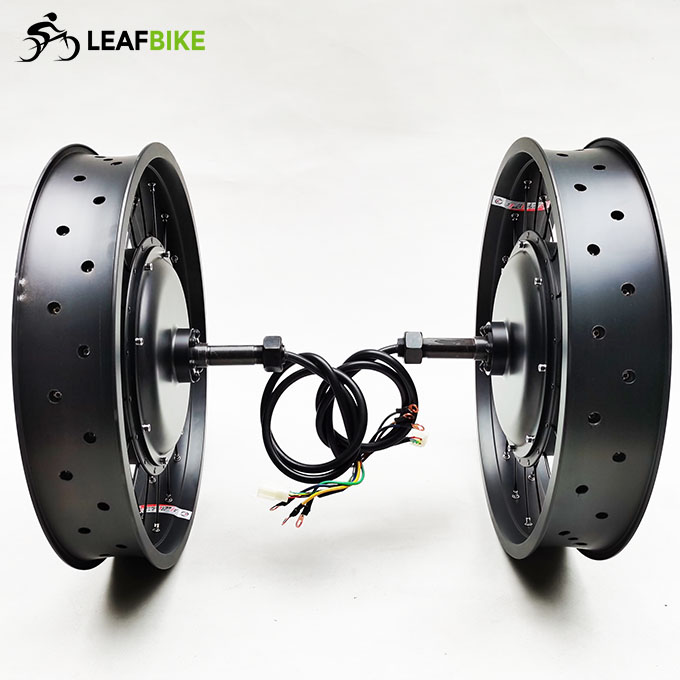

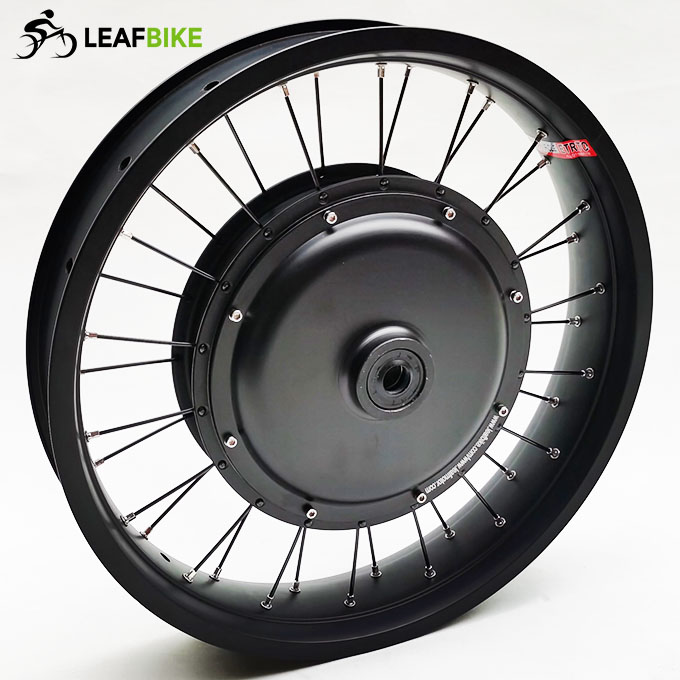

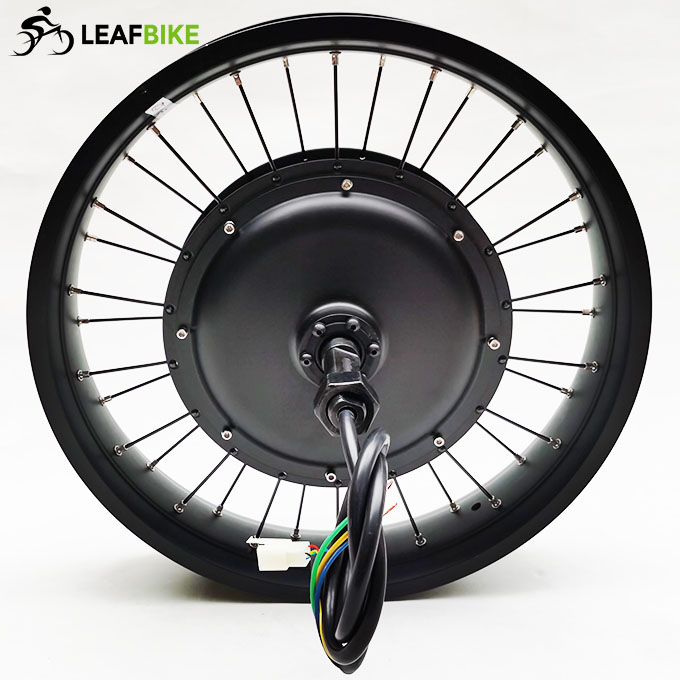

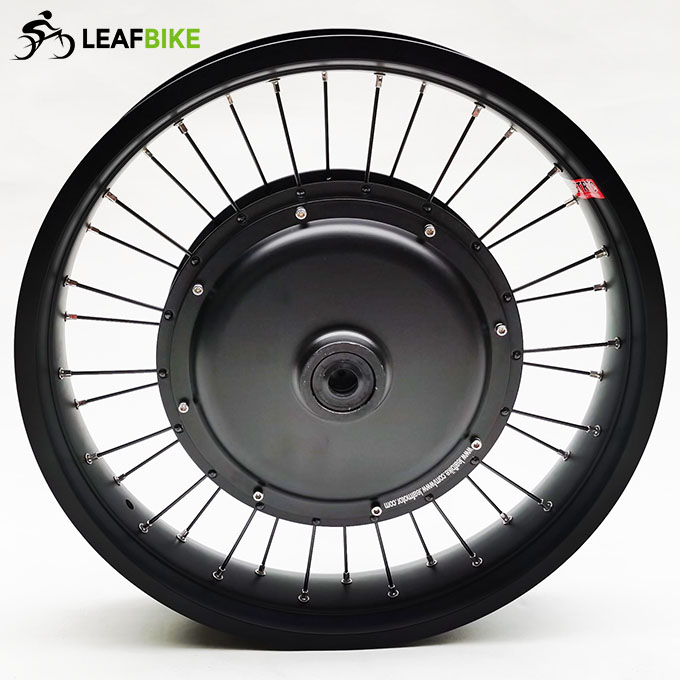

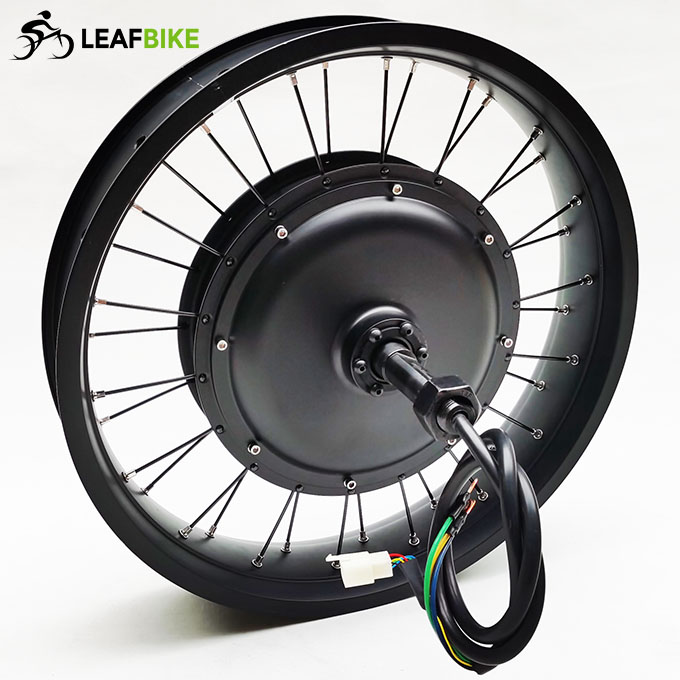

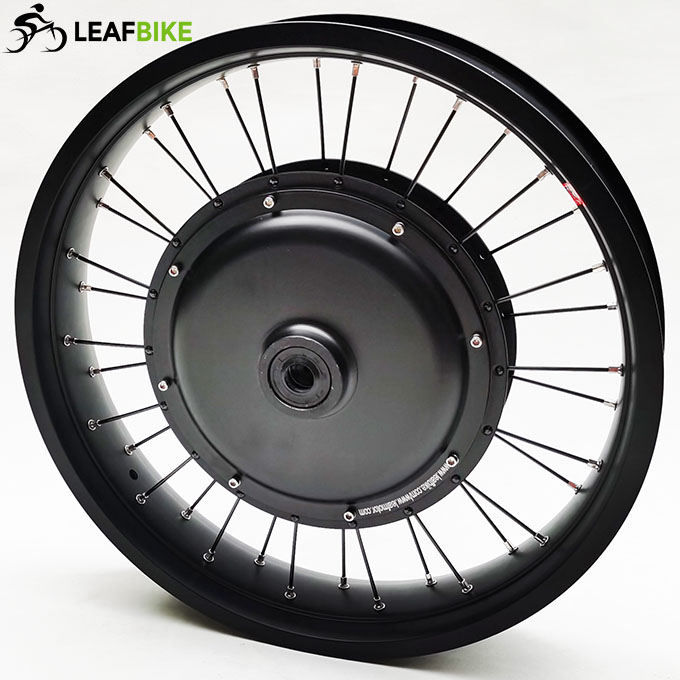

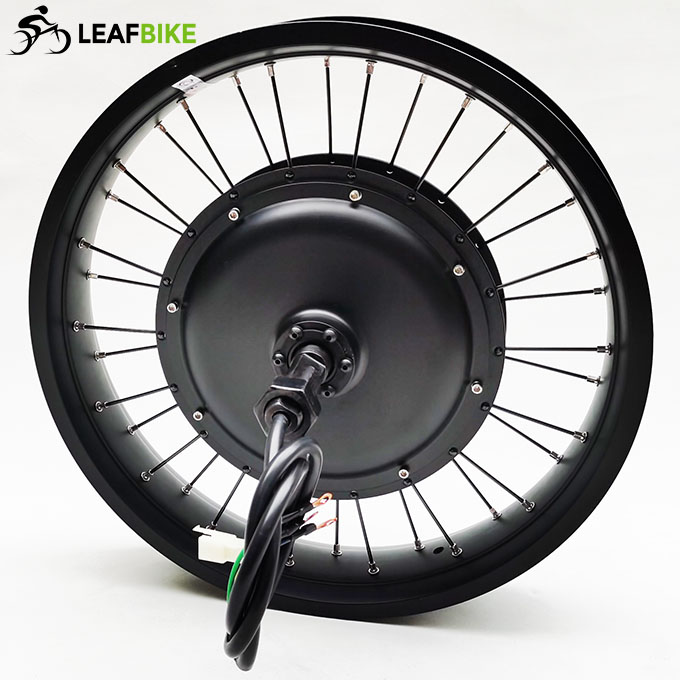

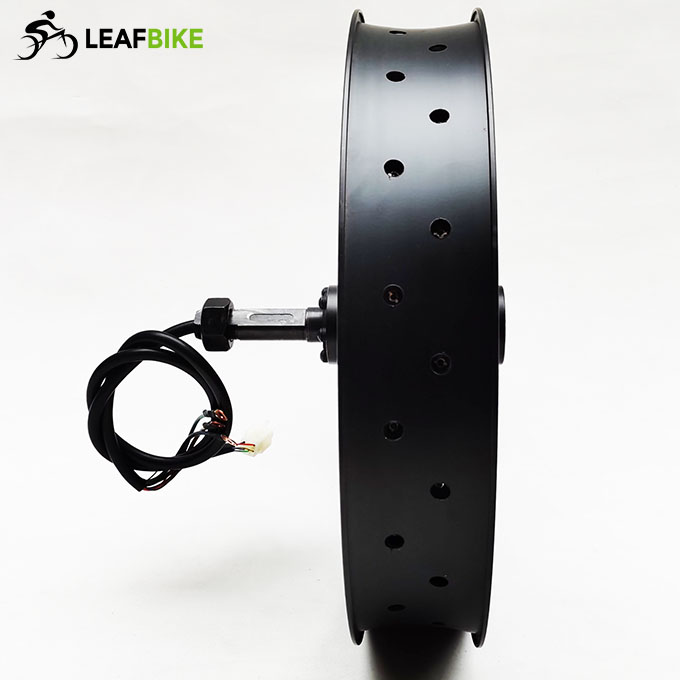

20 inch 48V 52V 2000W beach snow fat tire single side shaft motor kit

Item ID #LBCK20482000BSFS
$475.00 $524.00
    Please select the information you wantX
  • Driven Way :
    Left Drive
    Right Drive
    Double Drive
  • LCD :
    S830
    SW900

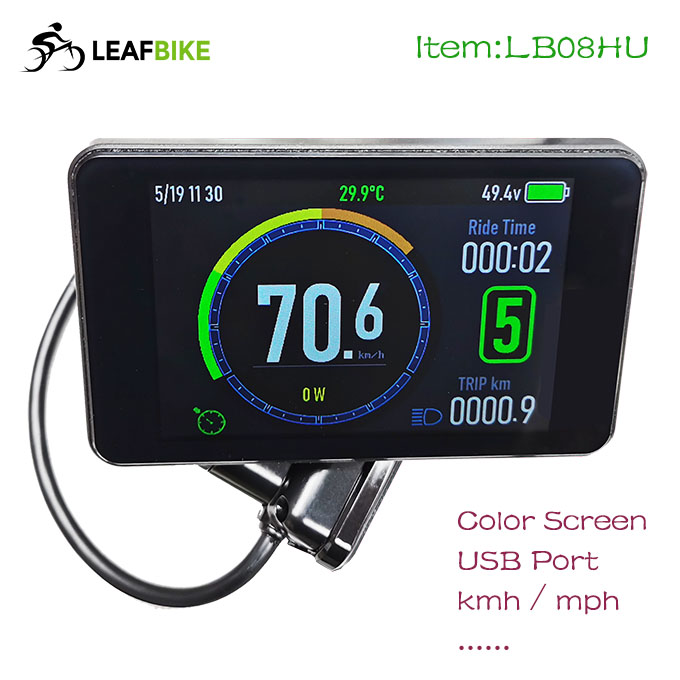

    08HU
    08SU
    Please select the information you wantX
Quantity :
-
+
CONTACT US
Maybe You Need These
Maybe You Need These
Description
The single shaft motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun. Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.
This 20 inch single shaft motor kit can work with a 48V or 52V battery.

Main Features:
>. Rim: 20 x 3 inch double wall Alloy (Rim Fit For: 20 x 4.00" tire)
>. Spoke: 12 gauge / 72mm Length x 36 pcs

>. Engine: Bldc hub motor
>>. Voltage: 48V / 52V
>>. Power: 2000W
>>. Efficiency: 90.5%
>>. Max speed: 40 mph (Can make other lower speed)
>>. Mechanical brake: Disc
>>. Cable location: shaft end
>>. Cable length: 100cm / 40"
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 2000 Watts
>>. Casing material: aluminium
>>. Maximum Current: 40 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155 mm L x 72 mm W x 38 mm H

With LCD, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Speeds ( 0 - 5 ) - "0" is off. "1" is the slowest. "5" is the fastest.
* Battery gauge
* ..

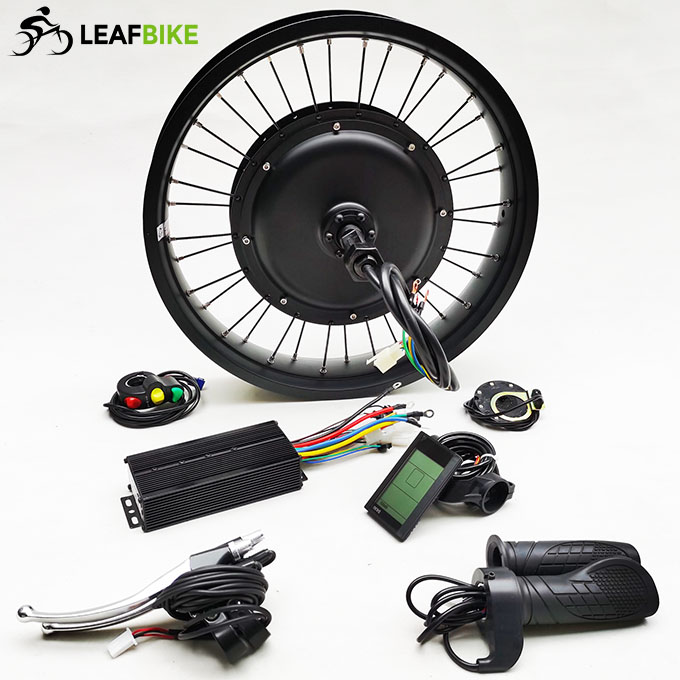

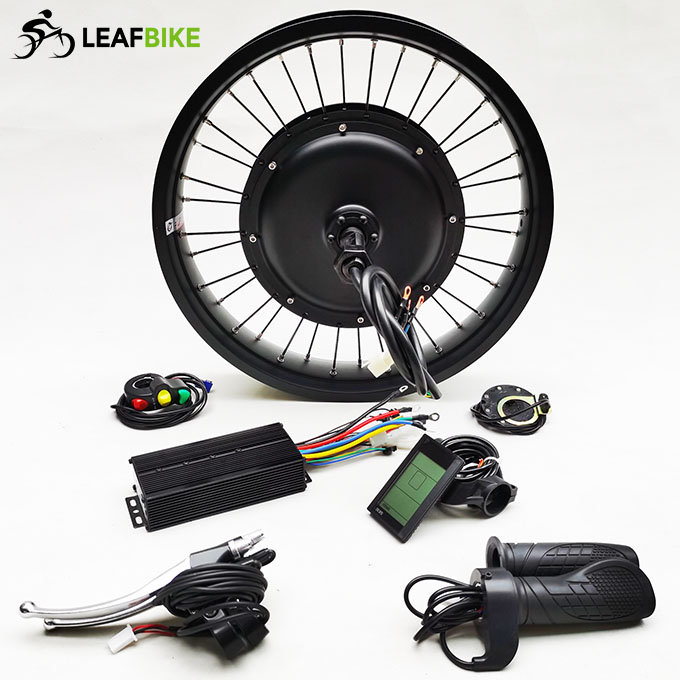

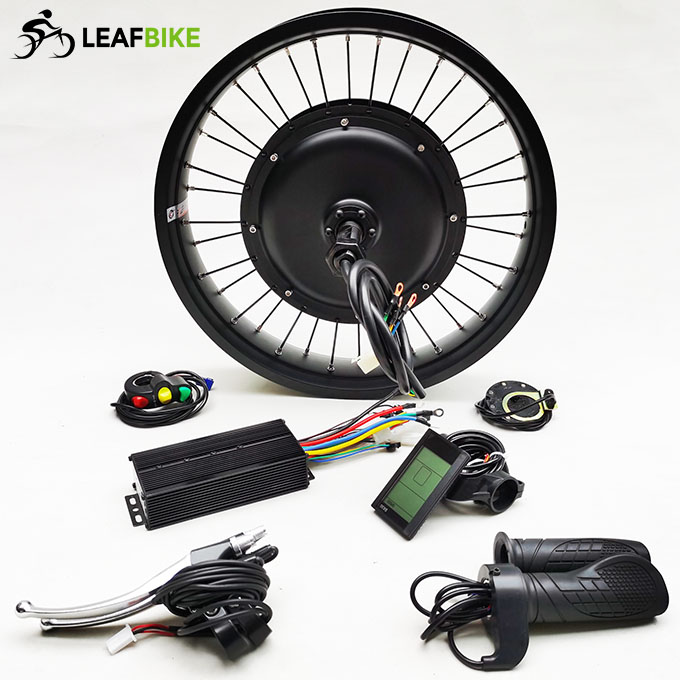

Package Content:
1 x 20 inch 48V 52V 2000W beach snow fat tire single side shaft motor wheel
1 x 48V 52V 18-MOSFET motor controller
1 x LCD
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, reverse.. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 12 kg
Package Size: 48cm L x 48cm W x 27cm H
Package Type: Cardboard Box
Wire Diagram:
20 inch 48V 2000W beach snow fat tire single side shaft motor kit wire diagram
Single Shaft Motor Drw.2000w single shaft motor drawing
