| * Nominal Voltage (V): :: | 24 |
| * Nominal Capacity (Ah): | 10 |
| * Source Resistance (mΩ): | 40 |
| * Cell Combination: | 5-parallels |
| 7-series | |
| *Cell Quantity (parallel*series): ) | 35 |
| * Discharge Cut off Voltage (V): | 20 |
| * Charge Cut off Voltage (V): | 29.4 |
| * Max Discharge Current (A): | 20 |
| * Max Continuous Discharge Current (A): | 10 |
| * Charge Mode: | CC-CV |
| * Standard Charge Current (A): | 2 |
| * Charge Time under Standard Charge Current | 5 hours |
| * Charge Temperature Range: | -20-55? |
| * Discharge Temperature Range: | -20-55? |
| * Charging Cycles: | >1000 times |

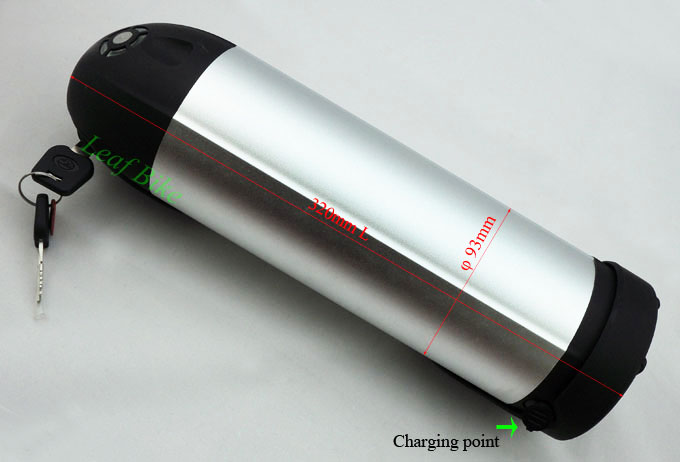

| * Dimensions: | 320mm L × φ93 mm C |
| * Battery Net Weight: | 2.7 kgs ~ |
| * Battery Gross Weight(with all parts and package): | 3.95 kgs ~ |
