The 19 inch motorcycle kit combines the full E-motorcycle technology: direct drive Brushless Gearless high torque hub motor to change almost every motorcycle into a personal electric motorcycle. Save energy, protect environment and save money with a lot of fun. Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.
This 19 inch motorcycle motor kit works with a 48V battery.
Main Features:

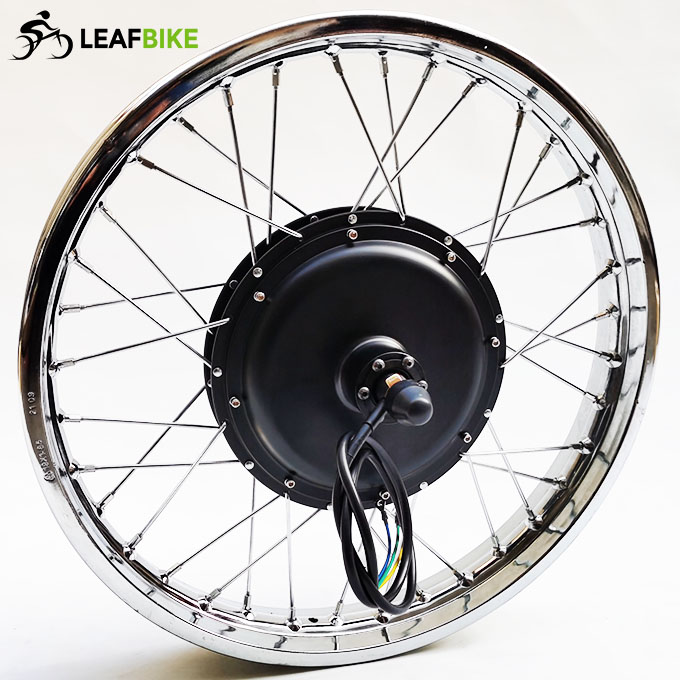

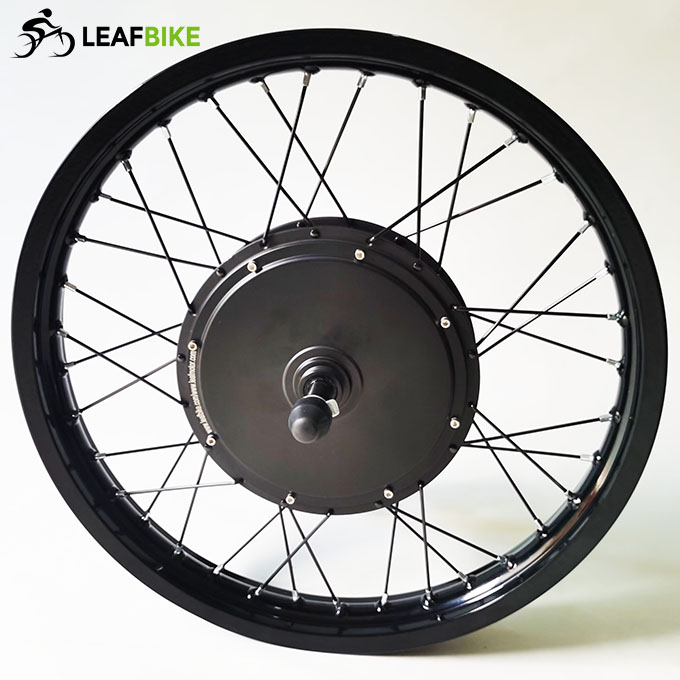

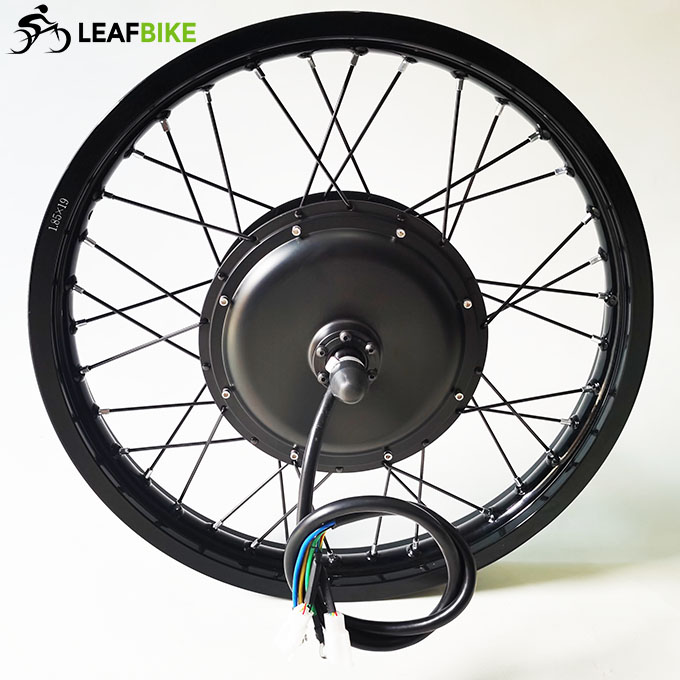

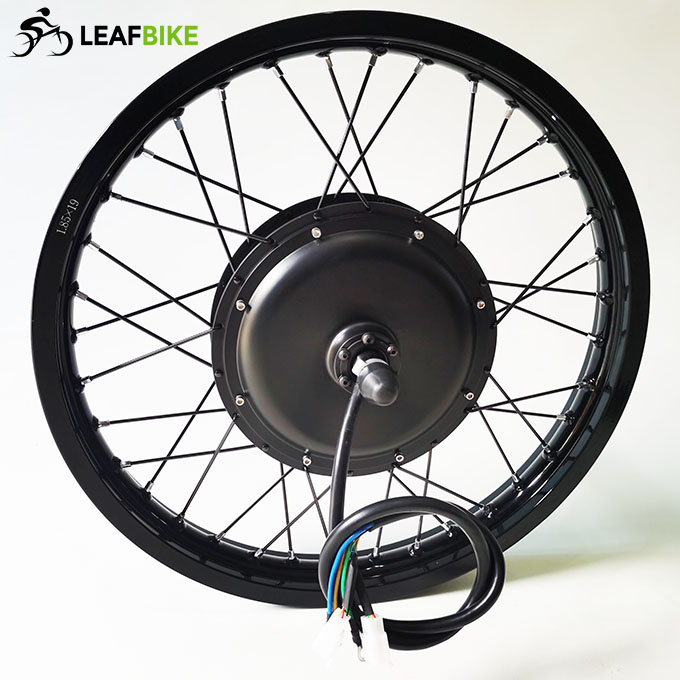

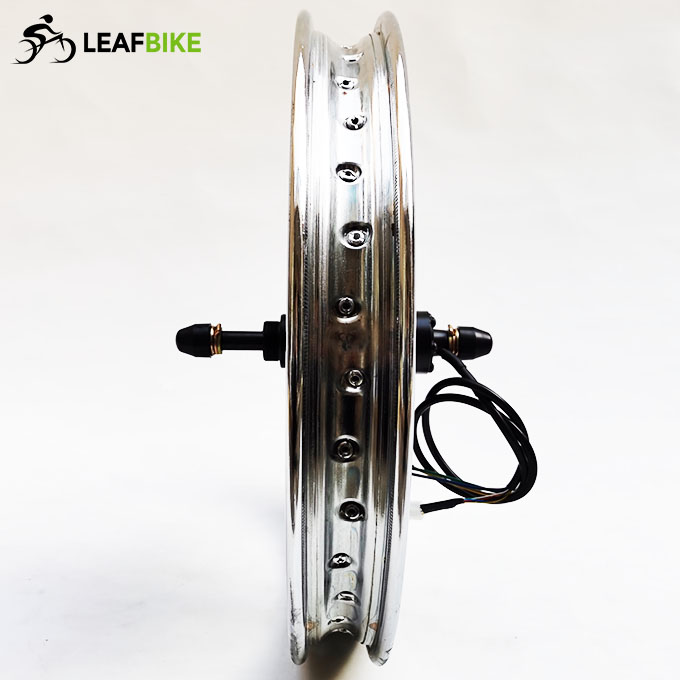

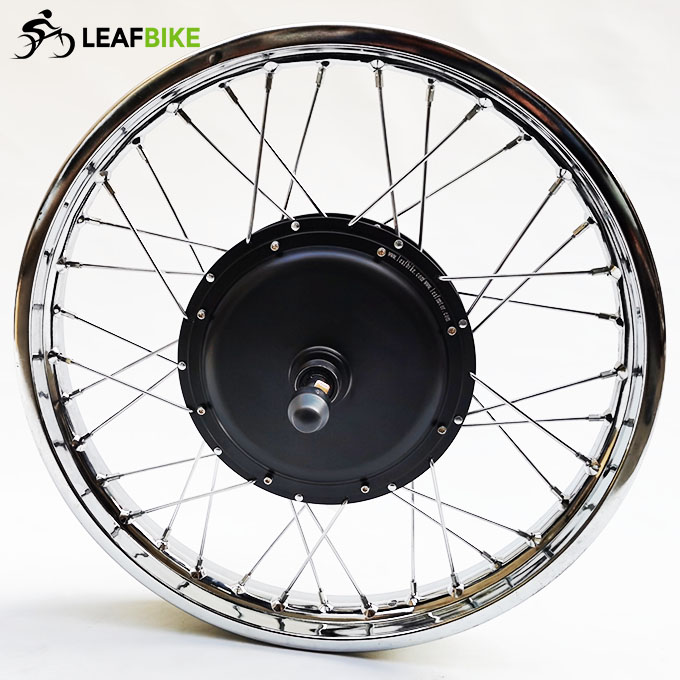

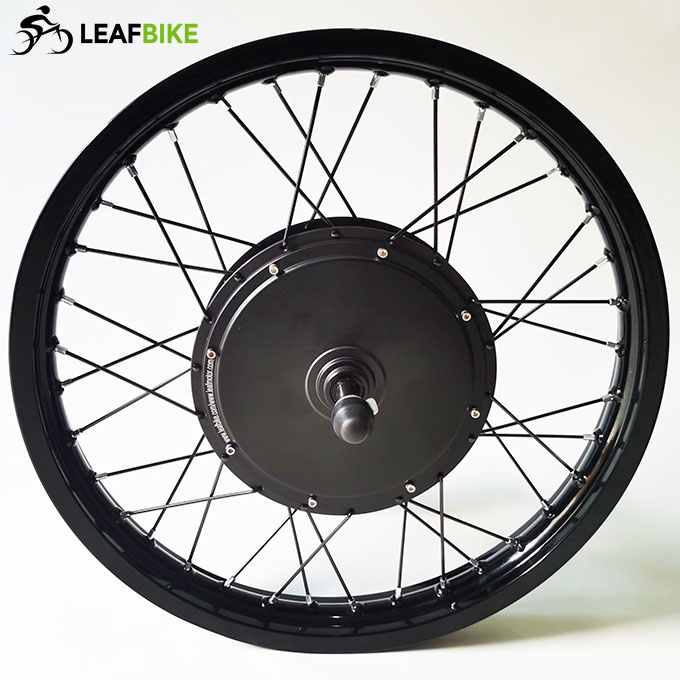

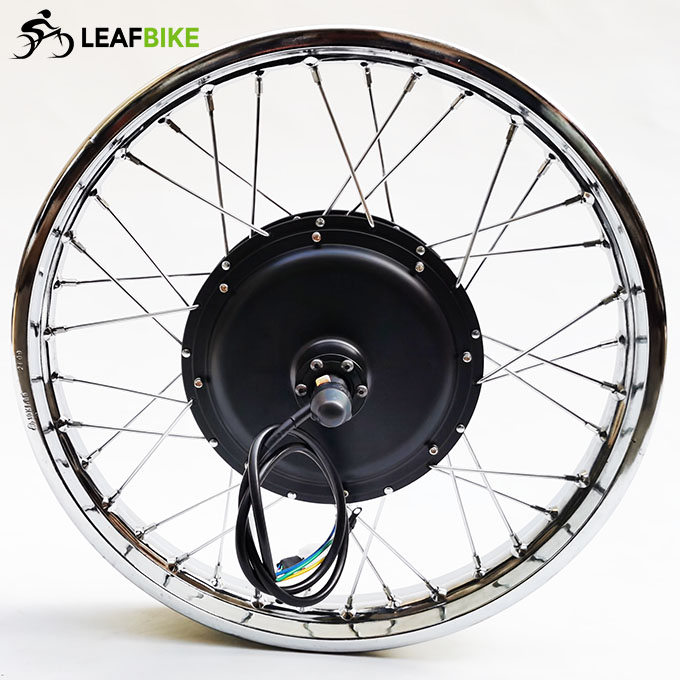

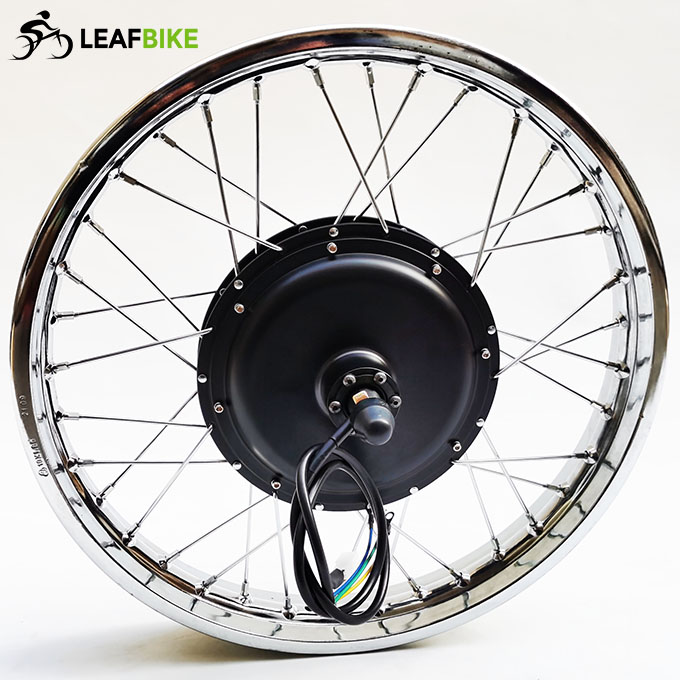

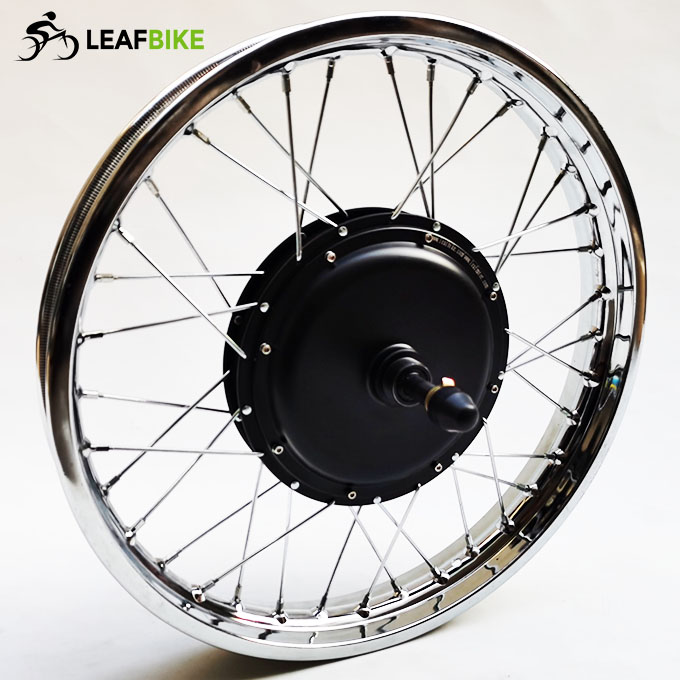

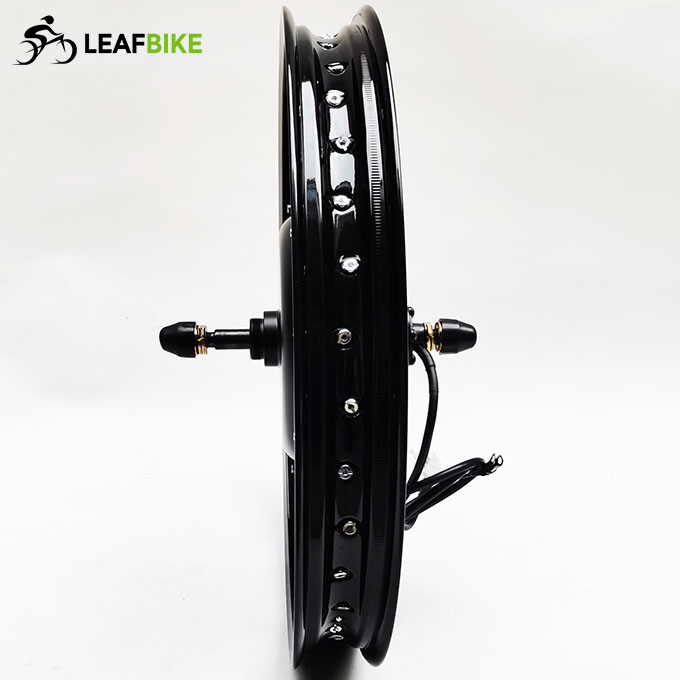

>. Wheel: 1.85 × 19" Black Aluminum Wheel or Chrome Steel Wheel
>. Spoke: 128mm 10 gauge × 36 pcs
>. Engine: Bldc hub motor
>>. Voltage: 48V
>>. Power: 2000W
>>. Efficiency: 90.5%
>>. Max speed: 73.3 kmh - 45.5 mph Default (Optional other speed: 30mph or 25mph,15mph...)
>>. Mechanical brake: Disk or V
>>. Freewheel: Single speed
>>. Cable location: shaft end, Left
>>. Cable length: 100cm / 40"
>>. Rear frame fork / Install: spacing of 190mm or 170mm
>>. Noise: < 60 db
>>. Surface: Black painted
>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 2000 Watts
>>. Casing material: aluminium
>>. Maximum Current: 55 A ± 2 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 234 mm L × 82 mm W × 42 mm H
With LCD, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Pedal assist ( 0 - 5 )
* Battery gauge
* ...

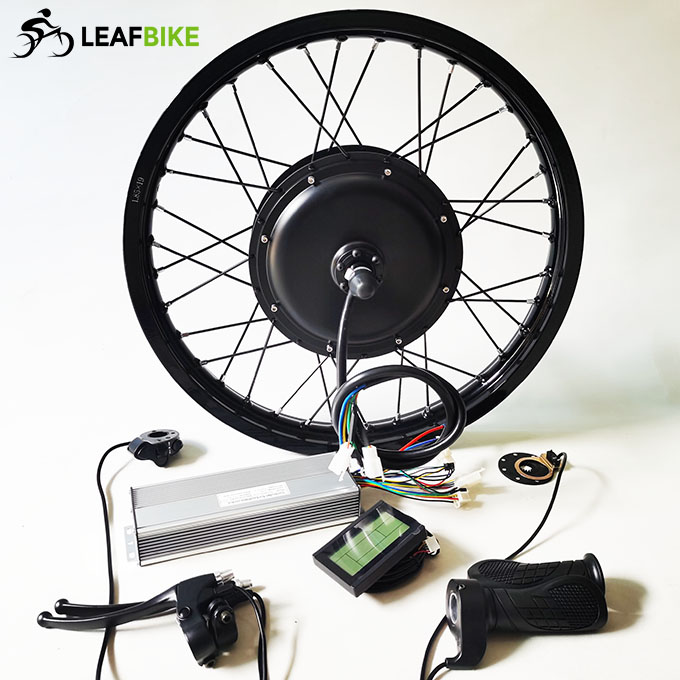

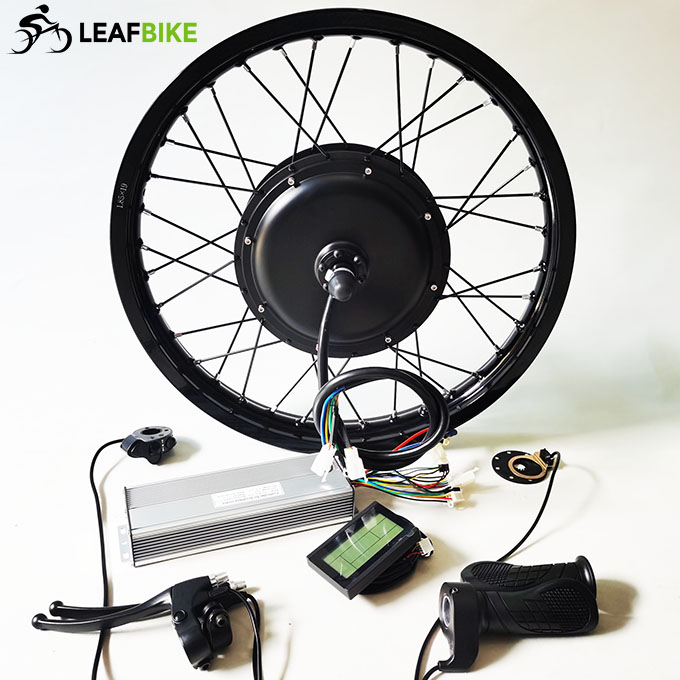

Package Content:
1 x 1.85 - 19 inch 48V 2000W rear electric motorcycle motor wheel
1 x 48V 52V 18-MOSFET motor controller
1 x LCD
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise.. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm
Net Weight: 13.8 kg
Package Size: 54cm L x 54cm W x 27cm H
Package Type: Cardboard Box
170mm Drw.
Wire Diagram:
190mm dropout Drw.
