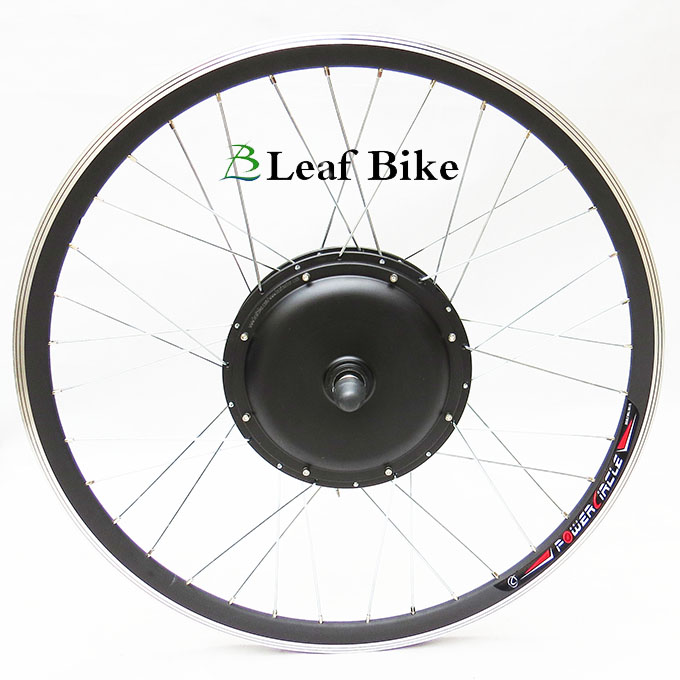

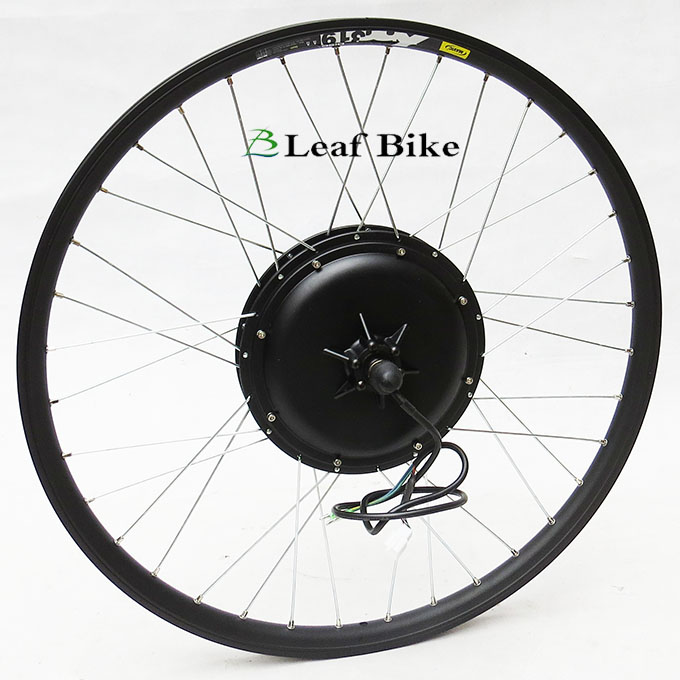

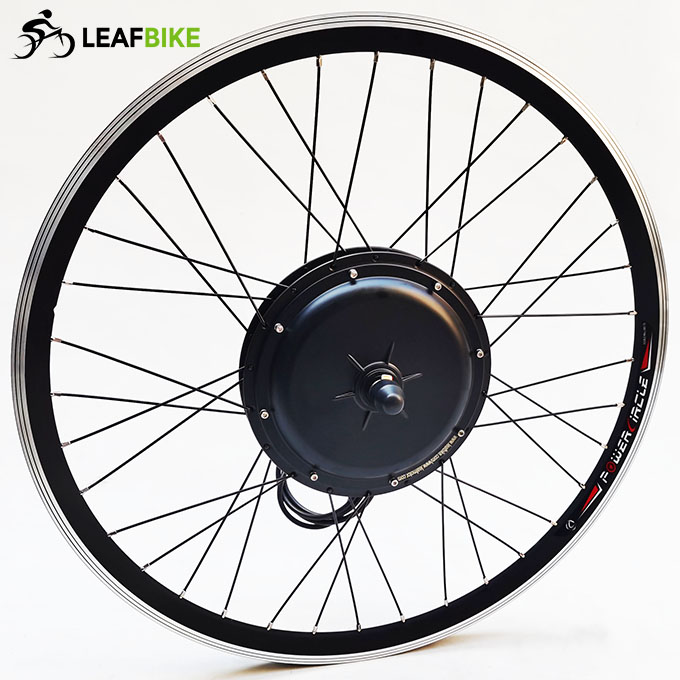

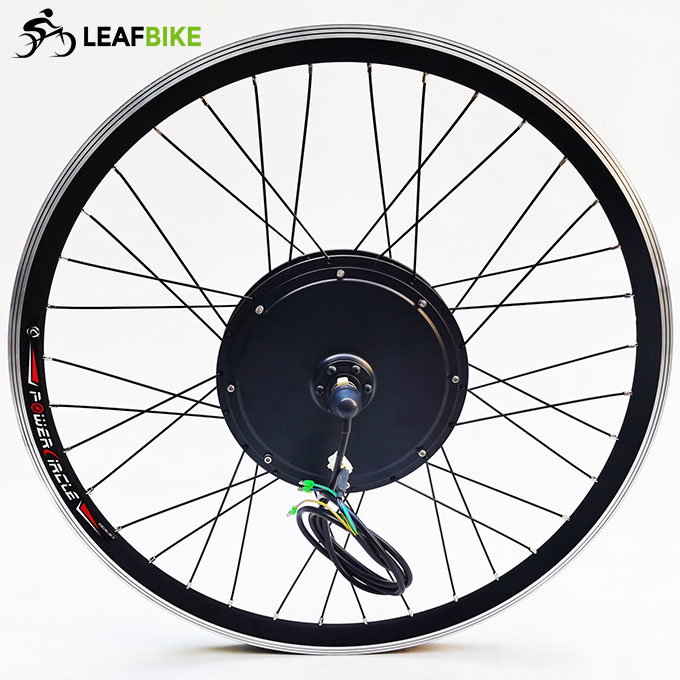

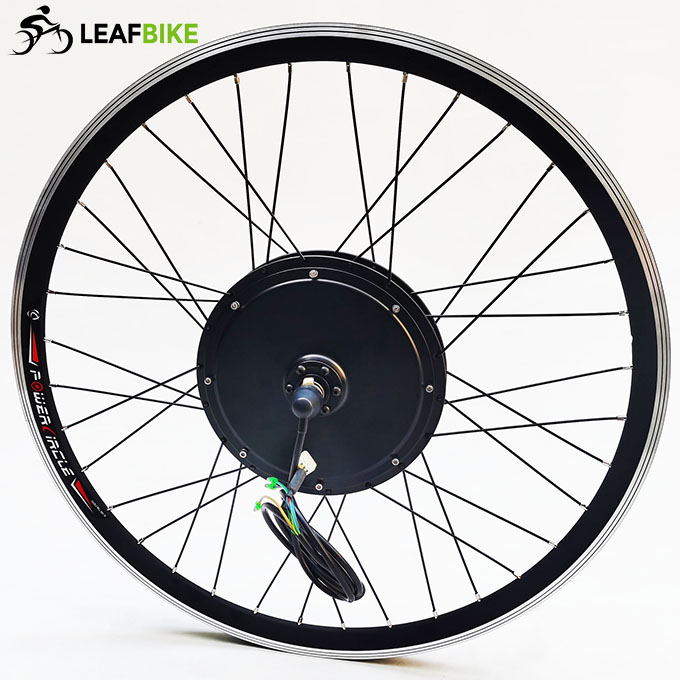

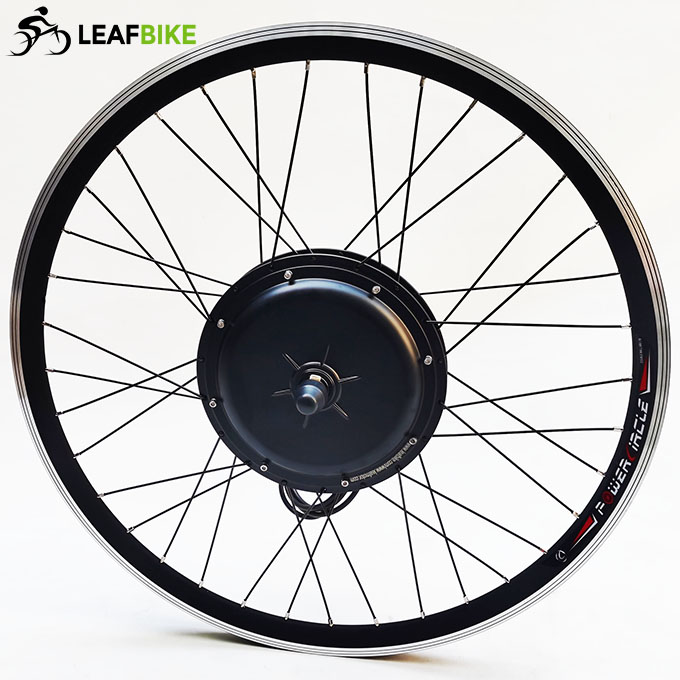

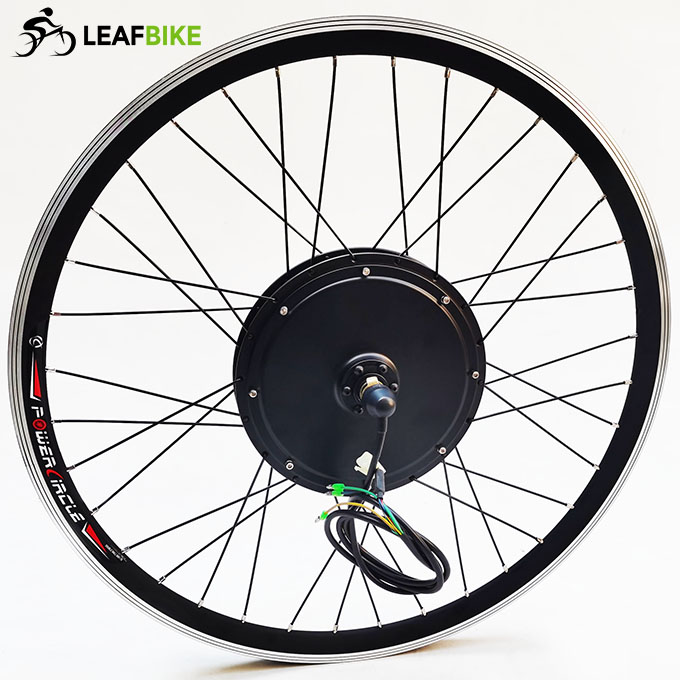

700c 36V 750W front electric bike motor wheel

Item ID #LBM700C36750FN
$215.00 $265.00
    Please select the information you wantX
Quantity :
Maybe You Need These
Maybe You Need These
BRAND NEW LEAF BIKE 2023 Version Black Lightning Brushless, Gearless hub motor!
New ULTRA powerful and efficient Gearless motor custom made with higher grade laminations, wider magnet stack, high speed NSK bearings, Honey well hall sensors, more copper fill, and all out higher performance. We went through all the stops to make this motor the absolute best hub motor on the market.

This 700c 36V 750W front electric bike motor wheel has the more acceleration at low end, better mid range, and more top end. Also offer this wheel professionally laced into our double wall aluminum rims with 12g spokes.  Message us for details. 20", 24", 26", 27.5"(650b), 700c , 28" & 29 inch sizes are available.

Size: 700c front hub motor wheel

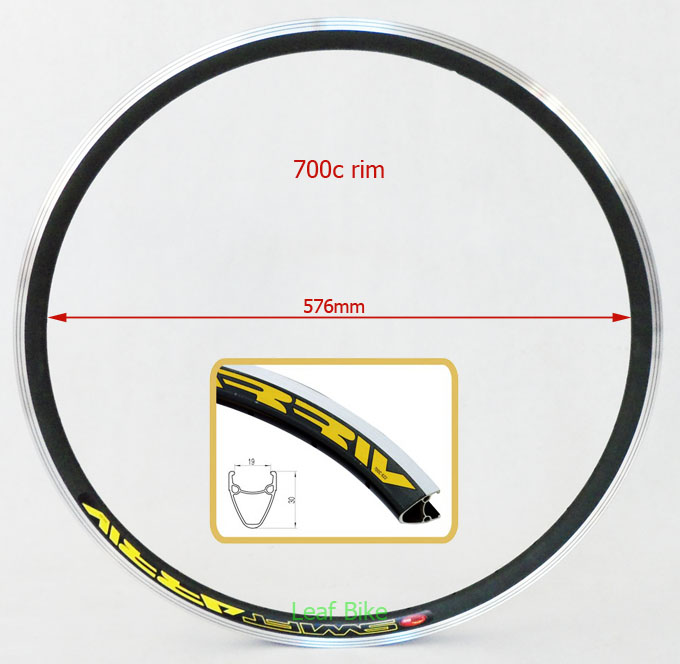

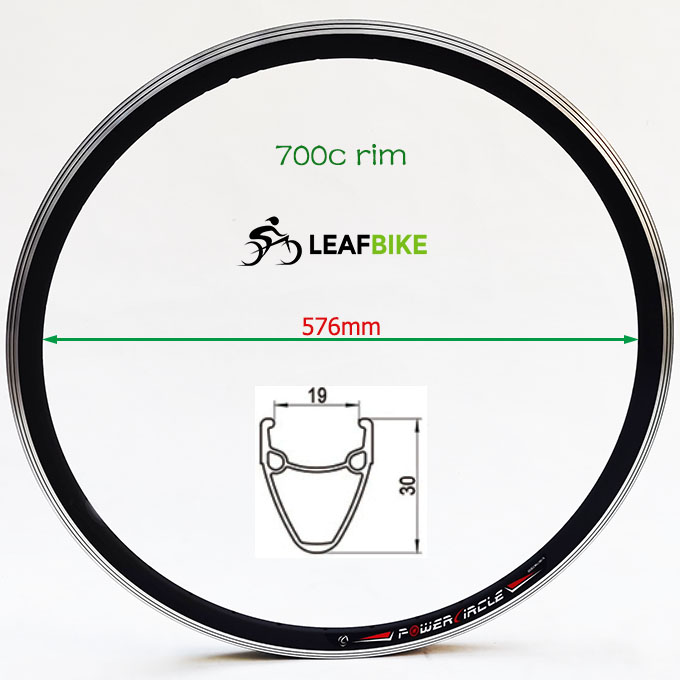

Rim: 700c double wall alloy
Spoke: 12 gauge / 184mm Length × 36 pcs
Motor Type: brushless gearless dc motor
Voltage: 36V
Power: 750W
Efficiency: 87.5%
RPM: 588
Mechanical brake: Disk or V
Cable location: shaft end, Left
Cable length:160cm / 63"
Install: spacing of 100mm fork
Noise: < 60 db
Surface: Black painted
Net weight: 7.25Kg / 16 lbs

Package Content:
1 x 700c 36V 750W front electric bike motor wheel

Package Size: 66cm L x 66cm W x 25cm H
Package Type: Cardboard Box

Notice:The packaging volume weight is greater than the actual weight.
750W Front Drw.
36v 750w front hub motor drawing
Performance Data:
Recommended Products: Torque Arm
Why do you need a torque arm? Because as hard as your tire is straining to go forwards,  your axle is straining to go backwards. Torque arms provide increased strength at the axle and are used to help prevent the axle from spinning out inside the drop outs. If the axle spins, then the electric wires that come out of the axle also spin and break or get stretched and pulled out of the motor.
torque arm
