Description

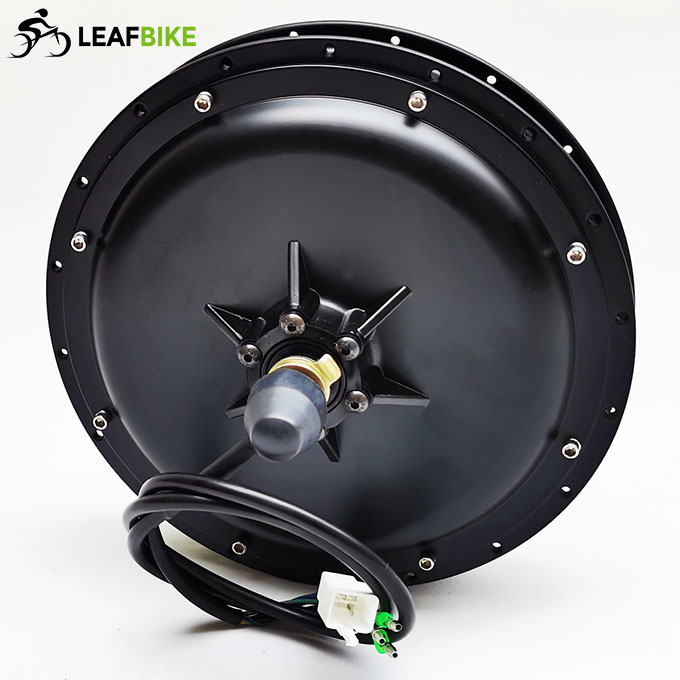

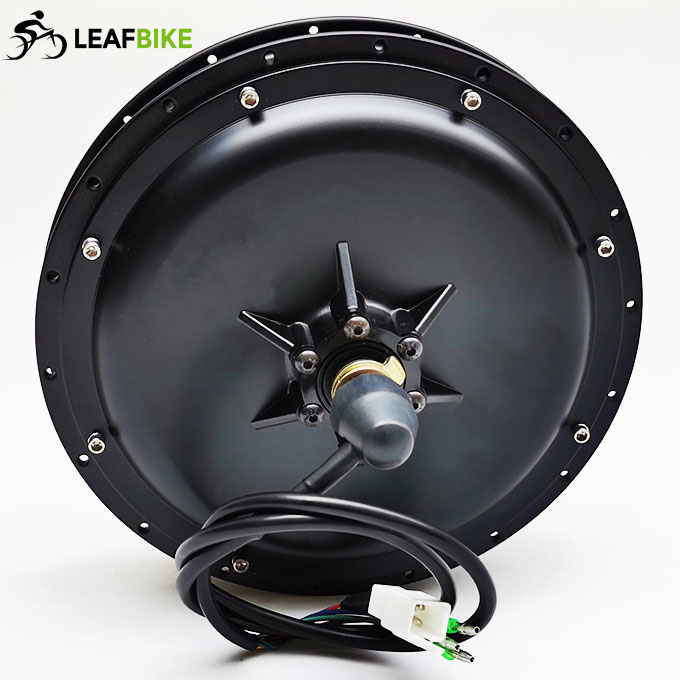

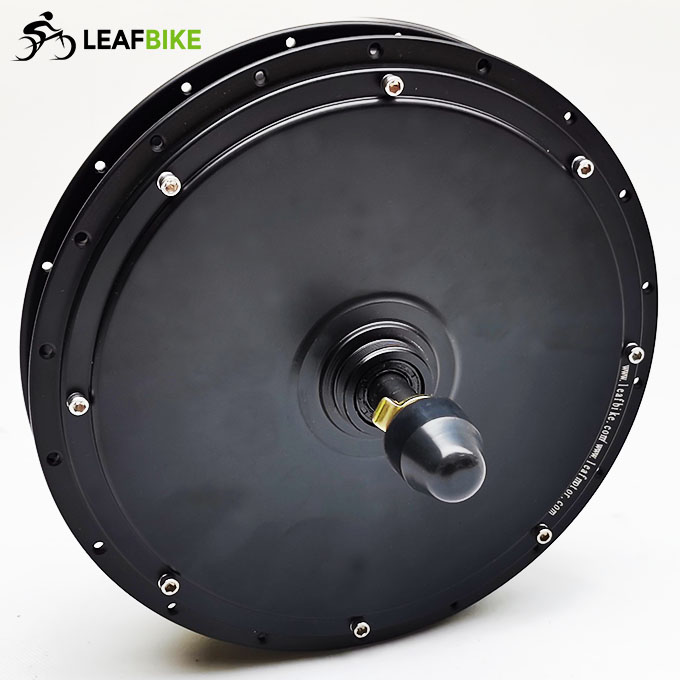

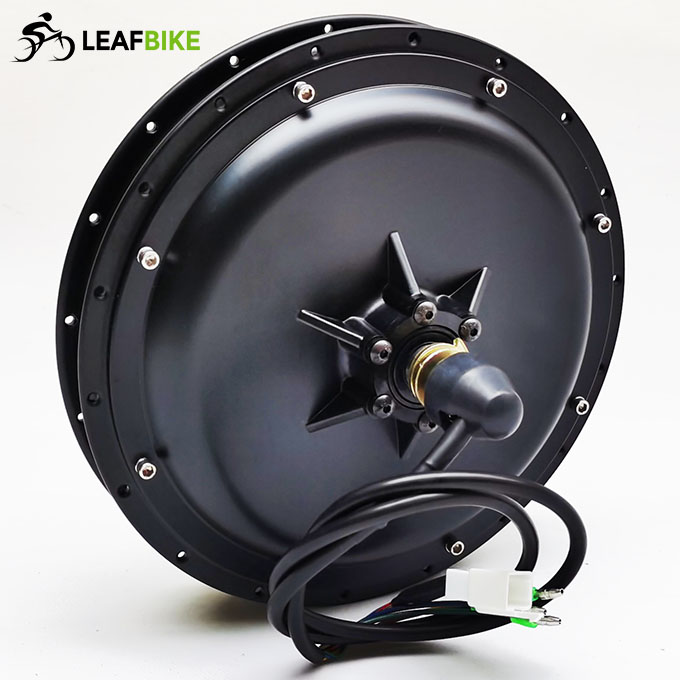

BRAND NEW LEAF BIKE 2022 Version Black Lightning Brushless, Gearless 48V / 52V 1000W hub motor !
New powerful and efficient Gearless motor custom made with higher grade laminations, wider magnet stack, high speed bearings, Honey well hall sensors, more copper fill, and all out higher performance. We went through all the stops to make this motor the absolute best hub motor on the market.

This 48V / 52V 1000W rear spoke electric bike motor has the more acceleration at low end, better mid range, and more top end. Also offer this wheel professionally laced into our double wall aluminum rims with 12g spokes.  Message us for details. 20", 24", 26", 27.5"(650b), 700c, 28" & 29 inch sizes are available.

Detail:
Motor Type: electric bike motor
Voltage: 48V / 52V
Power: 1000W
Max efficiency: 90.5%
RPM: 731
Mechanical brake: Disk or V
Cable location: shaft end , Left side
Cable length:100cm / 40"
Install: spacing of 135mm rear fork
Noise: < 60 db
Surface: Black painted
Net weight: 6.76 kg / 14.87 lbs
Gross weight: 7.36 kg ( after packing )

Package Content:
1 x 48V / 52V 1000W rear spoke electric bike motor
Package Size: 28cm L x 25cm W x 30cm H
Package Type: Cardboard Box
Share Video:
26 inch 48v 1000w rear electric hub motor kit
Wire Diagram:
rear electric hub motor - bike conversion kit - wire diagram
1000W Rear Drw.
750w-1000w-rear-electric-bike-motor-drawing
Performance Data:
1000w-hub-motor-curve-data
Rotor Part 1:
48v winding rotor part 1
Rotor Part 2:
1000w winding rotor part 2
Install Motor:
1000w rear hub motor
